51939-137GLF

Description
Board Connector, 31 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE
CategoryThe connector    The connector
File Size246KB,4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

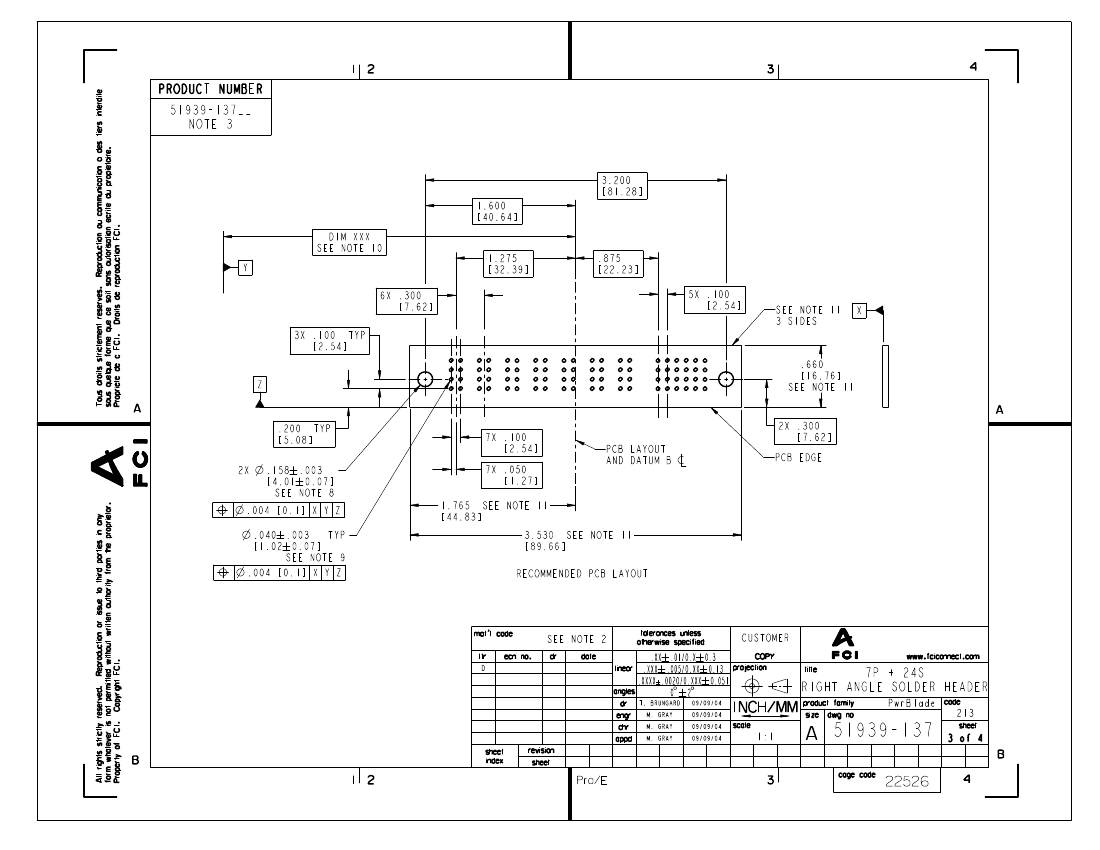

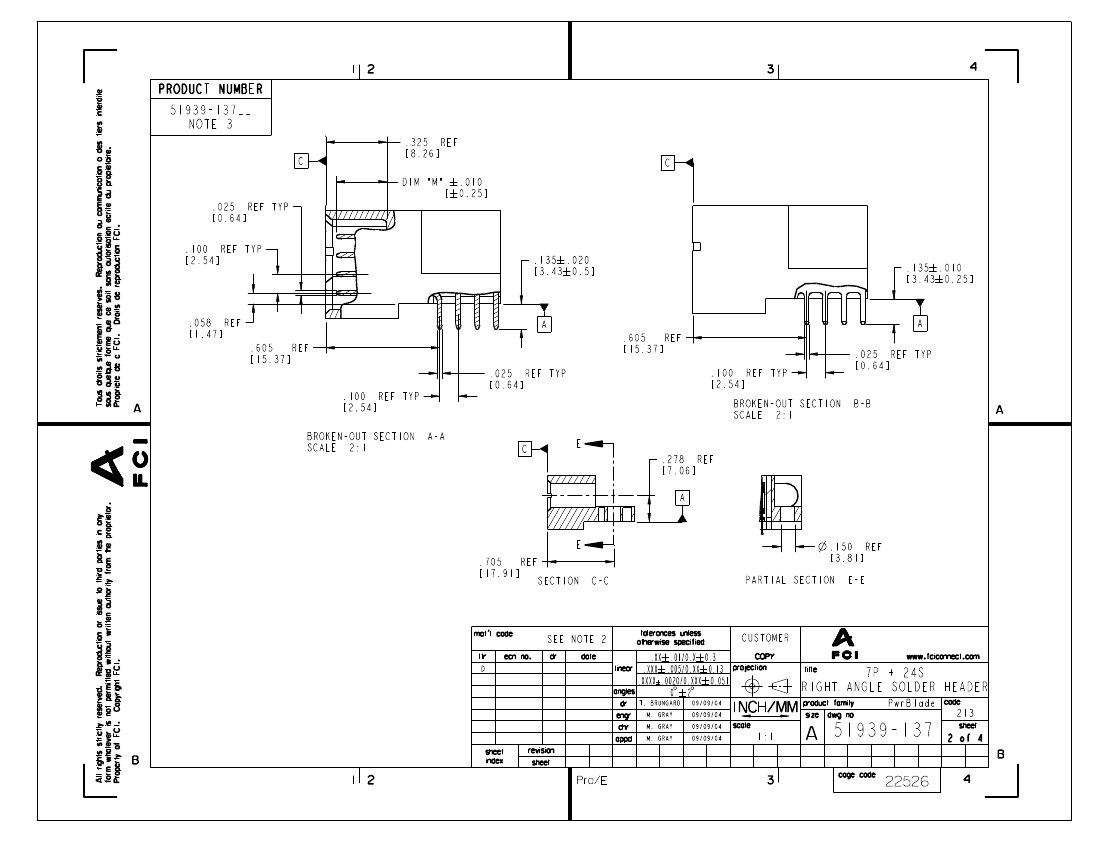

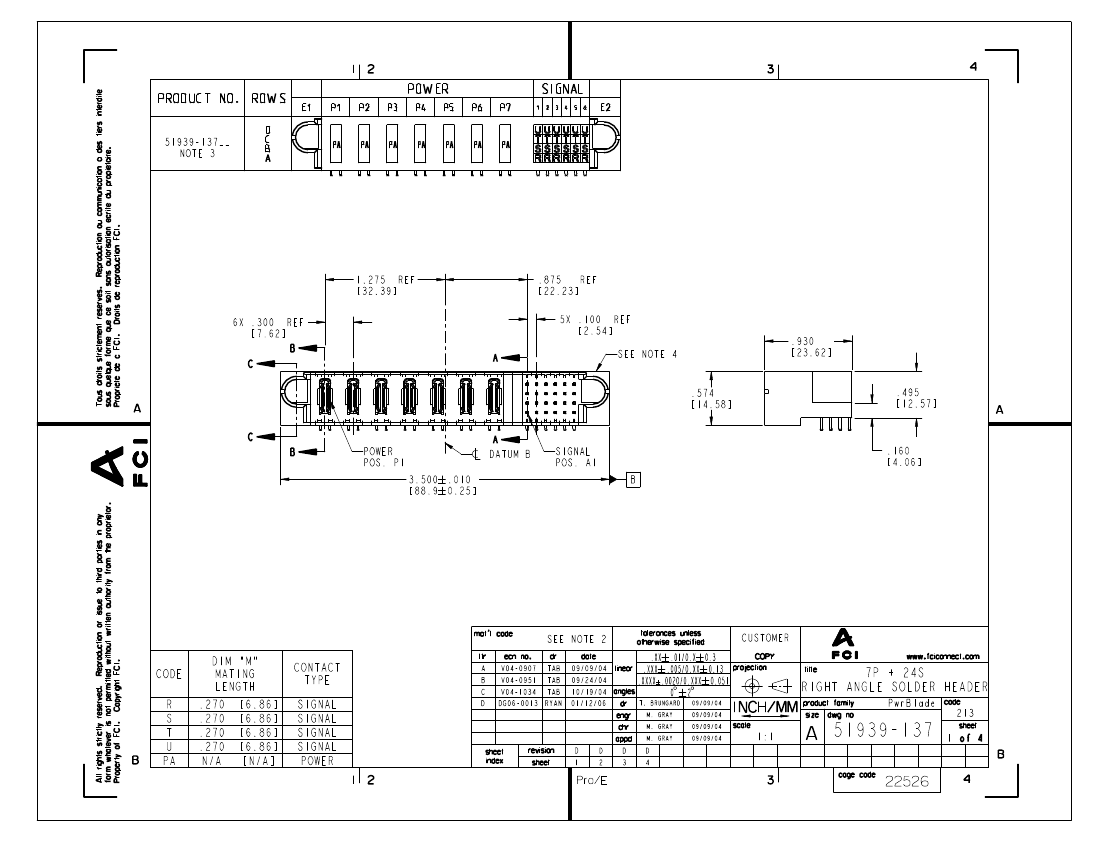

51939-137GLF Overview

Board Connector, 31 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE

51939-137GLF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAmphenol
package instructionLEAD FREE
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresTERMINAL PITCH FOR POWER CONTACS: 7.62 MM
Board mount optionsHOLE .138-.163
body width0.574 inch
subject depth0.93 inch
body length3.5 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact arrangementS24P7
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
Contact resistance20 mΩ
Contact styleHYBRID
DIN complianceNO
Dielectric withstand voltage1000VDC V
Durability200 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.973 N
Insulation resistance500000000 Ω
insulator materialGLASS FILLED THERMOPLASTIC
MIL complianceNO
Manufacturer's serial number51939
Mixed contactsYES
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
Number of rows loaded4
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.135 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts31
UL Flammability Code94V-0
Evacuation force-minimum value.1668 N
PDM: Rev:D
STATUS:
Released
Printed: Dec 20, 2010
.

51939-137GLF Related Products

51939-137GLF 51939-137LF 51939-137
Description Board Connector, 31 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE CONN HEADER 7P&24S R/A SOLDER Board Connector, 31 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
Is it Rohs certified? conform to conform to incompatible
Maker Amphenol Amphenol Amphenol
Reach Compliance Code compliant compliant compliant
ECCN code EAR99 EAR99 EAR99
Other features TERMINAL PITCH FOR POWER CONTACS: 7.62 MM TERMINAL PITCH FOR POWER CONTACS: 7.62 MM TERMINAL PITCH FOR POWER CONTACS: 7.62 MM
Board mount options HOLE .138-.163 HOLE .138-.163 HOLE .138-.163
body width 0.574 inch 0.574 inch 0.574 inch
subject depth 0.93 inch 0.93 inch 0.93 inch
body length 3.5 inch 3.5 inch 3.5 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact arrangement S24P7 S24P7 S24P7
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Contact point gender MALE MALE MALE
Contact material NOT SPECIFIED COPPER ALLOY NOT SPECIFIED
Contact resistance 20 mΩ 20 mΩ 20 mΩ
Contact style HYBRID HYBRID HYBRID
DIN compliance NO NO NO
Dielectric withstand voltage 1000VDC V 1000VDC V 1000VDC V
Durability 200 Cycles 200 Cycles 200 Cycles
Filter function NO NO NO
IEC compliance NO NO NO
maximum insertion force .973 N .973 N .973 N
Insulation resistance 500000000 Ω 500000000 Ω 500000000 Ω
insulator material GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC
MIL compliance NO NO NO
Mixed contacts YES YES YES
Installation option 1 LOCKING LOCKING LOCKING
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD
Number of connectors ONE ONE ONE
Number of rows loaded 4 4 4
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Guideline UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL
Terminal length 0.135 inch 0.135 inch 0.135 inch
Terminal pitch 2.54 mm 2.54 mm 2.54 mm
Termination type SOLDER SOLDER SOLDER
Total number of contacts 31 31 31
UL Flammability Code 94V-0 94V-0 94V-0
Evacuation force-minimum value .1668 N .1668 N .1668 N
package instruction LEAD FREE LEAD FREE -
Manufacturer's serial number 51939 - 51939
