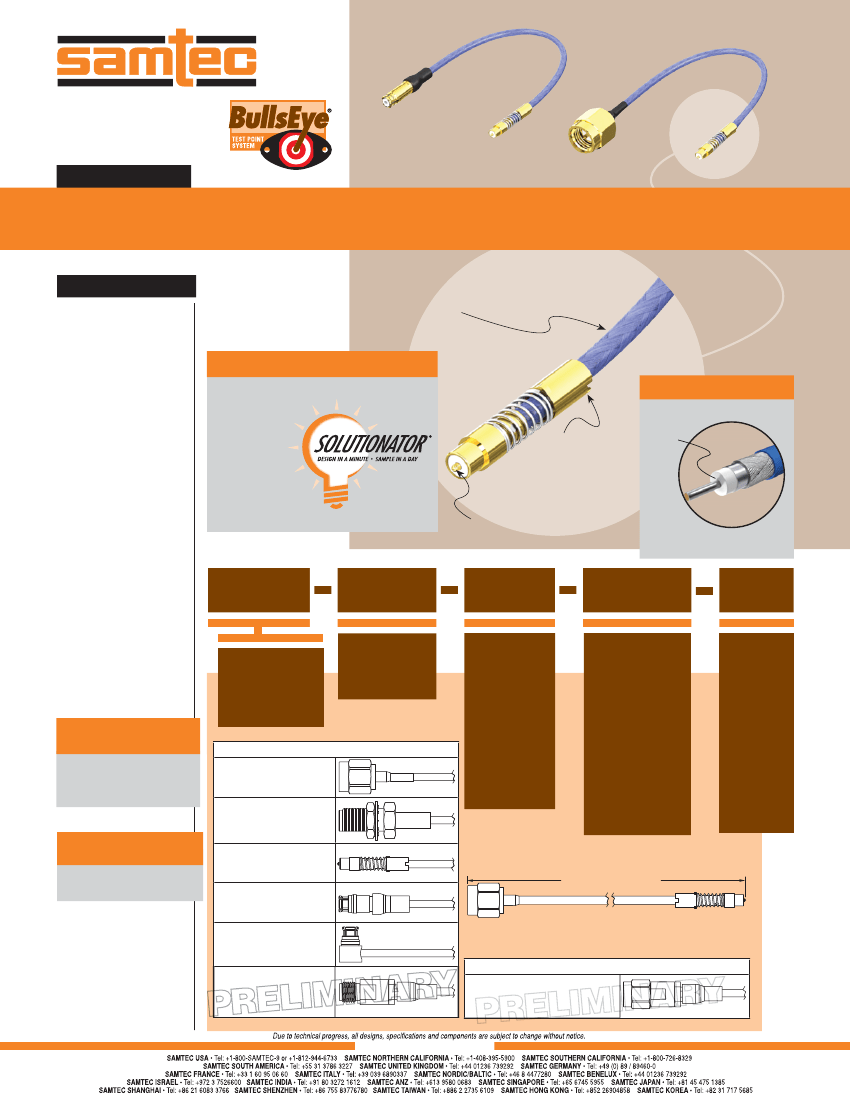

RF-13 (Rev 25AUG14)
BE25S–00SJ7–02.0–02–0305
BE25S SERIES
BE25S–01SP1–02.0–02–0305
50Ω MICROWAVE CABLE ASSEMBLIES
SPECIFICATIONS
For complete specifications
see www.samtec.com?BE25S
Mates with:
BAR, SMA, SMP,
292PS, BSR
High performance 25 AWG
rugged solid dielectric microwave cable
RF Connector:
Outer Contact Material:
Brass (SMA), Gold (SMP)
Center Contact Material:
Brass (SMA Plug)
BeCu (SMA & SMP Jack)
Insulator Material:
PTFE
Operating Temperature:
-65°C to +165°C
Insulator Resistance:
5,000 MΩ
Impedance:
50Ω
Frequency Range:
0~20 GHz (SMA),
DC to 20 GHz (SMP)
V.S.W.R:
1.3 max
RoHS Compliant:
Yes
THINK OUTSIDE THE CATALOG
• Create a full system:
cable assembly
and board
level mates,
50Ω and
75Ω
solutions
• 24-hour
samples
on standard
products
• Visit: rf.samtec.com
APPLICATION
rugged
solid FEP
dielectric
Bull's Eye
®
termination with
SMA, SMA 2.92
or SMP end option
Cable assembly for
multi-position test point,
22-position standard
MWC-2550-01
Cable:
Lower cost alternative
to semi-flexible cables.
Cable Type:
Low Loss Microwave Coax
Gauge:
25 AWG Silver plated Copper
Dielectric:
Solid FEP
Jacket Material:
FEP
Impedance:
50Ω ±1Ω
Propagation Delay:
3.84 nsec/meter
Capacitance:
75.4 pF/meter
CABLE
TYPE
END 2
OPTION
Specify
END 2
OPTION
from chart
PHASE
MATCHING
NO. OF
CABLES
OVERALL
LENGTH
–02.0
= 2.0 Pico-second
(Not available
with -0457 & -0914
cable length)
–02
= 2 phase matched
cable assemblies
BE25S
= Rugged solid FEP
Dielectric 25 AWG,
MWC-2550-01
Microwave Cable
–0152
= (152,4 mm)
6.00"
–04
= 4 phase matched
cable assemblies
–0305
= (304,8 mm)
12.00"
ALSO AVAILABLE
(MOQ Required)
• Additional plating
options
Contact Samtec.
END 2 OPTIONS
–01SP1 = SMA
Straight Plug
(30µ" (0,76 µm) Gold on Center
Contact, Gold Flash on Shell)
–01BJ1 = SMA
Bulkhead Jack
(30µ" (0,76 µm) Gold on Center
Contact, Gold Flash on Shell)
–SCC41 = Bull's Eye
®
Test Point
(30µ" (0,76 µm) Gold on Center
Contact, Gold Flash on Shell)
–00SJ7 = SMP
Straight Jack
(10µ" (0,25 µm) Gold on Center
Contact, Gold Flash on Shell)
–00RJ7 = SMP
Right Angle Jack
(10µ" (0,25 µm) Gold on Center
Contact, Gold Flash on Shell)
–05.0
= 5.0 Pico-second
(Not available with
-0914 cable length)
–06
= 6 phase matched
cable assemblies
–0457
= (457,2 mm)
18.00"
–10.0
= 10.0 Pico-second
–08
= 8 phase matched
cable assemblies
–0914
= (914,4 mm)
36.00"
EXTRACTION
TOOLS
• –SCC41: CAT-EX-SCC-01
• SMP: CAT-EX-SMP-01
XXXX = OAL (millimeters)
END 2
PROBE END
Note:
Cable lengths longer
than 40.00" (1 meter) are not
supported with S.I. test data.
Note:
Some lengths, styles
and options are non-standard,
non-returnable.
–92SJP = SMA 2.92
traight Ja
Straight Jack
(30µ" (0,76
(30 (0, 6 µm) Gol on C
G
Center
Gold
Contact, Passiva
act Passivated St nless
ated Stainless
tain
Contact, P
Ste on Shell)
eel
Steel
END 2 OPTIONS
–92SPP = SMA 2.92
Straight Pl
Straight Plug
t
(30µ" (0,76 µ ) Gold on Center Contact,
0µ" (0 6 µm)
ente Contac
er
c
Passivated Stainless Stee on Shell)
ss
d St
tainless Steel o
el
WWW.SAMTEC.COM
