P54FCT833CTDB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> P54FCT833CTDB

P54FCT833CTDB: DescriptionRegistered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDIP24; Categorylogic logic; File Size582KB，6 Pages; ManufacturerPyramid Semiconductor Corporation; Websitehttp://www.pyramidsemiconductor.com/

Download Datasheet Parametric Compare View All

P54FCT833CTDB Overview

Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDIP24

P54FCT833CTDB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Pyramid Semiconductor Corporation
package instruction	DIP, DIP24,.3
Reach Compliance Code	unknown
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	R-XDIP-T24
JESD-609 code	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.032 A
Number of digits	8
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-DRAIN/3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Prop。Delay @ Nom-Sup	7 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE

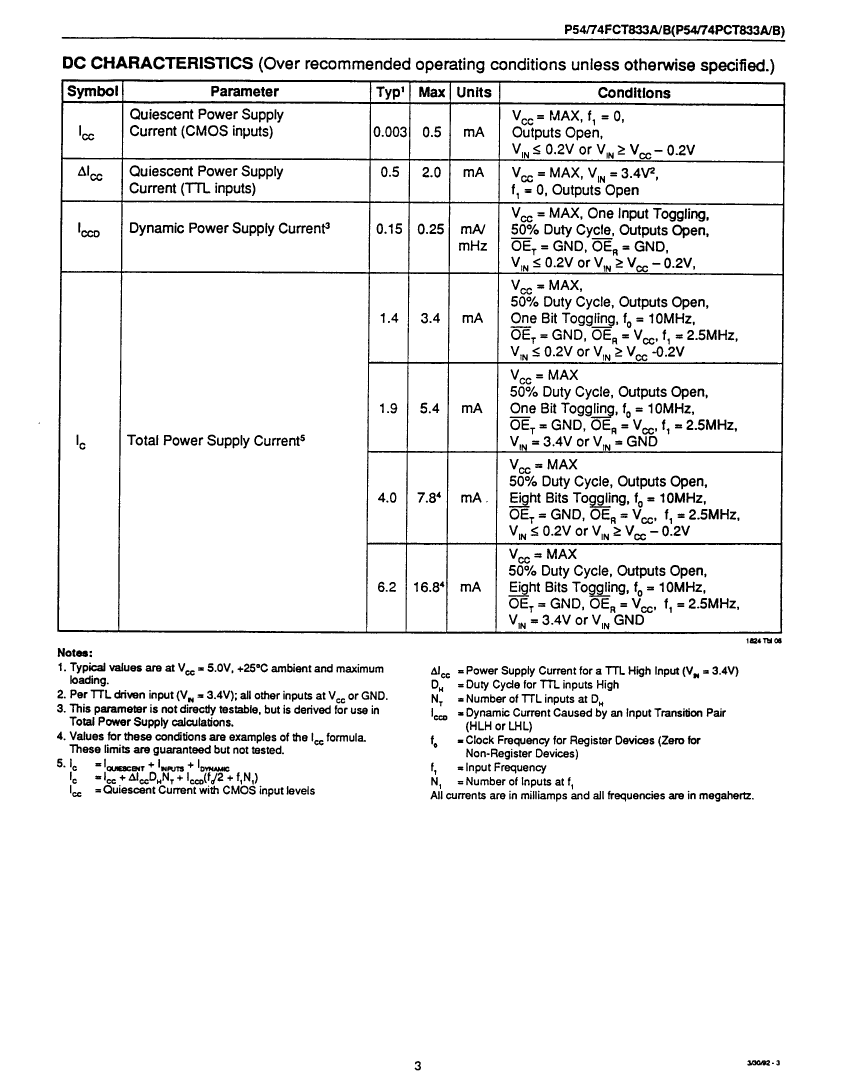

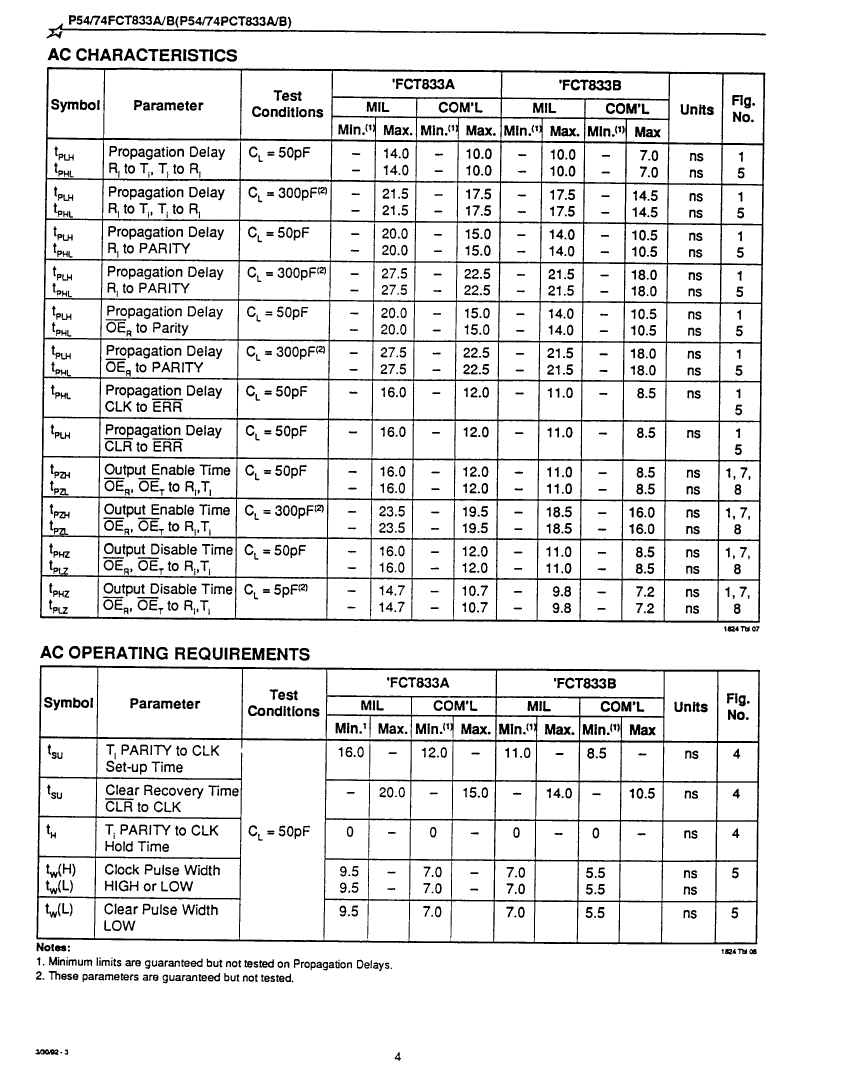

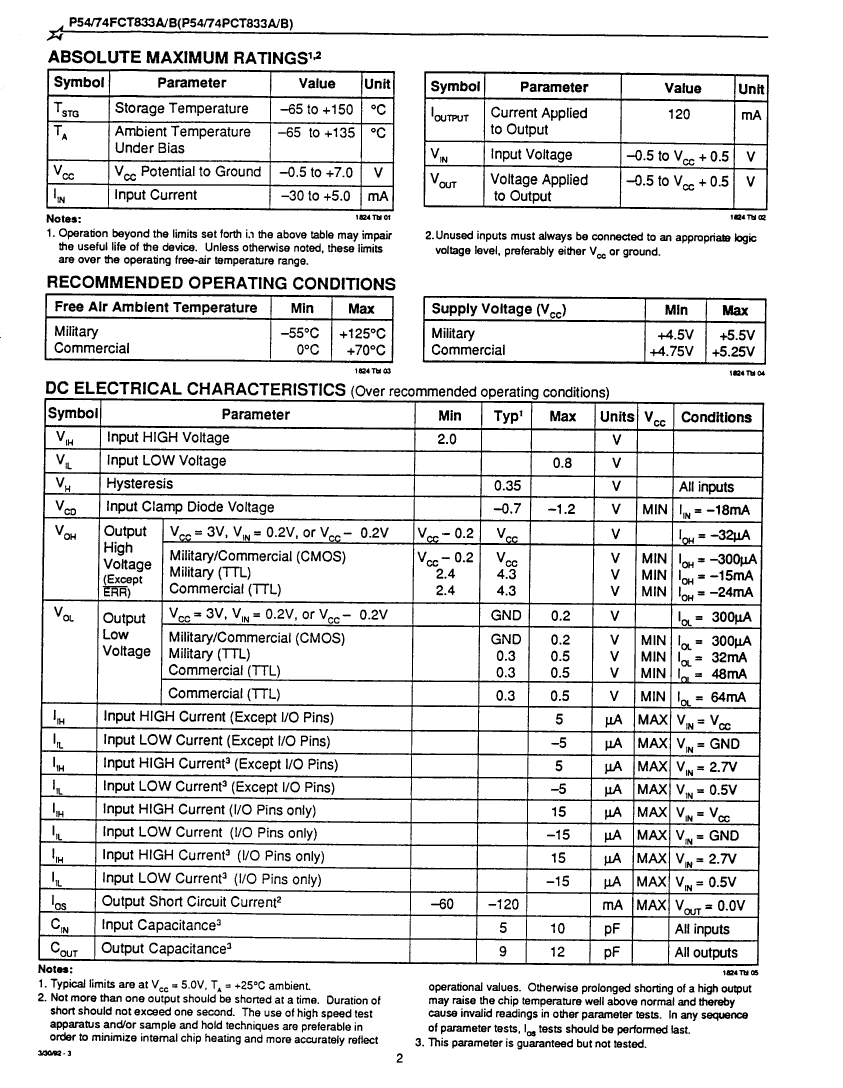

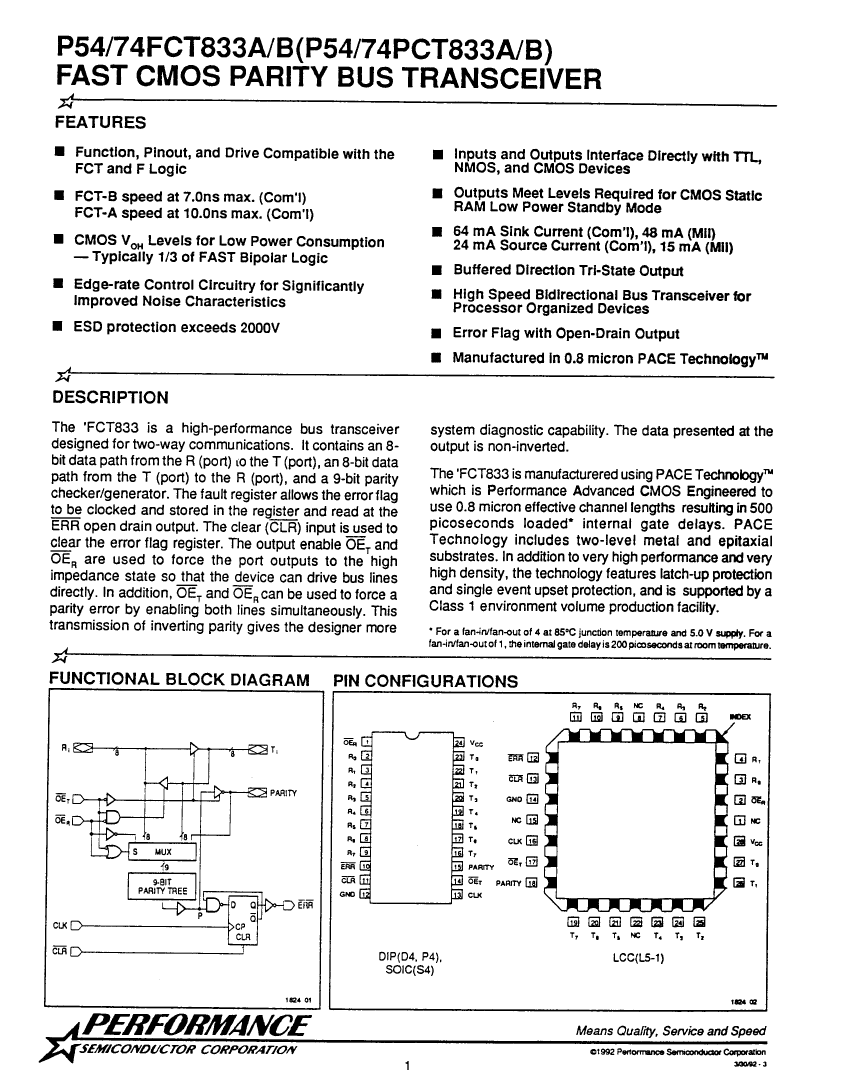

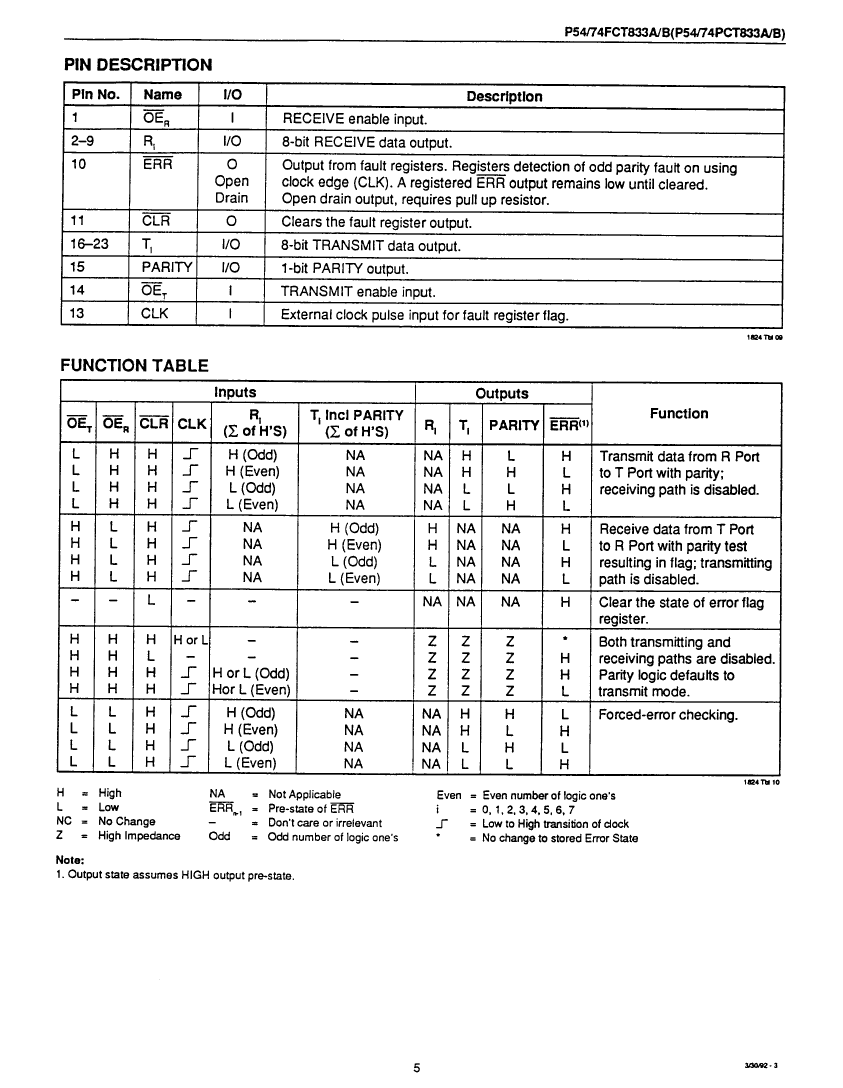

Preview

Download Datasheet

View All

P54FCT833CTDB Related Products

	P54FCT833CTDB	P54FCT833ATDB	P54FCT833BTDB	P54FCT833BTLB	P54FCT833CTLB
Description	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDIP24	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDIP24	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CDIP24	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CQCC28	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CQCC28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation
package instruction	DIP, DIP24,.3	DIP, DIP24,.3	DIP, DIP24,.3	QCCN, LCC28,.35X.55	QCCN, LCC28,.35X.55
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Control type	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	R-XDIP-T24	R-XDIP-T24	R-XDIP-T24	R-XQCC-N28	R-XQCC-N28
JESD-609 code	e0	e0	e0	e0	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.032 A	0.032 A	0.032 A	0.032 A	0.032 A
Number of digits	8	8	8	8	8
Number of functions	1	1	1	1	1
Number of terminals	24	24	24	28	28
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	OPEN-DRAIN/3-STATE	OPEN-DRAIN/3-STATE	OPEN-DRAIN/3-STATE	OPEN-DRAIN/3-STATE	OPEN-DRAIN/3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	QCCN	QCCN
Encapsulate equivalent code	DIP24,.3	DIP24,.3	DIP24,.3	LCC28,.35X.55	LCC28,.35X.55
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER
power supply	5 V	5 V	5 V	5 V	5 V
Prop。Delay @ Nom-Sup	7 ns	14 ns	10 ns	10 ns	7 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	QUAD	QUAD
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
