Part Number

Search

51939-275LF

Description
Board Connector, 24 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Plug, LEAD FREE
CategoryThe connector    The connector
File Size286KB,4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

51939-275LF Online Shopping

Suppliers Part Number Price MOQ In stock
51939-275LF - - View Buy Now

51939-275LF Overview

Board Connector, 24 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Plug, LEAD FREE

51939-275LF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAmphenol
package instructionLEAD FREE
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time6 weeks
Other featuresTERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Board mount optionsHOLE .086-.098
body width0.574 inch
subject depth0.93 inch
body length3.15 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact arrangementS16P8
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialCOPPER ALLOY
Contact resistance20 mΩ
Contact styleHYBRID
DIN complianceNO
Dielectric withstand voltage2500VDC V
Durability200 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.973 N
Insulation resistance500000000 Ω
insulator materialGLASS FILLED THERMOPLASTIC
MIL complianceNO
Mixed contactsYES
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
Number of rows loaded4
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.135 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts24
UL Flammability Code94V-0
Evacuation force-minimum value.17792 N

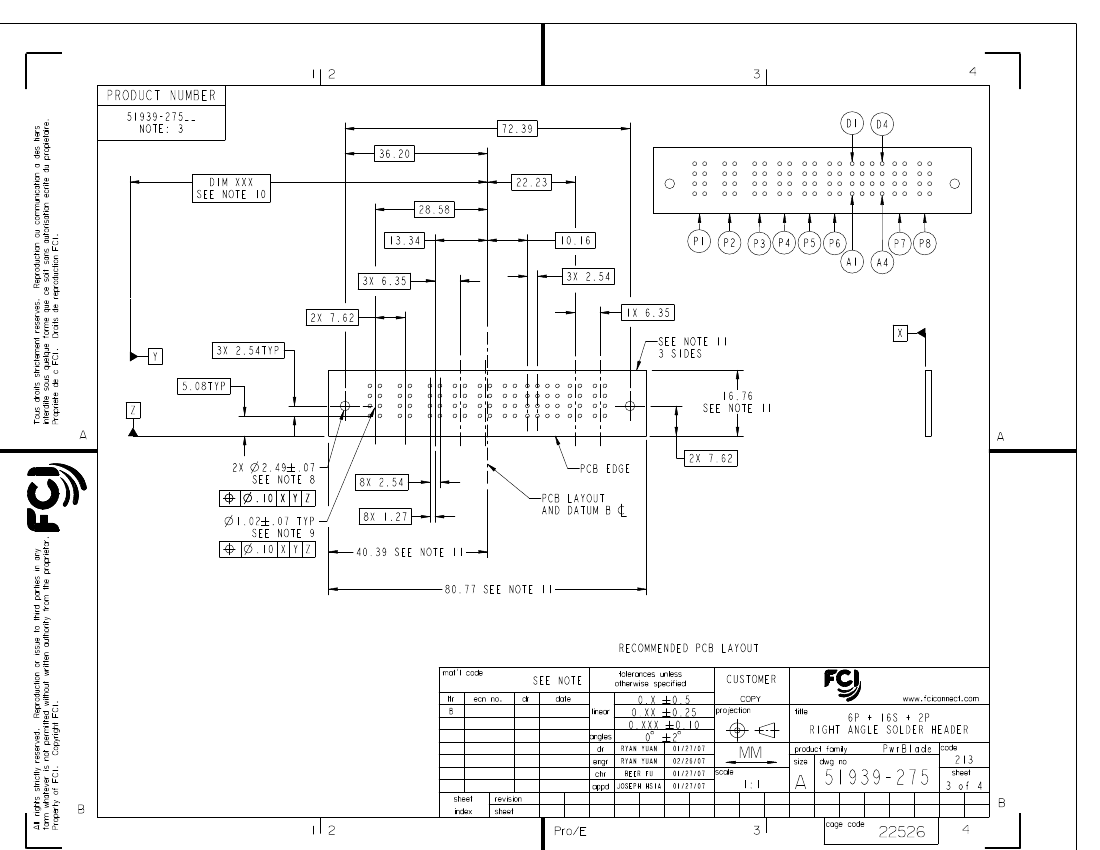

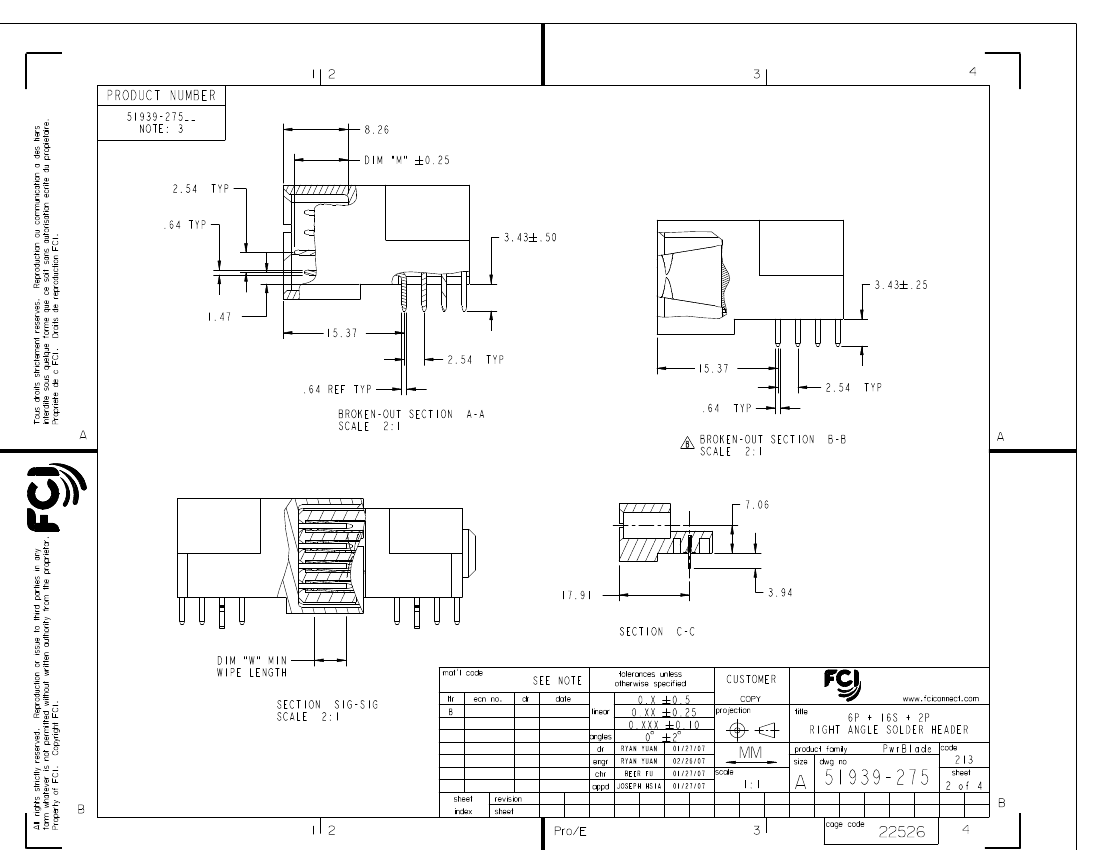

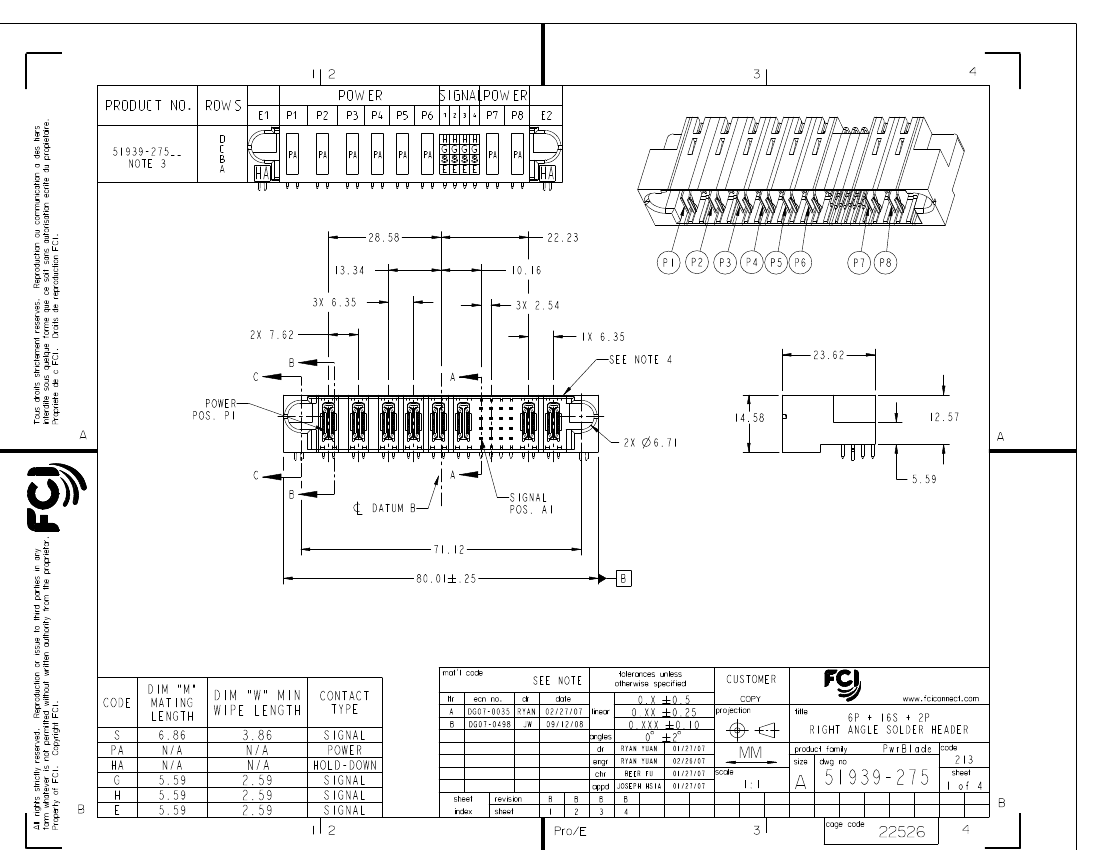

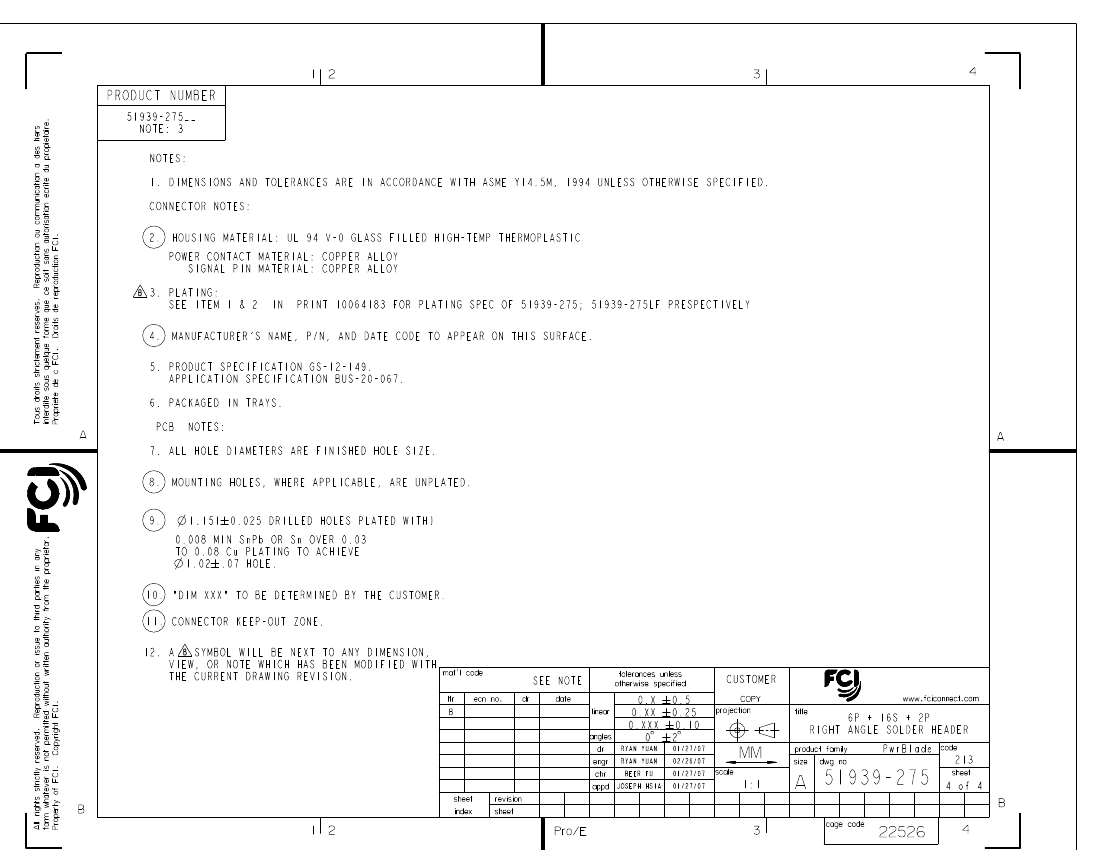

PDM: Rev:B
STATUS:
Released
Printed: Dec 20, 2010
.

51939-275LF Related Products

51939-275LF 51939-275
Description Board Connector, 24 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Plug, LEAD FREE Board Connector, 24 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Plug
Is it Rohs certified? conform to incompatible
Maker Amphenol Amphenol
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
Other features TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Board mount options HOLE .086-.098 HOLE .086-.098
body width 0.574 inch 0.574 inch
subject depth 0.93 inch 0.93 inch
body length 3.15 inch 3.15 inch
Body/casing type PLUG PLUG
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact arrangement S16P8 S16P8
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED
Contact point gender MALE MALE
Contact material COPPER ALLOY NOT SPECIFIED
Contact resistance 20 mΩ 20 mΩ
Contact style HYBRID HYBRID
DIN compliance NO NO
Dielectric withstand voltage 2500VDC V 2500VDC V
Durability 200 Cycles 200 Cycles
Filter function NO NO
IEC compliance NO NO
maximum insertion force .973 N .973 N
Insulation resistance 500000000 Ω 500000000 Ω
insulator material GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC
MIL compliance NO NO
Mixed contacts YES YES
Installation option 1 LOCKING LOCKING
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
Number of connectors ONE ONE
Number of rows loaded 4 4
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE
Rated current (signal) 3 A 3 A
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal length 0.135 inch 0.135 inch
Terminal pitch 2.54 mm 2.54 mm
Termination type SOLDER SOLDER
Total number of contacts 24 24
UL Flammability Code 94V-0 94V-0
Evacuation force-minimum value .17792 N .17792 N
