SEMICONDUCTOR
TECHNICAL DATA
CONSTANT VOLTAGE REGULATION APPLICATION.
REFERENCE VOLTAGE APPLICATION.
CATHODE MARK
KDZ2.0EV~36EV
ZENER DIODE
SILICON EPITAXIAL PLANAR DIODE
C
1
E
FEATURES
・Small
Package : ESC
・Sharp
Breakdown Characteristic.
・Zener
Voltage Tolerance
- None Grade : About
±6%.
- Y Grade : About
±2.5%.
・Suffix
U
: Qualified to AEC-Q101.
ex) KDZ15EV-Y-RTK/HU
2
D
B
A
℃
MAXIMUM RATING (Ta=25℃)
CHARACTERISTIC

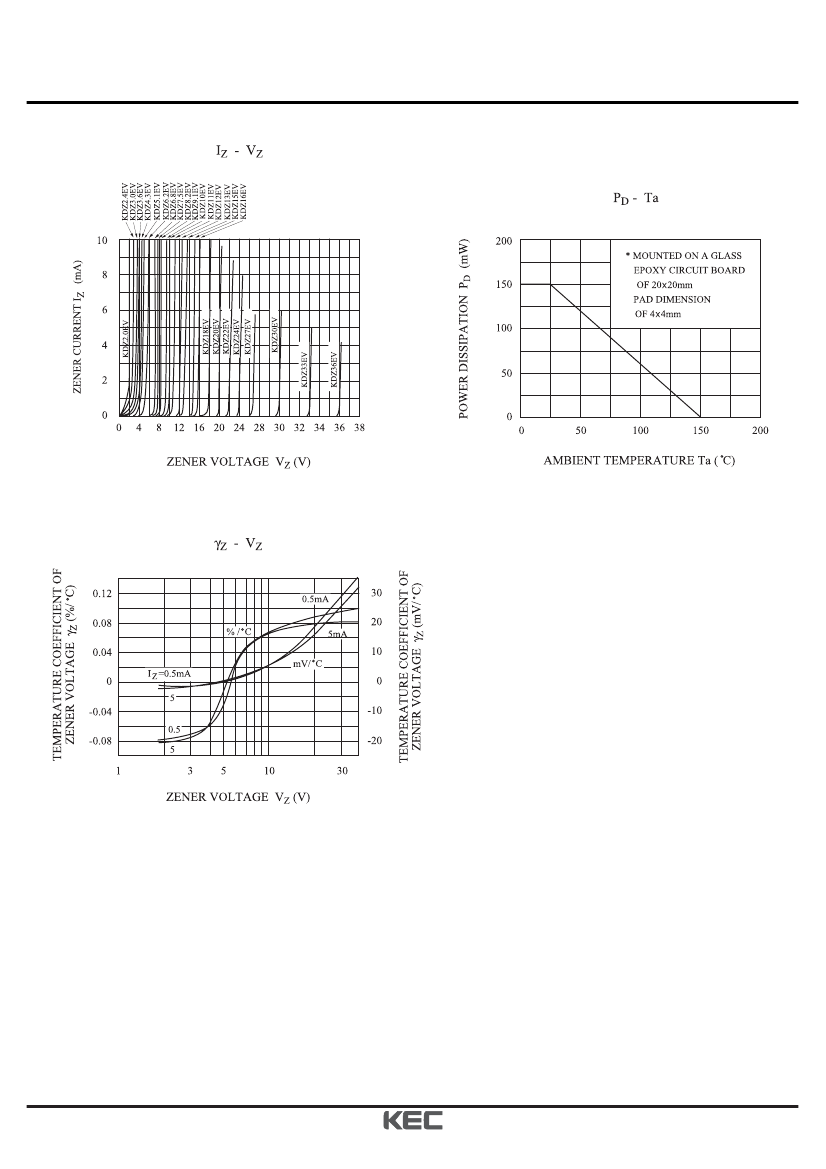

Power Dissipation
Junction Temperature
Storage Temperature Range
SYMBOL
P
D
*
T
j
T
stg
RATING
150
150
-55½150
UNIT
mW
℃
℃
DIM
A
B
C
D
E
F
G
MILLIMETERS
_
1.60 + 0.10
_
1.20 + 0.10
_
0.80 + 0.10
_ 0.05
0.30 +
_
0.60 + 0.10
_
0.13 + 0.05
_
0.20 + 0.10
ESC
* Mounted on a glass epoxy circuit board of 20×20㎜,
pad dimension of 4×4㎜.
**
Grade
None
Symbol
(Blank)
Type No.
Grade **
Y
Type No.
KDZ2.0EV
KDZ2.2EV
KDZ2.4EV
KDZ2.7EV
KDZ3.0EV
KDZ3.3EV
KDZ3.6EV
KDZ3.9EV
Marking
2A
2B
2C
2D
30
33
36
39
Type No.
KDZ4.3EV
KDZ4.7EV
KDZ5.1EV
KDZ5.6EV
KDZ6.2EV
KDZ6.8EV
KDZ7.5EV
KDZ8.2EV
Marking
43
47
51
56
62
68
75
82
Type No.
KDZ9.1EV
KDZ10EV
KDZ11EV
KDZ12EV
KDZ13EV
KDZ15EV
KDZ16EV
KDZ18EV
Marking
91
10
11
12
13
15
16
18
Type No.
KDZ20EV
KDZ22EV
KDZ24EV
KDZ27EV
KDZ30EV
KDZ33EV
KDZ36EV
-
Marking
20
22
24
27
A2
A3
A4
-
2018. 08. 08
Revision No : 11
G
F
G
1/4
