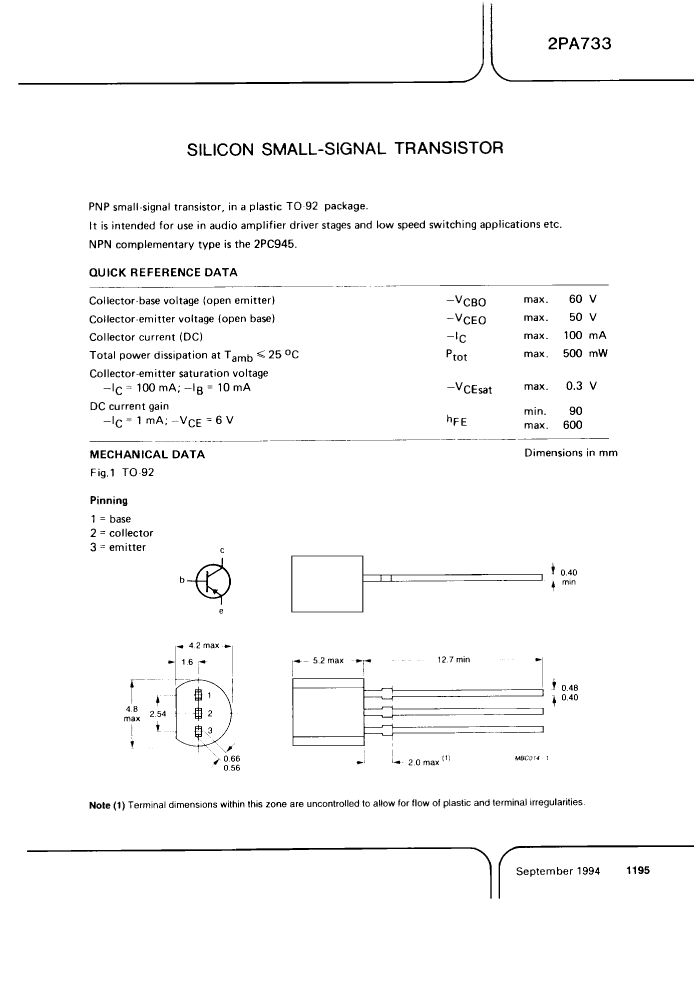

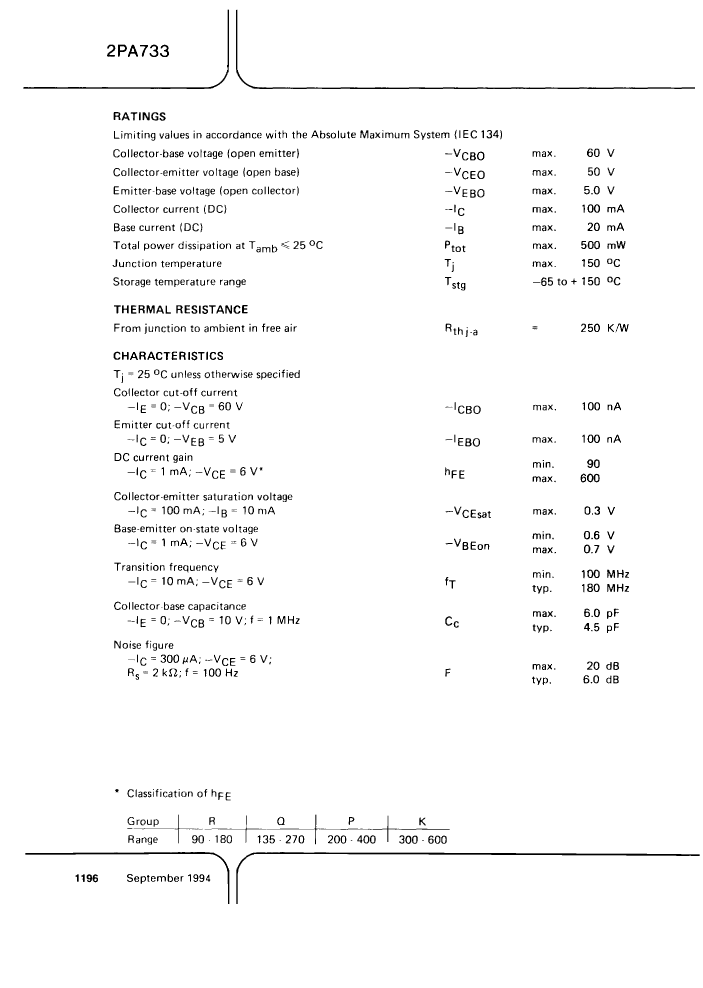

2PA733Q-AMMO: DescriptionTRANSISTOR 100 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92, BIP General Purpose Small Signal; CategoryDiscrete semiconductor The transistor; File Size38KB，2 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

2PA733Q-AMMO Overview

TRANSISTOR 100 mA, 50 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92, BIP General Purpose Small Signal

2PA733Q-AMMO Parametric

Parameter Name	Attribute value
package instruction	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum collector current (IC)	0.1 A
Collector-based maximum capacity	6 pF
Collector-emitter maximum voltage	50 V
Configuration	SINGLE
Minimum DC current gain (hFE)	135
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	180 MHz
VCEsat-Max	0.3 V
Base Number Matches	1
