2SC5257R datasheet, PDF - EEWORLD Datasheet

2SC5257R: DescriptionTRANSISTOR UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, 2-3J1A, 4 PIN, BIP RF Small Signal; CategoryDiscrete semiconductor The transistor; File Size1MB，2 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

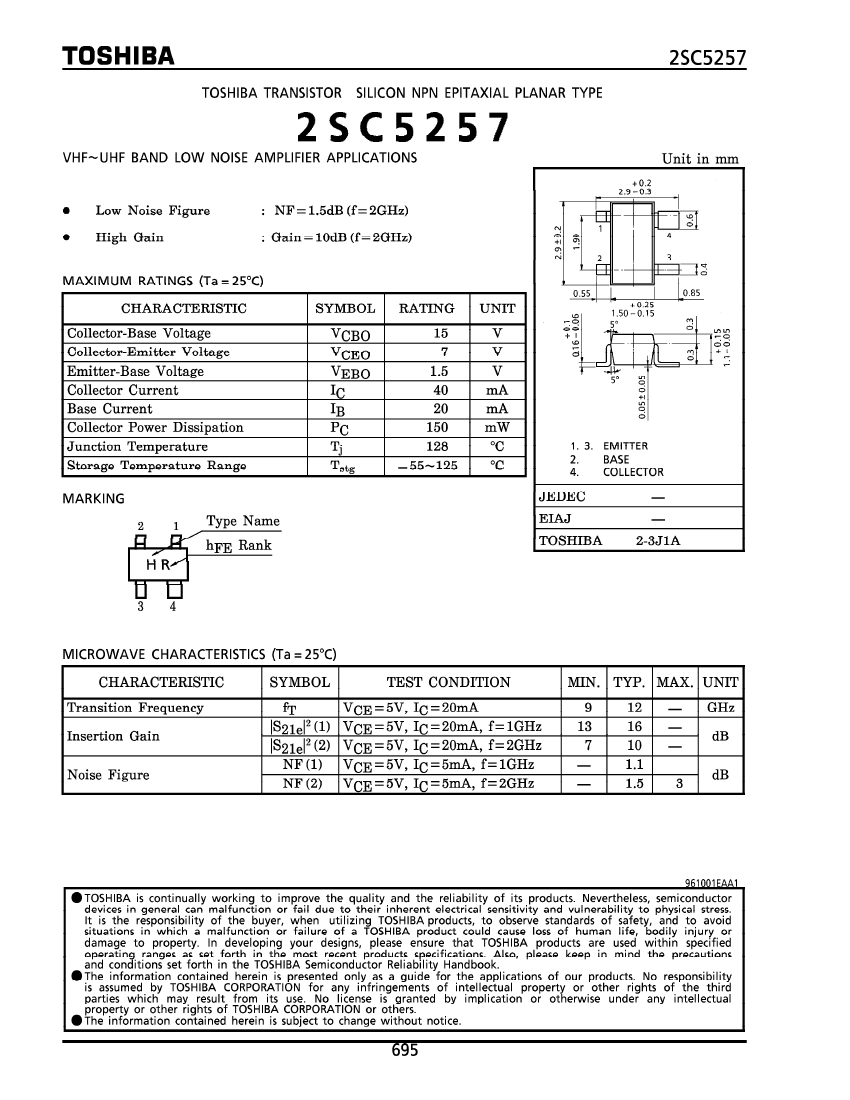

2SC5257R Overview

TRANSISTOR UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, 2-3J1A, 4 PIN, BIP RF Small Signal

Parameter Name	Attribute value
package instruction	SMALL OUTLINE, R-PDSO-G4
Contacts	4
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	LOW NOISE
Shell connection	COLLECTOR
Maximum collector current (IC)	0.04 A
Collector-based maximum capacity	0.85 pF
Collector-emitter maximum voltage	7 V
Configuration	SINGLE
Minimum DC current gain (hFE)	50
highest frequency band	ULTRA HIGH FREQUENCY BAND
JESD-30 code	R-PDSO-G4
JESD-609 code	e0
Number of components	1
Number of terminals	4
Maximum operating temperature	128 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.15 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	12000 MHz
Base Number Matches	1

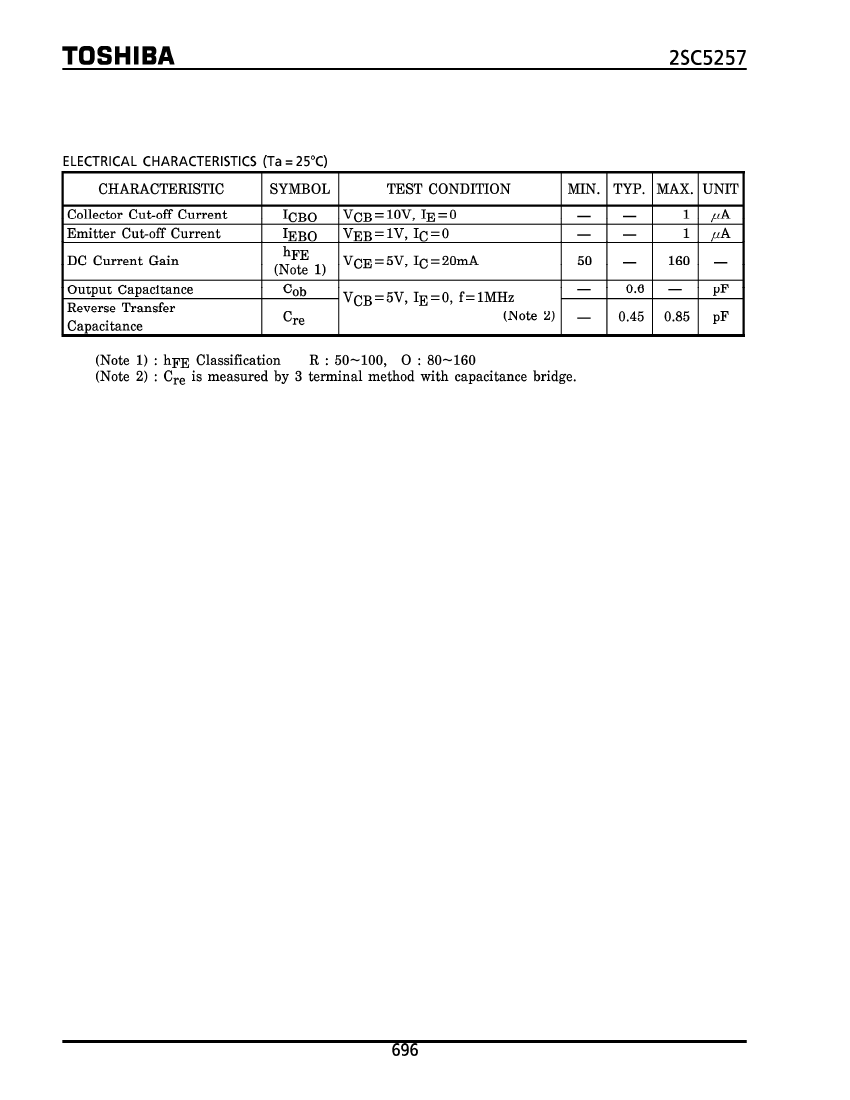

	2SC5257R	2SC5257O
Description	TRANSISTOR UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, 2-3J1A, 4 PIN, BIP RF Small Signal	TRANSISTOR UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, 2-3J1A, 4 PIN, BIP RF Small Signal
package instruction	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4
Contacts	4	4
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Other features	LOW NOISE	LOW NOISE
Shell connection	COLLECTOR	COLLECTOR
Maximum collector current (IC)	0.04 A	0.04 A
Collector-based maximum capacity	0.85 pF	0.85 pF
Collector-emitter maximum voltage	7 V	7 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	50	80
highest frequency band	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND
JESD-30 code	R-PDSO-G4	R-PDSO-G4
JESD-609 code	e0	e0
Number of components	1	1
Number of terminals	4	4
Maximum operating temperature	128 °C	128 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	NPN	NPN
Maximum power dissipation(Abs)	0.15 W	0.15 W
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
transistor applications	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	12000 MHz	12000 MHz
Base Number Matches	1	1
