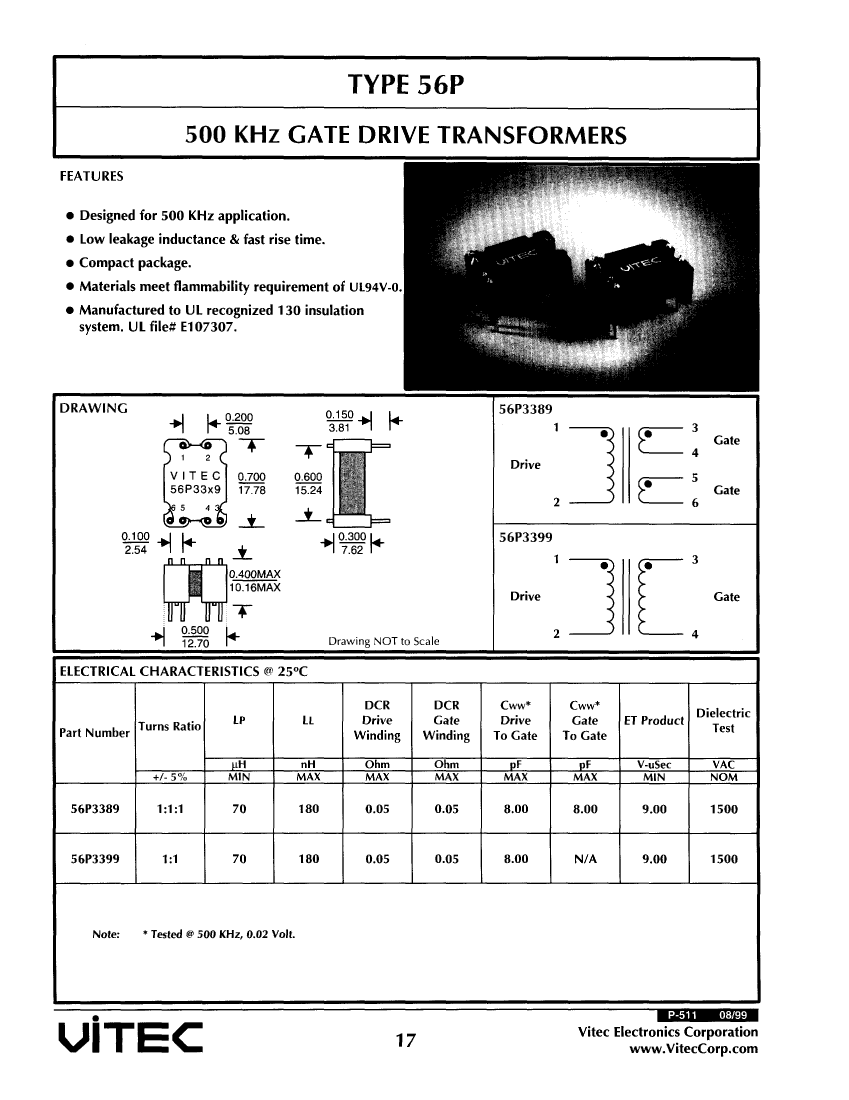

56P3389 datasheet, PDF - EEWORLD Datasheet

56P3389: DescriptionPulse Transformer, GATE DRIVE Application(s), 1:1:1; CategoryPower management transformer; File Size112KB，1 Pages; ManufacturerVitec Electronics Corporation

Download Datasheet Parametric Compare View All

56P3389 Overview

Pulse Transformer, GATE DRIVE Application(s), 1:1:1

Parameter Name	Attribute value
Maker	Vitec Electronics Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
application	GATE DRIVE
Certification	UL
ET product minimum value	9 V-us
high	7.62 mm
Insulation voltage	1500 V
length	17.78 mm
Manufacturer's serial number	56P
Installation features	THROUGH HOLE MOUNTED
Number of functions	1
physical size	17.78mm X 12.7mm X 7.62mm
Primary inductance	70 µH
surface mount	NO
Transformer type	PULSE TRANSFORMER
Turns ratio (Np:Ns)	1:1:1
width	12.7 mm

	56P3389	56P3399
Description	Pulse Transformer, GATE DRIVE Application(s), 1:1:1	Pulse Transformer, GATE DRIVE Application(s), 1:1
Maker	Vitec Electronics Corporation	Vitec Electronics Corporation
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
application	GATE DRIVE	GATE DRIVE
Certification	UL	UL
ET product minimum value	9 V-us	9 V-us
high	7.62 mm	7.62 mm
Insulation voltage	1500 V	1500 V
length	17.78 mm	17.78 mm
Manufacturer's serial number	56P	56P
Installation features	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED
Number of functions	1	1
physical size	17.78mm X 12.7mm X 7.62mm	17.78mm X 12.7mm X 7.62mm
Primary inductance	70 µH	70 µH
surface mount	NO	NO
Transformer type	PULSE TRANSFORMER	PULSE TRANSFORMER
Turns ratio (Np:Ns)	1:1:1	1:1
width	12.7 mm	12.7 mm
