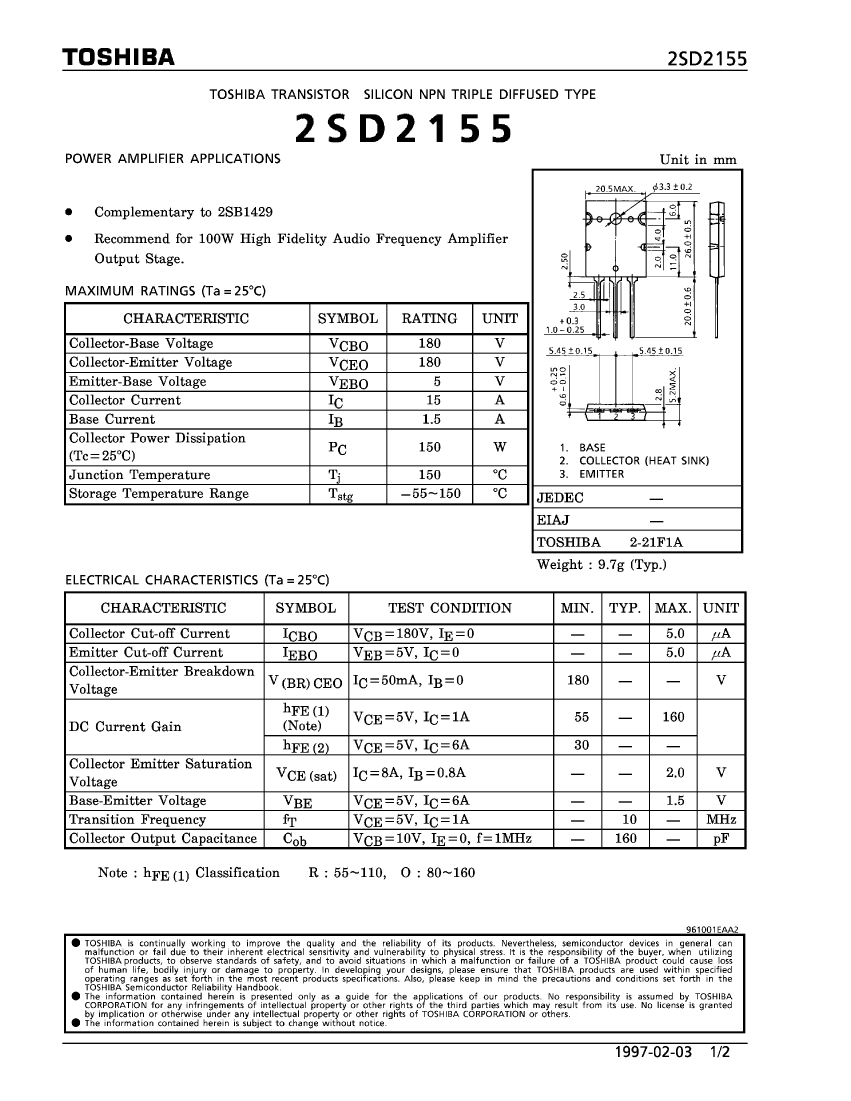

TRANSISTOR 15 A, 180 V, NPN, Si, POWER TRANSISTOR, 2-21F1A, 3 PIN, BIP General Purpose Power

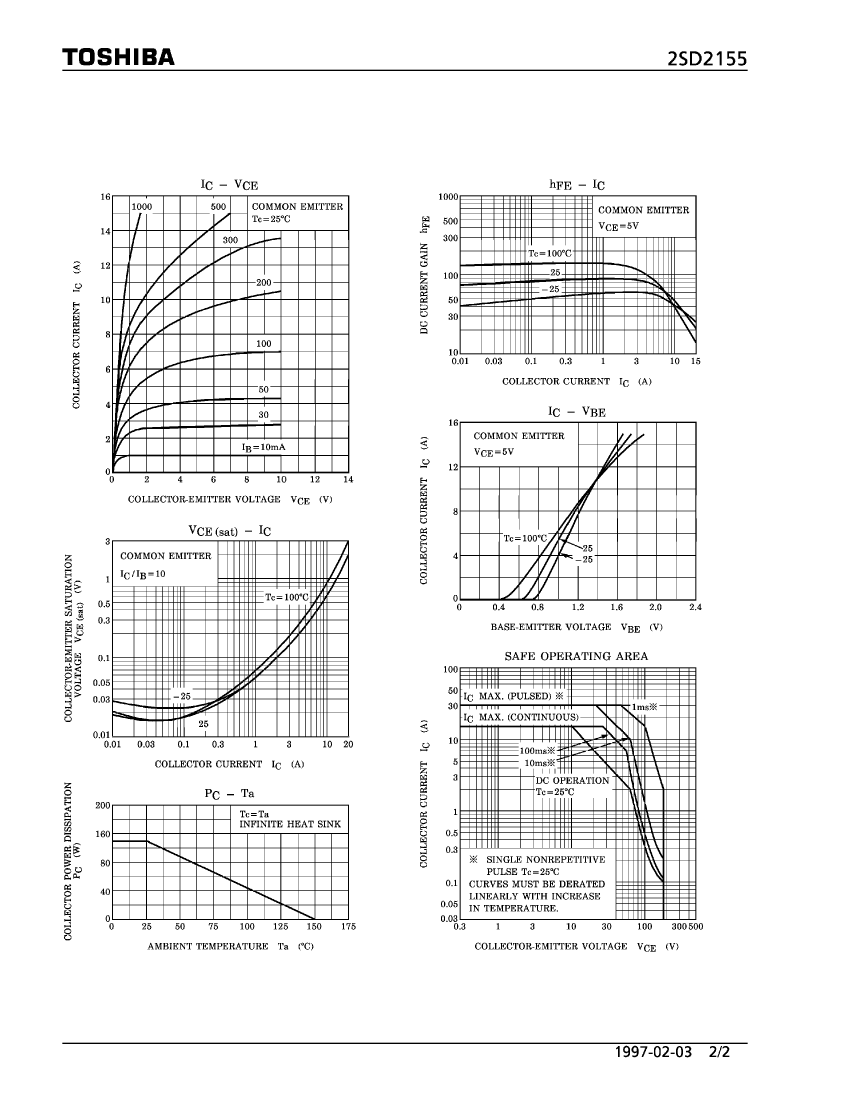

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| package instruction | FLANGE MOUNT, R-PSFM-T3 |
| Contacts | 3 |
| Reach Compliance Code | unknow |
| Shell connection | COLLECTOR |
| Maximum collector current (IC) | 15 A |
| Collector-emitter maximum voltage | 180 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 30 |
| JESD-30 code | R-PSFM-T3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Polarity/channel type | NPN |
| Maximum power consumption environment | 150 W |
| Maximum power dissipation(Abs) | 150 W |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal surface | NOT SPECIFIED |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| transistor applications | AMPLIFIER |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 10 MHz |
| VCEsat-Max | 2 V |
| Base Number Matches | 1 |
| 2SD2155R | 2SD2155-O | 2SD2155O | 2SD2155-R | |
|---|---|---|---|---|
| Description | TRANSISTOR 15 A, 180 V, NPN, Si, POWER TRANSISTOR, 2-21F1A, 3 PIN, BIP General Purpose Power | TRANSISTOR 15 A, 180 V, NPN, Si, POWER TRANSISTOR, BIP General Purpose Power | TRANSISTOR 15 A, 180 V, NPN, Si, POWER TRANSISTOR, 2-21F1A, 3 PIN, BIP General Purpose Power | TRANSISTOR 15 A, 180 V, NPN, Si, POWER TRANSISTOR, BIP General Purpose Power |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| package instruction | FLANGE MOUNT, R-PSFM-T3 | 2-21F1A, 3 PIN | FLANGE MOUNT, R-PSFM-T3 | 2-21F1A, 3 PIN |
| Reach Compliance Code | unknow | unknow | unknow | unknow |
| Shell connection | COLLECTOR | COLLECTOR | COLLECTOR | COLLECTOR |
| Maximum collector current (IC) | 15 A | 15 A | 15 A | 15 A |
| Collector-emitter maximum voltage | 180 V | 180 V | 180 V | 180 V |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE |
| Minimum DC current gain (hFE) | 30 | 80 | 30 | 55 |
| JESD-30 code | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 |
| Number of components | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Polarity/channel type | NPN | NPN | NPN | NPN |
| Maximum power consumption environment | 150 W | 150 W | 150 W | 150 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| transistor applications | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON |
| Nominal transition frequency (fT) | 10 MHz | 10 MHz | 10 MHz | 10 MHz |
| VCEsat-Max | 2 V | 2 V | 2 V | 2 V |
| Base Number Matches | 1 | 1 | 1 | 1 |
