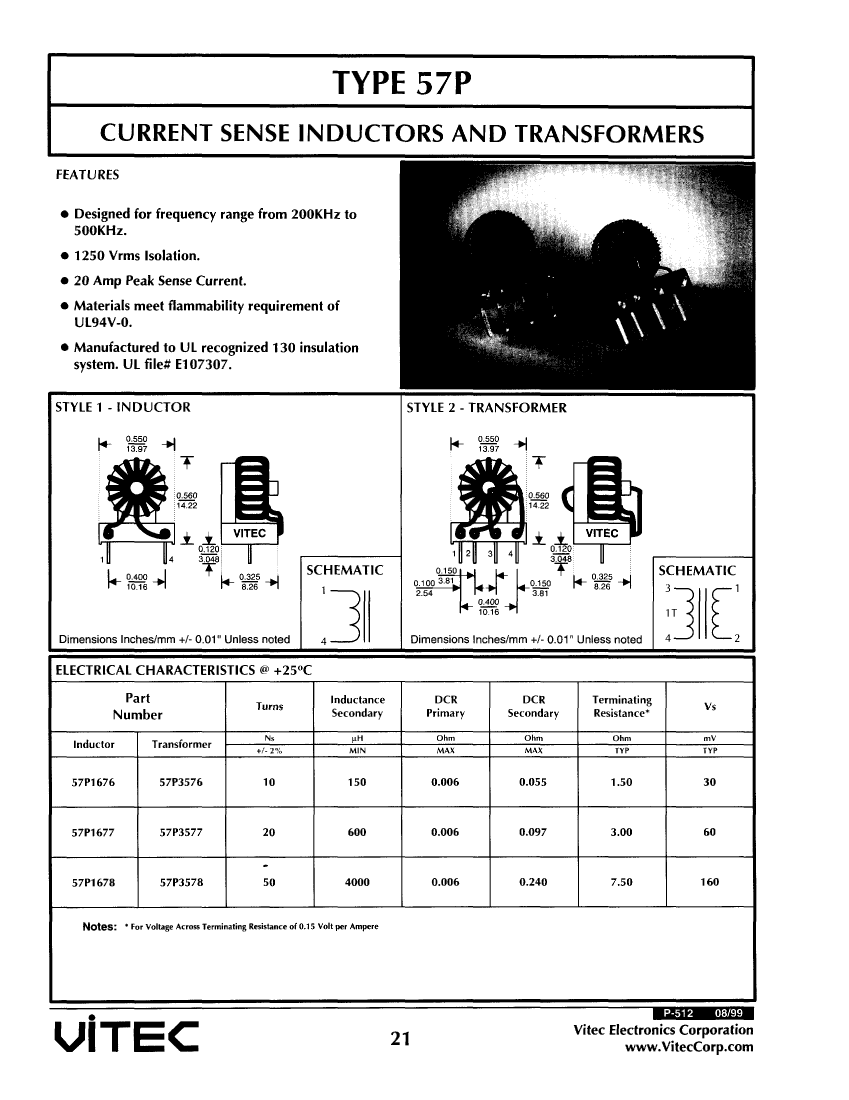

57P3577: DescriptionCurrent Sense Transformer, 20A, 1:20; CategoryPower management transformer; File Size86KB，1 Pages; ManufacturerVitec Electronics Corporation

Download Datasheet Parametric Compare View All

57P3577 Overview

Current Sense Transformer, 20A, 1:20

Parameter Name	Attribute value
Maker	Vitec Electronics Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Certification	UL
high	14.22 mm
length	13.97 mm
Load Resistance	3 Ω
Manufacturer's serial number	57P
Installation features	THROUGH HOLE MOUNTED
Maximum operating frequency	500 kHz
Minimum operating frequency	200 kHz
Peak primary current	20 A
physical size	13.97mm X 8.26mm X 14.22mm
primary type	WOUND PRIMARY
secondary inductance	600 µH
surface mount	NO
Transformer type	CURRENT SENSE TRANSFORMER
Turns ratio (Np:Ns)	1:20
width	8.26 mm

	57P3577	57P3578	57P3576
Description	Current Sense Transformer, 20A, 1:20	Current Sense Transformer, 20A, 1:50	Current Sense Transformer, 20A, 1:10
Maker	Vitec Electronics Corporation	Vitec Electronics Corporation	Vitec Electronics Corporation
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Certification	UL	UL	UL
high	14.22 mm	14.22 mm	14.22 mm
length	13.97 mm	13.97 mm	13.97 mm
Load Resistance	3 Ω	7.5 Ω	1.5 Ω
Manufacturer's serial number	57P	57P	57P
Installation features	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED
Maximum operating frequency	500 kHz	500 kHz	500 kHz
Minimum operating frequency	200 kHz	200 kHz	200 kHz
Peak primary current	20 A	20 A	20 A
physical size	13.97mm X 8.26mm X 14.22mm	13.97mm X 8.26mm X 14.22mm	13.97mm X 8.26mm X 14.22mm
primary type	WOUND PRIMARY	WOUND PRIMARY	WOUND PRIMARY
secondary inductance	600 µH	4000 µH	150 µH
surface mount	NO	NO	NO
Transformer type	CURRENT SENSE TRANSFORMER	CURRENT SENSE TRANSFORMER	CURRENT SENSE TRANSFORMER
Turns ratio (Np:Ns)	1:20	1:50	1:10
width	8.26 mm	8.26 mm	8.26 mm
