Ordering number:EN2089B
PNP/NPN Epitaxial Planar Silicon Transistors
2SA1477/2SC3787
160V/140mA Switching Applications
Applications
· Predrivers for 100W power amplifiers.
Package Dimensions
unit:mm
2042B
[2SA1477/2SC3787]
Features
· Adoption of FBET process.
· Excellent linearity of h
FE
.
· Small C
ob
.
· Plastic-convered heat sink facilitating high-density
mounting (TO-126ML package).
1 : Emitter
2 : Collector
3 : Base
( ) : 2SA1477
Specifications
Absolute Maximum Ratings
at Ta = 25˚C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Peak Collector Current
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCEO
VEBO
IC
ICP
PC
Conditions
SANYO : TO-126ML
Ratings
(–)180
(–)160
(–)5
(–)140
(–)200
1.3
Unit
V
V
V
mA
mA
W
W
Tc=25˚C
Tj
Tstg
10
150
–55 to +150
˚C
˚C
Electrical Characteristics
at Ta = 25˚C
Parameter
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Gain-Bandwidth Product
Output Capacitance
Collector-to-Emitter Saturation Voltage
Base-to-Emitter Saturation Voltage
Collector-to-Base Breakdown Voltage
Collector-to-Emitter Breakdown Voltage
Emitter-to-Base Breakdown Votage
Rise Time
Storage Time
Fall Time
Symbol
ICBO
IEBO
hFE
fT
Cob
VCE(sat)
VBE(sat)
VCB=(–)120V, IE=0
VEB=(–)4V, IC=0
VCE=(–)5V, IC=(–)10mA
VCE=(–)10V, IC=(–)10mA
VCB=(–)10V, f=1MHz
IC=(–)50mA, IB=(–)5mA
100
150
(4.0)
3.0
(–140)
70
IC=(–)50mA, IB=(–)5mA
V(BR)CBO IC=(–)10µA, IE=0
V(BR)CEO IC=(–)1mA, RBE=∞
V(BR)EBO IE=(–)10µA, IC=0
ton
tstg
tf

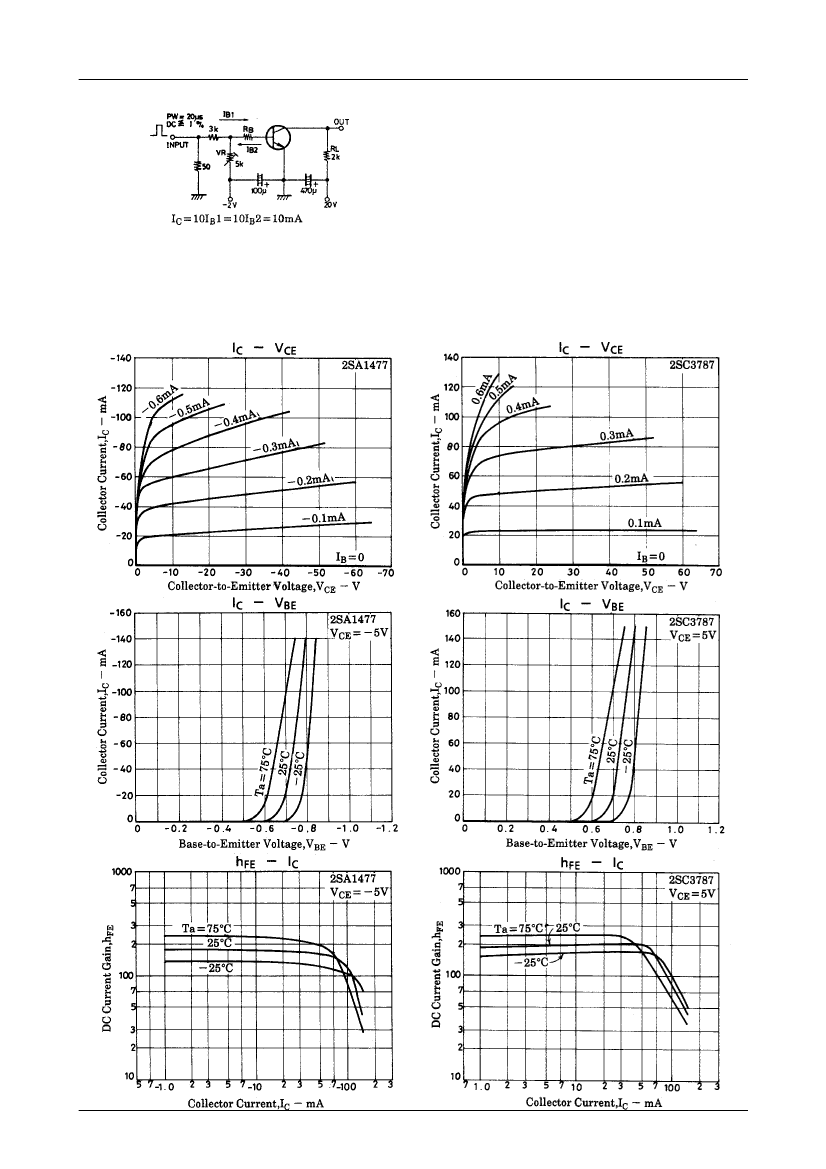

See specified Test Circuit
See specified Test Circuit
See specified Test Circuit
(–)180
(–)160
(–)5
0.1
0.5
0.1
(–400)
300
1.2
Conditions
Ratings
min
typ
max
(–)100
(–)100
400
MHz
pF
pF
mV
mV
V
V
V
V
µs
µs
µs
Unit
nA
nA
*: The 2SA1477/2SC3787 are classified by 10mA h
FE
as follows :
100
R
200
140
S
280
200
T
400
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquaters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
71598HA (KT)/10996TS (KOTO) 8-8491/5197TA, TS No.2089-1/4
2SA1477/2SC3787
No products described or contained herein are intended for use in surgical implants, life-support systems,
aerospace equipment, nuclear power control systems, vehicles, disaster/crime-prevention equipment and
the like, the failure of which may directly or indirectly cause injury, death or property loss.
Anyone purchasing any products described or contained herein for an above-mentioned use shall:
Accept full responsibility and indemnify and defend SANYO ELECTRIC CO., LTD., its affiliates,
subsidiaries and distributors and all their officers and employees, jointly and severally, against any
and all claims and litigation and all damages, cost and expenses associated with such use:
Not impose any responsibilty for any fault or negligence which may be cited in any such claim or
litigation on SANYO ELECTRIC CO., LTD., its affiliates, subsidiaries and distributors or any of
their officers and employees jointly or severally.
Information (including circuit diagrams and circuit parameters) herein is for example only; it is not guarant-
eed for volume production. SANYO believes information herein is accurate and reliable, but no guarantees
are made or implied regarding its use or any infringements of intellectual property rights or other rights of
third parties.
This catalog provides information as of July, 1998. Specifications and information herein are subject to
change without notice.
PS No.2089-4/4
