Ordering number:ENN3871
NPN Epitaxial Planar Silicon Transistor
2SC4727
20V/8A Switching Applications
Features
· Adoption of MBIT process.
· Low saturation voltage.
· High-speed switching.
· Large current capacity.
· It is possible to make appliances more compact
because its height on board is 9.5mm.
· Effective in automatic inserting and counting stocked
amount because of being provided for radial taping.
Package Dimensions
unit:mm
2084B
[2SC4727]
10.5
1.9
4.5
1.2
2.6
1.4
1.2
7.5
1.6
0.5
0.5
1
2
3
1.0
8.5
Specifications
Absolute Maximum Ratings
at Ta = 25˚C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Current (Pulse)
Base Current
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCEO
VEBO
IC
ICP
IB
PC
Tj
Tstg
Conditions
2.5
2.5
1 : Emitter
2 : Collector
3 : Base
SANYO : FLP
Ratings
30
20
5
8
12
1.5
1.5
150
–55 to +150
Unit
V
V
V
A
A
A
W
˚C
˚C
Electrical Characteristics
at Ta = 25˚C
Parameter
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Gain-Bandwidth Product
Symbol
ICBO
IEBO
hFE1
hFE2
fT
VCB=20V, IE=0
VEB=4V, IC=0
VCE=2V, IC=500mA
VCE=2V, IC=6A
VCE=2V, IC=500mA
100*
70
250
MHz
Conditions
Ratings
min
typ
max
1
1
400*
Unit
µA
µA
* : The 2SC4727 is classified by 500mA h
FE
as follows :
Rank
hFE
R
100 to 200
S
140 to 280
T
200 to 400
Continued on next page.
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft’s
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges,or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
33005TN (PC)/12099HA (KT)/5732MH (KOTO) No.3871–1/4
2SC4727
Continued from preceding page.
Parameter
Collector-to-Emitter Saturation Voltage
Base-to-Emitter Saturation Voltage
Output Capacitance
Collector-to-Base Breakdown Voltage
Collector-to-Emitter Breakdown Voltage
Emitter-to-Base Breakdown Voltage
Turn-ON Time
Storage Time
Fall Time
Symbol
VCE(sat)
VBE(sat)
Cob
IC=5A, IB=250mA
IC=5A, IB=250mA
VCB=10V, f=1MHz
30
20
5
30
250
15
Conditions
Ratings
min
typ
220
1
60
max
400
1.3
Unit
mV
V
pF
V
V
V
ns
ns
ns
V(BR)CBO IC=10µA, IE=0
V(BR)CEO IC=1mA, RBE=∞
V(BR)EBO IE=10µA, IC=0
ton
tstg
tf
See specified test circuit.
See specified test circuit.
See specified test circuit.

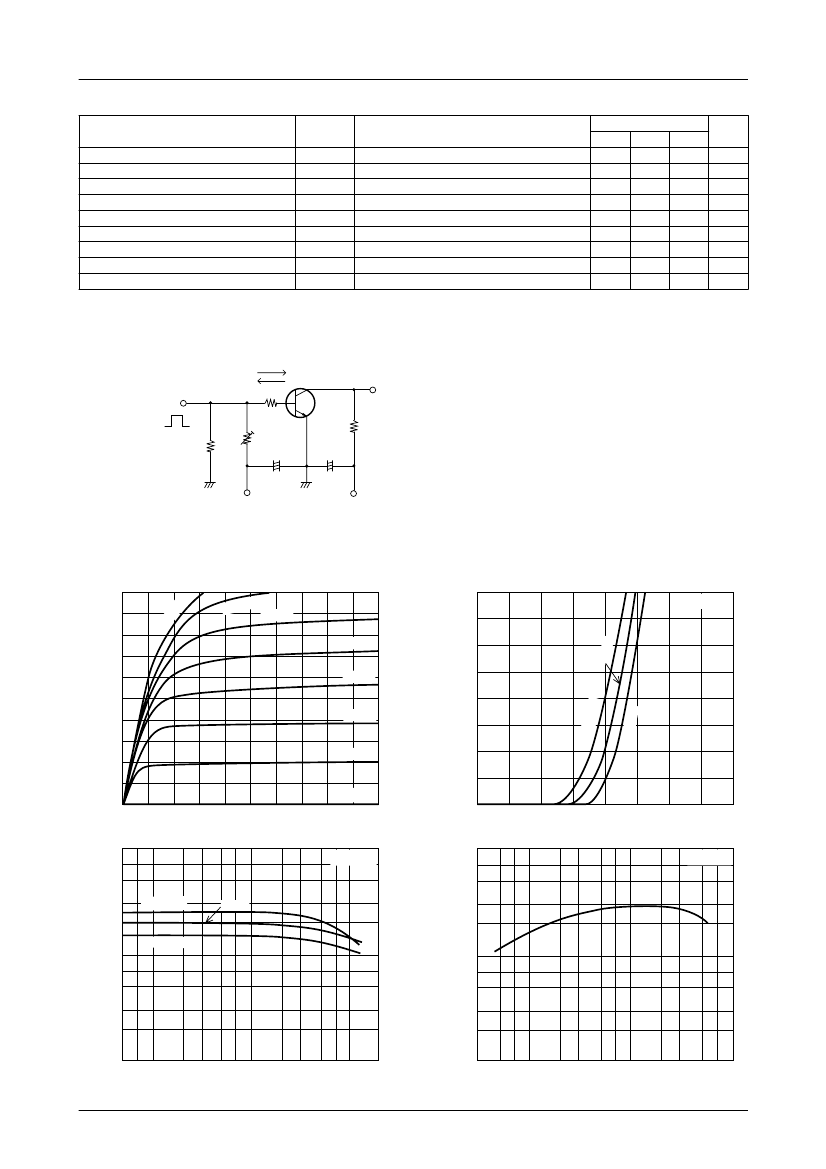

Switching Time Test Circuit
IB1
INPUT
VR
50Ω
IB2
RB
RL
+
100µF
VBE= --5V
20IB1= --20IB2=IC=5A
+
470µF
VCC=10V
OUTPUT
PW=20µs
D.C.≤1%
5
IC -- VCE
mA
8
7
IC -- VBE
VCE=2V
30mA
Collector Current, IC – A
Collector Current, IC – A
4
35
25mA
20mA
6
5
4
3
15mA
Ta=7
5
°
C
0.2
0.4
0.6
0.8
25
°
C
--25
°
C
1.0
1.2
2
10mA
3
2
1
1
5mA
0
IB=0
0
0.4
0.8
1.2
1.6
2.0
ITR07485
0
0
1.4
1.6
Collector-to-Emitter Voltage, VCE – V
1000
7
5
Base-to-Emitter Voltage, VBE – V
1000
ITR07486
hFE -- IC
VCE=2V
fT -- IC
VCE=2V
7
Gain-Bandwidth Product, fT – MHz
2
3
5
7 10
2
ITR07487
5
3
2
DC Current Gain, hFE
3
2
Ta=75
°C
25
°C
--25
°C
100
7
5
3
2
100
7
5
3
2
10
5
7
0.1
2
3
5
Collector Current, IC – A
7 1.0
10
3
5
7 0.1
2
3
5
Collector Current, IC – A
7 1.0
2
3
5 7 10
ITR07488
No.3871–2/4
2SC4727
5
Cob -- VCB
f=1MHz
1000
7
VCE(sat) -- IC
IC / IB=20
Output Capacitance, Cob – pF
3
2
Collector-to-Emitter
Saturation Voltage, VCE (sat) – mV
5
3
2
100
7
5
3
2
100
7
5
3
2
=7
Ta
5
°
C
C
5
°
--2
10
5
7
1.0
2
3
5
7
10
2
3
5
10
0.01
2
3
5
7 0.1
2
3
5
7 1.0
25
°
C
2
3
Collector-to-Base Voltage, VCB – V
10
7
ITR07489
2
10
Collector Current, IC – A
5 7 10
ITR07490
VBE(sat) -- IC
IC / IB=20
ASO
ICP=12A
IC=8A
Base-to-Emitter
Saturation Voltage, VBE (sat) – V
5
3
2
Collector Current, IC – A
7
5
3
2
1m
10
s
m
s
10
0m
s
1.0
7
5
3
2
Ta=
--25
°C
25
°C
1.0
7
5
3
2
DC
op
era
75
°C
tio
n
0.1
7
5
2
3
5
7 0.1
2
3
5 7 1.0
2
3
5 7 10
ITR07491
0.1
0.01
3
0.1
Ta=25
°C
Single pulse
2
3
5
7 1.0
2
3
5
7
10
2
3
Collector Current, IC – A
1.6
1.5
1.4
Collector-to-Emitter Voltage, VCE – V
ITR07492
PC -- Ta
Collector Dissipation, P
C
– W
1.2
1.0
0.8
0.6
0.4
0.2
0
0
20
40
60
80
100
120
140
160
Ambient Temperature, Ta – ˚C
ITR07493
No.3871–3/4
2SC4727
