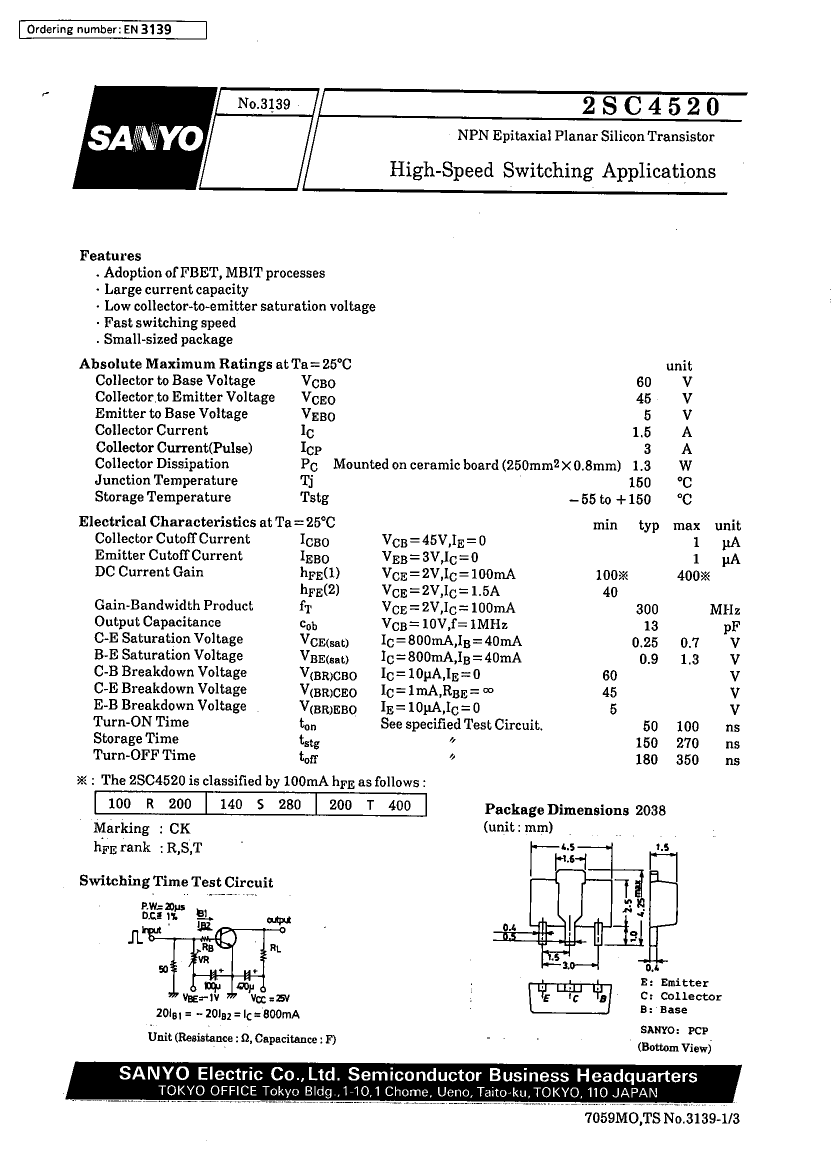

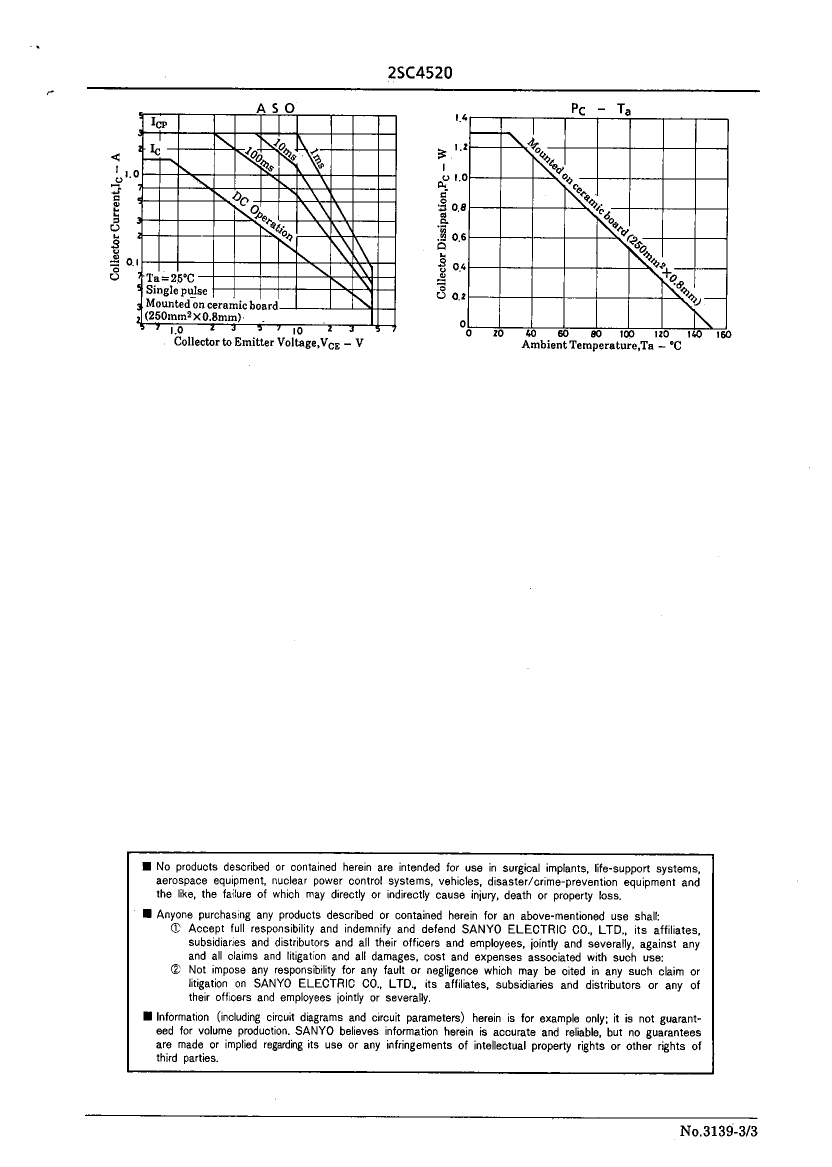

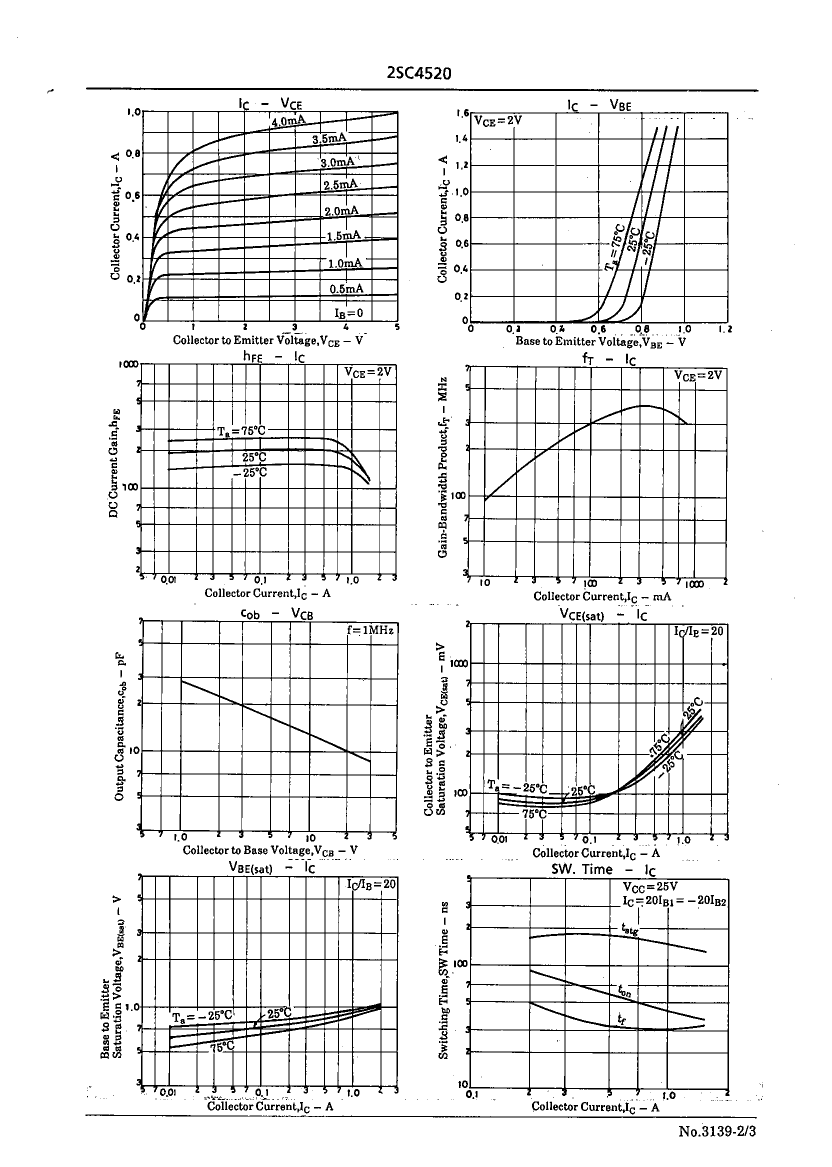

Power Bipolar Transistor, 1.5A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-243, Plastic/Epoxy, 3 Pin, PCP, 3 PIN
| Parameter Name | Attribute value |
| Objectid | 1483105716 |
| Parts packaging code | SOT-89 |
| package instruction | SMALL OUTLINE, R-PSSO-F3 |
| Contacts | 3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Shell connection | COLLECTOR |
| Maximum collector current (IC) | 1.5 A |
| Collector-emitter maximum voltage | 45 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 140 |
| JEDEC-95 code | TO-243 |
| JESD-30 code | R-PSSO-F3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Polarity/channel type | NPN |
| Maximum power consumption environment | 1.3 W |
| Maximum power dissipation(Abs) | 1.3 W |
| Certification status | Not Qualified |
| surface mount | YES |
| Terminal form | FLAT |
| Terminal location | SINGLE |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 300 MHz |
| 2SC4520S | 2SC4520R | 2SC4520-R | 2SC4520-S | 2SC4520-T | 2SC4520T | |
|---|---|---|---|---|---|---|
| Description | Power Bipolar Transistor, 1.5A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-243, Plastic/Epoxy, 3 Pin, PCP, 3 PIN | Power Bipolar Transistor, 1.5A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-243, Plastic/Epoxy, 3 Pin, PCP, 3 PIN | 1500mA, 45V, NPN, Si, SMALL SIGNAL TRANSISTOR, PCP, 3 PIN | Power Bipolar Transistor, 1.5A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-243, Plastic/Epoxy, 3 Pin, PCP, 3 PIN | Power Bipolar Transistor, 1.5A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-243, Plastic/Epoxy, 3 Pin, PCP, 3 PIN | Power Bipolar Transistor, 1.5A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-243, Plastic/Epoxy, 3 Pin, PCP, 3 PIN |
| Objectid | 1483105716 | 1483105713 | 1428957665 | 1483105716 | 1483105719 | 1483105719 |
| package instruction | SMALL OUTLINE, R-PSSO-F3 | SMALL OUTLINE, R-PSSO-F3 | SMALL OUTLINE, R-PSSO-F3 | SMALL OUTLINE, R-PSSO-F3 | SMALL OUTLINE, R-PSSO-F3 | SMALL OUTLINE, R-PSSO-F3 |
| Contacts | 3 | 3 | 3 | 3 | 3 | 3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| Shell connection | COLLECTOR | COLLECTOR | COLLECTOR | COLLECTOR | COLLECTOR | COLLECTOR |
| Maximum collector current (IC) | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A | 1.5 A |
| Collector-emitter maximum voltage | 45 V | 45 V | 45 V | 45 V | 45 V | 45 V |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Minimum DC current gain (hFE) | 140 | 100 | 100 | 140 | 200 | 200 |
| JESD-30 code | R-PSSO-F3 | R-PSSO-F3 | R-PSSO-F3 | R-PSSO-F3 | R-PSSO-F3 | R-PSSO-F3 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Polarity/channel type | NPN | NPN | NPN | NPN | NPN | NPN |
| Maximum power consumption environment | 1.3 W | 1.3 W | 1.3 W | 1.3 W | 1.3 W | 1.3 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | YES | YES | YES | YES | YES | YES |
| Terminal form | FLAT | FLAT | FLAT | FLAT | FLAT | FLAT |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| transistor applications | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Nominal transition frequency (fT) | 300 MHz | 300 MHz | 300 MHz | 300 MHz | 300 MHz | 300 MHz |
| Parts packaging code | SOT-89 | SOT-89 | - | SOT-89 | SOT-89 | SOT-89 |
| ECCN code | EAR99 | EAR99 | - | EAR99 | EAR99 | EAR99 |
| JEDEC-95 code | TO-243 | TO-243 | - | TO-243 | TO-243 | TO-243 |
| Maximum power dissipation(Abs) | 1.3 W | 1.3 W | - | 1.3 W | 1.3 W | 1.3 W |
