2SK1865SMTE24L datasheet, PDF - EEWORLD Datasheet

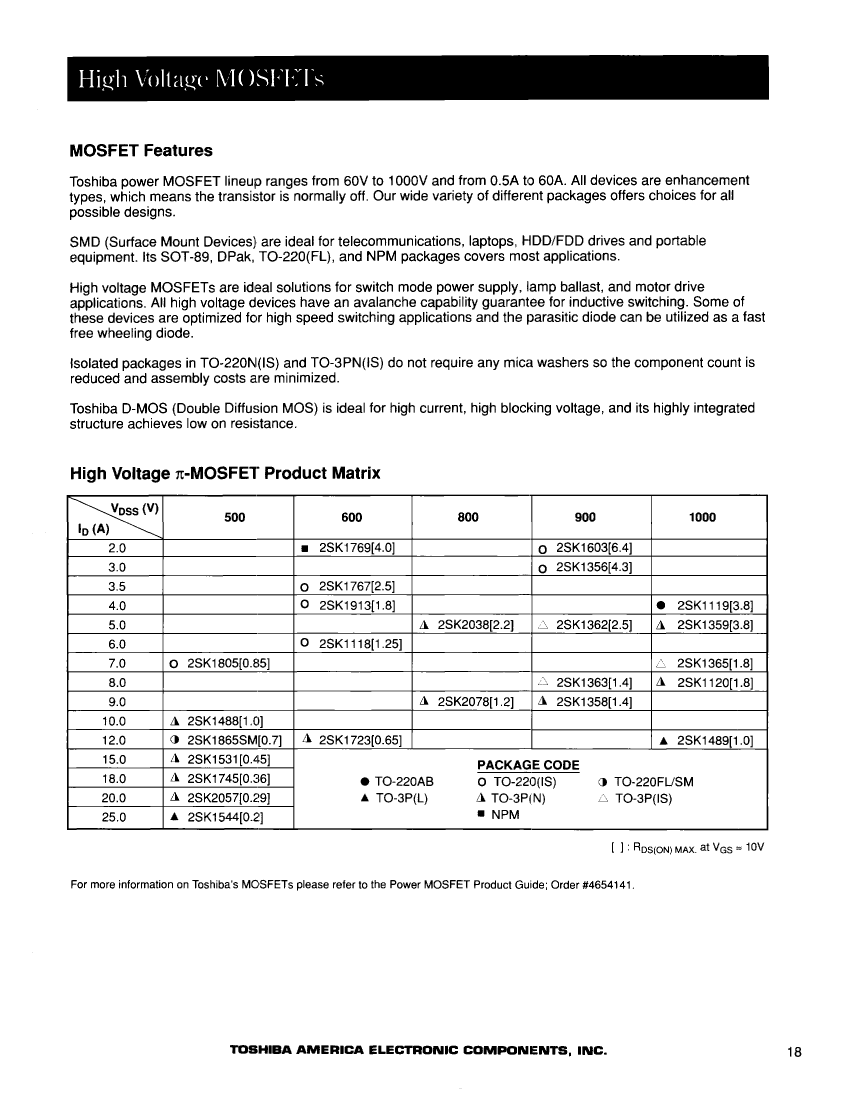

2SK1865SMTE24L: DescriptionTRANSISTOR 12 A, 500 V, 0.7 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220SM, TO-220SM, 3 PIN, FET General Purpose Power; CategoryDiscrete semiconductor The transistor; File Size41KB，1 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

2SK1865SMTE24L Overview

TRANSISTOR 12 A, 500 V, 0.7 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220SM, TO-220SM, 3 PIN, FET General Purpose Power

Parameter Name	Attribute value
Parts packaging code	TO-220SM
package instruction	SMALL OUTLINE, R-PSSO-G2
Contacts	3
Reach Compliance Code	unknow
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	500 V
Maximum drain current (ID)	12 A
Maximum drain-source on-resistance	0.7 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PSSO-G2
Number of components	1
Number of terminals	2
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	100 W
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

	2SK1865SMTE24L	2SK1865SMTE24R
Description	TRANSISTOR 12 A, 500 V, 0.7 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220SM, TO-220SM, 3 PIN, FET General Purpose Power	TRANSISTOR 12 A, 500 V, 0.7 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220SM, TO-220SM, 3 PIN, FET General Purpose Power
Parts packaging code	TO-220SM	TO-220SM
package instruction	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2
Contacts	3	3
Reach Compliance Code	unknow	unknow
Shell connection	DRAIN	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	500 V	500 V
Maximum drain current (ID)	12 A	12 A
Maximum drain-source on-resistance	0.7 Ω	0.7 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PSSO-G2	R-PSSO-G2
Number of components	1	1
Number of terminals	2	2
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	N-CHANNEL	N-CHANNEL
Maximum power consumption environment	100 W	100 W
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Base Number Matches	1	1
