EN16-V22AF20

Description
Rotary Position Encoder, ROHS COMPLIANT PACKAGE-3
CategoryLED optoelectronic/LED    photoelectric
File Size259KB,3 Pages
ManufacturerTT Electronics plc
Websitehttp://www.ttelectronics.com/
Environmental Compliance
Download Datasheet Parametric View All

EN16-V22AF20 Overview

Rotary Position Encoder, ROHS COMPLIANT PACKAGE-3

EN16-V22AF20 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTT Electronics plc
package instructionROHS COMPLIANT PACKAGE-3
Reach Compliance Codecompliant
Number of functions1
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
Optoelectronic device typesROTARY POSITION ENCODER
Model EN16

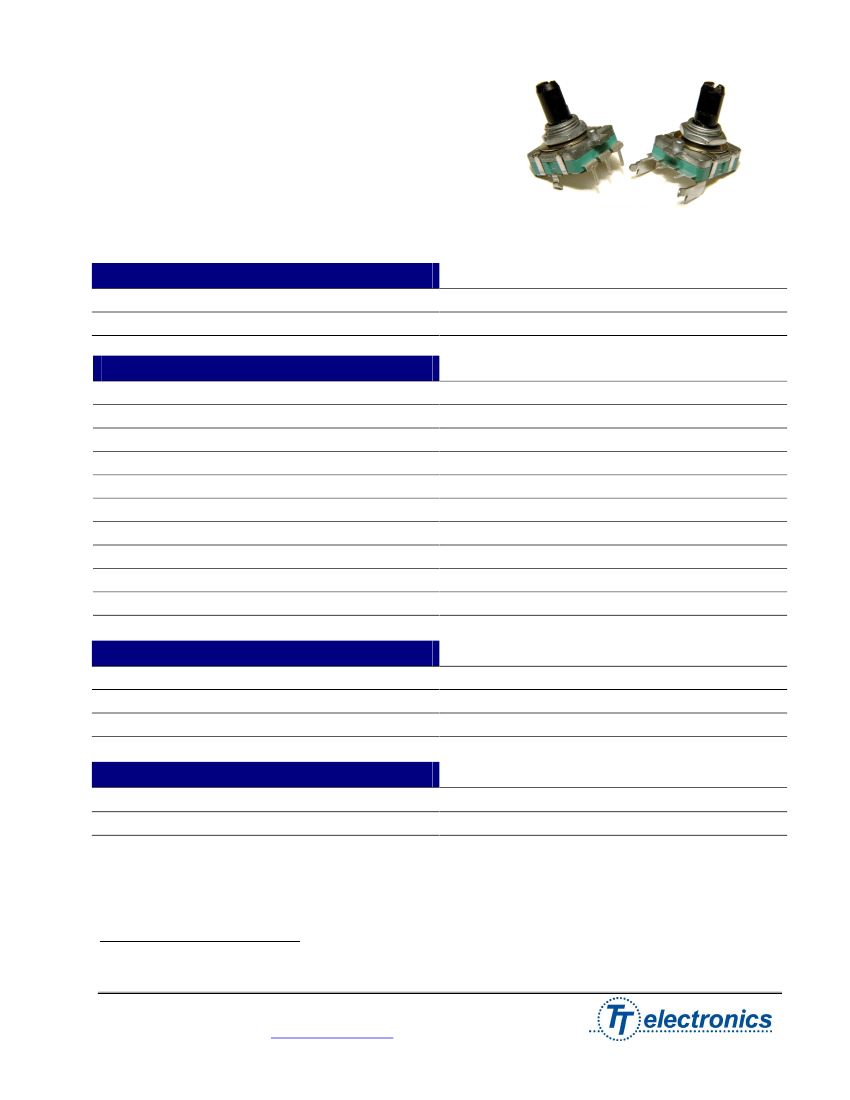

16mm Rotary Encoder
2 Bits Gray Code
Incremental/Contacting Type
Metal Bushing/Plastic Shaft
RoHS Compliant
MODEL STYLES

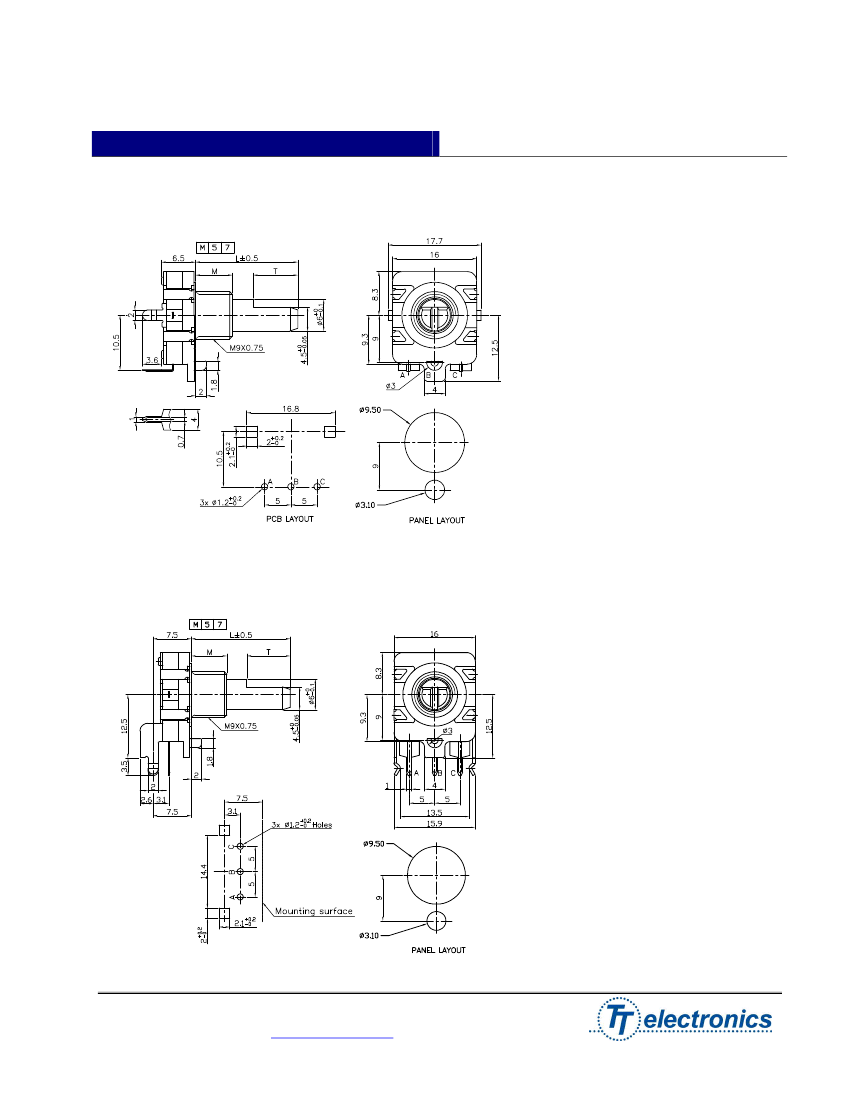

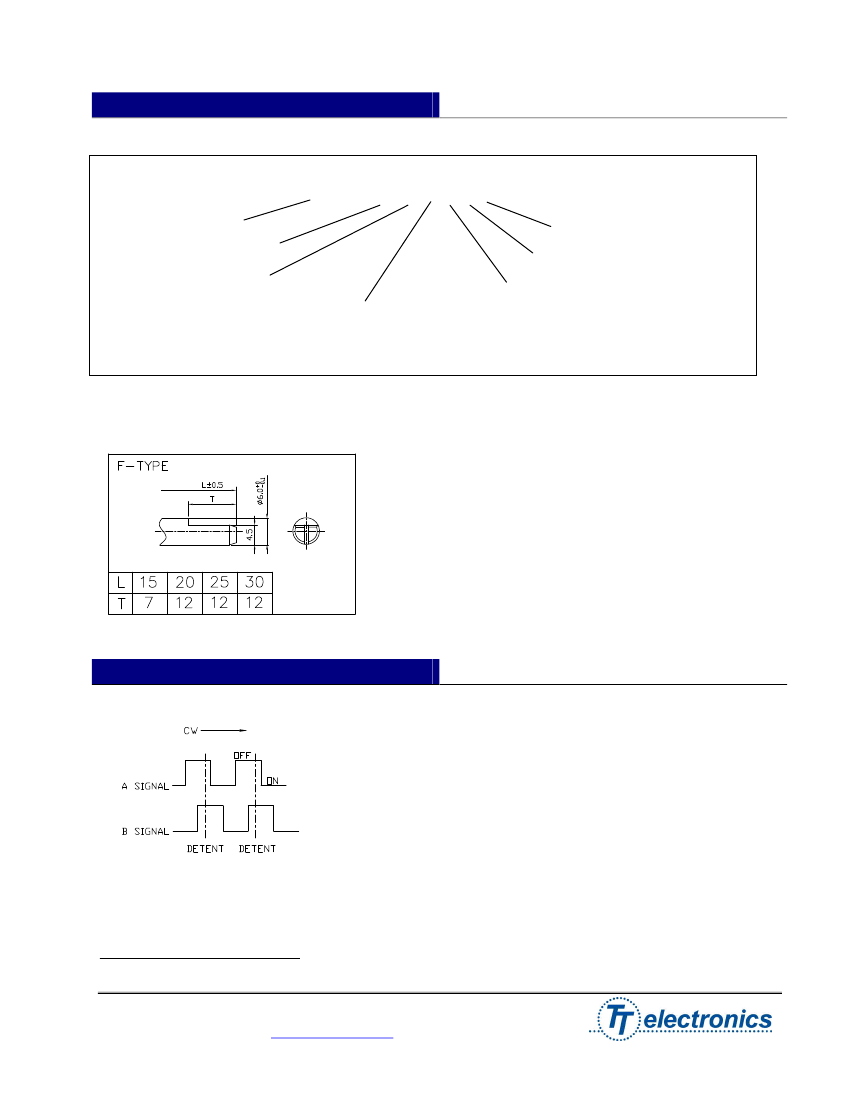

Top Adjust, PCB pins
Side Adjust, PCB pins
EN16-H
EN16-V
ELECTRICAL
1
Pulses ( Per Revolution )
Closed Circuit Resistance, Ohms
Contact Rating
Operating Current, Maximum
Dielectric Strength
Insulation Resistance, Minimum
Sliding Noise ( at 60 RPM )
Contact Bounce ( at 15 RPM)
Operating speed ( RPM )
Actual Electrical Travel, Nominal
12 & 24
3 Ohms, max.
0.5mA/ 5Vdc
0.5mA
50Vac/ 1mA, I minute
10M ohms at 50Vdc/ 1mA
2.0ms max.
5.0ms max.
100 RPM max.
Continuous
MECHANICAL
Total Mechanical Travel
Detents (per Revolution)
Rotational Torque of Detent, Maximum
Continuous
0,12, 24
2.5 oz-in
ENVIRONMENTAL
Operating Temperature Range
Rotational Life
-30°C to +85°C
30,000 cycles
1
Specifications subject to change without notice.
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
February 1, 2007
Website:
www.bitechnologies.com
page 1 of 3
