ERCD-060-03.75-STR-SBR-2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> ERCD-060-03.75-STR-SBR-2

ERCD-060-03.75-STR-SBR-2: DescriptionInterconnection Device, ROHS COMPLIANT; CategoryThe connector The connector; File Size533KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

ERCD-060-03.75-STR-SBR-2 Overview

Interconnection Device, ROHS COMPLIANT

ERCD-060-03.75-STR-SBR-2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	INTERCONNECTION DEVICE

Preview

Download Datasheet

View All

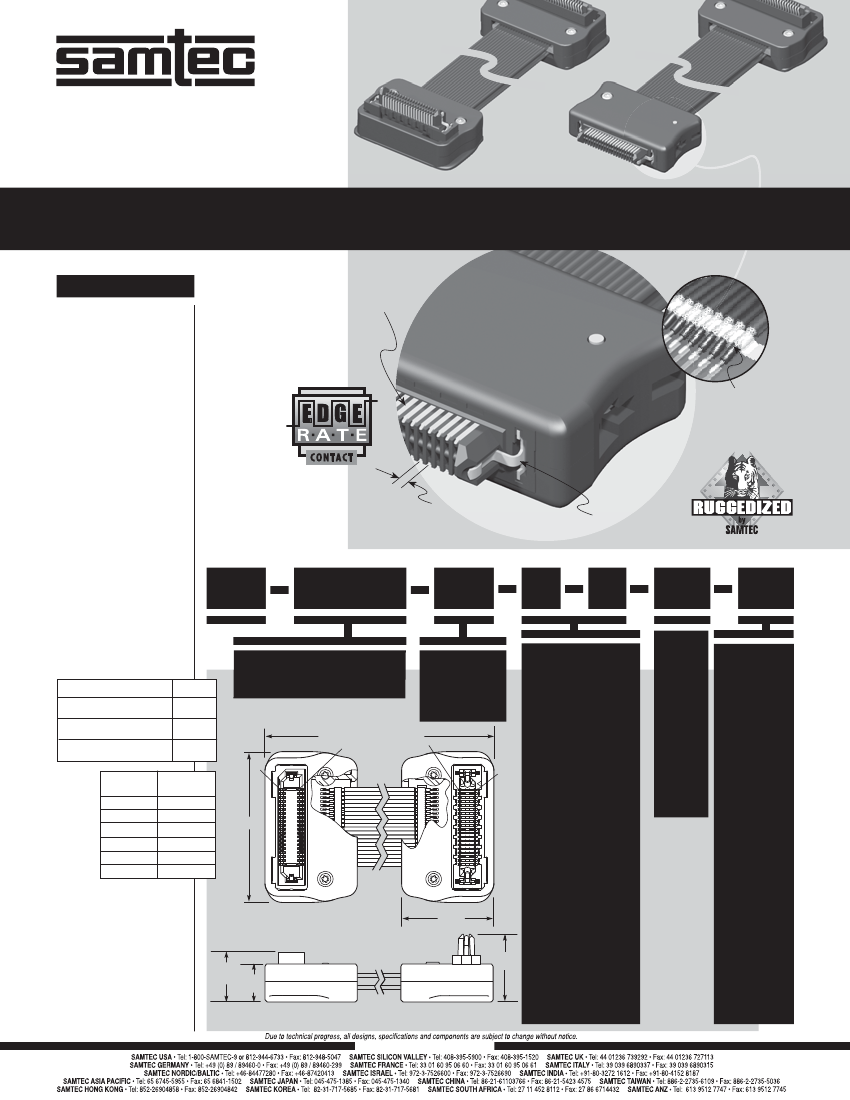

F-209-1 SUPPLEMENT

ERCD–020–08.00–TTR–STR–1

ERCD–020–10.00–TEU–STR–1

0,80

EDGE RATE ASSEMBLY

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts see

www.samtec.com?ERCD

Cable:

34 AWG coax ribbon cable

Signal Routing:

50Ω Single-Ended

Plating:

Au over 50µ" (1,27µm) Ni

Operating Temp Range:

-25°C to +105°C

RoHS Compliant:

Yes

ERCD

SERIES

Mates with:

ERF8, ERM8

Broadside wiping

contacts reduce

unwanted

crosstalk

™

34 AWG

micro ribbon

coax cable

(0,80mm)

.0315" pitch

Patent Pending

Optional rugged

metal latching system

ERCD

NO. POSITIONS

PER ROW

WIRE

LENGTH

END

NO. 1

END

NO. 2

WIRING

OPTION

LATCH

OPTION

END TO END

DV to DV

DV to Edge Mount (-TXX)

Edge Mount (-TXX)

POSITIONS

PER ROW

–010

–020

–030

–040

–050

–060

(23,47)

.924

(26,69)

1.051

(29,92)

1.178

–010, –020, –030,

–040, –050, –060

OAL = Wire Length +

–“XX.XX”

= Wire Length

in Inches

(95,3mm) 03.75"

minimum

–TTR

= Terminal, Top Right

–1

= Pin 1 to

Pin 1

Leave blank

for no Latch

–TTL

= Terminal, Top Left

–2

= Pin 1 to

Pin 2

–L

= End No. 1

Standard Latch,

End No. 2

Squeeze Latch

(TEX only)

–TBR

= Terminal, Bottom Right

–3

= Pin 1 to

Pin N-1

–TBL

= Terminal, Bottom Left

(22,66) .892

(30,66) 1.207

(38,66) 1.522

(46,66) 1.837

(54,66) 2.152

(62,66) 2.467

–4

= Pin 1 to

Pin N

–R

= End No. 1

Squeeze Latch,

End No. 2

Standard Latch

(TEX only)

–STR

= Socket, Top Right

–STL

= Socket, Top Left

–D

= Both Ends

Standard

Latch

Note:

Cable lengths longer than

40.00" (1 meter) are not

supported with S.I. test data.

–SBR

= Socket, Bottom Right

(18.75)

.738

–SBL

= Socket, Bottom Left

–N

= No Caps

(Both ends have

Latch option)

Note:

Verify part number and correct

wiring scheme with Samtec’s

Interactive Cable Builder at

www.samtec.com/cable_

builder/pitch.asp

Note:

Some lengths, styles and

options are non-standard,

non-returnable.

–TEU

(10,15)

.400 (7,72)

.304

(13,76)

.542

= Terminal,

Edge Mount Up

–TED

END NO.1

(–STL SHOWN)

END NO.2

(–TTR SHOWN)

= Terminal,

Edge Mount Down

= Both ends

have Squeeze

Latch

(TEX only)

–B
