DSX1G datasheet, PDF - EEWORLD Datasheet

DSX1G: DescriptionRack and Panel Connector, Female, Crimp; Solder; Wire Wrap Terminal, Receptacle; CategoryThe connector The connector; File Size363KB，12 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric Compare View All

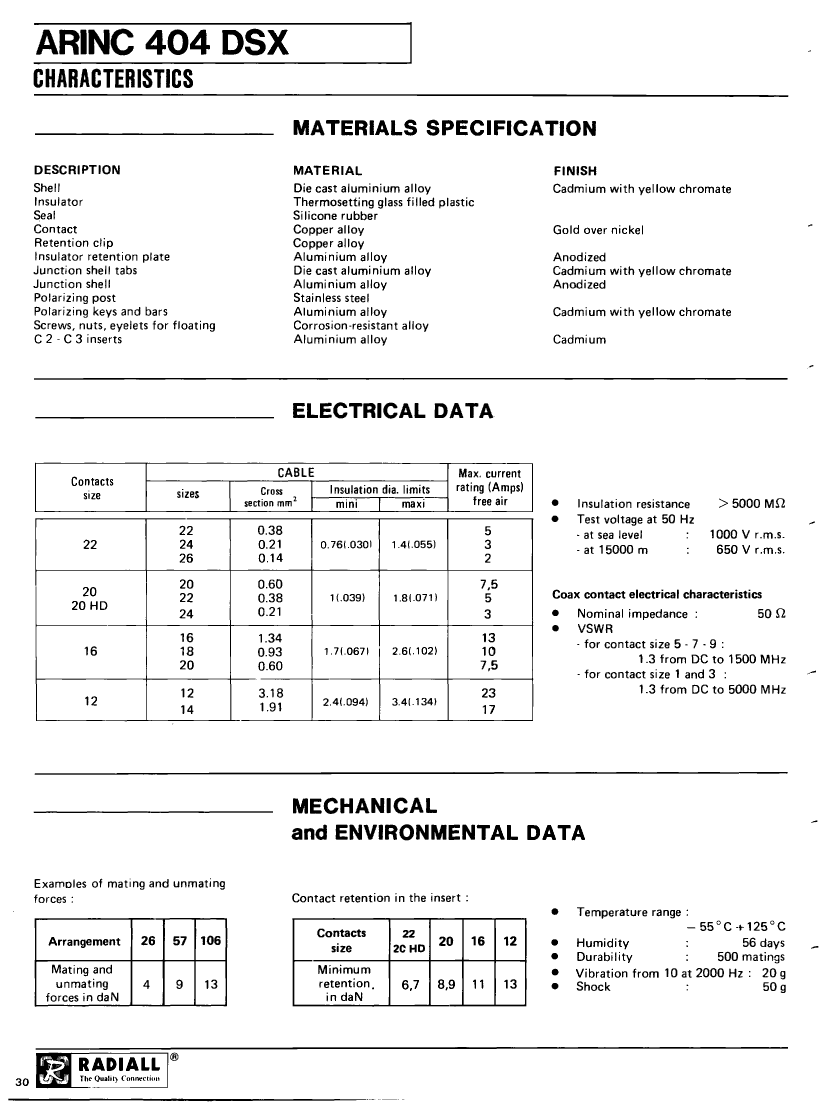

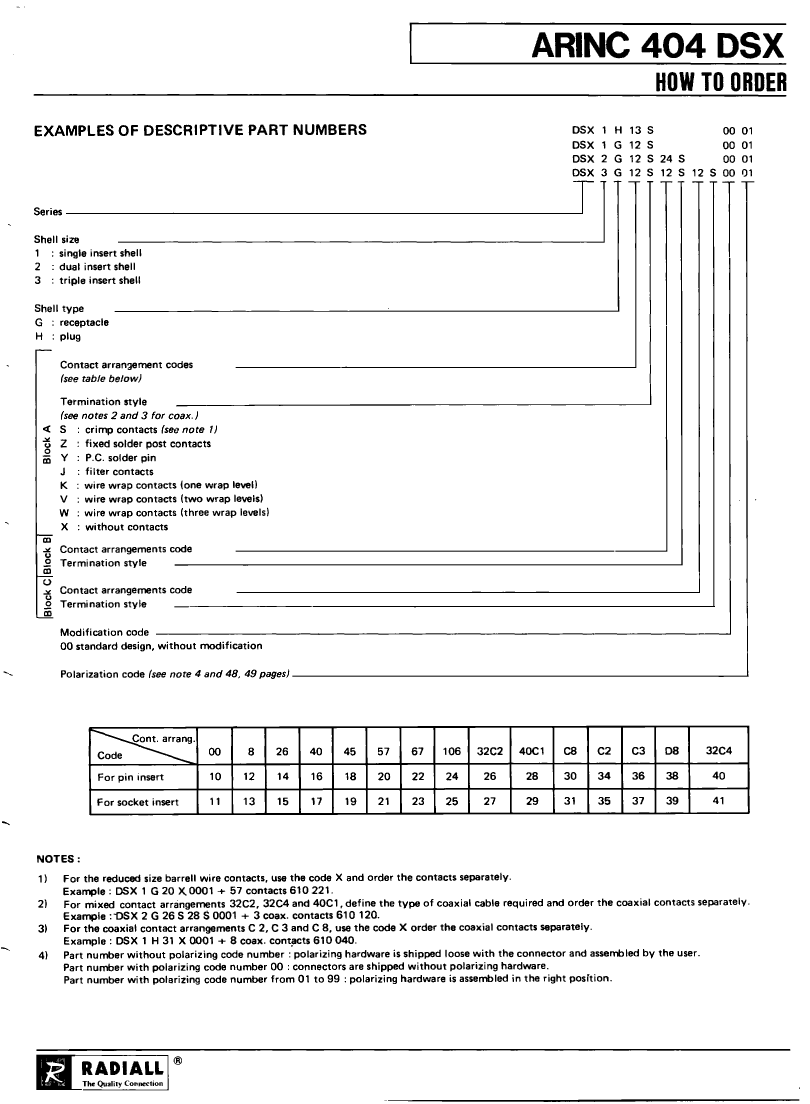

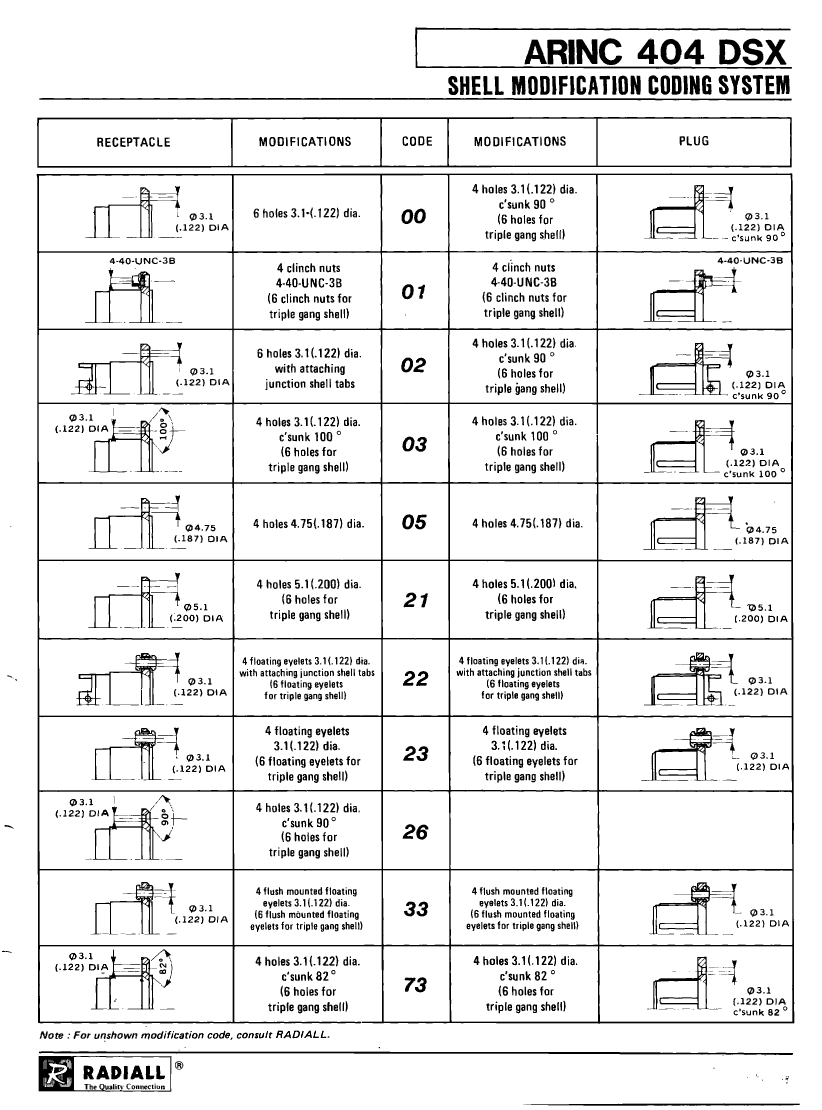

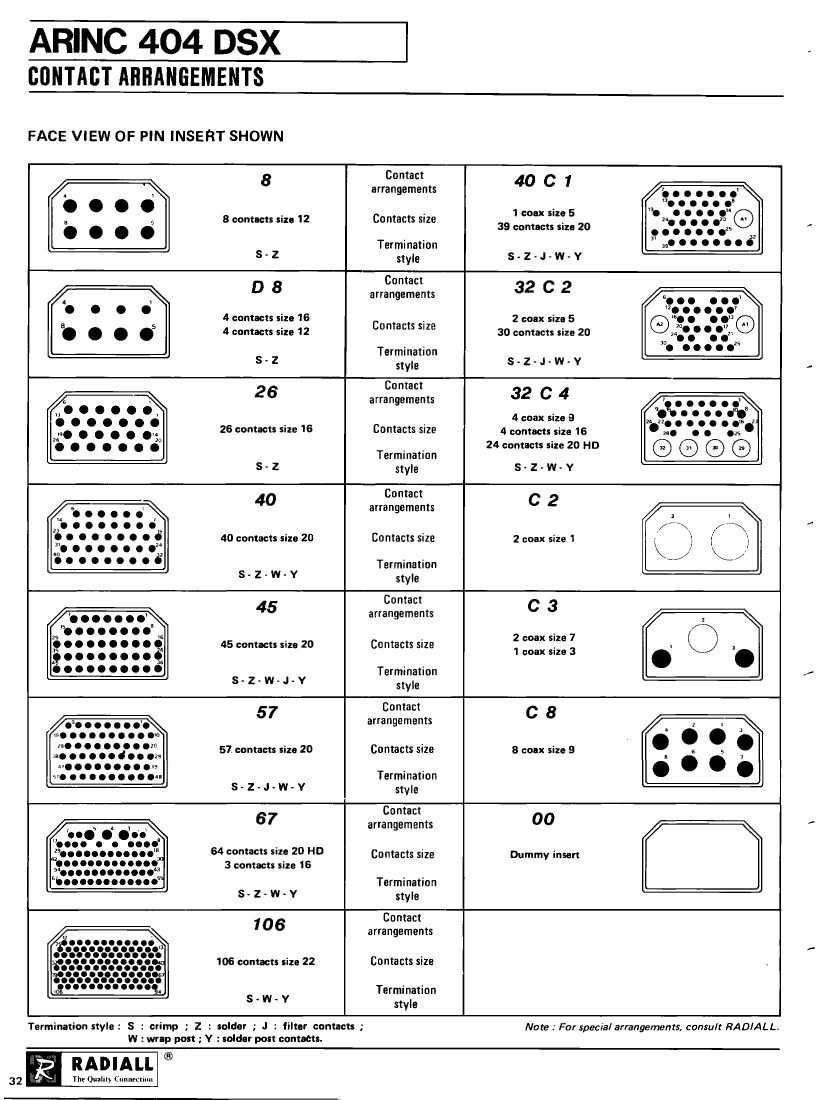

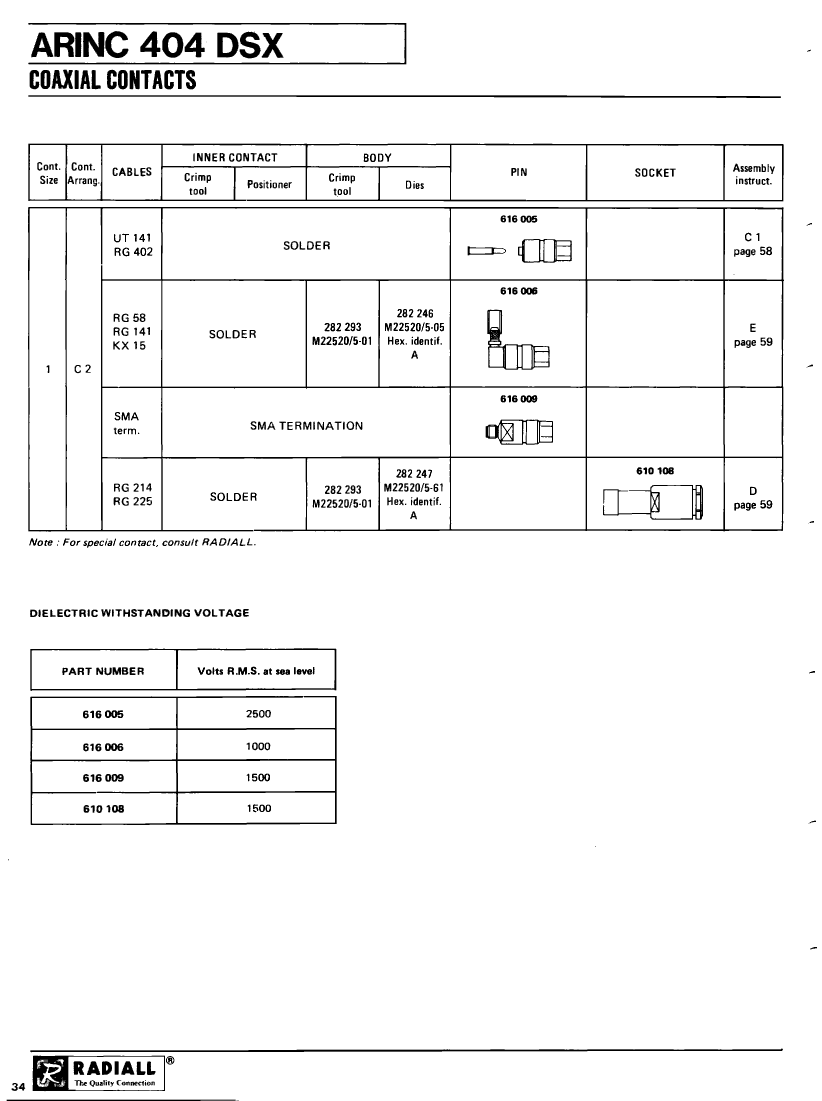

DSX1G Overview

Rack and Panel Connector, Female, Crimp; Solder; Wire Wrap Terminal, Receptacle

Parameter Name	Attribute value
Maker	Radiall
Reach Compliance Code	unknown
Other features	POLARIZED, MAX CONTACTS (SERIES)=106
Body/casing type	RECEPTACLE
Connector type	RACK AND PANEL CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
insulator material	PLASTIC
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	DSX
Mixed contacts	YES
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	CADMIUM
Shell material	ALUMINUM
Termination type	CRIMP; SOLDER; WIRE WRAP

	DSX1G	DSX2G	DSX3G
Description	Rack and Panel Connector, Female, Crimp; Solder; Wire Wrap Terminal, Receptacle	Rack and Panel Connector, Female, Crimp; Solder; Wire Wrap Terminal, Receptacle	Rack and Panel Connector, Female, Crimp; Solder; Wire Wrap Terminal, Receptacle
Maker	Radiall	Radiall	Radiall
Reach Compliance Code	unknown	unknown	unknown
Other features	POLARIZED, MAX CONTACTS (SERIES)=106	POLARIZED, MAX CONTACTS (SERIES)=106	POLARIZED, MAX CONTACTS (SERIES)=106
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	RACK AND PANEL CONNECTOR	RACK AND PANEL CONNECTOR	RACK AND PANEL CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO	NO
empty shell	NO	NO	NO
Filter function	YES	YES	YES
IEC compliance	NO	NO	NO
insulator material	PLASTIC	PLASTIC	PLASTIC
JESD-609 code	e4	e4	e4
MIL compliance	NO	NO	NO
Manufacturer's serial number	DSX	DSX	DSX
Mixed contacts	YES	YES	YES
Installation type	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	CADMIUM	CADMIUM	CADMIUM
Shell material	ALUMINUM	ALUMINUM	ALUMINUM
Termination type	CRIMP; SOLDER; WIRE WRAP	CRIMP; SOLDER; WIRE WRAP	CRIMP; SOLDER; WIRE WRAP
