74HC258NB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74HC258NB

74HC258NB: DescriptionIC HC/UH SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, PDIP16, Multiplexer/Demultiplexer; Categorylogic logic; File Size91KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com; Environmental Compliance

Download Datasheet Parametric Compare View All

74HC258NB Overview

IC HC/UH SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, PDIP16, Multiplexer/Demultiplexer

74HC258NB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	NXP
package instruction	DIP,
Reach Compliance Code	unknown
series	HC/UH
JESD-30 code	R-PDIP-T16
JESD-609 code	e4
length	19.025 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
Number of functions	4
Number of entries	2
Output times	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	245
propagation delay (tpd)	42 ns
Certification status	Not Qualified
Maximum seat height	4.2 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal surface	NICKEL PALLADIUM GOLD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	7.62 mm

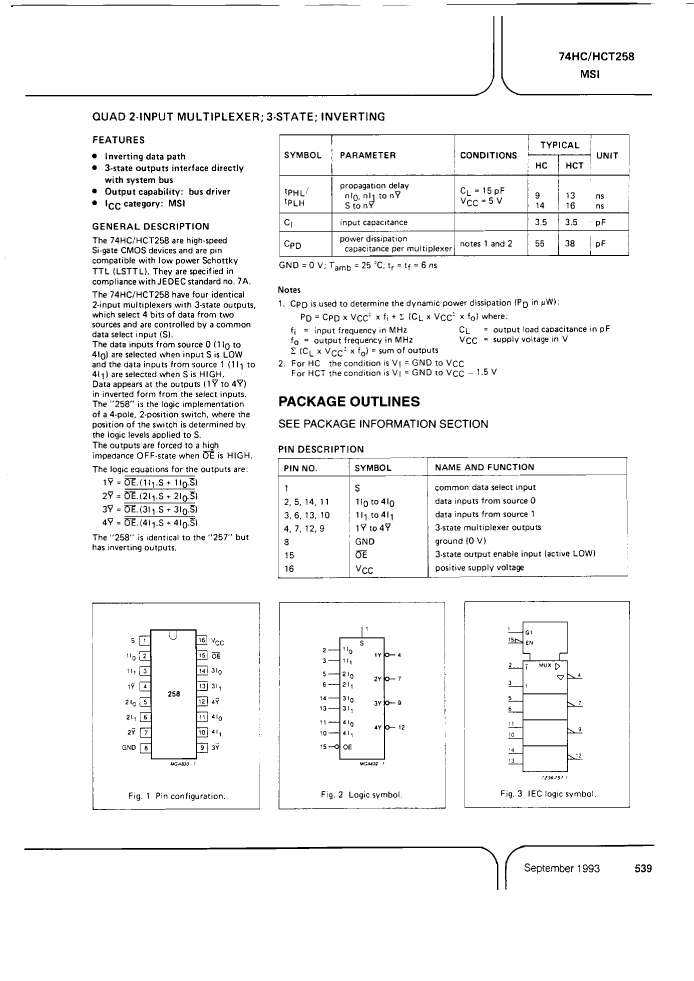

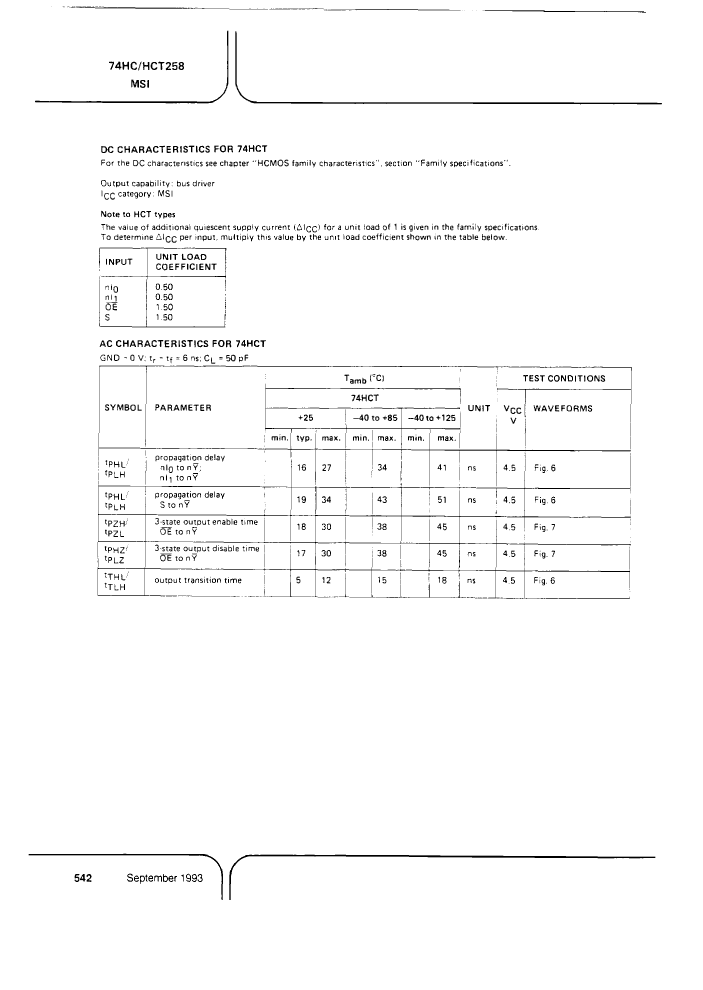

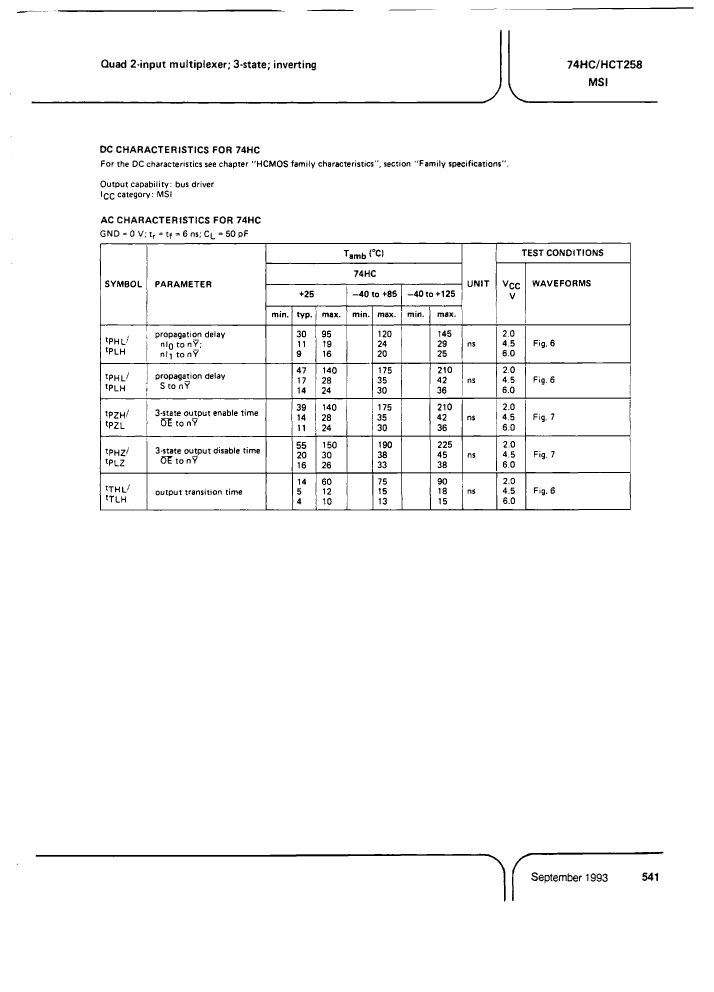

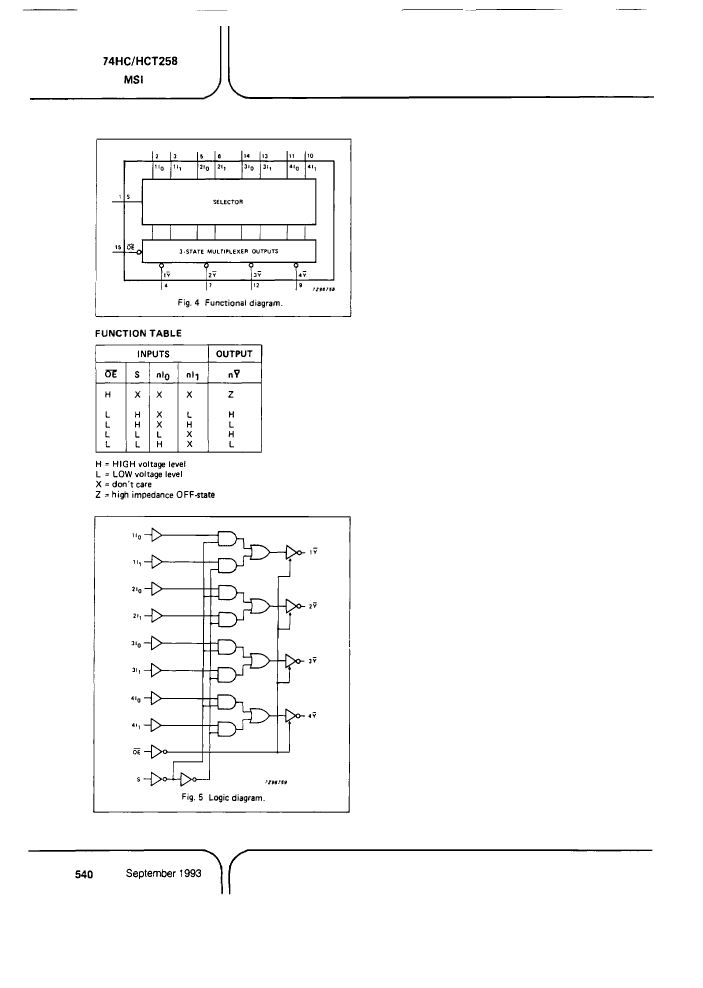

Preview

Download Datasheet

View All

74HC258NB Related Products

	74HC258NB	74HC258PW-T	74HC258PW	74HCT258PW	74HCT258PW-T	74HCT258DB	74HCT258DB-T	74HCT258NB
Description	IC HC/UH SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, PDIP16, Multiplexer/Demultiplexer	IC HC/UH SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, PDSO16, Multiplexer/Demultiplexer	IC HC/UH SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, PDSO16, Multiplexer/Demultiplexer	IC HCT SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, PDSO16, Multiplexer/Demultiplexer	IC HCT SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, PDSO16, Multiplexer/Demultiplexer	IC HCT SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, PDSO16, Multiplexer/Demultiplexer	IC HCT SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, PDSO16, Multiplexer/Demultiplexer	IC HCT SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, PDIP16, Multiplexer/Demultiplexer
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
series	HC/UH	HC/UH	HC/UH	HCT	HCT	HCT	HCT	HCT
JESD-30 code	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16
length	19.025 mm	5 mm	5 mm	5 mm	5 mm	6.2 mm	6.2 mm	19.025 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	4	4	4	4	4	4	4	4
Number of entries	2	2	2	2	2	2	2	2
Output times	1	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	TSSOP	TSSOP	TSSOP	TSSOP	SSOP	SSOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	IN-LINE
propagation delay (tpd)	42 ns	42 ns	42 ns	51 ns	51 ns	51 ns	51 ns	51 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.2 mm	1.1 mm	1.1 mm	1.1 mm	1.1 mm	2 mm	2 mm	4.2 mm
Maximum supply voltage (Vsup)	6 V	6 V	6 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	4.4 mm	4.4 mm	4.4 mm	4.4 mm	5.3 mm	5.3 mm	7.62 mm
Maker	NXP	NXP	NXP	-	NXP	NXP	NXP	NXP
package instruction	DIP,	TSSOP,	-	TSSOP,	TSSOP,	SSOP,	SSOP,	DIP,
