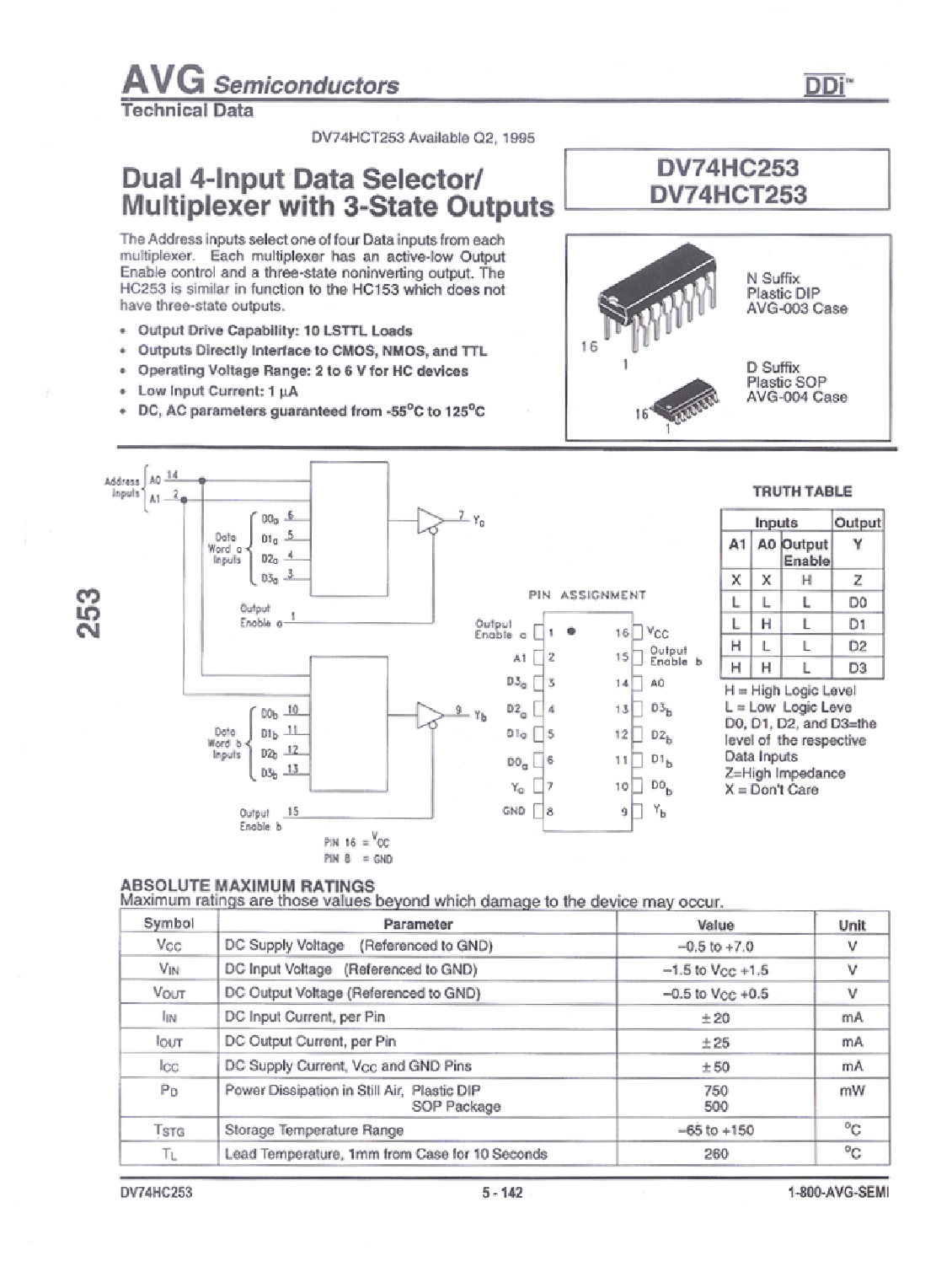

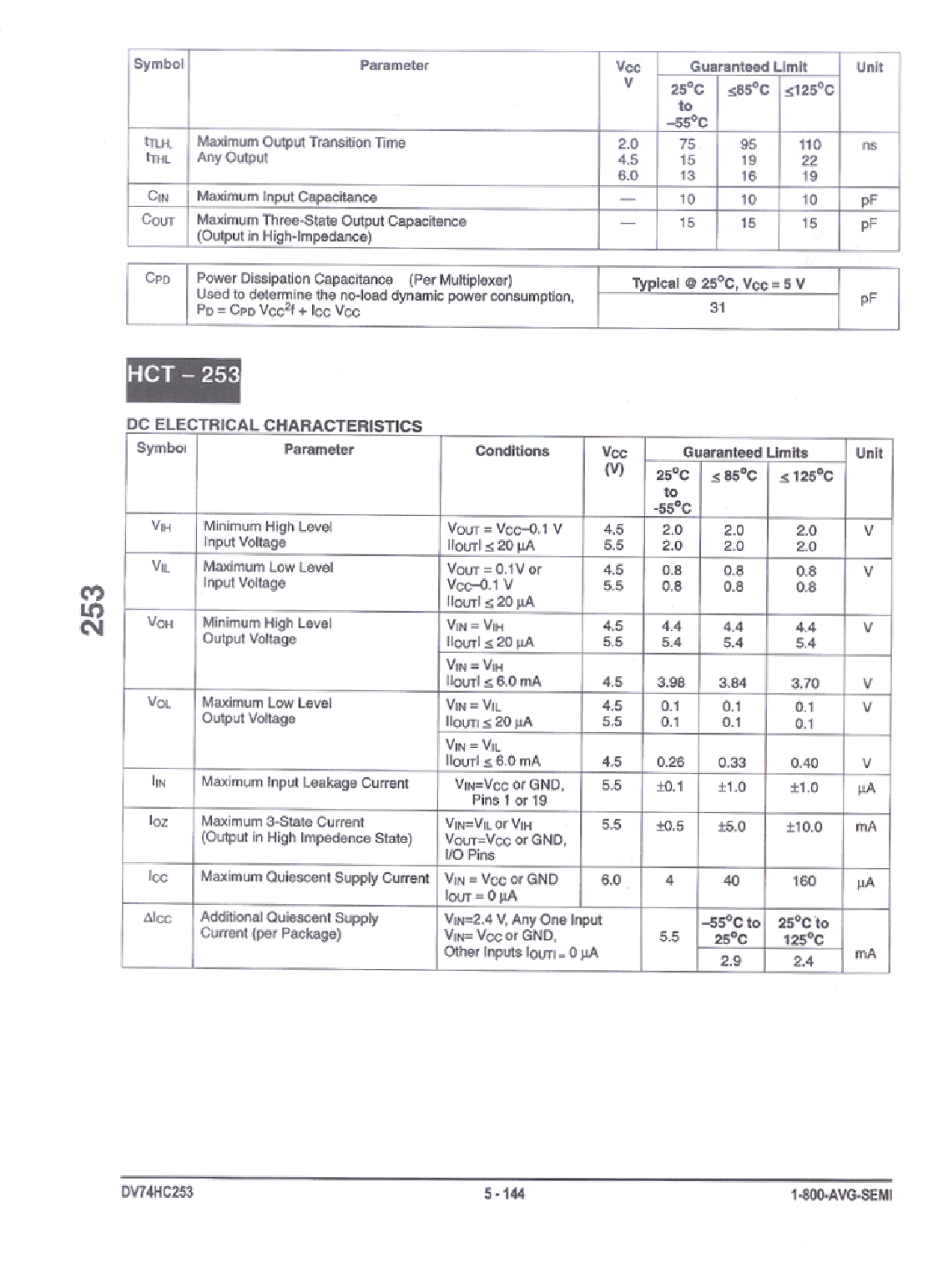

Multiplexer, HCT Series, 2-Func, 4 Line Input, 1 Line Output, True Output, CMOS, PDIP16, PLASTIC, DIP-16

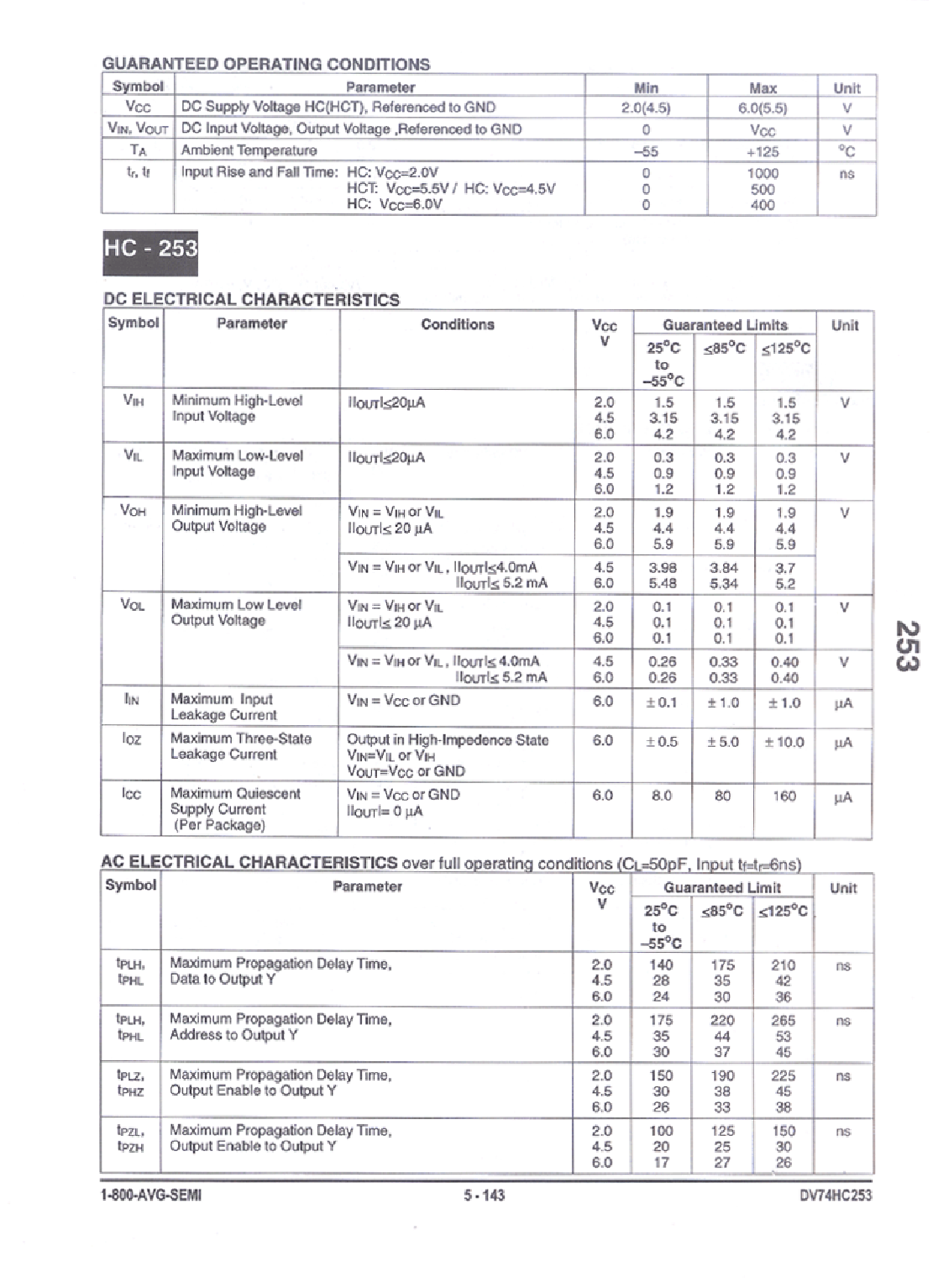

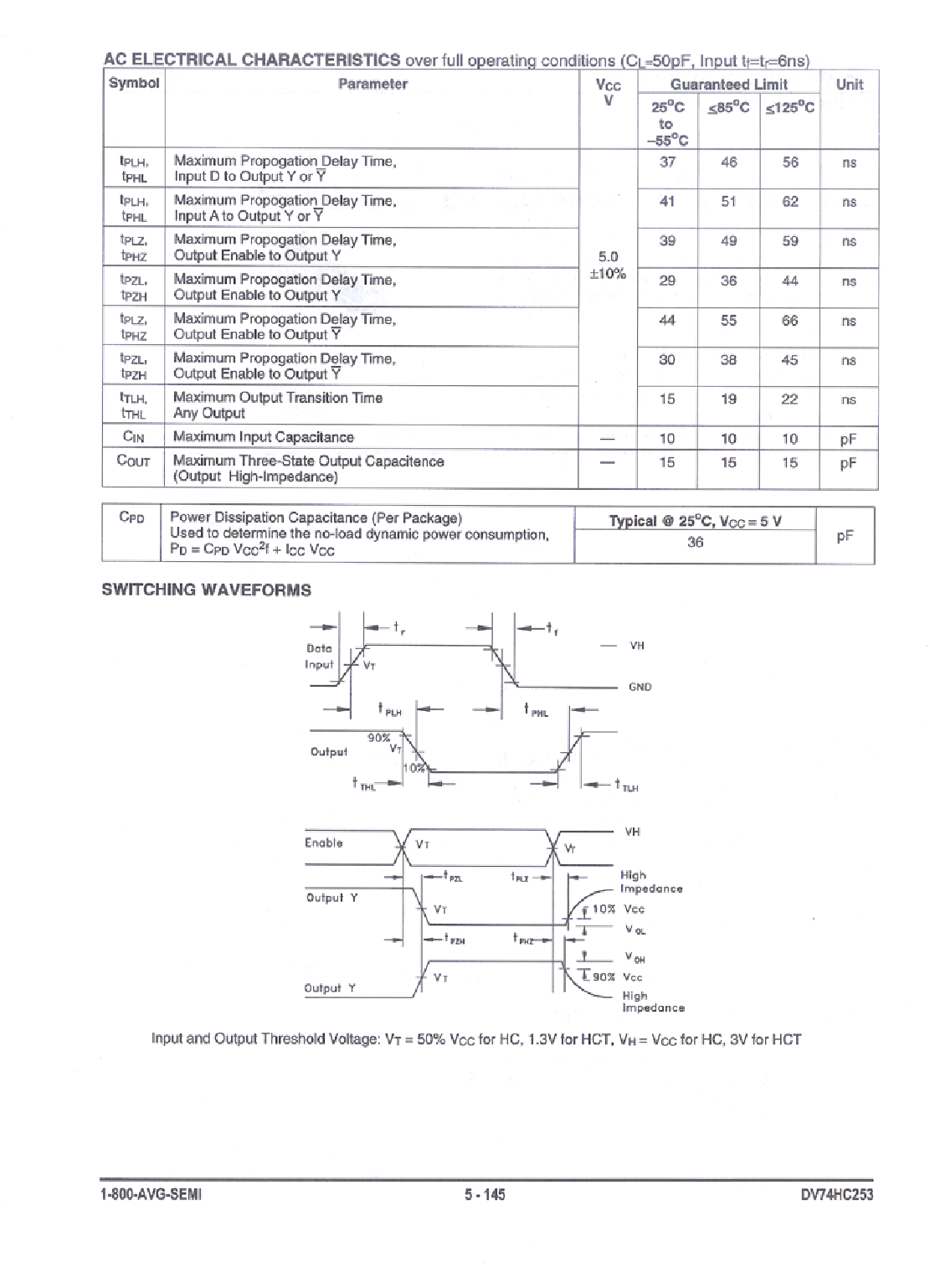

| Parameter Name | Attribute value |
| Maker | AVG [AVG Semiconductors(HITEK)] |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| series | HCT |
| JESD-30 code | R-PDIP-T16 |
| length | 19.175 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | MULTIPLEXER |
| Number of functions | 2 |
| Number of entries | 4 |
| Output times | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| propagation delay (tpd) | 56 ns |
| Certification status | Not Qualified |
| Maximum seat height | 4.44 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| width | 7.62 mm |
| DV74HCT253N | DV74HCT253D | |
|---|---|---|
| Description | Multiplexer, HCT Series, 2-Func, 4 Line Input, 1 Line Output, True Output, CMOS, PDIP16, PLASTIC, DIP-16 | Multiplexer, HCT Series, 2-Func, 4 Line Input, 1 Line Output, True Output, CMOS, PDSO16, PLASTIC, SOP-16 |
| Parts packaging code | DIP | SOIC |
| package instruction | DIP, | SOP, |
| Contacts | 16 | 16 |
| Reach Compliance Code | unknown | unknown |
| series | HCT | HCT |
| JESD-30 code | R-PDIP-T16 | R-PDSO-G16 |
| length | 19.175 mm | 9.9 mm |
| Load capacitance (CL) | 50 pF | 50 pF |
| Logic integrated circuit type | MULTIPLEXER | MULTIPLEXER |
| Number of functions | 2 | 2 |
| Number of entries | 4 | 4 |
| Output times | 1 | 1 |
| Number of terminals | 16 | 16 |
| Maximum operating temperature | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C |
| Output characteristics | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMALL OUTLINE |
| propagation delay (tpd) | 56 ns | 56 ns |
| Certification status | Not Qualified | Not Qualified |
| Maximum seat height | 4.44 mm | 1.75 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V |
| surface mount | NO | YES |
| technology | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY |
| Terminal form | THROUGH-HOLE | GULL WING |
| Terminal pitch | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | DUAL |
| width | 7.62 mm | 3.9 mm |
