HCPL-817
Phototransistor Optocoupler High Density Mounting Type
Data Sheet
Lead (Pb) Free
RoHS 6 fully
compliant
RoHS 6 fully compliant options available;
-xxxE denotes a lead-free product
Description
The HCPL-817 contains a light emitting diode optically
coupled to a phototransistor. It is packaged in a 4-pin DIP
package and available in wide-lead spacing option and
lead bend SMD option. Input-output isolation voltage is
5000 Vrms. Response time, t
r
, is typically 4
μs
and minimum
CTR is 50% at input current of 5 mA.
Features
•
Current Transfer Ratio
(CTR: min. 50% at I
F
= 5 mA, V
CE
= 5 V)
•
High input-output isolation voltage (V
iso
= 5000 V
rms
)
•
Response time
(tr: typ., 4
μs
at VCE = 2 V, IC = 2 mA, RL = 100
Ω)
•
Compact dual-in-line package
•
UL approved
I
F
I
C
4
COLLECTOR
Schematic
ANODE
1
+
V
F
CATHODE
–
2
3
EMITTER
•
CSA approved
•
IEC/EN/DIN EN 60747-5-2 approved
•
Options available:
– Leads with 0.4" (10.16 mm) spacing (W00)
– Leads bends for surface mounting (300)
– Tape and reel for SMD (500)
– IEC/EN/DIN EN 60747-5-2 approvals (060)
Functional Diagram
PIN NO. AND INTERNAL
CONNECTION DIAGRAM
4
3
Applications
•
Signal transmission between circuits of different
potentials and impedances
•
I/O interfaces for computers
•
Feedback circuit in power supply
1
1. ANODE
2. CATHODE
2
3. EMITTER
4. COLLECTOR
CAUTION:
It is advised that normal static precautions be taken in handling and assembly
of this component to prevent damage and/or degradation which may be induced by ESD.
Ordering Information
HCPL-817-xxxx is UL Recognized with 5000 Vrms for 1 minute per UL1577 and is approved under CSA Component
Acceptance Notice #5, File CA 88324.
RoHS Compliant Option
Rank
‘0’
50%
<CTR<
600%
-000E
-300E
-500E
-060E
HCPL-
817
-360E
-560E
-W00E
-W60E
Part
number
Rank
‘A’
80%
<CTR<
160%
-00AE
-30AE
-50AE
-06AE
-36AE
-56AE
-W0AE
-W6AE
Rank
‘B’
130%
<CTR<
260%
-00BE
-30BE
-50BE
-06BE
-36BE
-56BE
-W0BE
-W6BE
Rank
‘C’
200%
<CTR<
400%
-00CE
-30CE
-50CE
-06CE
-36CE
-56CE
-W0CE
-W6CE
Rank
‘D’
300%
<CTR<
600%
-00DE
-30DE
-50DE
-06DE
-36DE
-56DE
-W0DE
-W6DE
Rank
‘L’
50%
<CTR<
100% Package
-00LE
-30LE
-50LE
-06LE
-36LE
-56LE
-W0LE
-W6LE
400mil
DIP-4
300mil
DIP-4
Surface
Mount
Gull
Wing
Tape
& Reel
IEC/EN/
DIN EN
60747-
5-2
Quantity
100 pcs
per tube
X
X
X
X
X
X
100 pcs
per tube
1000 pcs
per reel
100 pcs
per tube
100 pcs
per tube
1000 pcs
per reel
100 pcs
per tube
X
100 pcs
per tube
X
X
X
X
X
X
X
To order, choose a part number from the part number column and combine with the desired option from the option
column to form an order entry.
Example 1:
HCPL-817-360E to order product of 300mil DIP-4 DC Gull Wing Surface Mount package in Tube packaging with
50%<CTR<600%, IEC/EN/DIN EN 60767-5-2 Safety Approval and RoHS compliant.
Example 2:
HCPL-817-50BE to order product of 300mil DIP-4 DC Gull Wing Surface Mount package in Tape and Reel packaging
with 130%<CTR<260% and RoHS compliant.
Option datasheets are available. Contact your Avago sales representative or authorized distributor for information.
2

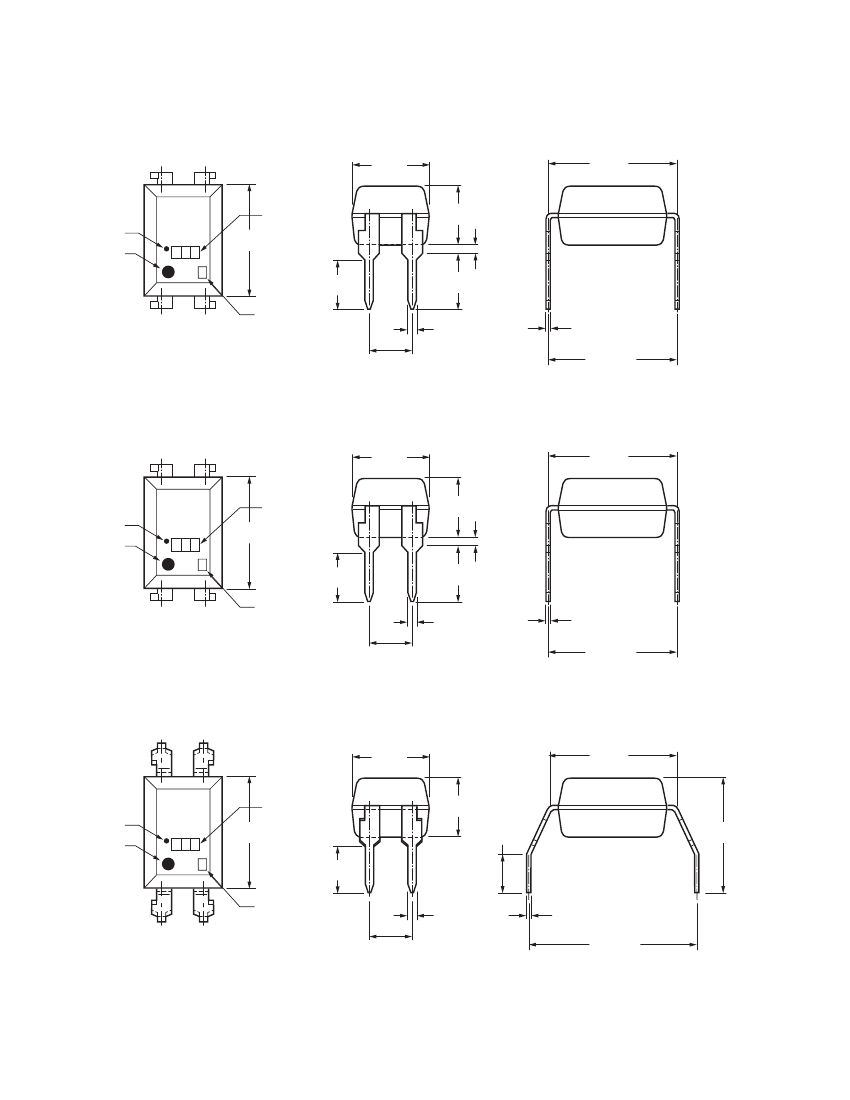

Package Outline Drawings
HCPL-817-000E
4.6 ± 0.5
(0.181)
7.62 ± 0.3
(0.3)
DATE CODE
LEAD FREE
ANODE
A 817
Y WW
6.5 ± 0.5
(0.256)
2.8 ± 0.5
(0.110)
RANK
3.5 ± 0.5
(0.138)
0.5 TYP.
(0.02)
3.3 ± 0.5
(0.130)
0.5 ± 0.1
(0.02)
2.54 ± 0.25
(0.1)
0.26
(0.010)
7.62 ~ 9.98
Dimensions in Millimeters and (Inches)
HCPL-817-060E
4.6 ± 0.5
(0.181)
3.5 ± 0.5
(0.138)
0.5 TYP.
(0.02)
2.8 ± 0.5
(0.110)
RANK
3.3 ± 0.5
(0.130)
0.5 ± 0.1
(0.02)
2.54 ± 0.25
(0.1)
0.26
(0.010)
7.62 ~ 9.98
7.62 ± 0.3
(0.3)
DATE CODE
LEAD FREE
ANODE
A 817V
Y WW
6.5 ± 0.5
(0.256)
Dimensions in Millimeters and (Inches)
HCPL-817-W00E
4.6 ± 0.5
(0.181)
7.62 ± 0.3
(0.3)
DATE CODE
LEAD FREE
ANODE
A 817
Y WW
6.5 ± 0.5
(0.256)
2.8 ± 0.5
(0.110)
RANK
3.5 ± 0.5
(0.138)
2.3 ± 0.5
(0.09)
6.9 ± 0.5
(0.272)
0.5 ± 0.1
(0.02)
2.54 ± 0.25
(0.1)
0.26
(0.010)
10.16 ± 0.5
(0.4)
Dimensions in Millimeters and (Inches)
3
HCPL-817-300E
4.6 ± 0.5
(0.181)
7.62 ± 0.3
(0.3)
DATE CODE
LEAD FREE
ANODE
A 817
Y WW
6.5 ± 0.5
(0.256)
1.2 ± 0.1
(0.047)
RANK
2.54 ± 0.25
(0.1)
3.5 ± 0.5
(0.138)
0.26
(0.010)
1.0 ± 0.25
(0.039)
10.16 ± 0.3
(0.4)
0.35 ± 0.25
(0.014)
Dimensions in Millimeters and (Inches)
Solder Reflow Temperature Profile
30 seconds
250°C
260°C (Peak Temperature)
Temperature (°C)
217°C
200°C
150°C
60 sec
1. One-time soldering reflow is recommended within the
condition of temperature and time profile shown.
2. When using another soldering method such as infrared
ray lamp, the temperature may rise partially in the mold
of thedevice. Keep the temperature on the package of
the device within the condition of (1) above.
60 sec
25°C
60 ~ 150 sec
90 sec
Time (sec)
Note: Non-halide flux should be used.
Absolute Maximum Ratings (T
A
= 25°C)
Storage Temperature, T
S
Operating Temperature, T
A
Lead Solder Temperature, max.
(1.6 mm below seating plane)
Average Forward Current, I
F
Reverse Input Voltage, V
R
Input Power Dissipation, P
I
Collector Current, I
C
Collector-Emitter Voltage, V
CEO
Emitter-Collector Voltage, V
ECO
Collector Power Dissipation
Total Power Dissipation
Isolation Voltage, V
iso
(AC for 1 minute, R.H. = 40 ~ 60%)
–55°C to +125°C
–30°C to +100°C
260°C for 10 s
50 mA
6V
70 mW
50 mA
70 V
6V
150 mW
200 mW
5000 Vrms
4
Electrical Specifications (T
A
= 25°C)
Parameter
Forward Voltage
Reverse Current
Terminal Capacitance
Collector Dark Current
Collector-Emitter Breakdown Voltage
Emitter-Collector Breakdown Voltage
Collector Current
*Current Transfer Ratio
Collector-Emitter Saturation Voltage
Response Time (Rise)
Response Time (Fall)
Cut-off Frequency
Isolation Resistance
Floating Capacitance
Symbol
V
F
I
R
C
t
I
CEO
BV
CEO
BV
ECO
I
C
CTR
V
CE(sat)
t
r
t
f
f
c
R
iso
C
f
Min.
–
–
–
–
70
6
2.5
50
–
–
–
–
5 x 10
10
–
Typ.
1.2
–
30
–
–
–
–
–
0.1
4
3
80
1 x 10
11
0.6
Max.
1.4
10
250
100
–
–
30
600
0.2
18
18
–
–
1.0
Units
V
μA
pF
nA
V
V
mA
%
V
μs
μs
KHz
Ω
pF
Test Conditions
I
F
= 20 mA
V
R
= 4 V
V = 0, f = 1 KHz
V
CE
= 20 V
I
C
= 0.1 mA
I
E
= 10
μA
I
F
= 5 mA, V
CE
= 5 V,
R
BE
= ∞
I
F
= 20 mA, I
C
= 1 mA
V
CE
= 2 V, I
C
= 2 mA
R
L
= 100
Ω
V
CC
= 5 V, I
C
= 2 mA
R
L
= 100
Ω,
–3 dB
DC 500 V
40 ~ 60% R.H.
V = 0, f = 1 MHz
* CTR =
60
I
F
– FORWARD CURRENT – mA
50
40
30
20
10
0
-30
I
C
x 100%
I
F
P
C
– COLLECTOR POWER DISSIPATION – mW
0
25
50
75
T
A
– AMBIENT TEMPERATURE – °C
100
125
200
150
100
50
0
-30
0
25
50
75
100
T
A
– AMBIENT TEMPERATURE – °C
125
Figure 1. Forward current vs. temperature.
6
T
A
= 25°C
V
CE(SAT.)
– COLLECTOR-EMITTER
SATURATION VOLTAGE – V
5
4
3
2
1
0
0
5
10
I
F
– FORWARD CURRENT – mA
15
I
C
= 0.5 mA
I
C
= 1 mA
I
C
= 3 mA
I
C
= 5 mA
I
C
= 7 mA
Figure 2. Collector power dissipation vs. temperature.
Figure 3. Collector-emitter saturation voltage vs. forward current.
5
