LT1070HVMK/883: DescriptionIC 5 A SWITCHING REGULATOR, 40 kHz SWITCHING FREQ-MAX, MBFM2, METAL CAN, TO-3, 4 PIN, Switching Regulator or Controller; CategoryPower/power management The power supply circuit; File Size425KB，12 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric View All

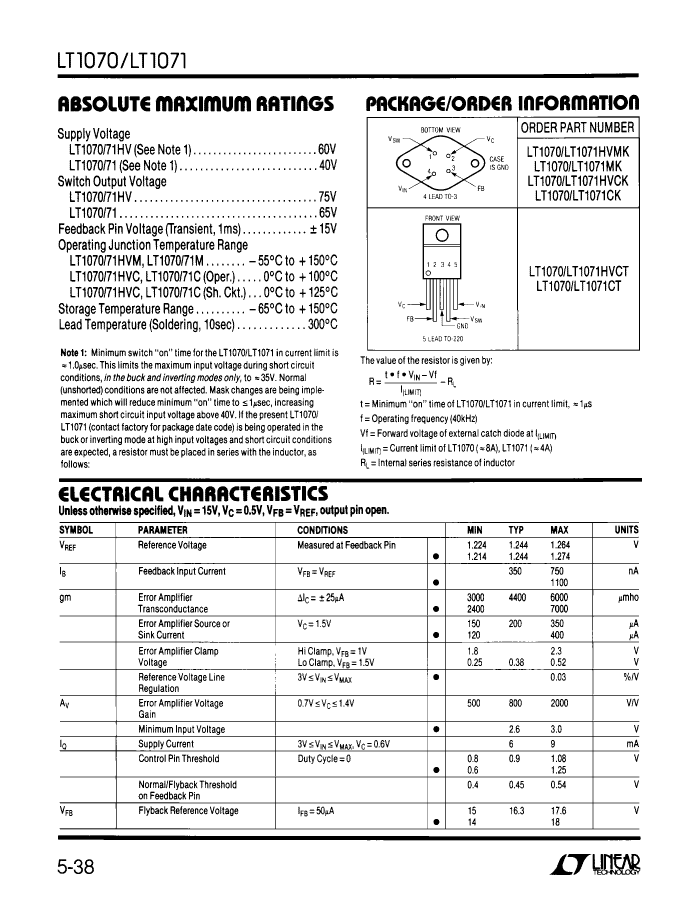

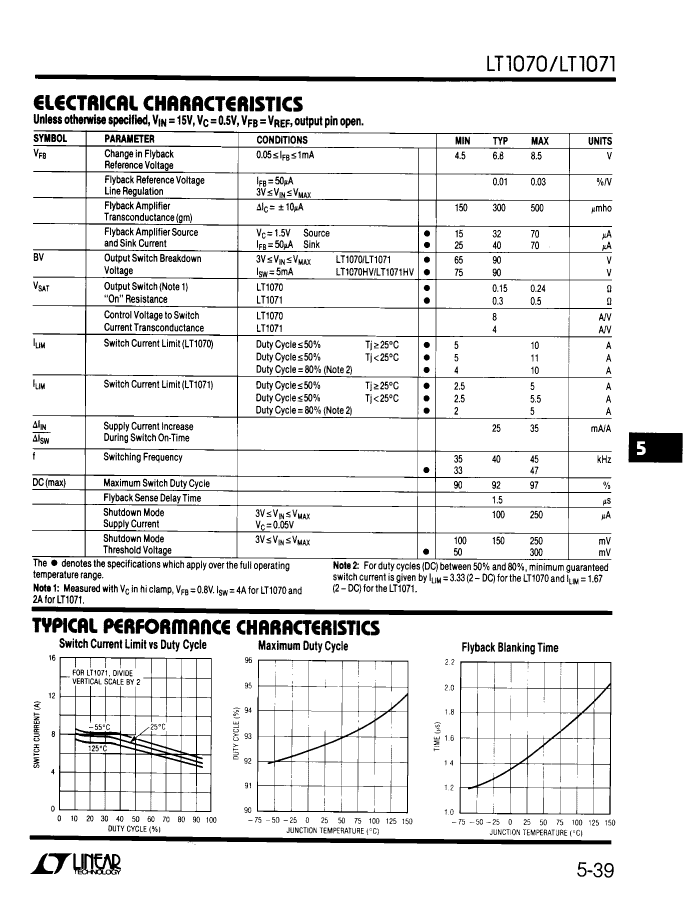

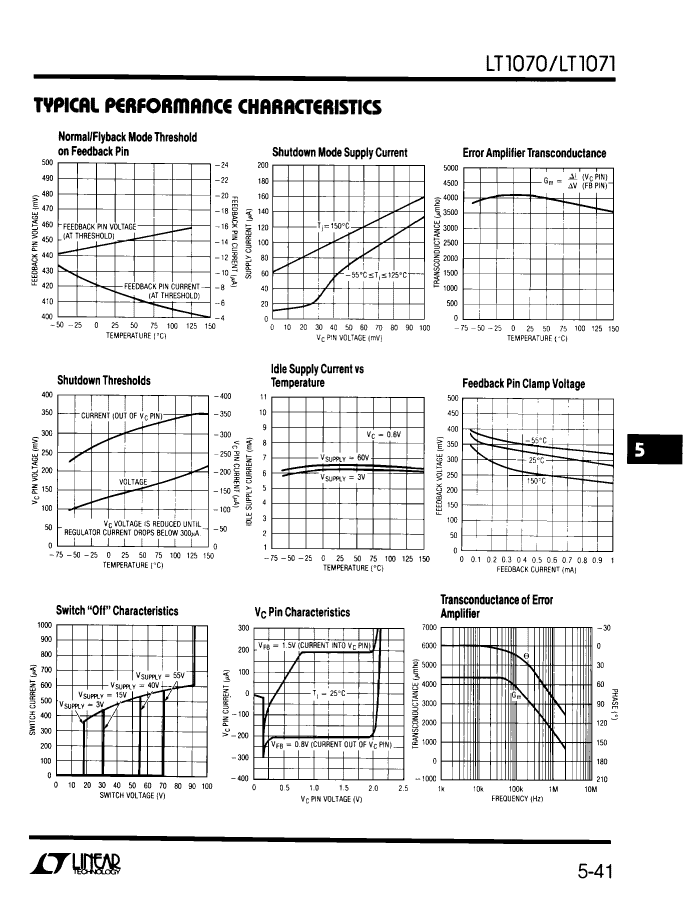

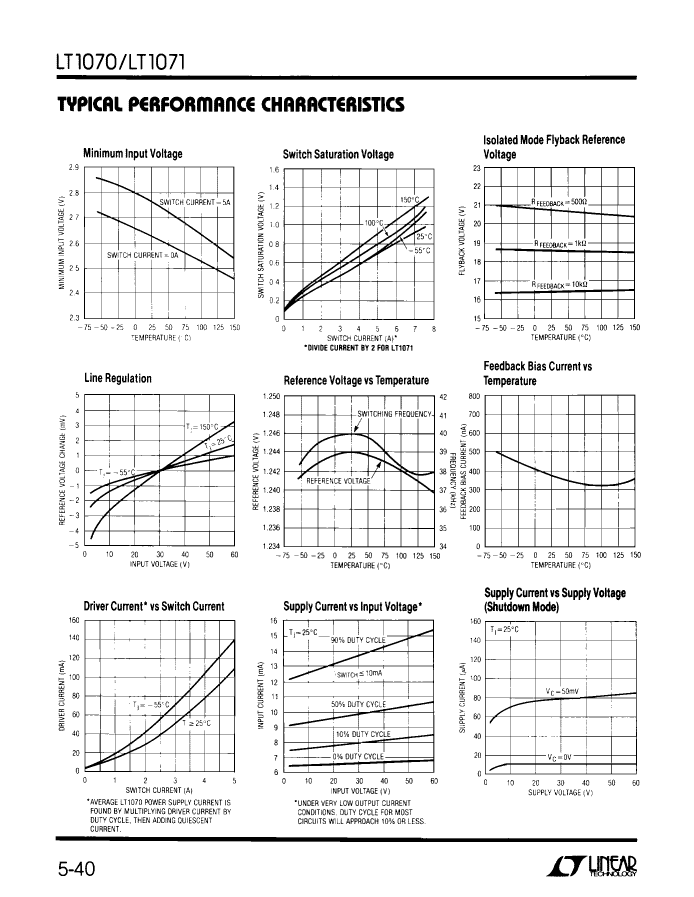

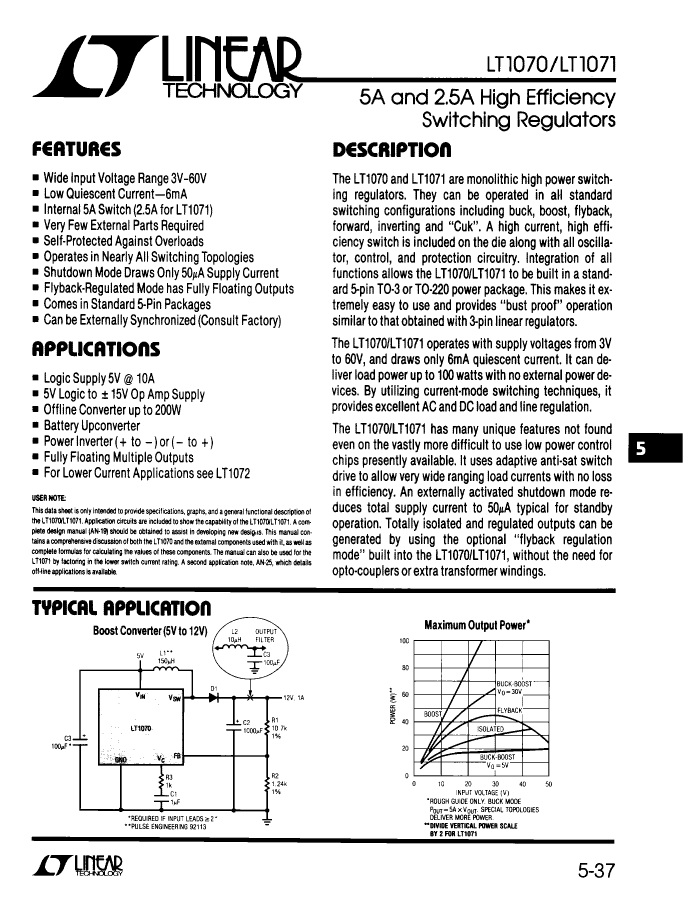

LT1070HVMK/883 Overview

IC 5 A SWITCHING REGULATOR, 40 kHz SWITCHING FREQ-MAX, MBFM2, METAL CAN, TO-3, 4 PIN, Switching Regulator or Controller

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	TO-204AA
package instruction	METAL CAN, TO-3, 4 PIN
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	60 V
Minimum input voltage	3 V
JESD-30 code	O-MBFM-P2
JESD-609 code	e0
Number of functions	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	5 A
Nominal output voltage	1.24 V
Package body material	METAL
encapsulated code	TO-3
Encapsulate equivalent code	CAN4/5,.45FL
Package shape	ROUND
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum supply current (Isup)	9 mA
surface mount	NO
Switch configuration	BOOST
Maximum switching frequency	40 kHz
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal location	BOTTOM
