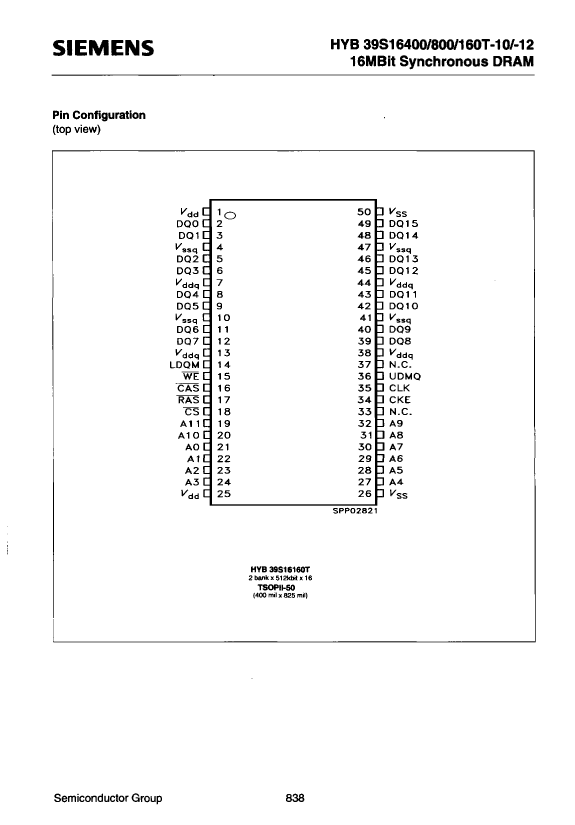

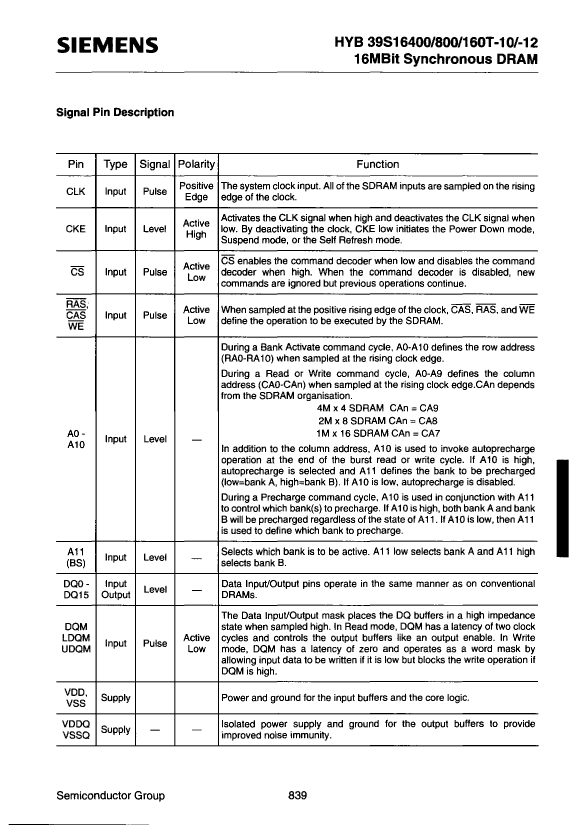

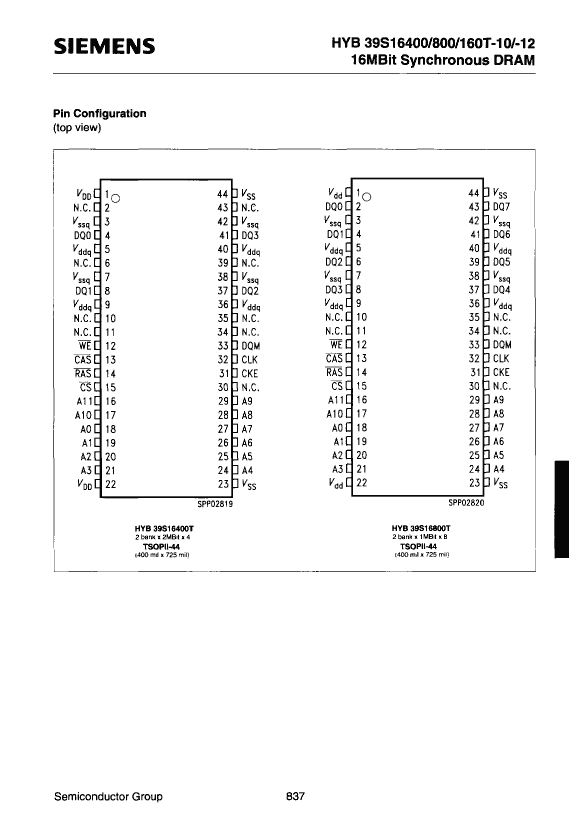

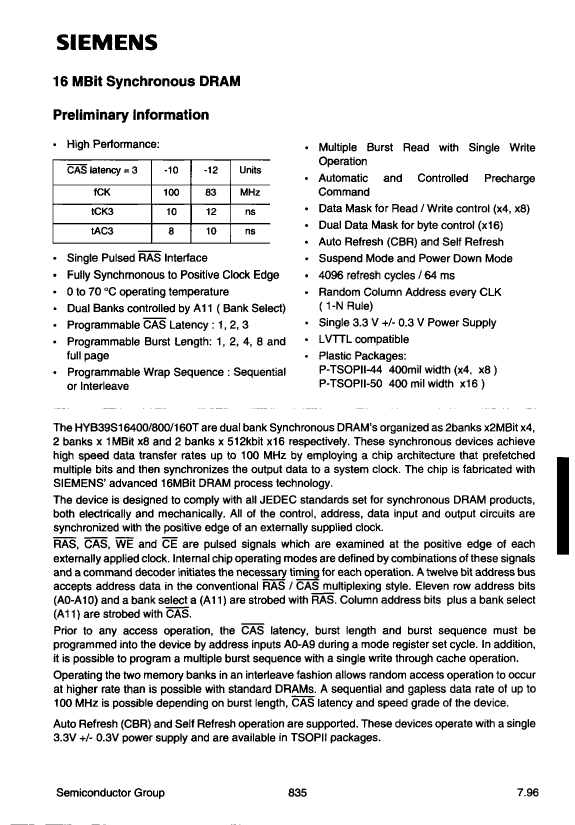

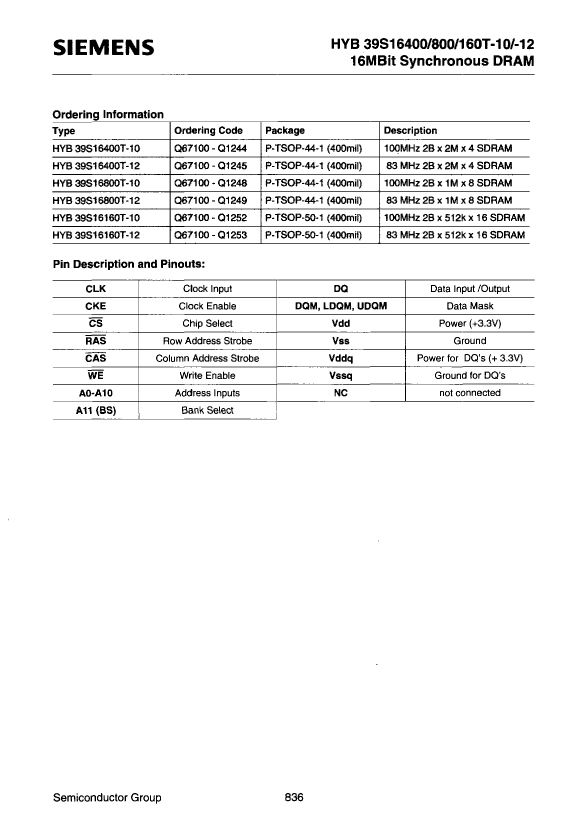

HYB39S16400T-12: DescriptionSynchronous DRAM, 4MX4, 10ns, MOS, PDSO44, 0.400 INCH, PLASTIC, TSOP-44; Categorystorage storage; File Size4MB，80 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

HYB39S16400T-12 Overview

Synchronous DRAM, 4MX4, 10ns, MOS, PDSO44, 0.400 INCH, PLASTIC, TSOP-44

HYB39S16400T-12 Parametric

Parameter Name	Attribute value
Maker	SIEMENS
Parts packaging code	TSOP
package instruction	,
Contacts	44
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	DUAL BANK PAGE BURST
Maximum access time	10 ns
Other features	AUTO/SELF REFRESH
JESD-30 code	R-PDSO-G44
memory density	16777216 bit
Memory IC Type	SYNCHRONOUS DRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	44
word count	4194304 words
character code	4000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX4
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
refresh cycle	4096
self refresh	YES
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	MOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL

Preview

Download Datasheet

View All

HYB39S16400T-12 Related Products

	HYB39S16400T-12	HYB39S16800T-10	HYB39S16160T-12	HYB39S16800T-12	HYB39S16400T-10	HYB39S16160T-10
Description	Synchronous DRAM, 4MX4, 10ns, MOS, PDSO44, 0.400 INCH, PLASTIC, TSOP-44	Synchronous DRAM, 2MX8, 8ns, MOS, PDSO44, 0.400 INCH, PLASTIC, TSOP-44	Synchronous DRAM, 1MX16, 10ns, MOS, PDSO50, 0.400 INCH, PLASTIC, TSOP-50	Synchronous DRAM, 2MX8, 10ns, MOS, PDSO44, 0.400 INCH, PLASTIC, TSOP-44	Synchronous DRAM, 4MX4, 8ns, MOS, PDSO44, 0.400 INCH, PLASTIC, TSOP-44	Synchronous DRAM, 1MX16, 8ns, MOS, PDSO50, 0.400 INCH, PLASTIC, TSOP-50
Maker	SIEMENS	SIEMENS	SIEMENS	SIEMENS	SIEMENS	SIEMENS
Parts packaging code	TSOP	TSOP	TSOP	TSOP	TSOP	TSOP
Contacts	44	44	50	44	44	50
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST
Maximum access time	10 ns	8 ns	10 ns	10 ns	8 ns	8 ns
Other features	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH
JESD-30 code	R-PDSO-G44	R-PDSO-G44	R-PDSO-G50	R-PDSO-G44	R-PDSO-G44	R-PDSO-G50
memory density	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM
memory width	4	8	16	8	4	16
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	44	44	50	44	44	50
word count	4194304 words	2097152 words	1048576 words	2097152 words	4194304 words	1048576 words
character code	4000000	2000000	1000000	2000000	4000000	1000000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	4MX4	2MX8	1MX16	2MX8	4MX4	1MX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	4096	4096	4096	4096	4096	4096
self refresh	YES	YES	YES	YES	YES	YES
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
technology	MOS	MOS	MOS	MOS	MOS	MOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
