8607-0-15-01-32-27-04-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 8607-0-15-01-32-27-04-0

8607-0-15-01-32-27-04-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size117KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

8607-0-15-01-32-27-04-0 Overview

PCB Terminal

8607-0-15-01-32-27-04-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	8607-0
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL

Preview

Download Datasheet

View All

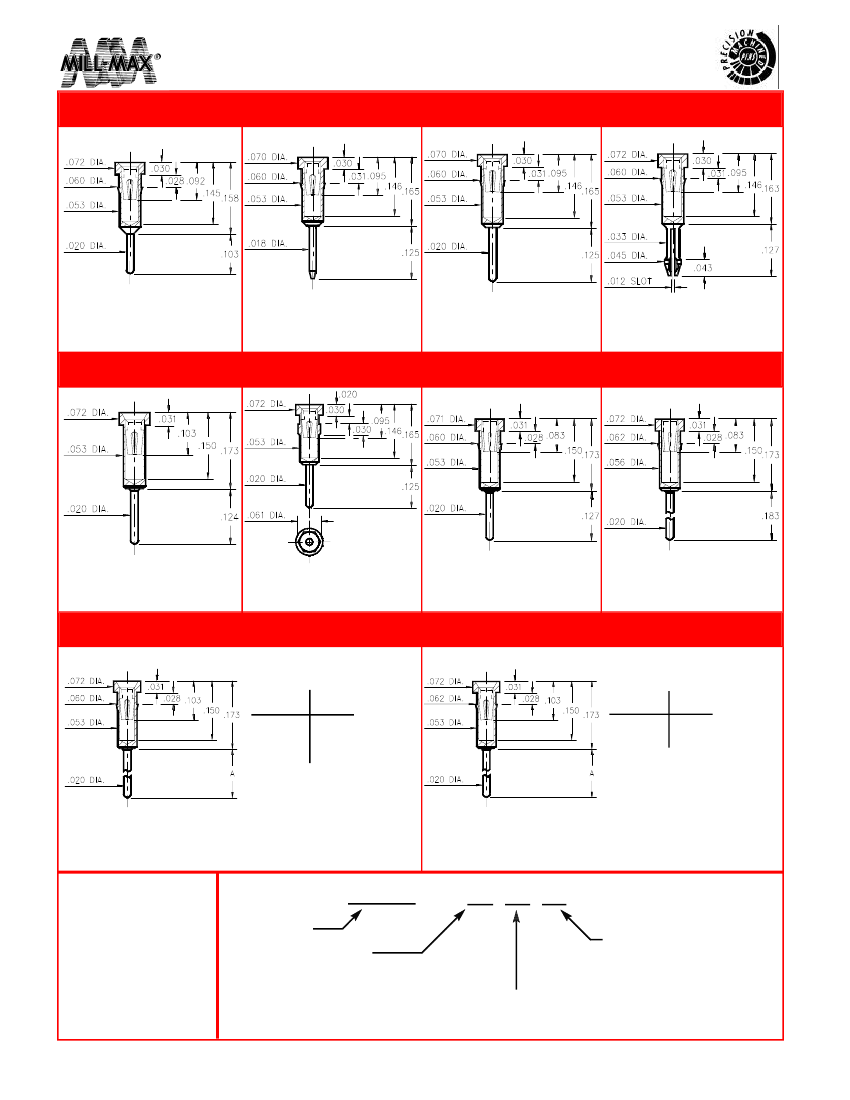

PIN RECEPTACLES

for .015 - .025 diameter pins

4011

1801

1001

0156

4011-0-15-XX-30-XX-04-0

Press-fit in .057 mounting hole

1801-0-15-XX-30-XX-04-0

Press-fit in .057 mounting hole

Shell is Ph. Br. Alloy 544 (B2)

1001-0-15-XX-3X-XX-04-0

Press-fit in .057 mounting hole

0156-0-18-XX-30-XX-04-0

Self-retention socket pin.038-.043

hole prior to soldering

0255

1109

8607

8180

0255-0-15-XX-30-XX-04-0

Solder mount in .022 min.

mounting hole

1109-0-15-XX-30-XX-04-0

Hex press-fit in .057

plated thru hole

8607-0-15-XX-32-XX-04-0

Press-fit in .057 mounting hole

8180-0-15-XX-32-XX-04-0

Press-fit in .059 mounting hole

0132/0134/0135/0470

Basic Part

Number

0132-0

0134-0

0135-0

0470-0

Length

.273

.170

.183

.127

0133/0147

Basic Part

Number

0133-0

0147-0

Length

.382

.563

0XXX-0-15-XX-32-XX-04-0

Press-fit in .057 mounting hole

01XX-0-15-XX-30-XX-04-0

Press-fit in .059 mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

± .005

DIAMETERS: ± .002

ANGLES:

± 2°

ORDER CODE: XXXX - 0 - 1X - XX - 3X - XX - X4 - 0

BASIC PART #

SPECIFY SHELL FINISH

200µ” TIN/LEAD OVER NICKEL

10µ” GOLD OVER NICKEL

SPECIFY CONTACT FINISH

100µ” TIN/LEAD OVER NICKEL

10µ” GOLD OVER NICKEL

30µ” GOLD OVER NICKEL

SELECT CONTACT

OR #

CONTACT (DATA ON PAGES 157 & 158)

Mill-Max Mfg. Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY11771-0300. Tel: 516-922-6000 Fax: 516-922-9253
