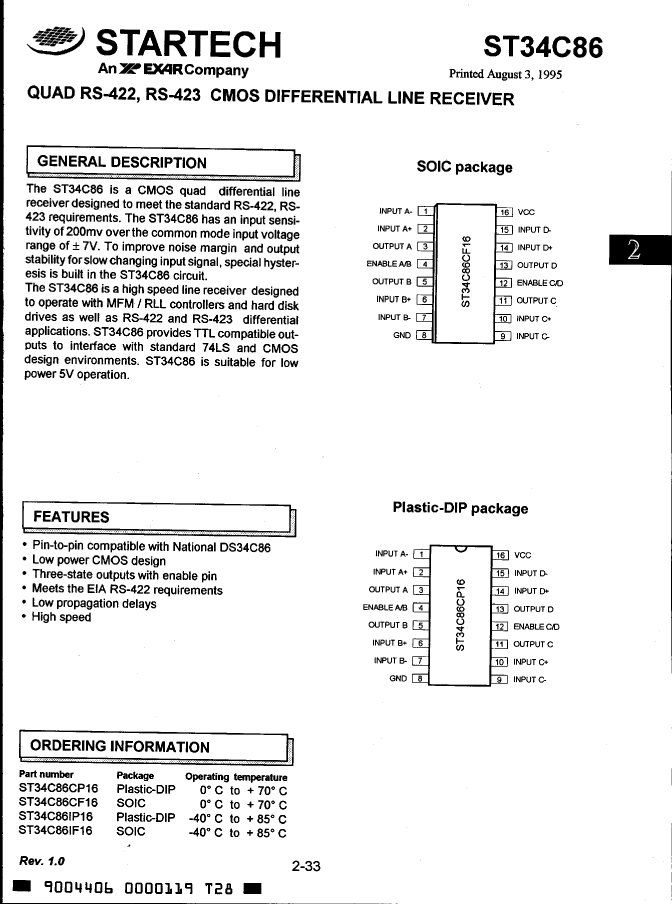

Line Receiver, 2 Func, 2 Rcvr, CMOS, PDSO16,

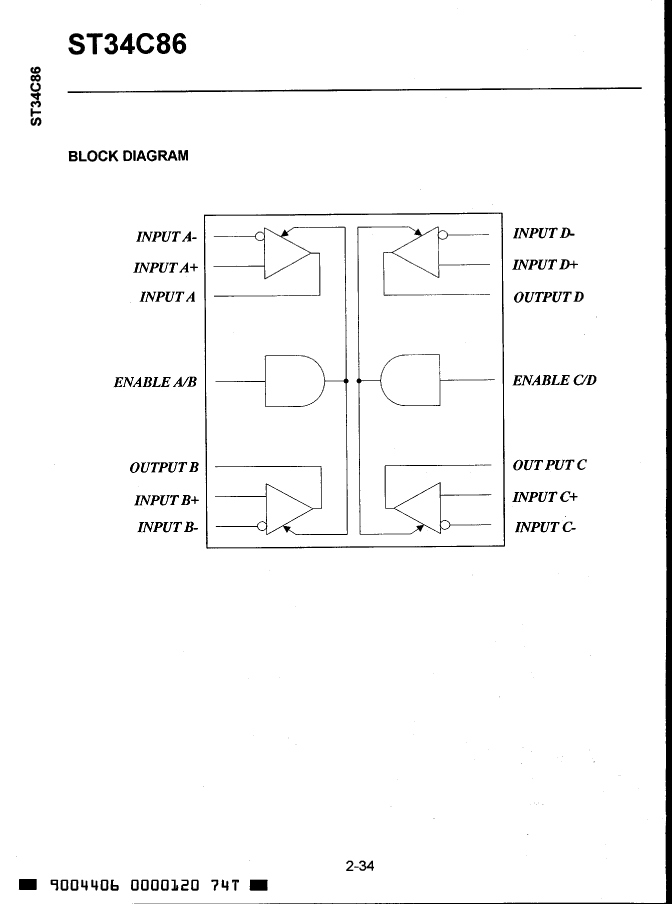

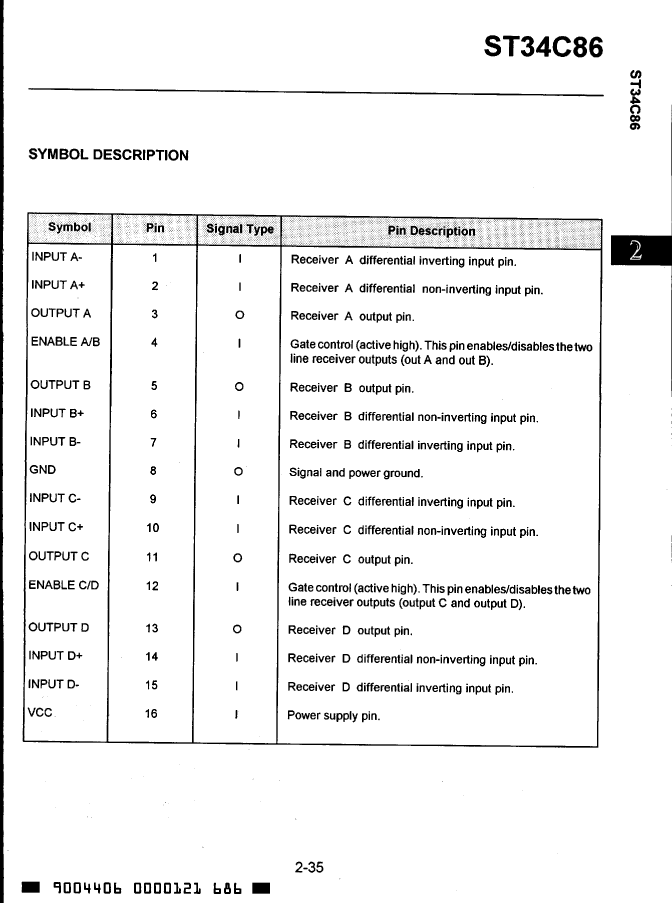

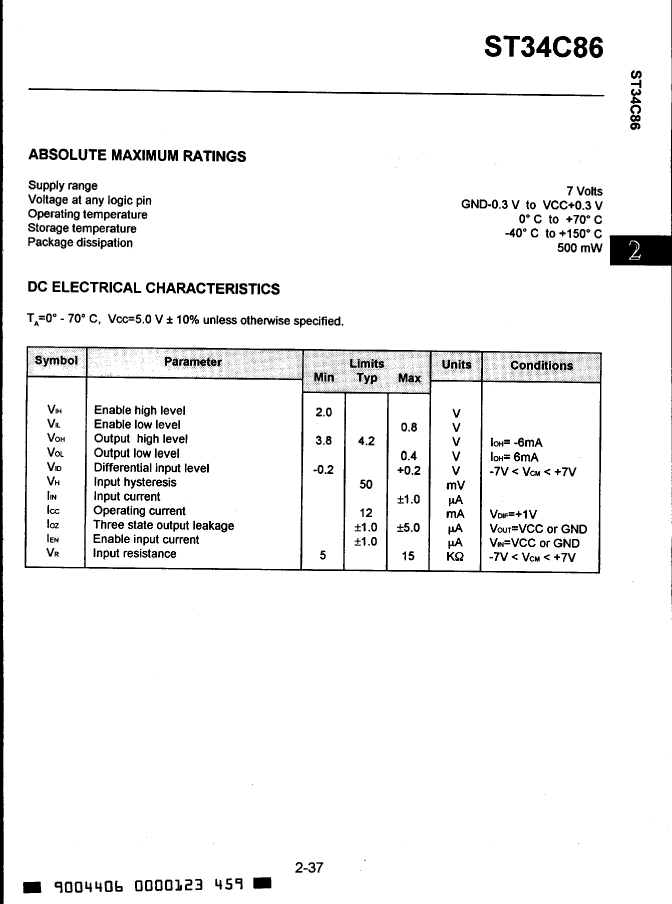

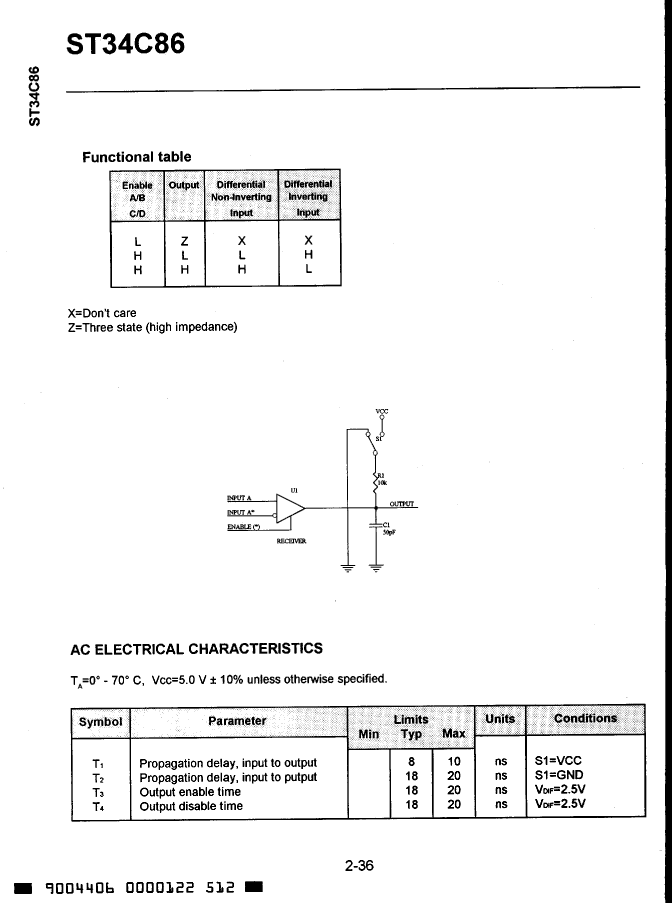

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | STARTECH |
| package instruction | SOP, SOP16,.25 |
| Reach Compliance Code | unknown |
| Input properties | DIFFERENTIAL SCHMITT TRIGGER |
| Interface integrated circuit type | LINE RECEIVER |
| Interface standards | EIA-422; EIA-423 |
| JESD-30 code | R-PDSO-G16 |
| JESD-609 code | e0 |
| Number of functions | 2 |
| Number of terminals | 16 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output characteristics | 3-STATE |
| Maximum output low current | 0.006 A |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP16,.25 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Certification status | Not Qualified |
| Maximum receive delay | 20 ns |
| Number of receiver bits | 2 |
| Maximum supply voltage | 5.5 V |
| Minimum supply voltage | 4.5 V |
| Nominal supply voltage | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| ST34C86IF16 | ST34C86CF16 | ST34C86CJ18 | ST34C86CP16 | ST34C86IP16 | |
|---|---|---|---|---|---|
| Description | Line Receiver, 2 Func, 2 Rcvr, CMOS, PDSO16, | Line Receiver, 2 Func, 2 Rcvr, CMOS, PDSO16, | Line Driver/Receiver, CMOS, PQCC18, | Line Receiver, 2 Func, 2 Rcvr, CMOS, PDIP16, | Line Receiver, 2 Func, 2 Rcvr, CMOS, PDIP16, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | STARTECH | STARTECH | STARTECH | STARTECH | STARTECH |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| JESD-30 code | R-PDSO-G16 | R-PDSO-G16 | R-PQCC-J18 | R-PDIP-T16 | R-PDIP-T16 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 |
| Number of terminals | 16 | 16 | 18 | 16 | 16 |
| Maximum operating temperature | 85 °C | 70 °C | 70 °C | 70 °C | 85 °C |
| Maximum output low current | 0.006 A | 0.006 A | 0.006 A | 0.006 A | 0.006 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SOP | QCCJ | DIP | DIP |
| Encapsulate equivalent code | SOP16,.25 | SOP16,.25 | LDCC18,.33X.53 | DIP16,.3 | DIP16,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | CHIP CARRIER | IN-LINE | IN-LINE |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum receive delay | 20 ns | 20 ns | 30 ns | 20 ns | 20 ns |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | NO | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | GULL WING | J BEND | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | QUAD | DUAL | DUAL |
| package instruction | SOP, SOP16,.25 | SOP, SOP16,.25 | - | DIP, DIP16,.3 | DIP, DIP16,.3 |
| Input properties | DIFFERENTIAL SCHMITT TRIGGER | DIFFERENTIAL SCHMITT TRIGGER | - | DIFFERENTIAL SCHMITT TRIGGER | DIFFERENTIAL SCHMITT TRIGGER |
| Interface integrated circuit type | LINE RECEIVER | LINE RECEIVER | - | LINE RECEIVER | LINE RECEIVER |
| Interface standards | EIA-422; EIA-423 | EIA-422; EIA-423 | - | EIA-422; EIA-423 | EIA-422; EIA-423 |
| Number of functions | 2 | 2 | - | 2 | 2 |
| Output characteristics | 3-STATE | 3-STATE | - | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | - | TRUE | TRUE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED |
| Number of receiver bits | 2 | 2 | - | 2 | 2 |
| Maximum supply voltage | 5.5 V | 5.5 V | - | 5.5 V | 5.5 V |
| Minimum supply voltage | 4.5 V | 4.5 V | - | 4.5 V | 4.5 V |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED |
