KCDC02-105: DescriptionSmart/Normal 7 Seg Numeric LED Display, 2-Character, Hyper Red, 5.08mm, ROHS COMPLIANT PACKAGE-20; CategoryLED optoelectronic/LED photoelectric; File Size135KB，4 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

KCDC02-105 Overview

Smart/Normal 7 Seg Numeric LED Display, 2-Character, Hyper Red, 5.08mm, ROHS COMPLIANT PACKAGE-20

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-20
Reach Compliance Code	compli
ECCN code	EAR99
Other features	IC COMPATIBLE
color	HYPER RED
color@wavelength	Orange-Red
Configuration	COMMON CATHODE, 2 DIGITS WITH DECIMAL POINT
Display height	5.08 mm
Maximum forward current	0.03 A
Maximum forward voltage	2.5 V
Number of characters	2
Number of functions	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	645 nm
Base Number Matches	1

SURFACE MOUNT DISPLAY

Part Number: KCDC02-105

HYPER RED

Features

0.2 INCH DIGIT HEIGHT.

LOW CURRENT OPERATION.

EXCELLENT CHARACTER APPEARANCE.

I.C. COMPATIBLE.

MECHANICALLY RUGGED.

PACKAGE :300PCS / REEL.

GRAY FACE, WHITE SEGMENT.

MOISTURE SENSITIVITY LEVEL : LEVEL 4.

RoHS COMPLIANT.

Description

The Hyper Red source color devices are made with DH

InGaAlP on GaAs substrate Light Emitting Diode.

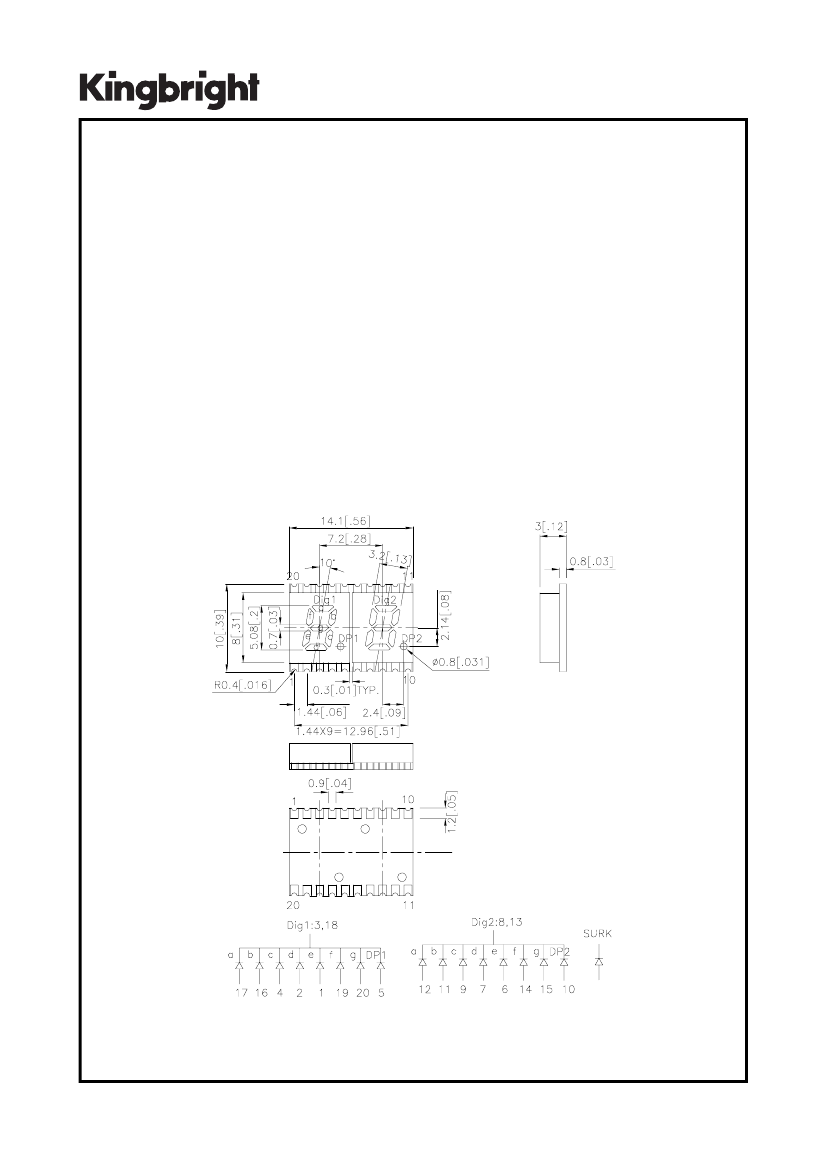

Package Dimensions & Internal Circuit Diagram

Notes:

1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.

2. Specifications are subject to change without notice.

3.The gap between the reflector and PCB shall not exceed 0.25mm.

SPEC NO: DSAF9682

APPROVED: J. Lu

REV NO: V.3

CHECKED: Joe Lee

DATE: SEP/02/2006

DRAWN: W.J.ZHU

PAGE: 1 OF 4
