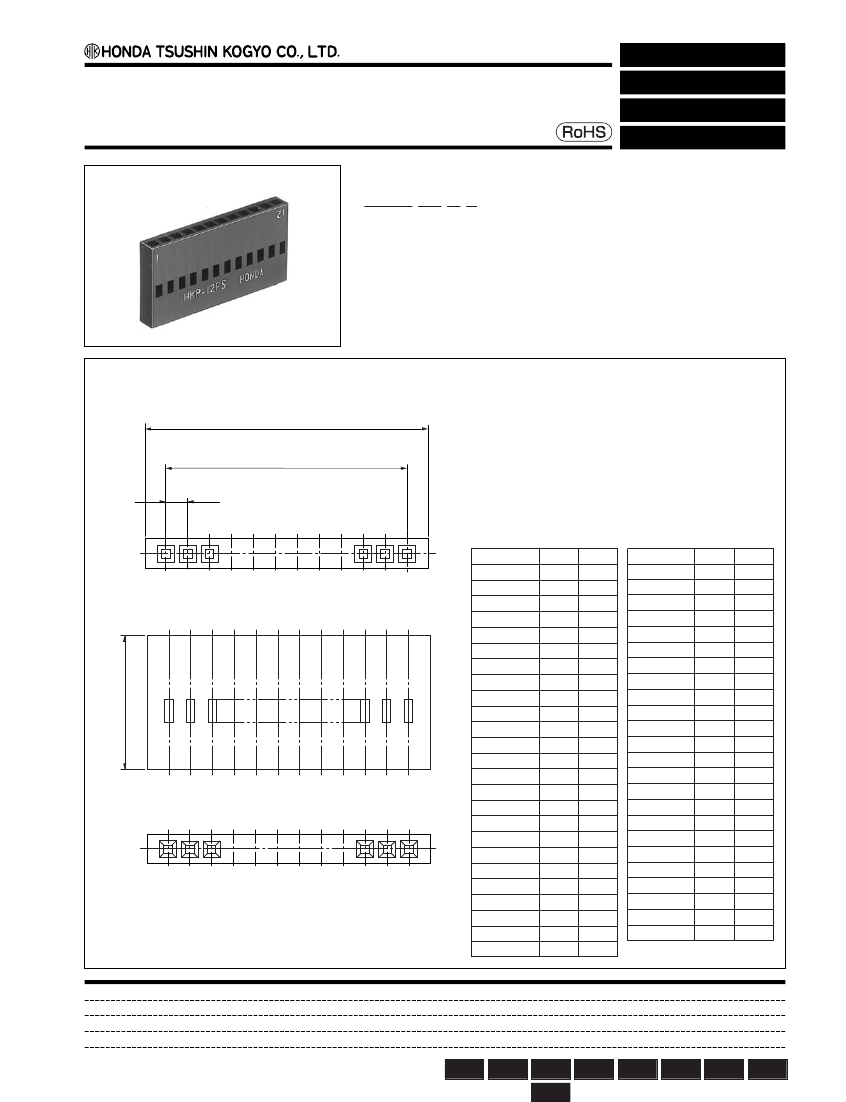

2.54 mm pitch connector
Female insulator for crimping
HKP-( )FS01
●
Configuration of product Part No.
For PCB
Crimping
HKP- ( ) F S01
➀
➁
➂ ➃
➀
Series name
➁
No. of contacts: 2–50
➂
Type of insulator
F: Femal
➃
Alignment of contacts to be inserted
S: Single-row type
B
A
2.54
●
Dimensions
Part No.
HKP-2FS01
HKP-3FS01
HKP-4FS01
HKP-5FS01
HKP-6FS01
HKP-7FS01
HKP-8FS01
HKP-9FS01
15
HKP-10FS01
HKP-11FS01
HKP-12FS01
12
1
A
2.54
5.08
7.62
10.16
12.70
15.24
17.78
20.32
22.86
25.40
27.94
30.48
33.02
35.56
38.10
40.64
43.18
45.72
48.26
50.80
53.34
55.88
58.42
60.96
63.50
B
5.68
8.22
10.76
13.30
15.84
18.38
20.92
23.46
26.0
28.54
31.08
33.62
36.16
38.70
41.24
43.78
46.32
48.86
51.40
53.94
56.48
59.02
61.56
64.10
66.64
Part No.
HKP-27FS01
HKP-28FS01
HKP-29FS01
HKP-30FS01
HKP-31FS01
HKP-32FS01
HKP-33FS01
HKP-34FS01
HKP-35FS01
HKP-36FS01
HKP-37FS01
HKP-38FS01
HKP-39FS01
HKP-40FS01
HKP-41FS01
HKP-42FS01
HKP-43FS01
HKP-44FS01
HKP-45FS01
HKP-46FS01
HKP-47FS01
HKP-48FS01
HKP-49FS01
HKP-50FS01
A
66.04
68.58
71.12
73.66
76.20
78.74
81.28
83.82
86.36
88.90
91.44
93.98
96.52
99.06
B
69.18
71.72
74.26
76.80
79.34
81.88
84.42
86.96
89.50
92.04
94.58
97.12
99.66
102.2
HKP–12FS
H O N DA
HKP-13FS01
HKP-14FS01
HKP-15FS01
HKP-16FS01
HKP-17FS01
HKP-18FS01
HKP-19FS01
HKP-20FS01
HKP-21FS01
HKP-22FS01
HKP-23FS01
HKP-24FS01
HKP-25FS01
HKP-26FS01
101.60 104.74
104.14 107.28
106.68 109.82
109.22 112.36
111.76 114.90
114.30 117.44
116.84 119.98
119.38 122.52
121.92 125.06
124.46 127.60
Mating connectors:
HKP or FFC series single-row type male connector
For use with contacts:
HKP series contacts (HKP-F1@3, HKP-F4@3, HKP-F2@3A, HKP-F3@3A)
Others
Wire
wrapping Crimping Soldering
IDC
Press-in
SMT
Through
hole
