GM71C4260ALT-70 datasheet, PDF

Datasheet> All Categories > storage> storage> GM71C4260ALT-70

GM71C4260ALT-70: DescriptionFast Page DRAM, 256KX16, 70ns, CMOS, PDSO40; Categorystorage storage; File Size1MB，22 Pages; ManufacturerSK Hynix; Websitehttp://www.hynix.com/eng/

Download Datasheet Parametric Compare View All

GM71C4260ALT-70 Overview

Fast Page DRAM, 256KX16, 70ns, CMOS, PDSO40

GM71C4260ALT-70 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SK Hynix
package instruction	TSOP, TSOP40/44,.46,32
Reach Compliance Code	compliant
Maximum access time	70 ns
I/O type	COMMON
JESD-30 code	R-PDSO-G40
JESD-609 code	e0
memory density	4194304 bit
Memory IC Type	FAST PAGE DRAM
memory width	16
Number of terminals	40
word count	262144 words
character code	256000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP
Encapsulate equivalent code	TSOP40/44,.46,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
power supply	5 V
Certification status	Not Qualified
refresh cycle	512
self refresh	NO
Maximum standby current	0.0002 A
Maximum slew rate	0.15 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL

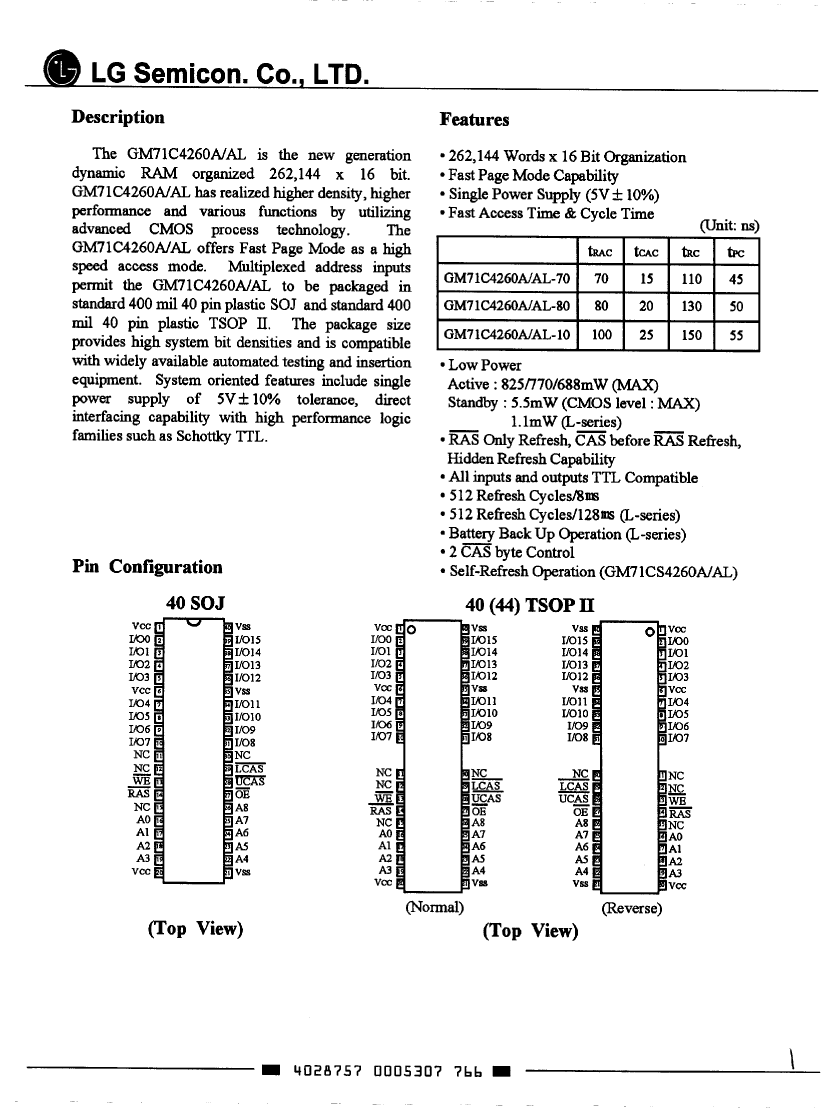

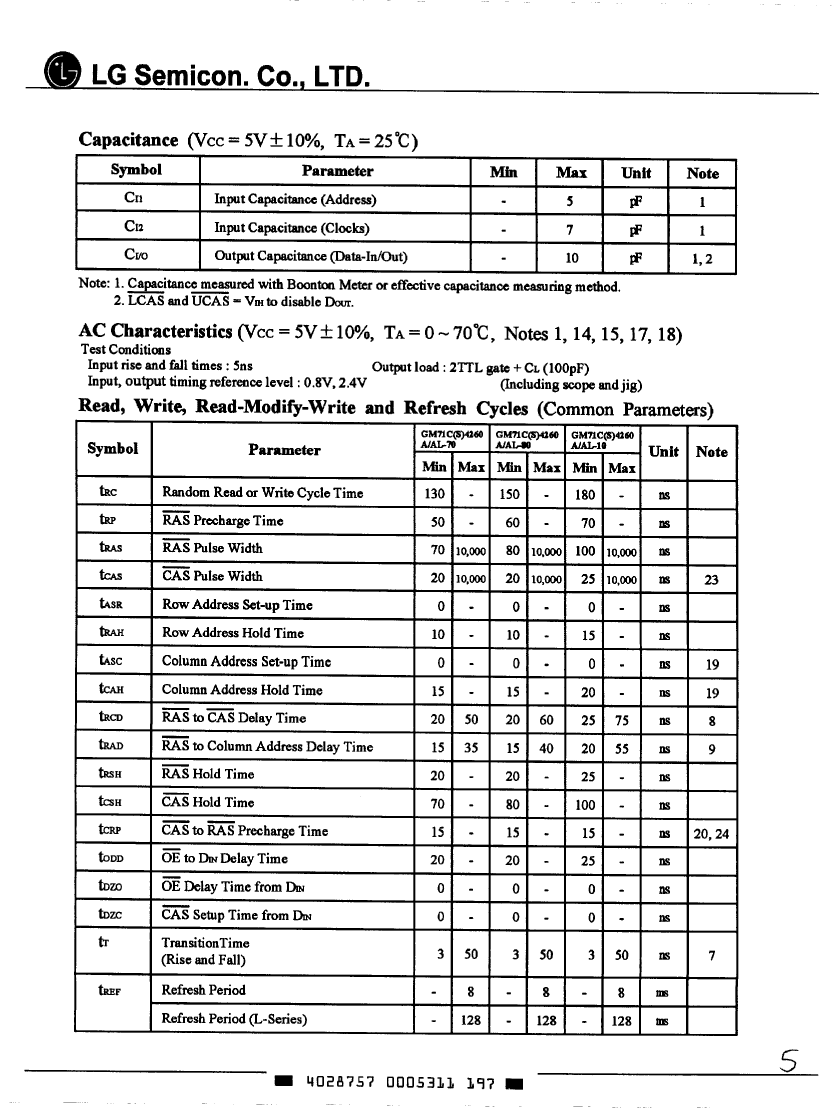

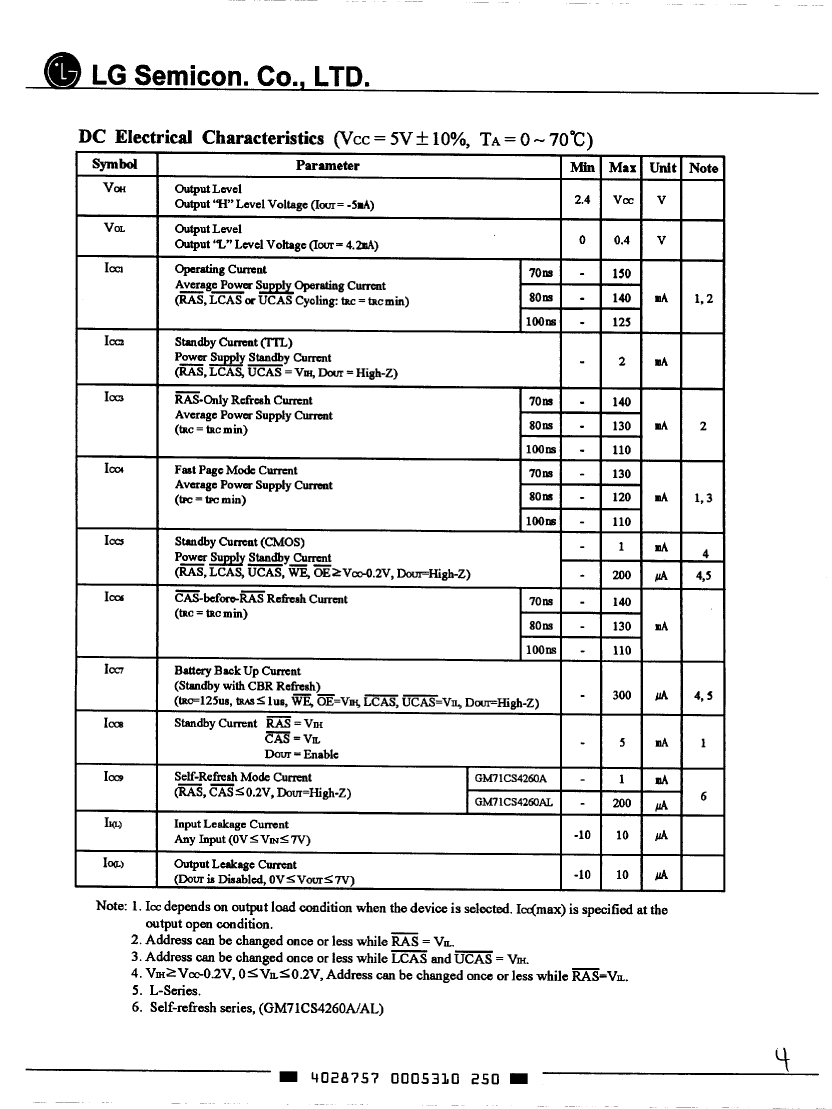

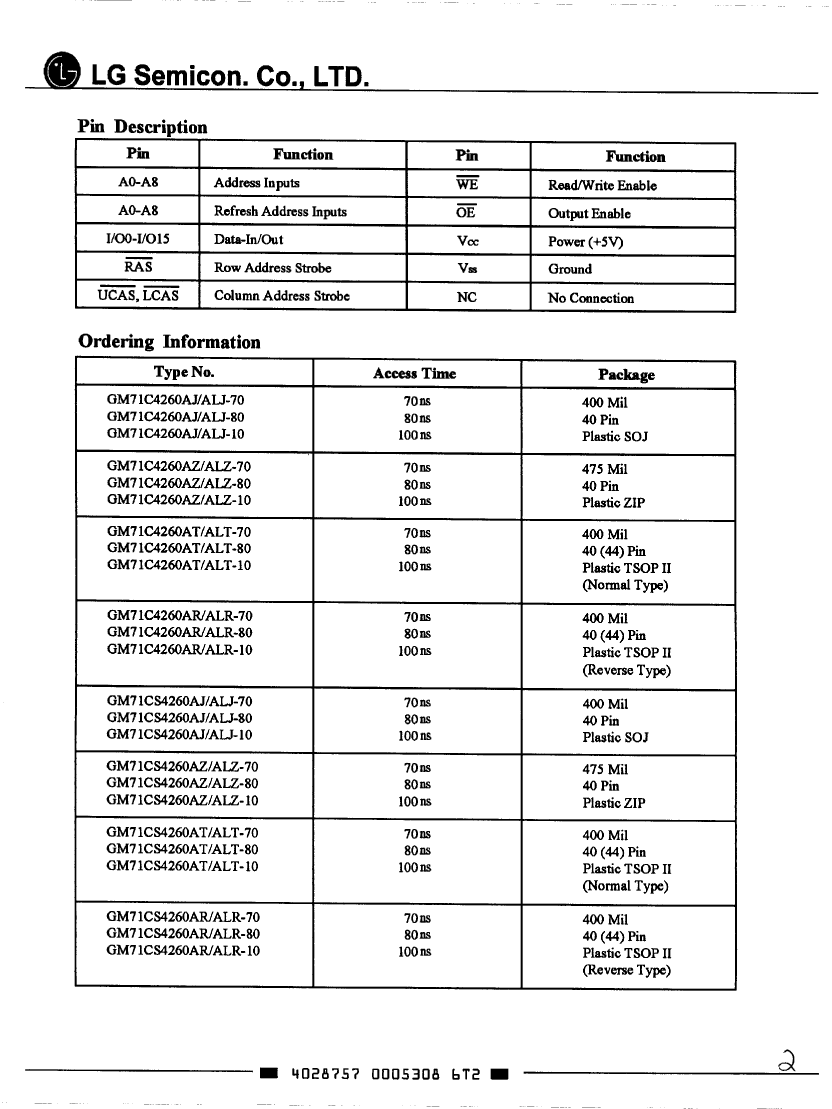

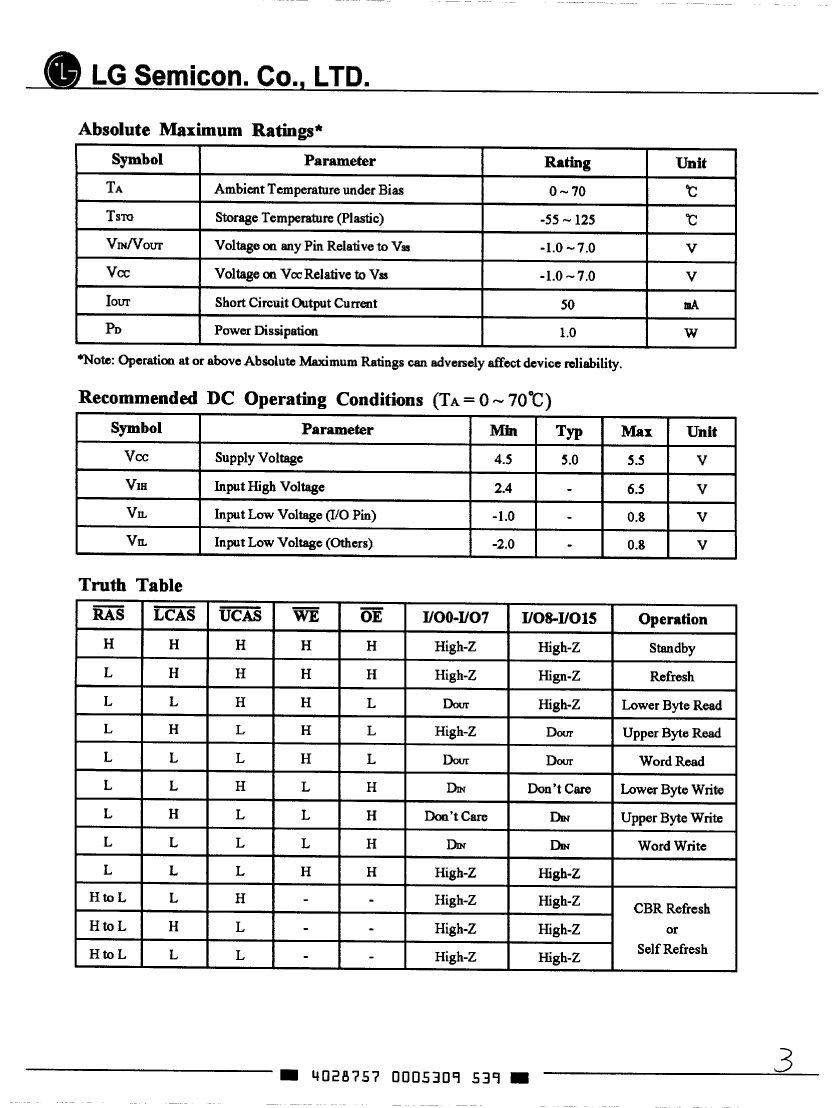

Preview

Download Datasheet

View All

GM71C4260ALT-70 Related Products

	GM71C4260ALT-70	GM71C4260ALJ-70	GM71C4260ALJ-80	GM71CS4260AR-80	GM71CS4260ALT-80	GM71CS4260AR-70	GM71CS4260ALJ-10
Description	Fast Page DRAM, 256KX16, 70ns, CMOS, PDSO40	Fast Page DRAM, 256KX16, 70ns, CMOS, PDSO40	Fast Page DRAM, 256KX16, 80ns, CMOS, PDSO40	Fast Page DRAM, 256KX16, 80ns, CMOS, PDSO40	Fast Page DRAM, 256KX16, 80ns, CMOS, PDSO40	Fast Page DRAM, 256KX16, 70ns, CMOS, PDSO40	Fast Page DRAM, 256KX16, 100ns, CMOS, PDSO40
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	TSOP, TSOP40/44,.46,32	SOJ, SOJ40,.44	SOJ, SOJ40,.44	TSOP, TSOP40/44,.46,32	TSOP, TSOP40/44,.46,32	TSOP, TSOP40/44,.46,32	SOJ, SOJ40,.44
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Maximum access time	70 ns	70 ns	80 ns	80 ns	80 ns	70 ns	100 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-G40	R-PDSO-J40	R-PDSO-J40	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40	R-PDSO-J40
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM
memory width	16	16	16	16	16	16	16
Number of terminals	40	40	40	40	40	40	40
word count	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000	256000	256000	256000
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	256KX16	256KX16	256KX16	256KX16	256KX16	256KX16	256KX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP	SOJ	SOJ	TSOP	TSOP	TSOP	SOJ
Encapsulate equivalent code	TSOP40/44,.46,32	SOJ40,.44	SOJ40,.44	TSOP40/44,.46,32	TSOP40/44,.46,32	TSOP40/44,.46,32	SOJ40,.44
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	512	512	512	512	512	512	512
self refresh	NO	NO	NO	YES	YES	YES	YES
Maximum standby current	0.0002 A	0.0002 A	0.0002 A	0.001 A	0.0002 A	0.001 A	0.0002 A
Maximum slew rate	0.15 mA	0.15 mA	0.14 mA	0.14 mA	0.14 mA	0.15 mA	0.125 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	J BEND	J BEND	GULL WING	GULL WING	GULL WING	J BEND
Terminal pitch	0.8 mm	1.27 mm	1.27 mm	0.8 mm	0.8 mm	0.8 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	SK Hynix	SK Hynix	-	SK Hynix	SK Hynix	SK Hynix	SK Hynix
