DataSheet
Panel Mount
HA / HD48T Series
•
Ratings from 12A to 125A @ 48-530 VAC
•
SCR output for heavy industrial loads
•
Zero turn-on or instantaneous turn-on outputs
•
UL/CSA/VDE Approved, CE Compliant to EN60950-1
•
Improved SEMS screw and washer
•
Redesigned housing with anti-rotation barriers
For
Generation 3
datasheet
click here
•
AC or DC control
•
Direct bond copper substrate
•
Direct power lead frame
•
Epoxy free design
PRODUCT SELECTION
Control Voltage
3-32 VDC
90-280 Vrms
18-36 Vrms
12A
HD4812T
HA4812T
HA4812ET
25A
HD4825T
HA4825T
HA4825ET
50A
HD4850T
HA4850T
HA4850ET
75A
HD4875T
HA4875T
HA4875ET
90A
HD4890T
HA4890T
HA4890ET
110A
HD48110T
HA48110T
HA48110ET
125A
HD48125T
HA48125T
HA48125ET
AVAILABLE OPTIONS
Control Voltage
A:
90-280 VAC
D:
3-32 VDC
AxxxxE:
18-36 VAC
Overvoltage Protection
Blank:
Not Included
P:
Included
(6)
Thermal Pad
Blank:
Not Included
H:
Included
Switching Type
Blank:
Zero Voltage Turn-On
-10:
Instantaneous Turn-On
(7)
Series
H
A
48
25
E
K
P
G
H
T
-10
Rated Load Current
Operating
12:
12 Amps
Voltage
48:
48-530 VAC
25:
25 Amps
50:
50 Amps
75:
75 Amps
90:
90 Amps
110:
110 Amps
125:
125 Amps
Required for valid part number
For options only and not required for valid part number
Termination
Blank:
Screw
F:
Quick Connect
(5)
K:
Round standoffs
Input Status LED
Blank:
Not Included
G:
Included
Trigger Circuit
T:
Phototransistor
OUTPUT SPECIFICATIONS
(1)
Description
Operating Voltage (47-63Hz) [Vrms]
Transient Overvoltage [Vpk]
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec]
Maximum Load Current [Arms]
(2)
Minimum Load Current [mArms]
Maximum 1 Cycle Surge Current (50/60Hz) [Apk]
Maximum On-State Voltage Drop @ Rated Current [Vrms]
(8)
Thermal Resistance Junction to Case (Rjc) [°C/W]
Maximum 1/2 Cycle I² t for Fusing (50/60Hz) [A² sec]
Minimum Power Factor (at Maximum Load)
12A
48-530
1200
10
500
12
40
134/140
1.15
1.03
66/60
0.5
25A
48-530
1200
10
500
25
40
239/250
1.15
0.8
285/259
0.5
50A
48-530
1200
10
500
50
40
597/625
1.15
0.45
1770/1629
0.5
75A
48-530
1200
10
500
75
40
954/1000
1.15
0.3
4555/4150
0.5
90A
48-530
1200
10
500
90
40
1145/1200
1.15
0.27
6560/5976
0.5
110A
48-530
1200
10
500
110
150
1432/1500
1.15
0.25
10249/9338
0.5
125A
48-530
1200
10
500
125
150
1670/1750
1.15
0.22
13950/12709
0.5
Do not forget to visit us at:
www.crydom.com
Copyright © 2013 Crydom Inc. Specifications subject to change without notice.

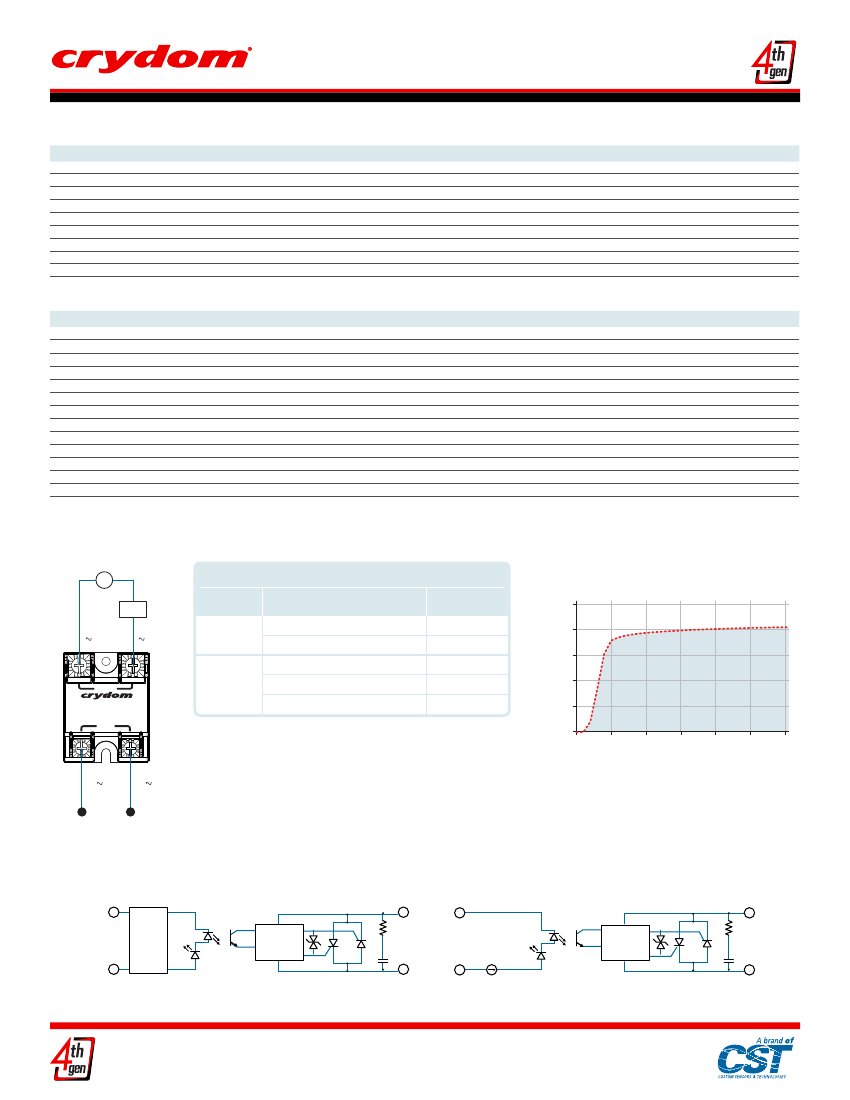

DataSheet
Panel Mount
INPUT SPECIFICATIONS
(1)
Description
Control Voltage Range
Minimum Turn-On Voltage
Minimum Turn-Off Voltage
Maximum Reverse Voltage
Minimum Input Current
Maximum Input Current
Nominal Input Impedance
Maximum Turn-On Time [msec]
Maximum Turn-Off Time [msec]
HD48xxT
3-32 VDC
(3)
4.0 VDC
1.0 VDC
-32 VDC
2 mA
2.5 mA
Current Regulated
1/2 Cycle
(4)
1/2 Cycle
HA48xxT
90-280 Vrms
90 Vrms
10 Vrms
-
2 mA
4.9 mA
60K Ohm
10
40
HA48xxET
18-36 Vrms
18 Vrms
4.0 Vrms
-
2 mA
4 mA
9K Ohm
20
30
GENERAL SPECIFICATIONS
(1)
Description
Dielectric Strength, Input/Output/Base (50/60Hz)
Minimum Insulation Resistance (@ 500 VDC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Housing Material
Baseplate Material
Input Terminal Screw Torque Range [in-lbs/Nm]
Load Terminal Screw Torque Range [in-lbs/Nm]
SSR Mounting Screw Torque Range [in-lbs/Nm]
Humidity
LED Input Status Indicator
Parameters
4000 Vrms
10
9
Ohm
8 pF
-40 to 80 °C
-40 to 125 °C
2.6 oz (74.9 g)
UL94 V-0
Aluminum
13-15 / 1.5-1.7
18-20 / 2.0-2.2
18-20 / 2.0-2.2
85% non-condensing
w/”G” Option (green)
WIRING DIAGRAM
AC
V
Recommended Wire Sizes
Load
(11)
Terminals
Wire Size
(Solid / Stranded)
24 AWG (0.2 mm
2
)
/ 0.2 [minimum]
2 x 12 AWG (3.3 mm
2
)
/ 3.3 [maximum]
20 AWG (0.5 mm
2
)
/ 0.518 [minimum]
Wire Pull-Out
Strength (lbs)[N]
2.5
Input Current vs Input Voltage
“T” Option - High Voltage Output
1 ( )
2 (
)
Input
90 [400]
30 [133]
110 [490]
90 [400]
Input Current (mA)
10 [44.5]
2
1.5
1
0.5
0
0
5
10
15
20
25
30
1
OUTPUT
2
Output
2 x 10 AWG (5.3 mm
2
)
/ 5.3
2 x 8 AWG (8.4 mm
2
)
/ 8.4 [maximum]
S O L I D S TAT E R E L AY
4
INPUT
3
DC Input Voltage
4 (– /
)
3 (+ /
)
EQUIVALENT CIRCUIT BLOCK DIAGRAMS
Diagram:
HA48xxxxT
AC
4
AC/DC
Converter
Trigger
Circuit
1
AC
-DC
4
Trigger
Circuit
Diagram:
HD48xxxxT
1
AC
(10)
(9)
2
AC
+DC
3
Current
Limiter
(10)
(9)
AC
3
2
AC
Do not forget to visit us at:
www.crydom.com
Copyright © 2013 Crydom Inc. Specifications subject to change without notice.
DataSheet
Panel Mount
MECHANICAL SPECIFICATIONS
(1)
Screw Termination
1.1
[27.9]
0.49
[12.4]
0.89
[22.6]
Round Standoff Termination (“K”
Option)
1.1
[27.9]
0.49
[12.4]
Mounting
Hole/Slot
0.18 [4.5]
DIA.
Mounting
Hole/Slot
0.18 [4.5]
DIA.
1.08
[27.5]
1
OUTPUT
2
1
OUTPUT
2
1.88
[47.6]
S O L I D S TAT E R E L AY
1.7
[43.2]
2.25
[57.3]
1.88
[47.6]
S O L I D S TAT E R E L AY
1.7
[43.2]
2.25
[57.3]
4
INPUT
3
4
INPUT
3
1.0
[25.4]
1.75
[44.5]
Mounting
Hole/Slot
r 0.09 [2.2]
0.92
[23.3]
1.0
[25.4]
1.75
[44.5]
Mounting
Hole/Slot
r 0.09 [2.2]
0.89
[22.6]
Quick Connect Termination (“F”
Option)
- Up to 25 Amp
(5)
1.1
[27.9]
0.49
[12.4]
8-32 Output Screw
(2 places)
Faston Terminal
0.25 x 0.032
(2 places)
Quick Connect Termination (“F”
Option)
- Up to 50 Amp
(5)
1.1
[27.9]
0.49
[12.4]
8-32 Output Screw
(2 places)
Faston Terminal
0.25 x 0.032
(4 places)
Mounting
Hole/Slot
0.18 [4.5]
DIA.
1.31
[33.4]
Mounting
Hole/Slot
0.18 [4.5]
DIA.
1.31
[33.4]
1
OUTPUT
2
1
OUTPUT
2
1.88
[47.6]
S O L I D S TAT E R E L AY
1.7
[43.2]
2.25
[57.3]
1.88
[47.6]
S O L I D S TAT E R E L AY
1.7
[43.2]
2.25
[57.3]
4
INPUT
3
4
INPUT
3
Mounting
Hole/Slot
r 0.09 [2.2]
1.0
[25.4]
1.75
[44.5]
6-32 Input Screw
(2 places)
Faston Terminal
0.187 x 0.032 (2 places)
0.89
[22.6]
1.25
[31.8]
Mounting
Hole/Slot
r 0.09 [2.2]
1.0
[25.4]
1.75
[44.5]
6-32 Input Screw
(2 places)
Faston Terminal
0.187 x 0.032 (2 places)
0.89
[22.6]
1.25
[31.8]
GENERAL NOTES
(1)
All parameters at 25°C unless otherwise specified.
(2)
Heat sinking required, see derating curves.
(3)
For relays with option “G” minimum control voltage is 4.5VDC.
(4)
Turn-on time for Instantaneous turn-on versions is 0.02 msec (DC Control Models).
(5)
Single pair (up to 25A) Double pair* (50A model only).
*Caution:
User must connect to both pairs.
(6)
Output will self trigger between 900-1200Vpk, not suitable for capacitive loads.
(7)
Instantaneous turn-on version is not recomended for capacitive loads. Use zero turn-on only.
(8)
For 40A minimum current, the voltage drop increases over maximum rated.
(9)
Elective Input Status LED, “G” option.
(10)
Elective Overvoltage Protection, “P” option.
(11)
Load can be wired to either SSR output terminal 1 or 2.
Do not forget to visit us at:
www.crydom.com
Copyright © 2013 Crydom Inc. Specifications subject to change without notice.
DataSheet
Panel Mount

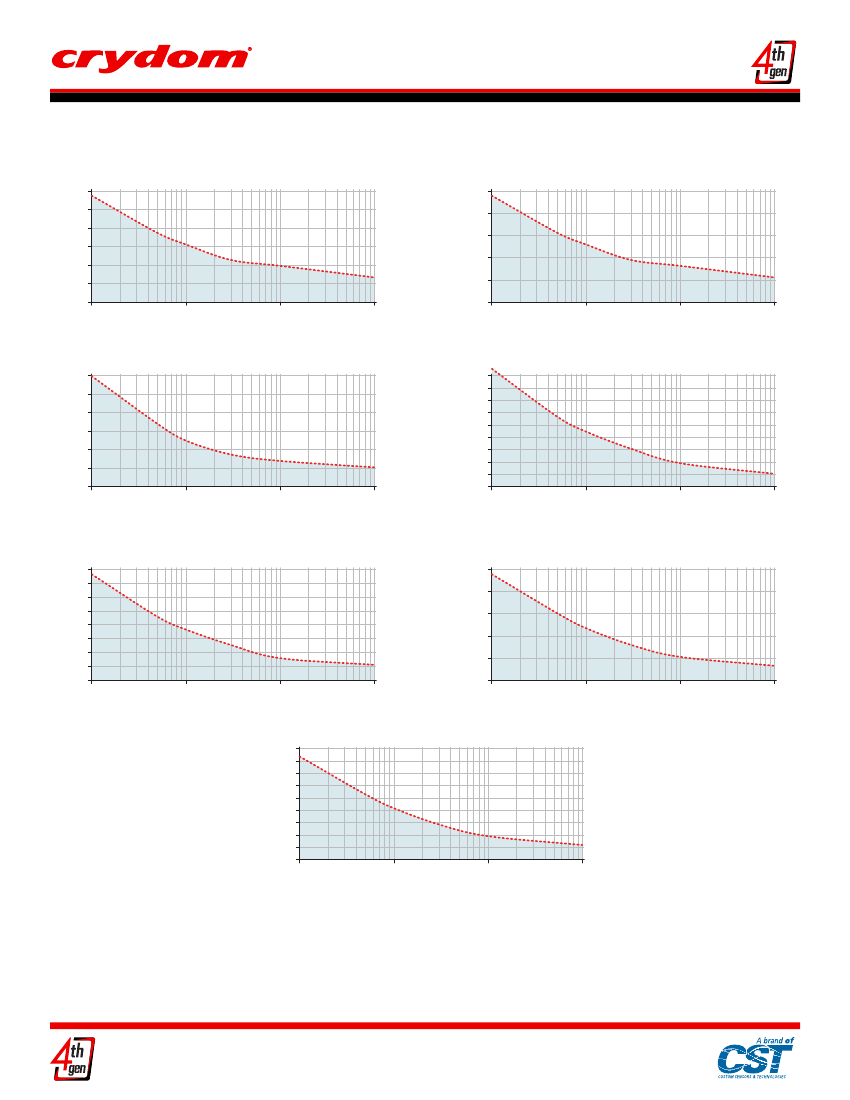

SURGE CURRENT INFORMATION
12 A
120
Surge Current (Amp)
Surge Current (Amp)
100
80
60
40
20
0
0.01
0.1
1
Surge Duration (Secs)
10
250
200
150
100
50
0
0.01
0.1
1
Surge Duration (Secs)
10
25 A
50 A
600
Surge Current (Amp)
Surge Current (Amp)
500
400
300
200
100
0
0.01
0.1
1
Surge Duration (Secs)
10
900
800
700
600
500
400
300
200
100
0
0.01
75 A
0.1
1
Surge Duration (Secs)
10
90 A
1200
1050
900
750
600
450
300
150
0
0.01
1500
Surge Current (Amp)
1200
900
600
300
0
0.01
0.1
Surge Current (Amp)
110 A
0.1
1
Surge Duration (Secs)
10
1
Surge Duration (Secs)
10
125 A
1800
1600
1400
1200
1000
800
600
400
200
0
0.01
Surge Current (Amp)
0.1
1
Surge Duration (Secs)
10
Non repetitive peak surge current at Tj initial 40ºC.
Do not forget to visit us at:
www.crydom.com
Copyright © 2013 Crydom Inc. Specifications subject to change without notice.
DataSheet
Panel Mount
50 A
3ºC/W
50
Load Current (Amps)
40
30
20
10
0
20
30
40
50
60
70
Ambient Temperature (ºC)
80
0.7ºC/W
1ºC/W
1.5ºC/W
2ºC/W

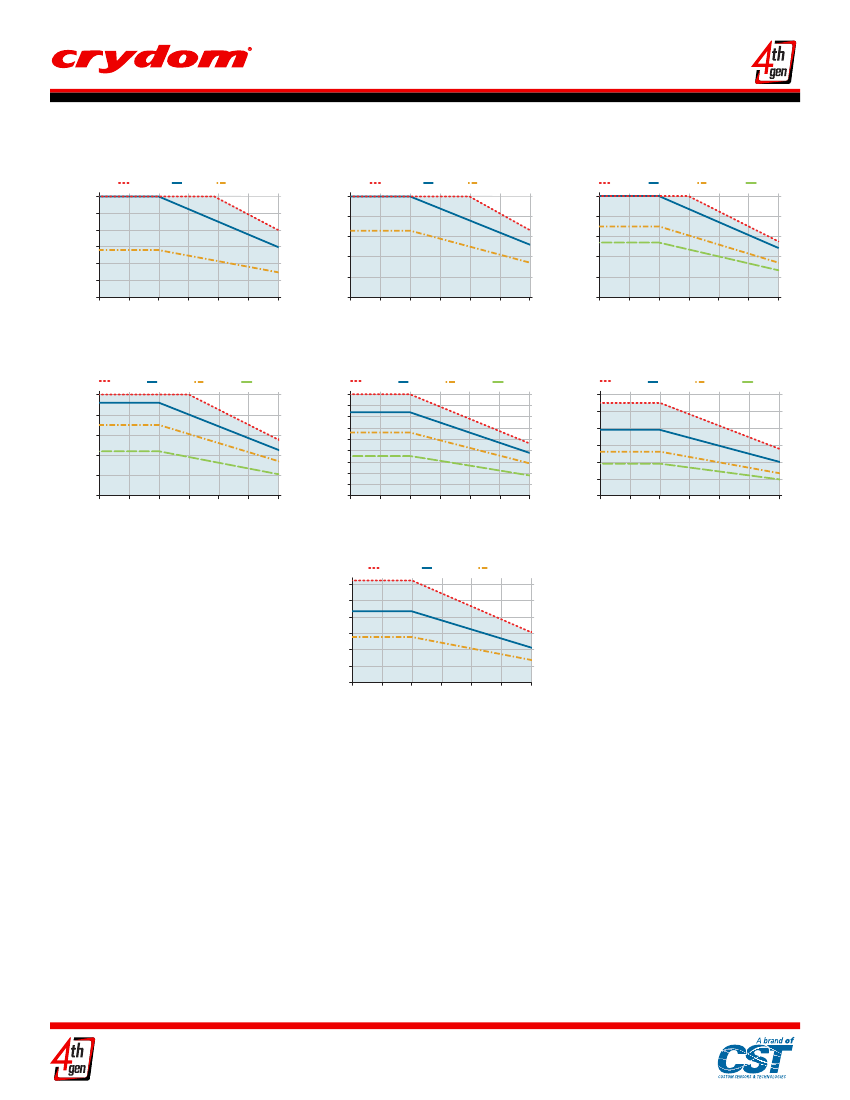

THERMAL DERATE INFORMATION
12 A
3ºC/W
12
Load Current (Amps)
Load Current (Amps)
10
8
6
4
2
0
20
30
40
50
60
70
Ambient Temperature (ºC)
80
5ºC/W
No heatsink
25
20
15
10
5
0
20
30
40
50
60
70
Ambient Temperature (ºC)
80
1.5ºC/W
25 A
2ºC/W
75 A
0.5ºC/W
75
Load Current (Amps)
Load Current (Amps)
60
45
30
15
0
20
30
40
50
60
70
Ambient Temperature (ºC)
80
0.7ºC/W
1ºC/W
1.5ºC/W
90
80
70
60
50
40
30
20
10
0
0.5ºC/W
90 A
0.7ºC/W
1ºC/W
1.5ºC/W
120
Load Current (Amps)
100
80
60
40
20
0
20
30
0.5ºC/W
110 A
0.7ºC/W
1ºC/W
1.5ºC/W
20
30
40
50
60
70
Ambient Temperature (ºC)
80
40
50
60
70
Ambient Temperature (ºC)
80
125 A
0.5ºC/W
120
Load Current (Amps)
100
80
60
40
20
0
20
30
40
50
60
70
Ambient Temperature (ºC)
80
0.7ºC/W
1ºC/W
Do not forget to visit us at:
www.crydom.com
Copyright © 2013 Crydom Inc. Specifications subject to change without notice.
