S-8435 datasheet, PDF - EEWORLD Datasheet

S-8435: DescriptionSwitching Regulator, CMOS, PDSO5, SOT-89, 5 PIN; CategoryPower/power management The power supply circuit; File Size3MB，42 Pages; ManufacturerABLIC

Download Datasheet Parametric Compare View All

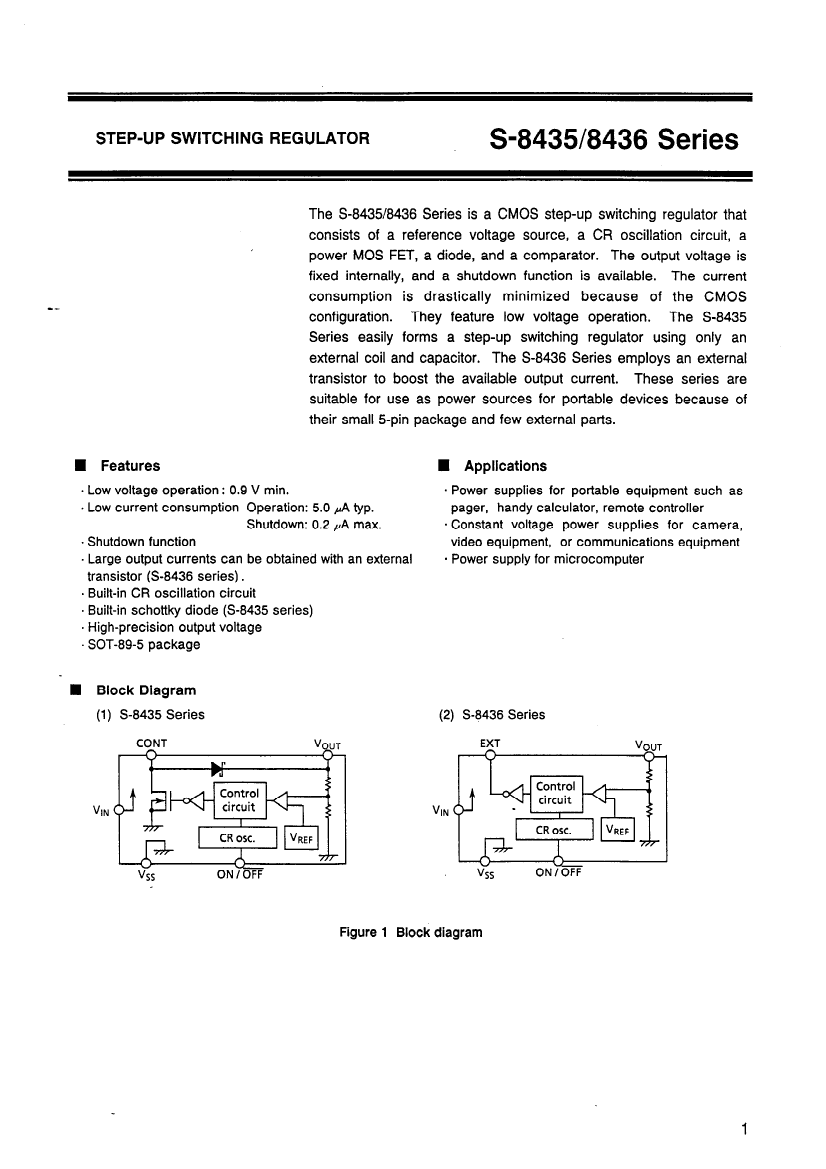

S-8435 Overview

Switching Regulator, CMOS, PDSO5, SOT-89, 5 PIN

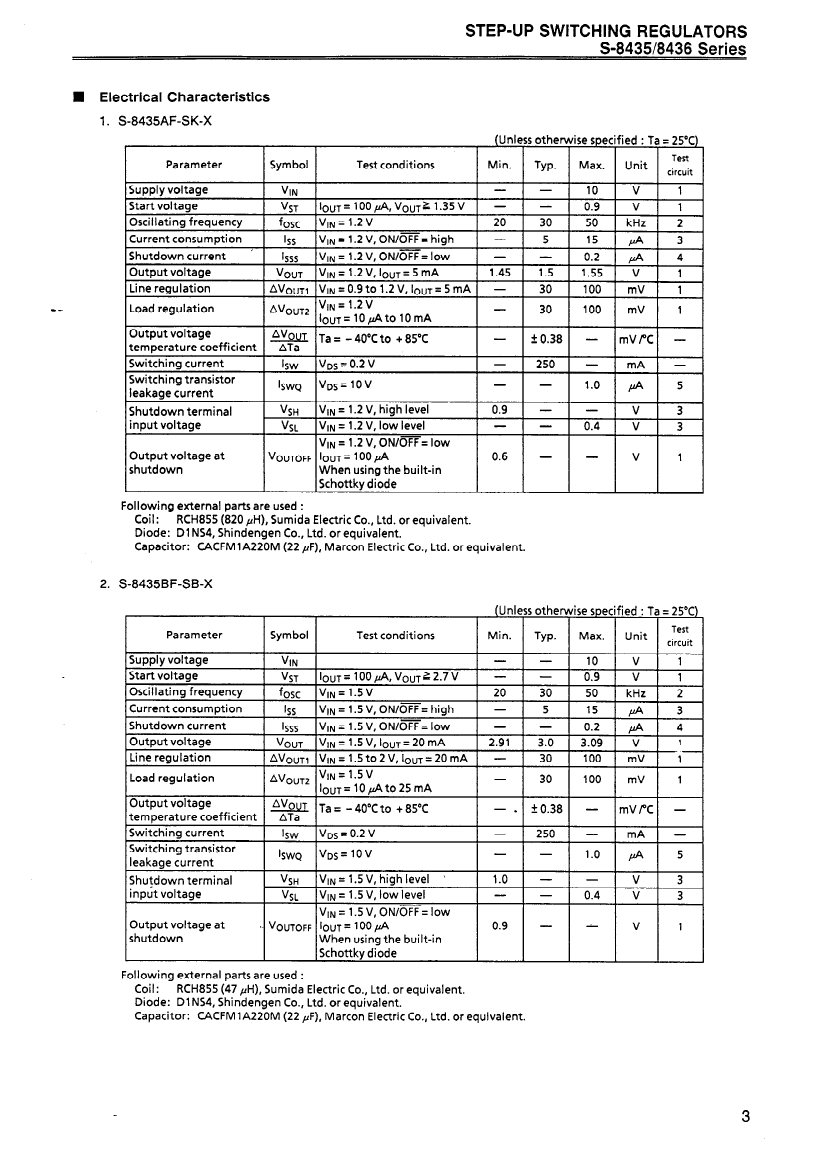

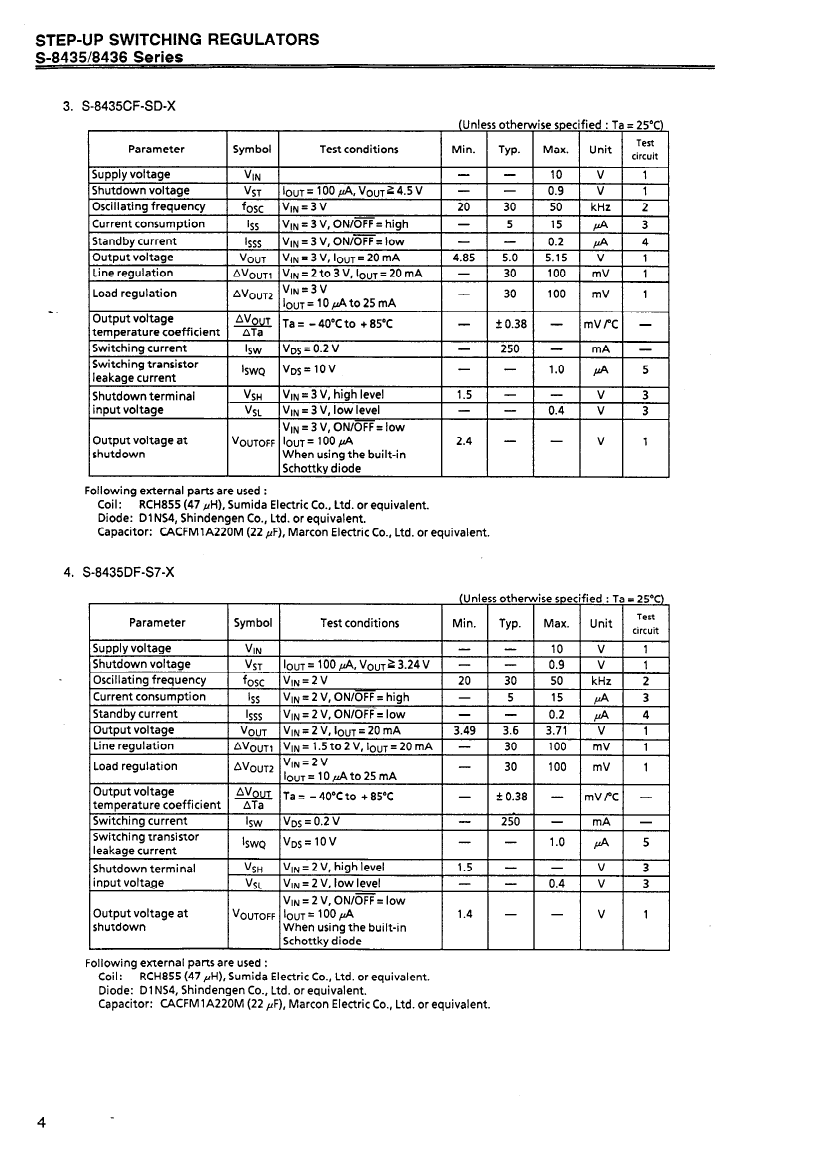

Parameter Name	Attribute value
Maker	ABLIC

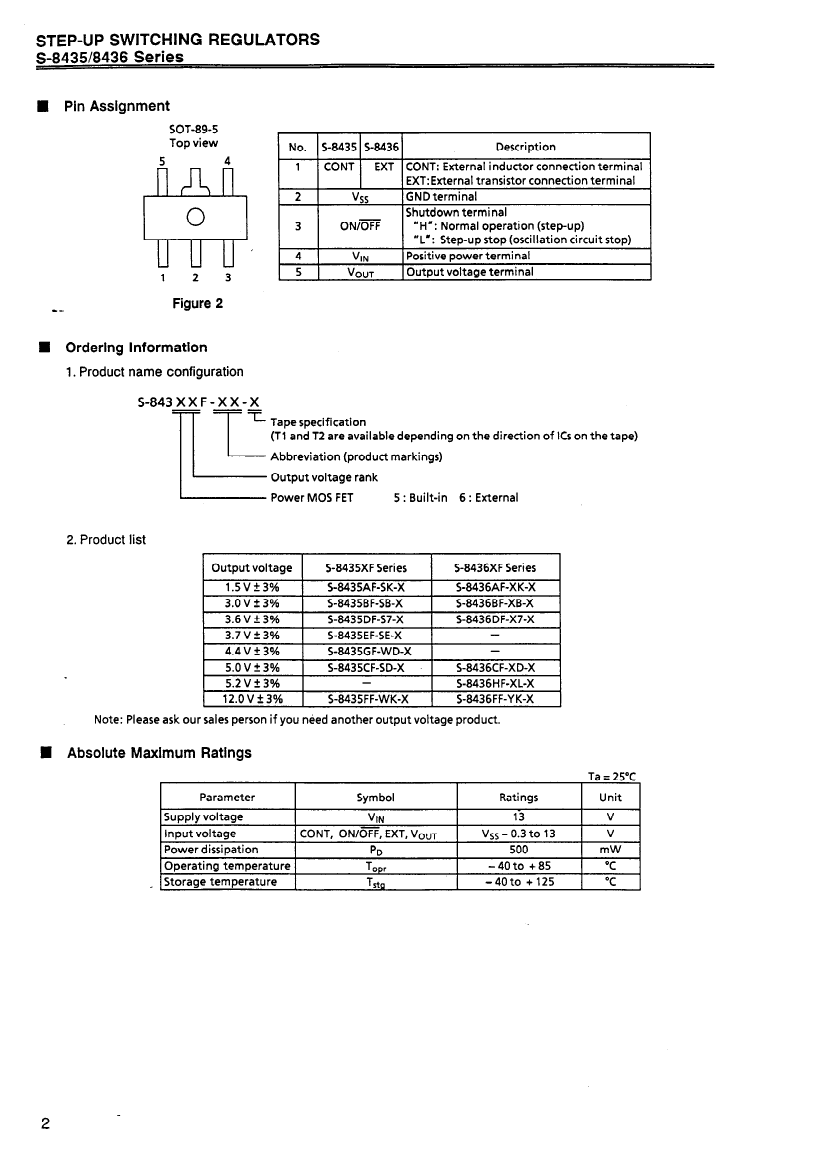

Parts packaging code	SOT-89
package instruction	LSOF,
Contacts	5
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
Maximum input voltage	12 V
Minimum input voltage	0.9 V
JESD-30 code	R-PDSO-F5
length	4.5 mm
Number of functions	1
Number of terminals	5
Package body material	PLASTIC/EPOXY
encapsulated code	LSOF
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified
Maximum seat height	1.6 mm
surface mount	YES
Switch configuration	BOOST
technology	CMOS
Terminal form	FLAT
Terminal pitch	1.5 mm
Terminal location	DUAL
width	2.5 mm

	S-8435	S-8435AF-SK-T1	S-8435AF-SK-T2	S-8436
Description	Switching Regulator, CMOS, PDSO5, SOT-89, 5 PIN	Switching Regulator, Voltage-mode, 30kHz Switching Freq-Max, CMOS, PDSO5, SOT-89, 5 PIN	Switching Regulator, Voltage-mode, 30kHz Switching Freq-Max, CMOS, PDSO5, SOT-89, 5 PIN	Switching Regulator, CMOS, PDSO5, SOT-89, 5 PIN
Maker	ABLIC	ABLIC	ABLIC	ABLIC
Parts packaging code	SOT-89	SOT-89	SOT-89	SOT-89
package instruction	LSOF,	LSOF,	LSOF,	LSOF,
Contacts	5	5	5	5
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR
Maximum input voltage	12 V	13 V	13 V	12 V
JESD-30 code	R-PDSO-F5	R-PDSO-F5	R-PDSO-F5	R-PDSO-F5
length	4.5 mm	4.5 mm	4.5 mm	4.5 mm
Number of functions	1	1	1	1
Number of terminals	5	5	5	5
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOF	LSOF	LSOF	LSOF
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	1.7 mm	1.7 mm	1.6 mm
surface mount	YES	YES	YES	YES
Switch configuration	BOOST	BOOST	BOOST	BOOST
technology	CMOS	CMOS	CMOS	CMOS
Terminal form	FLAT	FLAT	FLAT	FLAT
Terminal pitch	1.5 mm	1.5 mm	1.5 mm	1.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	2.5 mm	2.5 mm	2.5 mm	2.5 mm
