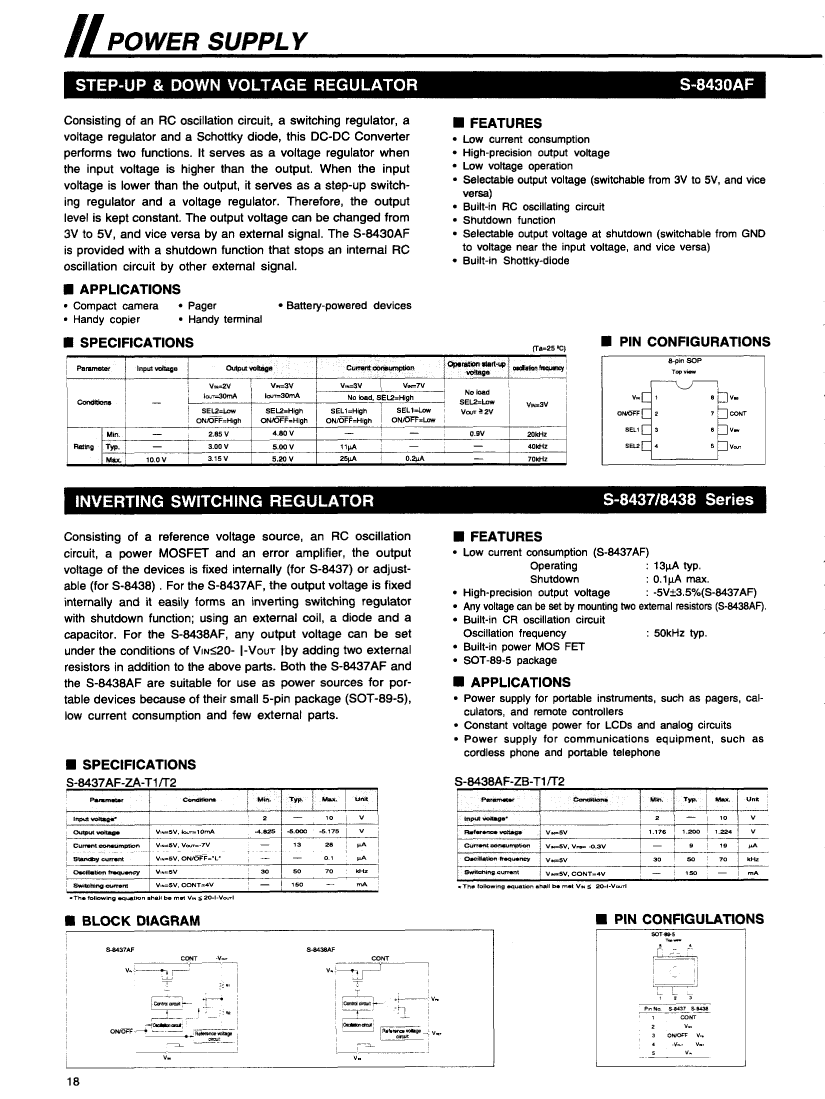

S-8438AF-ZB-T1 datasheet, PDF - EEWORLD Datasheet

S-8438AF-ZB-T1: DescriptionSwitching Regulator, Voltage-mode, 0.7A, 70kHz Switching Freq-Max, CMOS, PDSO5, SOT-89, 5 PIN; CategoryPower/power management The power supply circuit; File Size95KB，1 Pages; ManufacturerABLIC

Download Datasheet Parametric Compare View All

S-8438AF-ZB-T1 Overview

Switching Regulator, Voltage-mode, 0.7A, 70kHz Switching Freq-Max, CMOS, PDSO5, SOT-89, 5 PIN

Parameter Name	Attribute value
Maker	ABLIC
Parts packaging code	SOT-89
package instruction	LSOF,
Contacts	5
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	VOLTAGE-MODE
Maximum input voltage	10 V
Minimum input voltage	2 V
Nominal input voltage	5 V
JESD-30 code	R-PDSO-F5
length	4.5 mm
Number of functions	1
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	0.7 A
Package body material	PLASTIC/EPOXY
encapsulated code	LSOF
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified
Maximum seat height	1.7 mm
surface mount	YES
Switch configuration	BUCK-BOOST
Maximum switching frequency	70 kHz
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	FLAT
Terminal pitch	1.5 mm
Terminal location	DUAL
width	2.5 mm

	S-8438AF-ZB-T1	S-8437AF-ZA-T1
Description	Switching Regulator, Voltage-mode, 0.7A, 70kHz Switching Freq-Max, CMOS, PDSO5, SOT-89, 5 PIN	Switching Regulator, Voltage-mode, 0.7A, 70kHz Switching Freq-Max, CMOS, PDSO5, SOT-89, 5 PIN
Maker	ABLIC	ABLIC
Parts packaging code	SOT-89	SOT-89
package instruction	LSOF,	LSOF,
Contacts	5	5
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR	SWITCHING REGULATOR
control mode	VOLTAGE-MODE	VOLTAGE-MODE
Maximum input voltage	10 V	10 V
Minimum input voltage	2 V	2 V
Nominal input voltage	5 V	5 V
JESD-30 code	R-PDSO-F5	R-PDSO-F5
length	4.5 mm	4.5 mm
Number of functions	1	1
Number of terminals	5	5
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum output current	0.7 A	0.7 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOF	LSOF
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.7 mm	1.7 mm
surface mount	YES	YES
Switch configuration	BUCK-BOOST	BUCK-BOOST
Maximum switching frequency	70 kHz	70 kHz
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	FLAT	FLAT
Terminal pitch	1.5 mm	1.5 mm
Terminal location	DUAL	DUAL
width	2.5 mm	2.5 mm
