CEM1714 datasheet, PDF - EEWORLD Datasheet

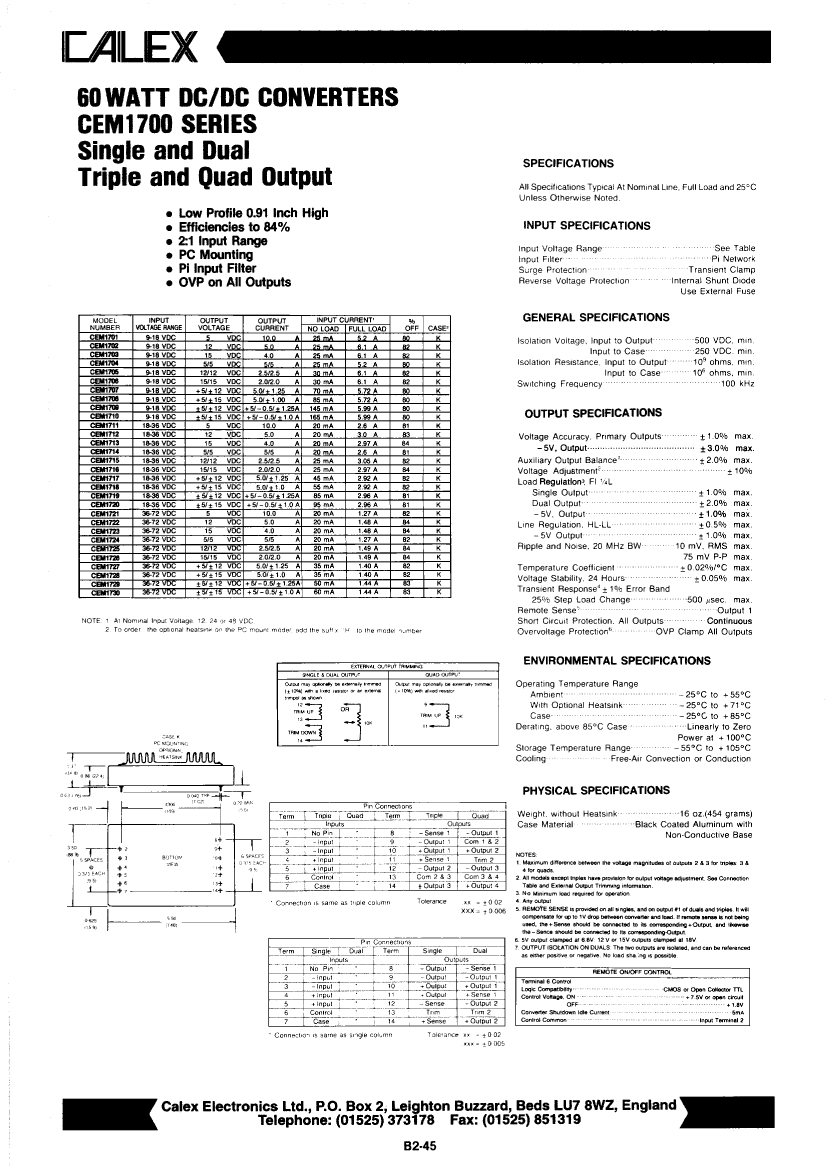

CEM1714: DescriptionDC-DC Unregulated Power Supply Module, 2 Output, Hybrid; CategoryPower/power management The power supply circuit; File Size83KB，1 Pages; ManufacturerCalex Mfg Co Inc.

Download Datasheet Parametric View All

CEM1714 Overview

DC-DC Unregulated Power Supply Module, 2 Output, Hybrid

Parameter Name	Attribute value
Maker	Calex Mfg Co Inc.
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Efficiency (main output)	81%
Maximum input voltage	36 V
Minimum input voltage	18 V
Nominal input voltage	24 V
JESD-30 code	R-XDIP-P14
Maximum grid adjustment rate	0.5%
Maximum load regulation	2%
Number of functions	1
Output times	2
Number of terminals	14
Maximum operating temperature	55 °C
Minimum operating temperature	-25 °C
Maximum output voltage	5.5 V
Minimum output voltage	4.5 V
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	IN-LINE
Protect	CURRENT; OUTPUT OVER VOLTAGE
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal location	DUAL
Fine-tuning/adjustable output	YES
