IDC SSL Connector
The IDC SSL connector series are insulation displacement (IDC) SMT and thru-hole
wire-to-board connectors designed for quick, tool-less termination of discrete
wires onto LED printed circuit boards. These connectors use TE Connectivity (TE)
proven insulation displacement technology to provide a robust, stable electrical and
mechanical power connection to single or multiple printed circuit boards in
solid state lighting and non-lighting applications.
KEY FEATURES
• Available
in 1, 2, 3 and 4 positions
• SMT
and thru-hole
• Closed
end and feed thru
• 18-24
AWG stranded and solid wire
• Dual
IDC slots for redundancy
• Wire
placement “viewing” window
• Wire
gauge color coded
• Tool-less
termination
APPLICATIONS
• LED
lighting controls
• General
illumination LED fixtures
• Connecting
strings of pcb LED
light modules
• Non-lighting
wire-to-board
applications
IDC SSL Connector
LIGHTING
APPLICATIONS
elecTrical
Operating Current : 8 AMPS (18 AWG only)
Maximum Operating Voltage : 400VAC / 400VDC
Dielectric Withstanding Voltage : 1500VAC
mecHanical
channel/Sign
emergency
Operating Temperature : -40°C to 105°C
Wire Retention : 5 lbs. minimum
maTerialS
Housings : 94 V0 rated high temperature resistant thermoplastic
digital Signage
architectural
Contacts : Tin over nickel plated copper alloy
STandardS and SpecificaTionS
UL 1977
Product Specification : 108-2404
Street & Stadium
indoor
Application Specification : 114-13266
Tape and Reel Packaging per EIA-481
office
commercial
refrigeration
TE Connectivity
I IDC SSL Connector
producT dimenSionS

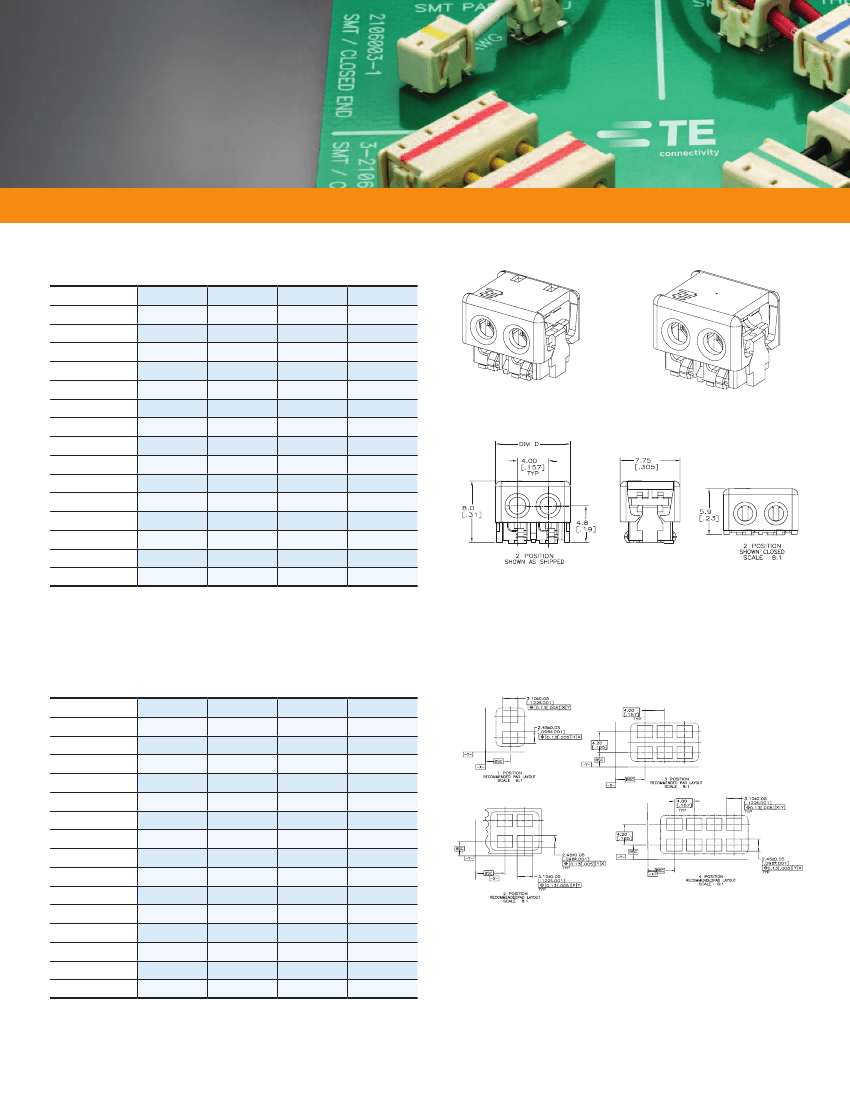

Closed End IDC SSL Connectors (SMT)
PART NUMBER
2106003-1
2106003-2
2106003-3
2106003-4
1-2106003-1
1-2106003-2
1-2106003-3
1-2106003-4
2-2106003-1
2-2106003-2
2-2106003-3
2-2106003-4
3-2106003-1
3-2106003-2
3-2106003-3
3-2106003-4
POSITION
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
WIRE SIZE
18 AWG
18 AWG
18 AWG
18 AWG
20 AWG
20 AWG
20 AWG
20 AWG
22 AWG
22 AWG
22 AWG
22 AWG
24 AWG
24 AWG
24 AWG
24 AWG
DIM “D”
5.70 [.224]
9.70 [.382]
13.70 [.539]
17.70 [.697]
5.70 [.224]
9.70 [.382]
13.70 [.539]
17.70 [.697]
5.70 [.224]
9.70 [.382]
13.70 [.539]
17.70 [.697]
5.70 [.224]
9.70 [.382]
13.70 [.539]
17.70 [.697]
COLOR
YELLOW
YELLOW
YELLOW
YELLOW
BLUE
BLUE
BLUE
BLUE
GREEN
GREEN
GREEN
GREEN
RED
RED
RED
RED
Closed End
Feed Thru
Product Dimensions
Feed Thru IDC SSL Connectors (SMT)
PART NUMBER
2106431-1
2106431-2
2106431-3
2106431-4
1-2106431-1
1-2106431-2
1-2106431-3
1-2106431-4
2-2106431-1
2-2106431-2
2-2106431-3
2-2106431-4
3-2106431-1
3-2106431-2
3-2106431-3
3-2106431-4
POSITION
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
WIRE SIZE
18 AWG
18 AWG
18 AWG
18 AWG
20 AWG
20 AWG
20 AWG
20 AWG
22 AWG
22 AWG
22 AWG
22 AWG
24 AWG
24 AWG
24 AWG
24 AWG
DIM “D”
5.70 [.224]
9.70 [.382]
13.70 [.539]
17.70 [.697]
5.70 [.224]
9.70 [.382]
13.70 [.539]
17.70 [.697]
5.70 [.224]
9.70 [.382]
13.70 [.539]
17.70 [.697]
5.70 [.224]
9.70 [.382]
13.70 [.539]
17.70 [.697]
COLOR
YELLOW
YELLOW
YELLOW
YELLOW
BLUE
BLUE
BLUE
BLUE
GREEN
GREEN
GREEN
GREEN
RED
RED
RED
RED
Recommended PCB Layout
IDC SSL Connector
producT dimenSionS cont.

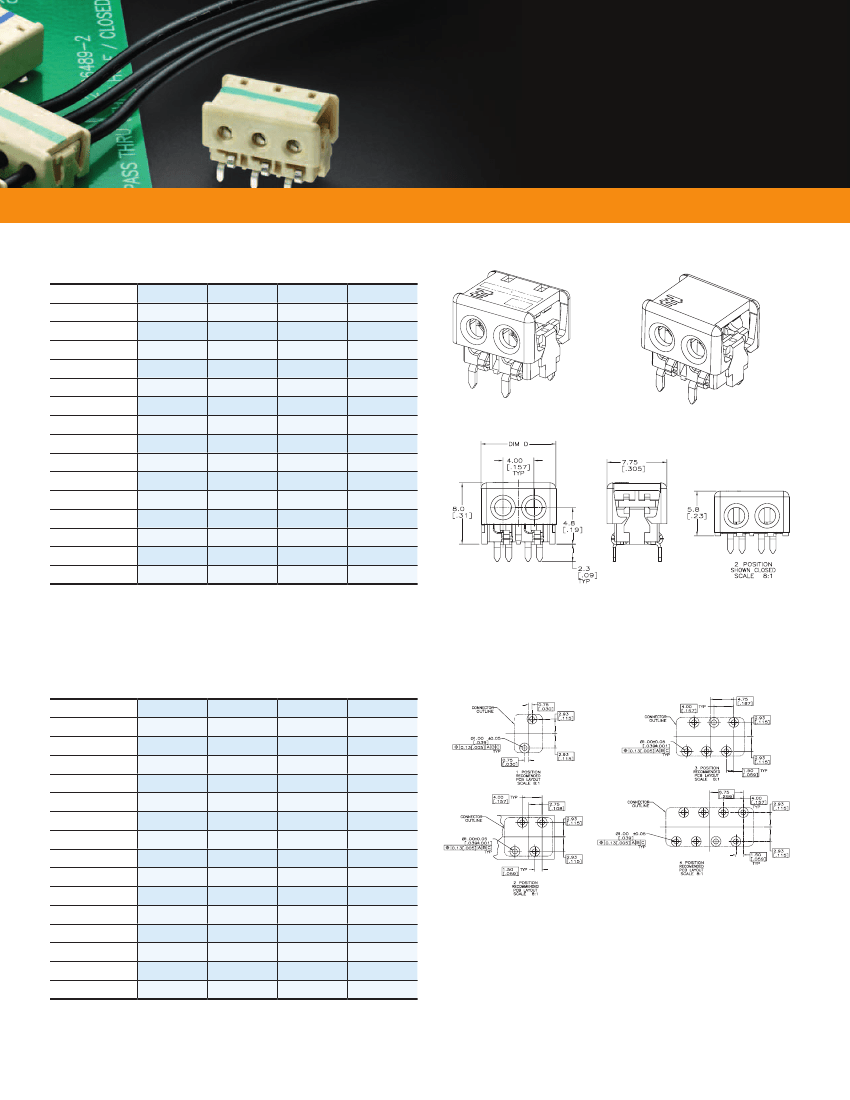

Closed End IDC SSL Connectors (Thru-Hole)
PART NUMBER
2106489-1
2106489-2
2106489-3
2106489-4
1-2106489-1
1-2106489-2
1-2106489-3
1-2106489-4
2-2106489-1
2-2106489-2
2-2106489-3
2-2106489-4
3-2106489-1
3-2106489-2
3-2106489-3
3-2106489-4
POSITION
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
WIRE SIZE
18 AWG
18 AWG
18 AWG
18 AWG
20 AWG
20 AWG
20 AWG
20 AWG
22 AWG
22 AWG
22 AWG
22 AWG
24 AWG
24 AWG
24 AWG
24 AWG
DIM “D”
5.70 [.224]
9.70 [.382]
13.70 [.539]
17.70 [.697]
5.70 [.224]
9.70 [.382]
13.70 [.539]
17.70 [.697]
5.70 [.224]
9.70 [.382]
13.70 [.539]
17.70 [.697]
5.70 [.224]
9.70 [.382]
13.70 [.539]
17.70 [.697]
COLOR
YELLOW
YELLOW
YELLOW
YELLOW
BLUE
BLUE
BLUE
BLUE
GREEN
GREEN
GREEN
GREEN
RED
RED
RED
RED
Closed End
Feed Thru
Product Dimensions
Feed Thru IDC SSL Connectors (Thru-Hole)
PART NUMBER
2106751-1
2106751-2
2106751-3
2106751-4
1-2106751-1
1-2106751-2
1-2106751-3
1-2106751-4
2-2106751-1
2-2106751-2
2-2106751-3
2-2106751-4
3-2106751-1
3-2106751-2
3-2106751-3
3-2106751-4
POSITION
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
WIRE SIZE
18 AWG
18 AWG
18 AWG
18 AWG
20 AWG
20 AWG
20 AWG
20 AWG
22 AWG
22 AWG
22 AWG
22 AWG
24 AWG
24 AWG
24 AWG
24 AWG
DIM “D”
5.70 [.224]
9.70 [.382]
13.70 [.539]
17.70 [.697]
5.70 [.224]
9.70 [.382]
13.70 [.539]
17.70 [.697]
5.70 [.224]
9.70 [.382]
13.70 [.539]
17.70 [.697]
5.70 [.224]
9.70 [.382]
13.70 [.539]
17.70 [.697]
COLOR
YELLOW
YELLOW
YELLOW
YELLOW
BLUE
BLUE
BLUE
BLUE
GREEN
GREEN
GREEN
GREEN
RED
RED
RED
RED
Recommended PCB Layout
IDC SSL Connector I
TE Connectivity
IDC SSL Connector

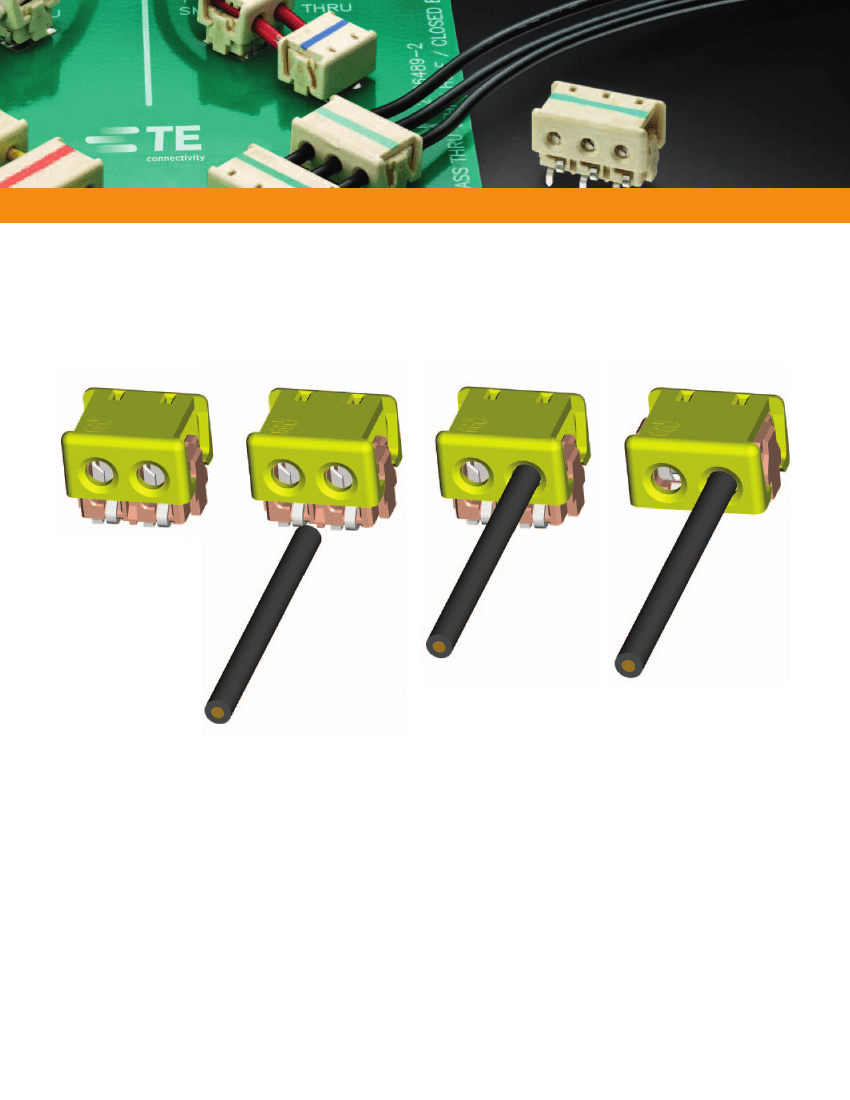

TerminaTion Sequence
Insert
unstripped wire
(solid or stranded)
As shipped
(staged configurations)
Fully
inserted wire
(wire retained and
visible through
“viewing” window)
Tool-less
terminated wire
(closed configuration)
IDC SSL Connector I
TE Connectivity
