M83-LMT200N08-0400-332 datasheet, PDF

Datasheet> All Categories > The connector> The connector> M83-LMT200N08-0400-332

M83-LMT200N08-0400-332: DescriptionBoard Connector, 12 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size736KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M83-LMT200N08-0400-332 Overview

Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

M83-LMT200N08-0400-332 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	TERMINAL PITCH FOR POWER CONTACT: 4 MM
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	M83-LM
Mixed contacts	YES
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	12

Preview

Download Datasheet

View All

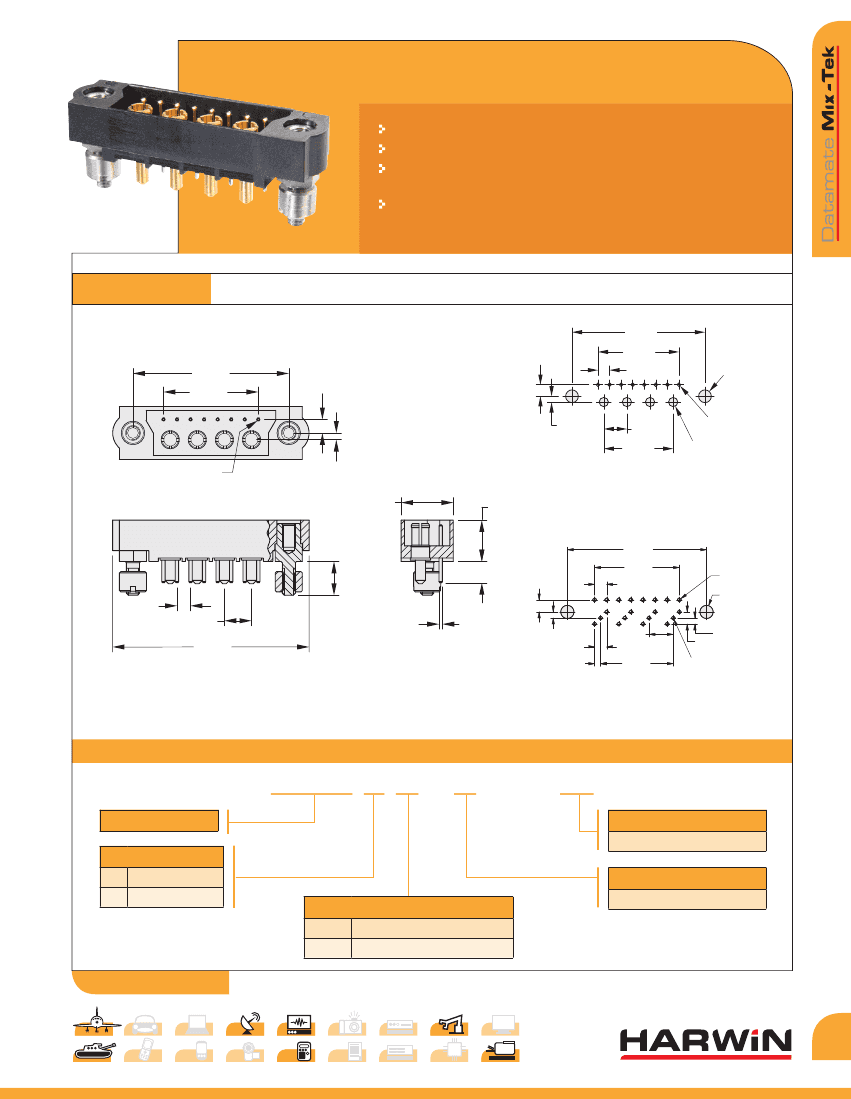

M83 Datamate Connectors

Male Vertical PC tail

Choice of compatible jackscrews and special contacts.

All contacts are gold finish for full RoHS compliance.

Contact datamate@harwin.com for alternative

contact configurations.

See page 72 for signal-only configurations.

Male VertiCal

23.00

2.00

14.00

2.00

23.00

14.00

2.20 min.

0.65 min.

1.60 min.

2.00

1.00

4.00

12.00

No. 1 contact

1.00

7.70

6.10

recommended PC board Pattern

with 331 or 332 Power contacts

23.00

2.00

14.00

2.00

0.65 min.

2.20 min.

1.00

2.00

4.00

29.00

0.49

Tail

1.00

4.00

2.00

12.00

0.60 min.

recommended PC board Pattern

with 311 or 312 Coax contacts

Diagram shown with special contact 331 and Jackscrew M2 assembled.

HoW to orDer

m83 – Lm tX XX N 08 – 0400 – XXX

SerieS coDe

taiL

3mm Tail

4.5mm Tail

SPeciaL coNtactS

311, 312, 331, 332

totaL No. oF coNtactS

JackScreW

No Jackscrew

Male Jackscrews – see page 65

All dimensions in mm.

www.harwin.com

M83-LMT200N08-0400-332 Related Products

	M83-LMT200N08-0400-332	M83-LMT100N08-0400-311	M83-LMT100N08-0400-312	M83-LMT100N08-0400-331	M83-LMT100N08-0400-332	M83-LMT200N08-0400-311	M83-LMT200N08-0400-312	M83-LMT200N08-0400-331
Description	Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT	Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT	Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT	Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT	Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT	Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT	Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT	Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	TERMINAL PITCH FOR POWER CONTACT: 4 MM	TERMINAL PITCH FOR POWER CONTACT: 4 MM	TERMINAL PITCH FOR POWER CONTACT: 4 MM	TERMINAL PITCH FOR POWER CONTACT: 4 MM	TERMINAL PITCH FOR POWER CONTACT: 4 MM	TERMINAL PITCH FOR POWER CONTACT: 4 MM	TERMINAL PITCH FOR POWER CONTACT: 4 MM	TERMINAL PITCH FOR POWER CONTACT: 4 MM
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	M83-LM	M83-LM	M83-LM	M83-LM	M83-LM	M83-LM	M83-LM	M83-LM
Mixed contacts	YES	YES	YES	YES	YES	YES	YES	YES
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	12	12	12	12	12	12	12	12
