M83-LML300N19-0101-314 datasheet, PDF

Datasheet> All Categories > The connector> The connector> M83-LML300N19-0101-314

M83-LML300N19-0101-314: DescriptionBoard Connector, 19 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size748KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M83-LML300N19-0101-314 Overview

Board Connector, 19 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT

M83-LML300N19-0101-314 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	M83-LM
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	19

Preview

Download Datasheet

View All

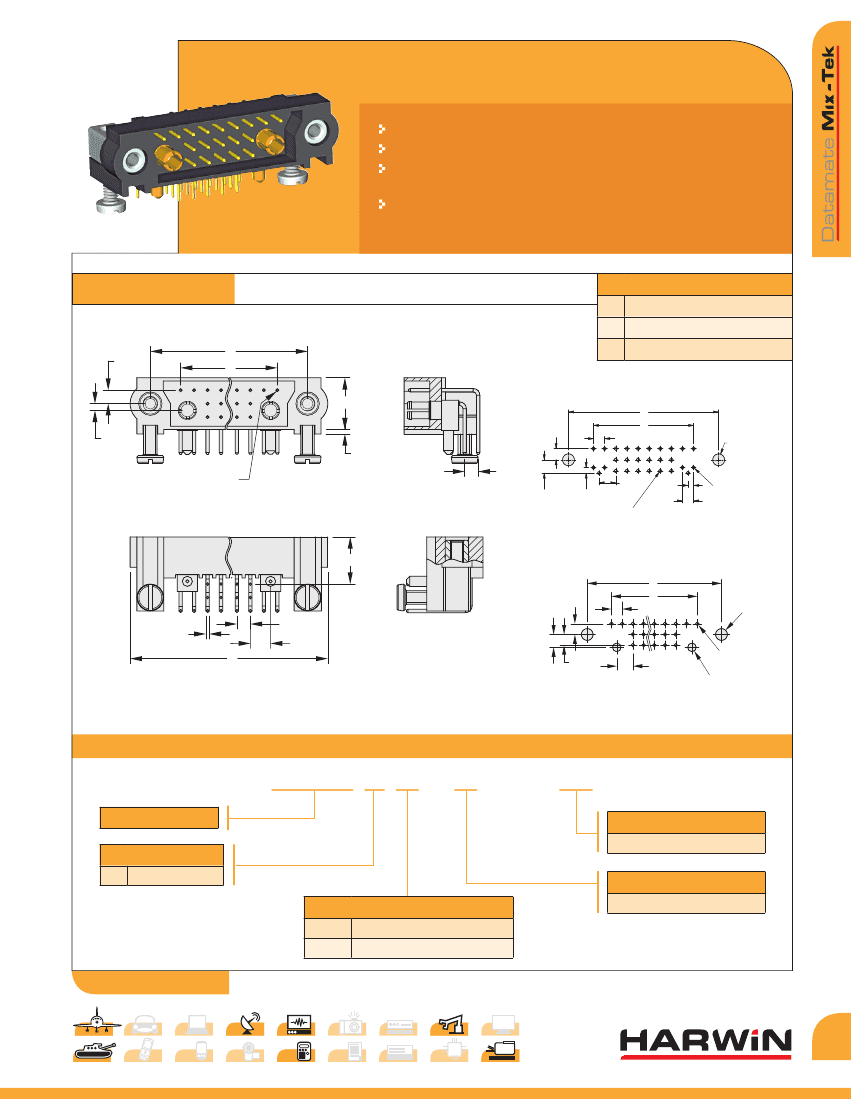

M83 Datamate Connectors

Male Horizontal PC tail

Choice of compatible jackscrews and special contacts.

All contacts are gold finish for full RoHS compliance.

See page 74 for a signal-only configuration, and page

76 for an alternative mixed technology configuration.

Contact datamate@harwin.com for alternative

contact configurations.

Male HoriZontal

caLcULatioN

B + 15

(Total No. of contacts + 5) x 2/3

B+9

2.00

7.70

1.00

0.65

No. 1 contact

2.00

2.20 min.

1.00

2.00

2.40

1.00

3.00

0.60 min.

0.65 min.

7.00

recommended PC board Pattern

with 313 or 314 Coax contacts

2.00

2.20 min.

0.65 min.

1.60 min.

0.50

2.00

3.00

2.40

2.00

3.00

HM1282: M83-LMLXMXNXX-0101-333

Diagram shown with special contact 333 and Jackscrew M5 assembled.

recommended PC board Pattern

HM1283: M83-LMLXMXNXX-0101-333 PCB LAYOUT

with 333 or 334 Power contacts

HoW to orDer

m83 – Lm L3 XX N XX – 0101 – XXX

SerieS coDe

taiL

4mm Tail

SPeciaL coNtactS

313, 314, 333, 334

totaL No. oF coNtactS

JackScreW

No Jackscrew

Male Jackscrews – see page 65

All dimensions in mm.

19, 25
