PCIE--98-2F-D-EMS2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> PCIE--98-2F-D-EMS2

PCIE--98-2F-D-EMS2: Description98 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SURFACE MOUNT, SOCKET, ROHS COMPLIANT; CategoryThe connector The connector; File Size755KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

PCIE--98-2F-D-EMS2 Overview

98 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SURFACE MOUNT, SOCKET, ROHS COMPLIANT

PCIE--98-2F-D-EMS2 Parametric

Parameter Name	Attribute value
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	FINAL INCH; PCI EXPRESS, POLARIZED
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL (50)
Contact completed and terminated	TIN OVER NICKEL (50)
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	PCIE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	98

Preview

Download Datasheet

View All

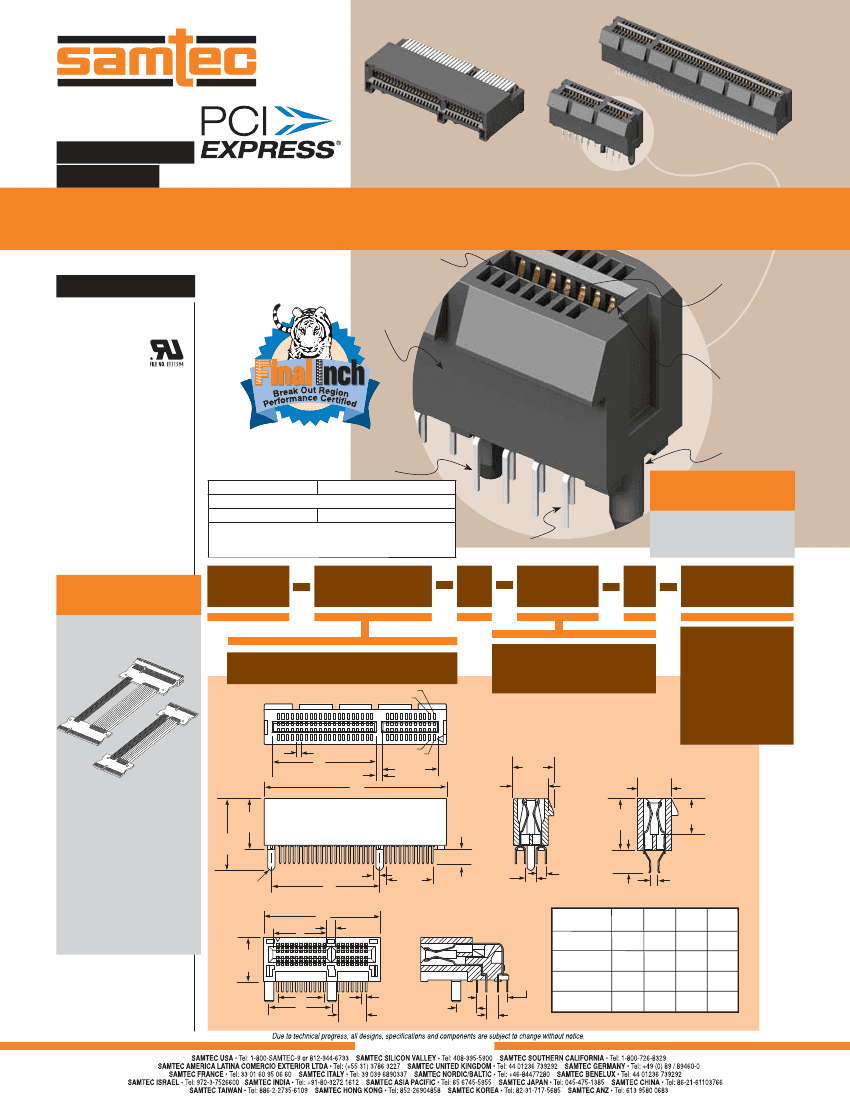

F-211-1

PCIE–098–02–F–D–EMS2

(1,00mm) .03937"

PCIE SERIES

PCIE–064–02–F–D–RA

PCIE–036–02–F–D–TH

PCI EXPRESS CARD SOCKETS

Polarized

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts see

www.samtec.com?PCIE

Insulator Material:

Black Nylon

Contact:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27µm) Ni

Current Rating:

2.5A @ 80°C ambient

Operating Temp:

-55°C to +125°C

Card Insertion

Depth:

(8,00mm) .315" nominal

RoHS Compliant:

Yes

Lead–Free Solderable:

Wave only

Mates with:

(1,60mm) .062" card

Supports one,

four, eight and

sixteen PCI

Express

links

(1,00mm)

.03937" pitch

fina

Accepts

1,6mm card

nch.com

Choice of

card–edge mount

or PCB mount

PCIE

11,1mm Stack Height

Differential Pair Signaling

Rated @ 3dB Insertion Loss

7.0 GHz / 14 Gbps

Alignment

pins

APPLICATION

SPECIFIC OPTION

Four rows on

2mm pitch

Other plating

options available.

Call Samtec.

Performance data for other stack heights and complete

test data available at www.samtec.com?PCIE

or contact sig@samtec.com

ALSO

AVAILABLE

PCI Express

Jumpers

& Extenders call for

PCIEC Series

PCIE

NO. OF

POSITIONS

PLATING

OPTION

TAIL

OPTION

–EMS2

–036, –064, –098, –164

–F

= Gold ﬂash on contact,

Tin on tail

= Edge Mount

–TH

= Through-hole

–RA

= Right Angle

(1,00) .03937

(1,78) .070

(11,00)

.433

(15,40)

.606

(2,05)

.081

DIA

(1,35) .053

(9,45)

.372

(6,50)

.256

(10,00)

.394

(1,00)

.03937

(4,50)

.177

(2,50)

.098

(10,00)

.394

(11,65)

.459

• Loop back Extender

(From one PCIe

slot to

another PCIe

slot)

• Ser-Des Physical

Extender (From one

PCIe

slot to another

PCIe

Ser-Des)

• Physical Extender for

easy troubleshooting of

PCIe

card debug and

analysis (PCIe

slot to

Emulator or Analyzer)

Call Samtec.

PCI Express

is a registered

trademark of PCI-SIG

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

(8,61)

.339

(7,50)

.295

(2,31)

.091

(11,05)

.435

(7,30)

.287

(7,65)

.301

(2,50)

.098

(2,00)

.079

(4,50)

.177

(1,50)

.059

–TH

POSITIONS

–036 (X1)

–064 (X4)

–098 (X8)

–164 (X16)

–EMS2

(7,65)

.301

(21,65)

.852

(38,65)

1.522

(71,65)

2.821

(1,80)

.071

(9,15)

.360

(23,15)

.911

(40,15)

1.581

(73,15)

2.880

(6,00)

.236

(20,00)

.787

(37,00)

1.457

(70,00)

2.756

(25,00)

.984

(39,00)

1.535

(56,00)

2.205

(89,00)

3.504

–RA
