BC846W datasheet, PDF - EEWORLD Datasheet

BC846W: DescriptionSmall Signal Bipolar Transistor,; CategoryDiscrete semiconductor The transistor; File Size2MB，4 Pages; ManufacturerSurge Components; Websitehttp://www.surgecomponents.com/

Download Datasheet Parametric Compare View All

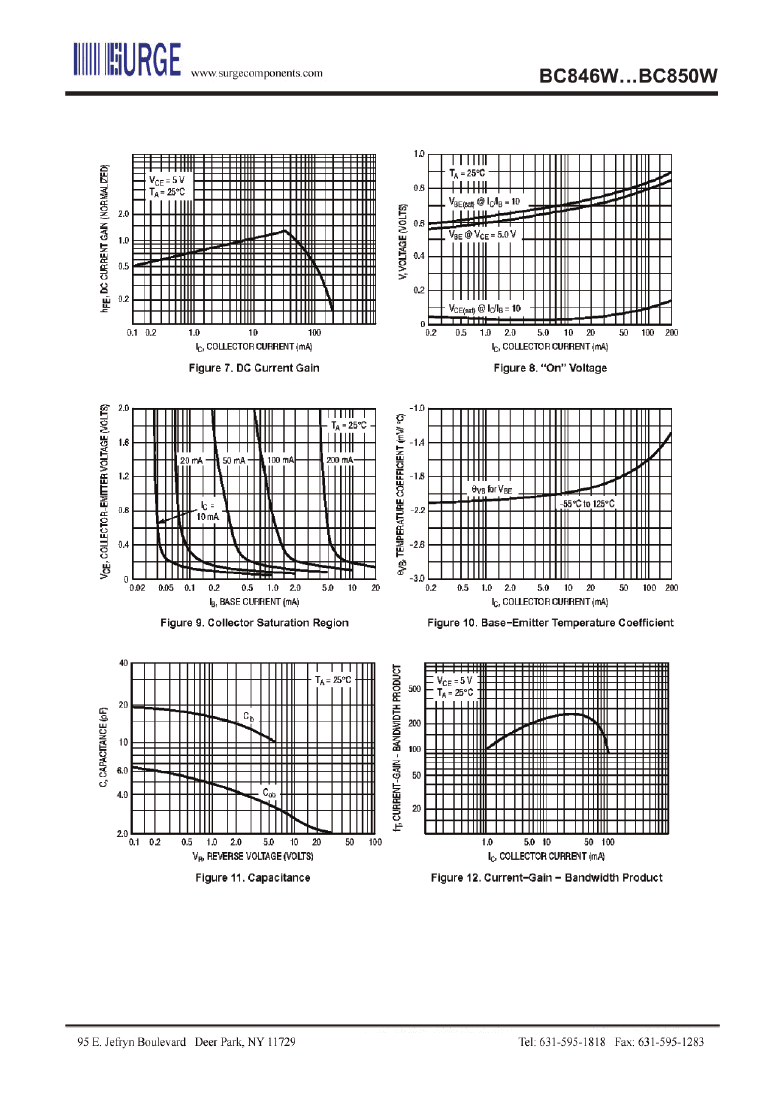

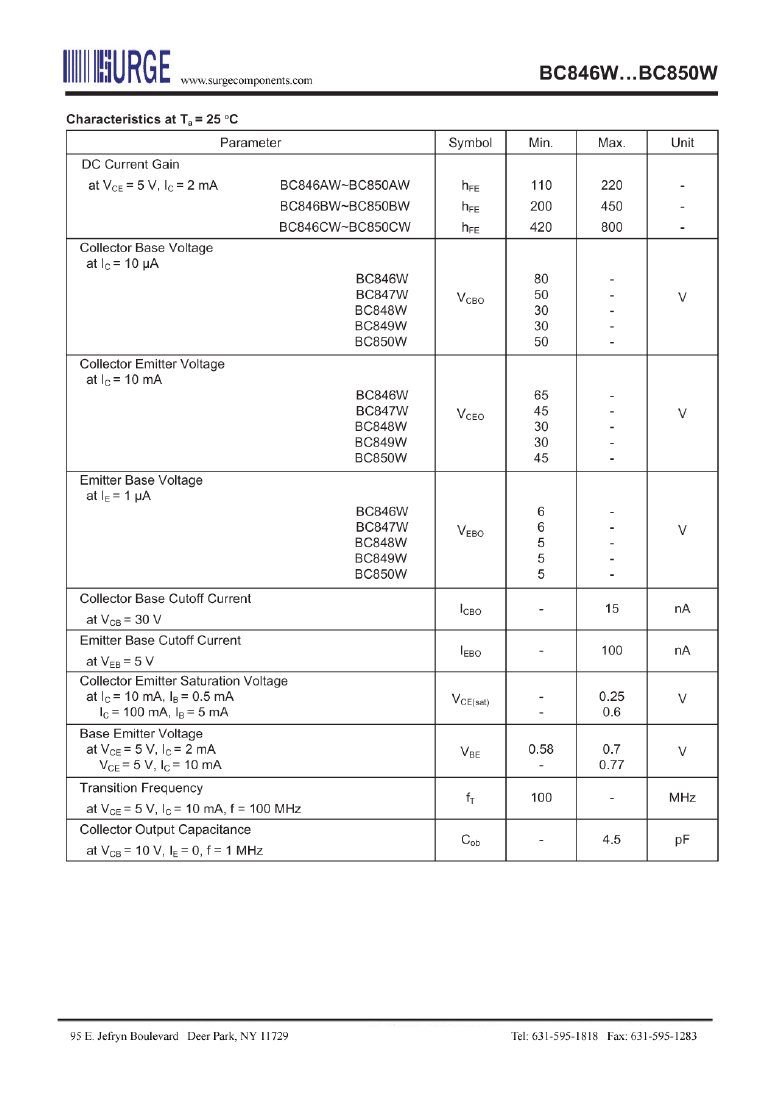

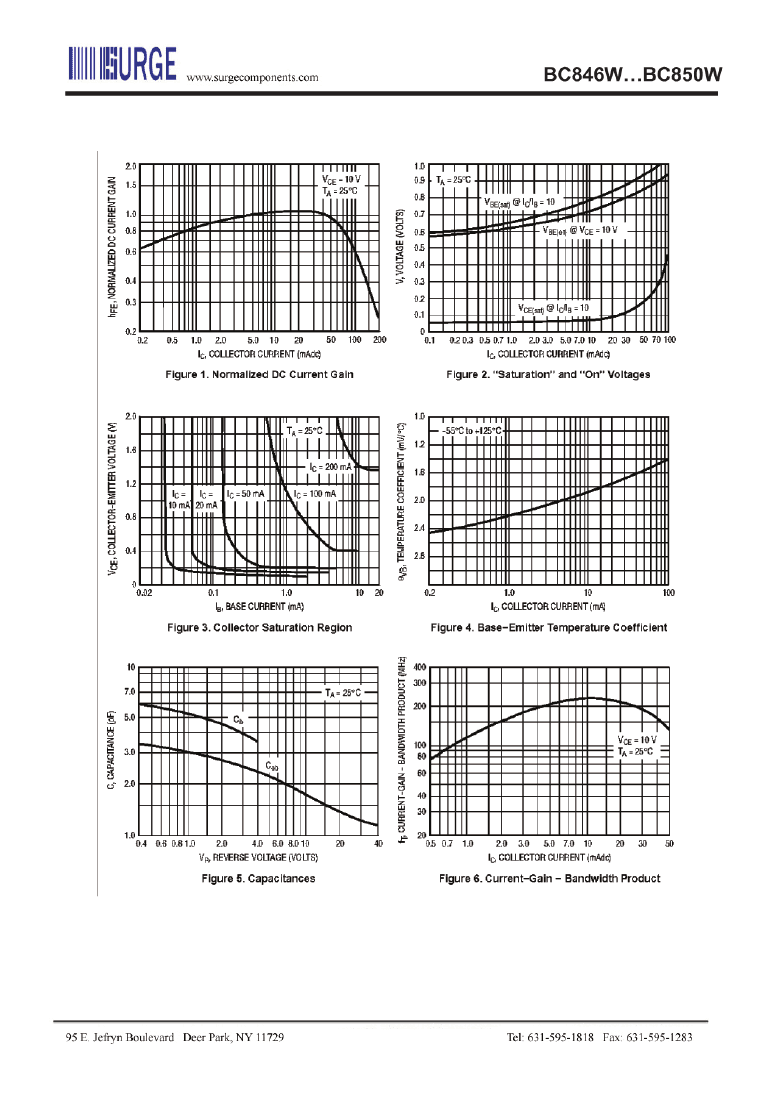

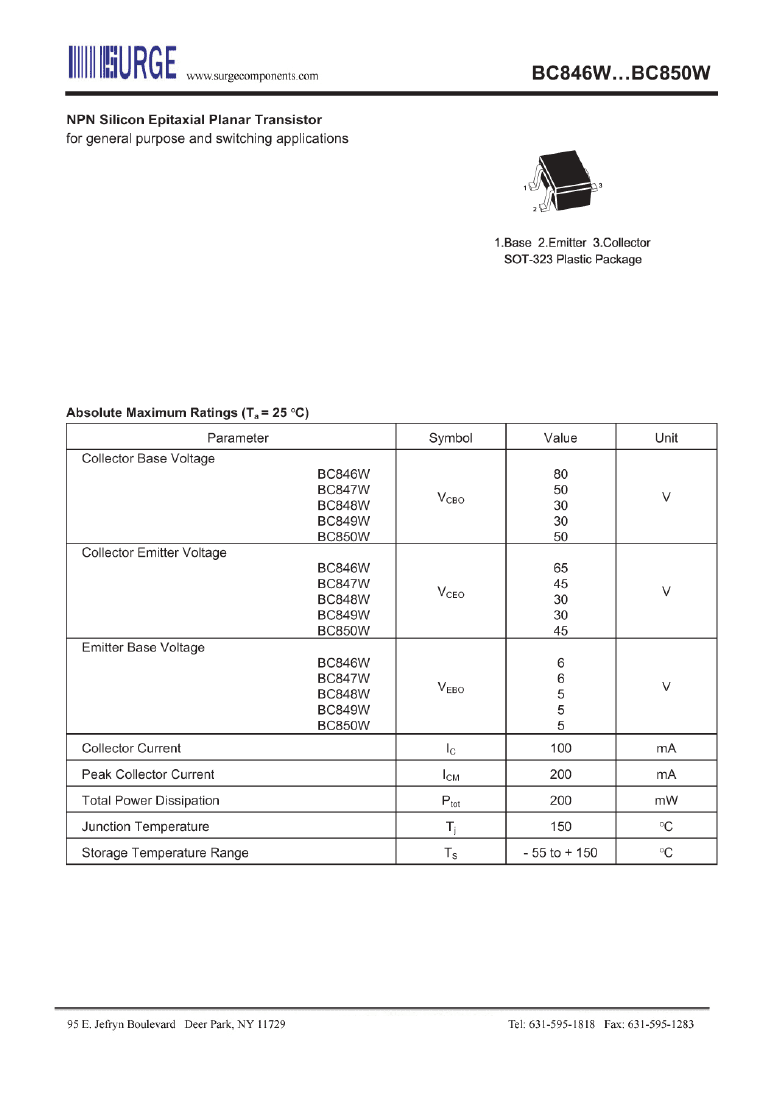

BC846W Overview

Small Signal Bipolar Transistor,

Parameter Name	Attribute value
Maker	Surge Components
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	compliant
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	65 V
Configuration	SINGLE
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	100 MHz

	BC846W	BC847W	BC848W	BC850W	BC849W
Description	Small Signal Bipolar Transistor,	Small Signal Bipolar Transistor,	Small Signal Bipolar Transistor,	Small Signal Bipolar Transistor,	Small Signal Bipolar Transistor,
Maker	Surge Components	Surge Components	Surge Components	Surge Components	Surge Components
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Collector-emitter maximum voltage	65 V	45 V	30 V	45 V	30 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	1	1	1	1	1
Number of terminals	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	NPN	NPN	NPN	NPN	NPN
surface mount	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
