BCW68: DescriptionTRANSISTOR,BJT,PNP,45V V(BR)CEO,800MA I(C),SOT-23; CategoryDiscrete semiconductor The transistor; File Size103KB，1 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

BCW68 Overview

TRANSISTOR,BJT,PNP,45V V(BR)CEO,800MA I(C),SOT-23

BCW68 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Reach Compliance Code	not_compliant
Maximum collector current (IC)	0.8 A
Configuration	Single
Minimum DC current gain (hFE)	100
JESD-609 code	e0
Maximum operating temperature	150 °C
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.225 W
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	100 MHz

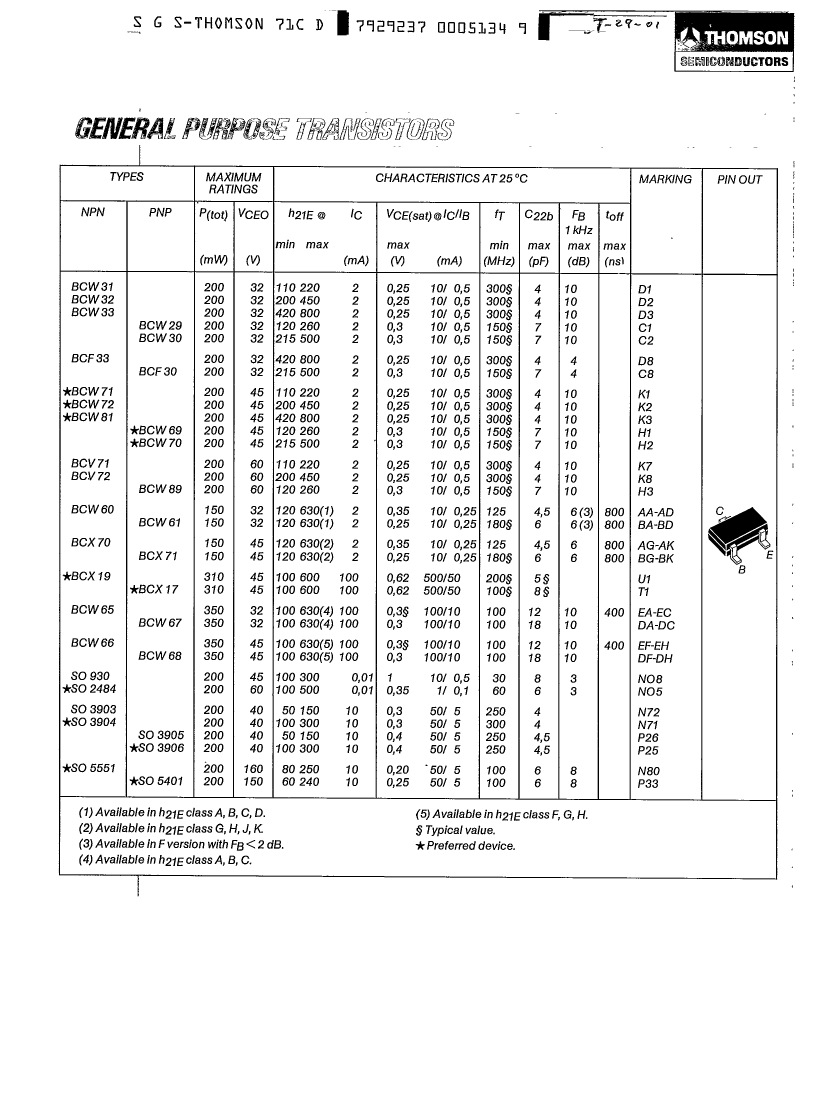

Preview

Download Datasheet

View All

BCW68 Related Products

	BCW68	BCW69R	BCW70R	BCW89R	BCW29R	BCF33R	BCW30R	BCF30R	BCW81R
Description	TRANSISTOR,BJT,PNP,45V V(BR)CEO,800MA I(C),SOT-23	TRANSISTOR,BJT,PNP,45V V(BR)CEO,100MA I(C),TO-236	TRANSISTOR,BJT,PNP,45V V(BR)CEO,100MA I(C),TO-236	TRANSISTOR,BJT,PNP,60V V(BR)CEO,100MA I(C),TO-236	TRANSISTOR,BJT,PNP,32V V(BR)CEO,100MA I(C),TO-236	TRANSISTOR,BJT,NPN,20V V(BR)CEO,200MA I(C),TO-236	TRANSISTOR,BJT,PNP,20V V(BR)CEO,100MA I(C),TO-236	TRANSISTOR,BJT,PNP,32V V(BR)CEO,200MA I(C),SOT-23	TRANSISTOR,BJT,NPN,45V V(BR)CEO,200MA I(C),TO-236
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Maximum collector current (IC)	0.8 A	0.1 A	0.1 A	0.1 A	0.1 A	0.2 A	0.1 A	0.2 A	0.2 A
Configuration	Single	Single	Single	Single	Single	Single	Single	Single	Single
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Maximum operating temperature	150 °C	175 °C	175 °C	175 °C	150 °C	150 °C	150 °C	175 °C	150 °C
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	NPN	PNP	PNP	NPN
Maximum power dissipation(Abs)	0.225 W	0.35 W	0.35 W	0.35 W	0.35 W	0.2 W	0.35 W	0.35 W	0.2 W
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	100 MHz	150 MHz	150 MHz	150 MHz	150 MHz	300 MHz	150 MHz	150 MHz	300 MHz
Maker	STMicroelectronics	-	-	-	-	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Minimum DC current gain (hFE)	100	90	150	-	90	-	150	-	-
