BYR30-700U datasheet, PDF - EEWORLD Datasheet

BYR30-700U: DescriptionRectifier Diode, 1 Element, 14A, 700V V(RRM),; CategoryDiscrete semiconductor diode; File Size228KB，8 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

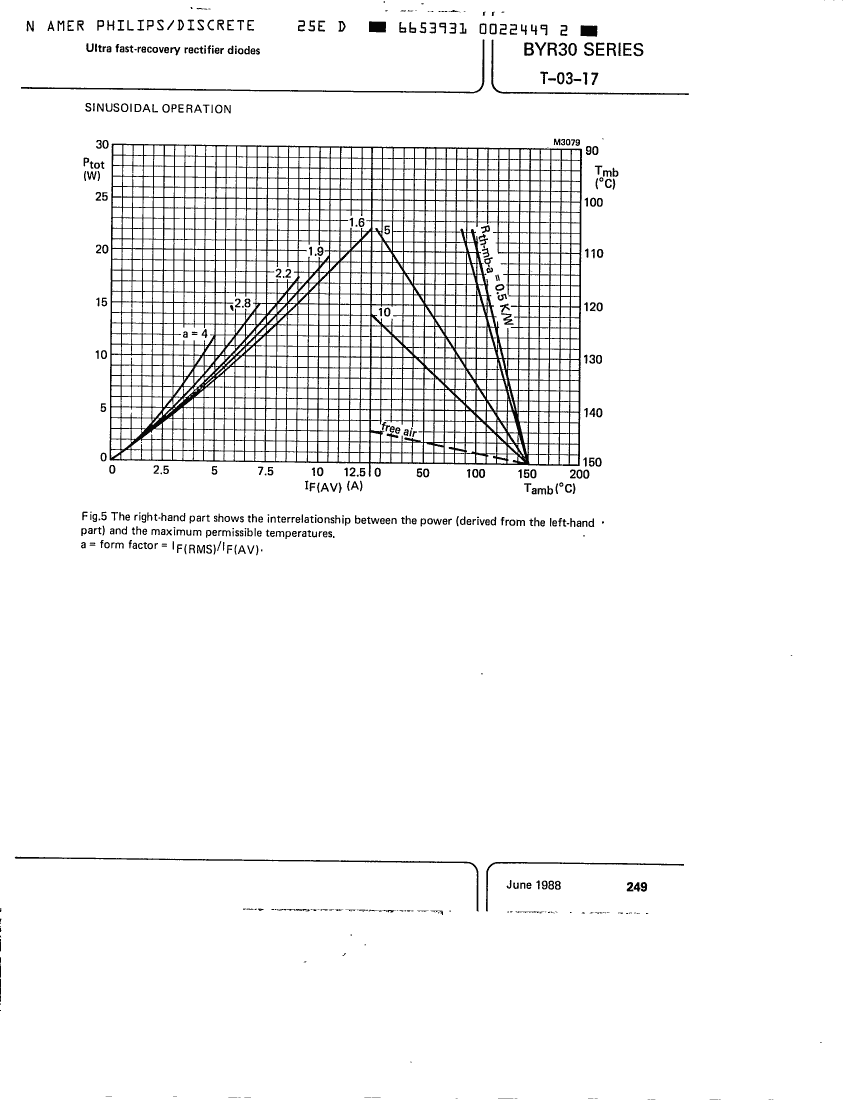

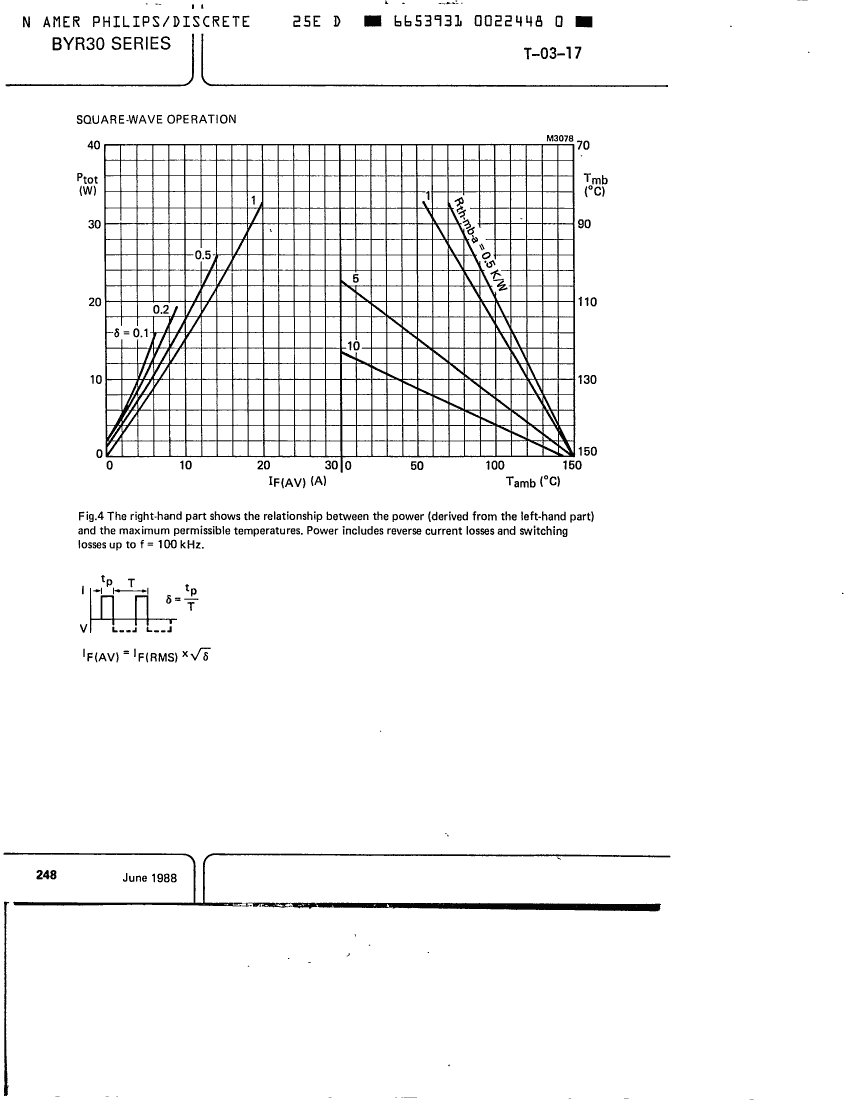

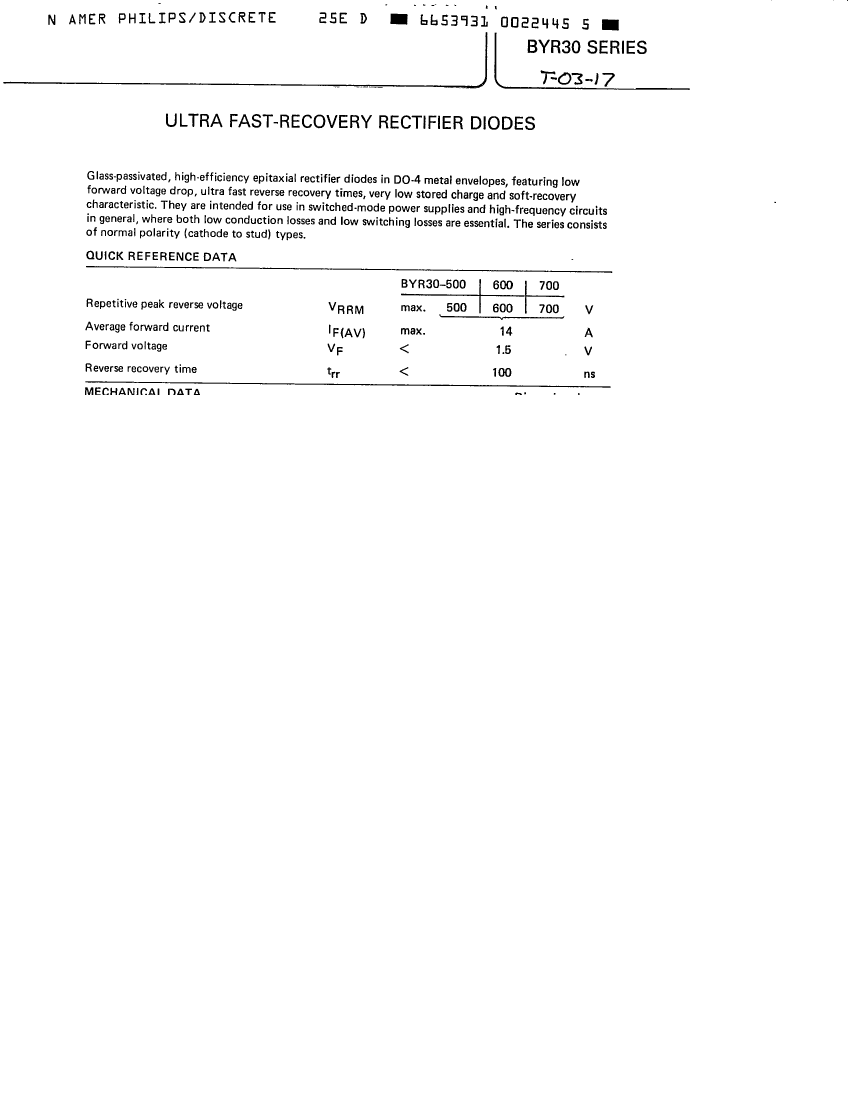

BYR30-700U Overview

Rectifier Diode, 1 Element, 14A, 700V V(RRM),

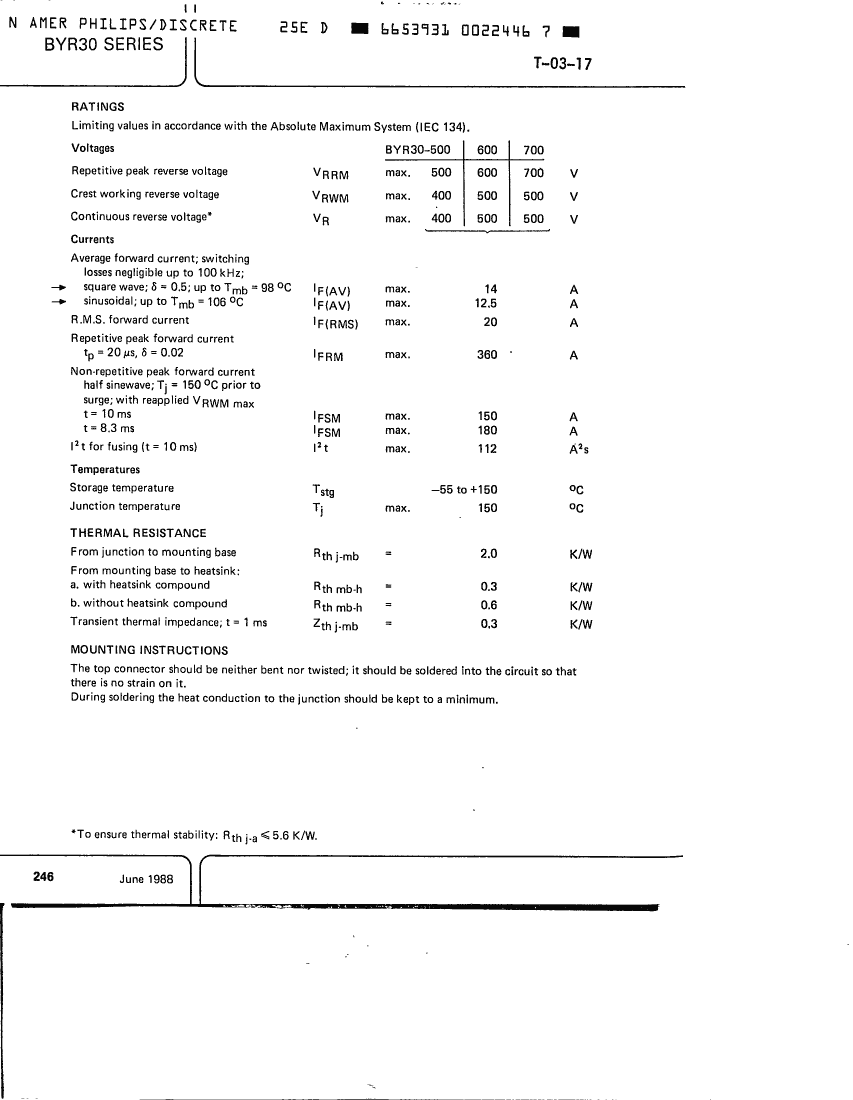

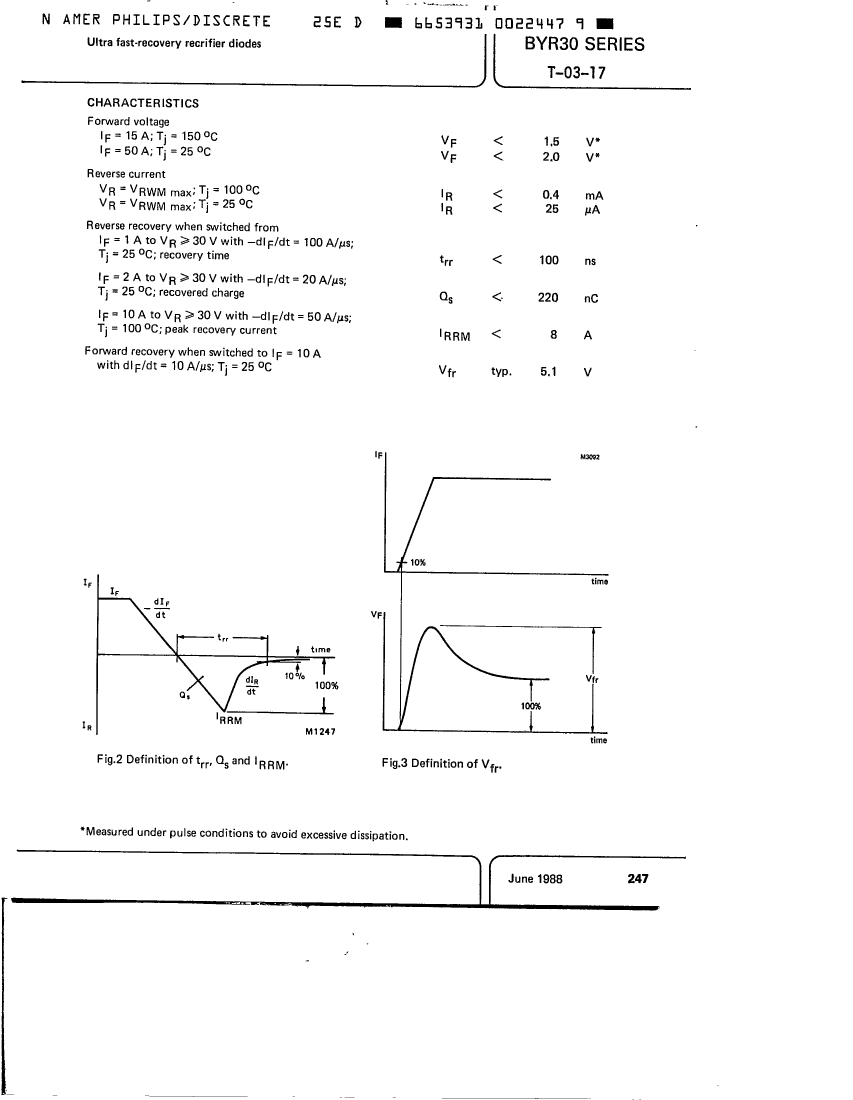

Parameter Name	Attribute value
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code	unknown
Configuration	SINGLE
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	2 V
Maximum non-repetitive peak forward current	180 A
Number of components	1
Maximum operating temperature	150 °C
Maximum output current	14 A
Maximum repetitive peak reverse voltage	700 V
Maximum reverse recovery time	0.1 µs
surface mount	NO

	BYR30-700U	BYR30-600	BYR30-700	BYR30-500	BYR30-500U	BYR30-600U
Description	Rectifier Diode, 1 Element, 14A, 700V V(RRM),	Rectifier Diode, 1 Element, 14A, 600V V(RRM),	Rectifier Diode, 1 Element, 14A, 700V V(RRM),	Rectifier Diode, 1 Element, 14A, 500V V(RRM),	Rectifier Diode, 1 Element, 14A, 500V V(RRM),	Rectifier Diode, 1 Element, 14A, 600V V(RRM),
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	2 V	2 V	2 V	2 V	2 V	2 V
Maximum non-repetitive peak forward current	180 A	180 A	180 A	180 A	180 A	180 A
Number of components	1	1	1	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	14 A	14 A	14 A	14 A	14 A	14 A
Maximum repetitive peak reverse voltage	700 V	600 V	700 V	500 V	500 V	600 V
Maximum reverse recovery time	0.1 µs	0.1 µs	0.1 µs	0.1 µs	0.1 µs	0.1 µs
surface mount	NO	NO	NO	NO	NO	NO
