BYW25-800R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYW25-800R

BYW25-800R: DescriptionRectifier Diode, 1 Phase, 1 Element, 40A, 800V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size102KB，5 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

BYW25-800R Overview

Rectifier Diode, 1 Phase, 1 Element, 40A, 800V V(RRM), Silicon,

BYW25-800R Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	O-MUPM-D1
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LEAKAGE CURRENT IS NOT AT 25 DEG C
application	FAST SOFT RECOVERY
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	2.25 V
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	550 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	150 °C
Maximum output current	40 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	800 V
Maximum reverse current	7000 µA
Maximum reverse recovery time	0.45 µs
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER

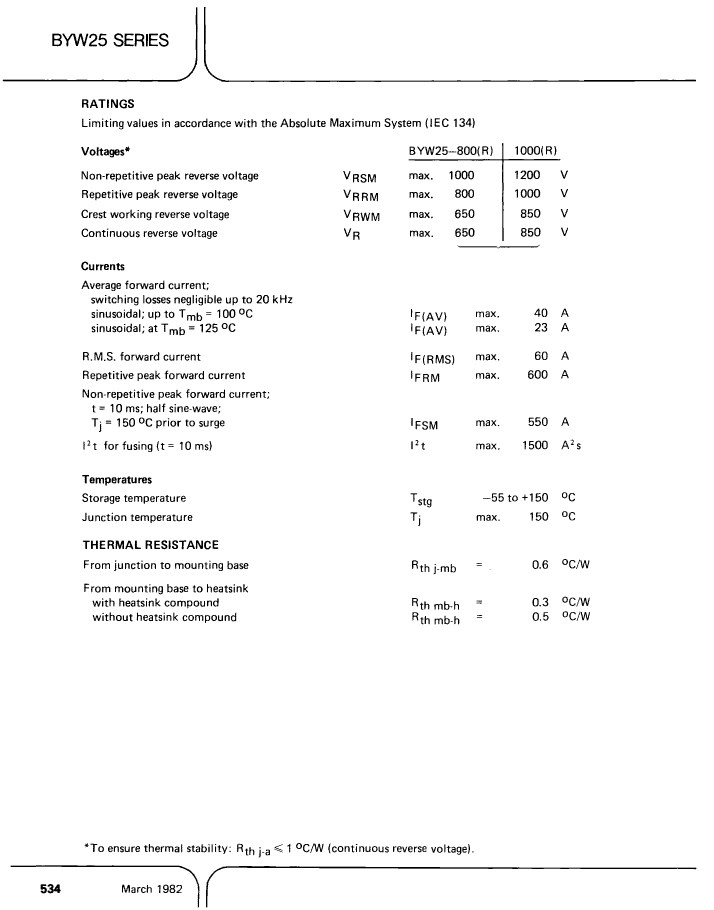

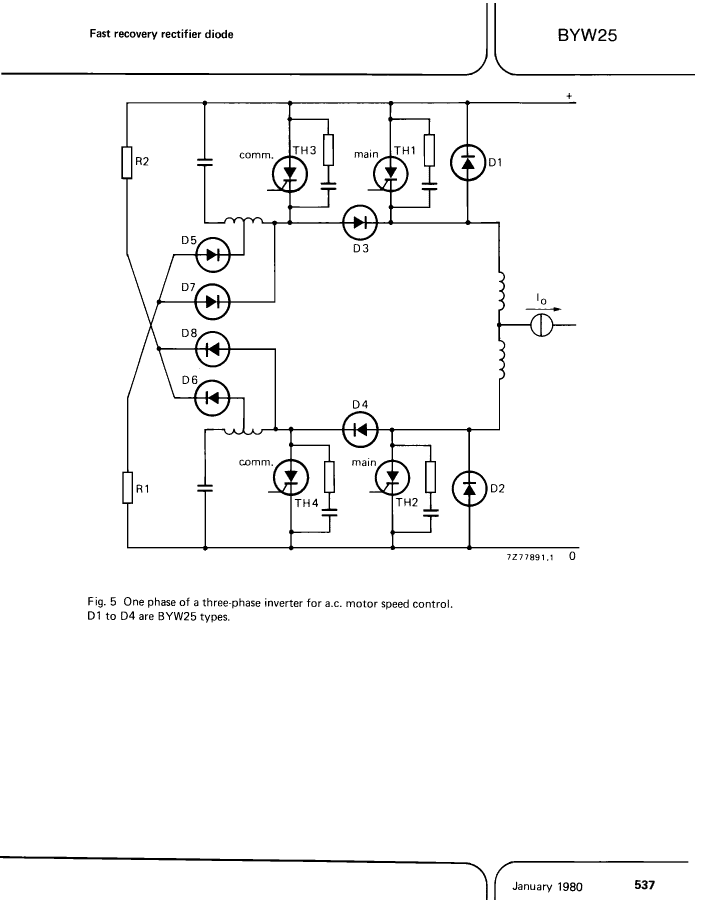

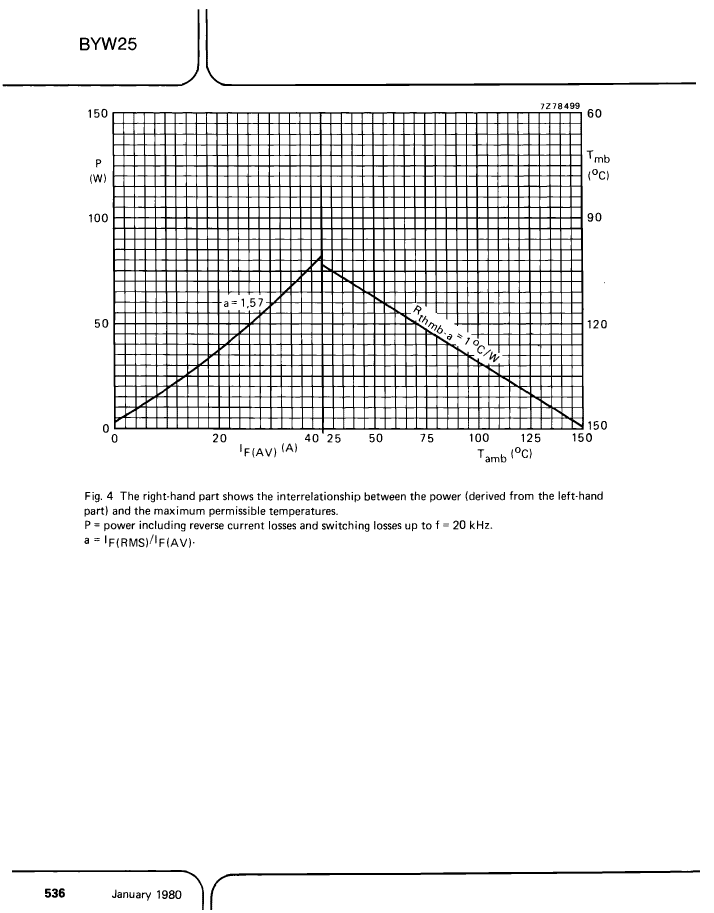

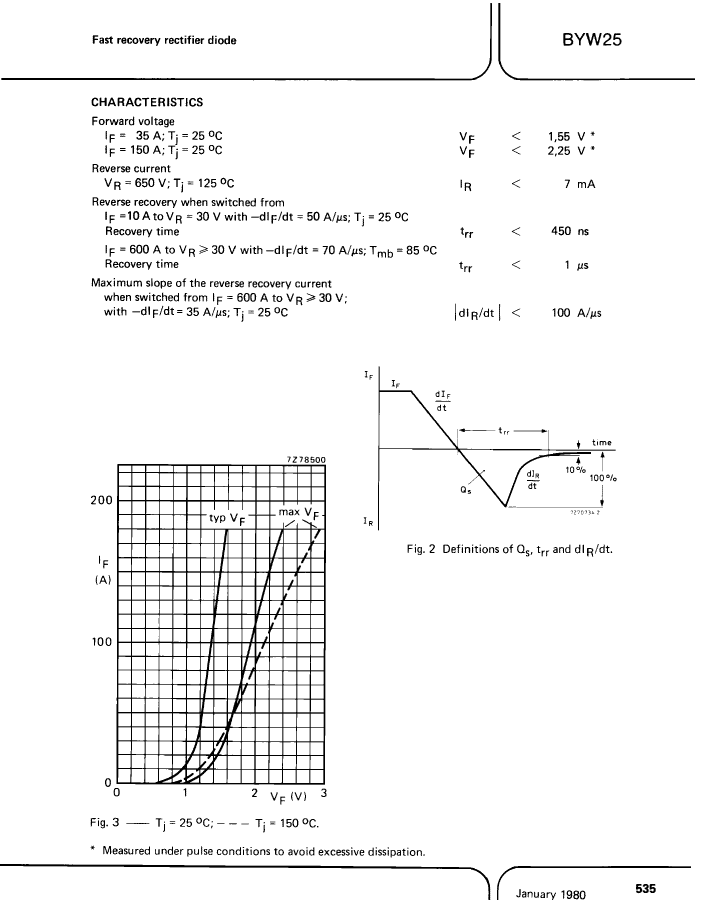

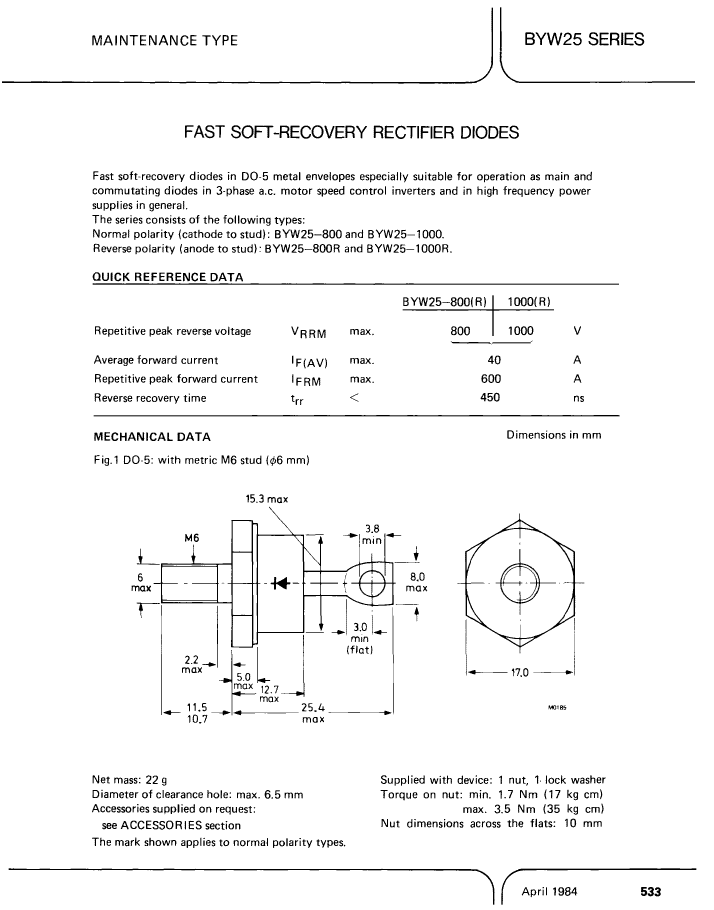

Preview

Download Datasheet

View All

BYW25-800R Related Products

	BYW25-800R	BYW25-800	BYW25-1000	BYW25-1000R
Description	Rectifier Diode, 1 Phase, 1 Element, 40A, 800V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 40A, 800V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 40A, 1000V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 40A, 1000V V(RRM), Silicon,
package instruction	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C	LEAKAGE CURRENT IS NOT AT 25 DEG C
application	FAST SOFT RECOVERY	FAST SOFT RECOVERY	FAST SOFT RECOVERY	FAST SOFT RECOVERY
Shell connection	ANODE	CATHODE	CATHODE	ANODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	2.25 V	2.25 V	2.25 V	2.25 V
JESD-30 code	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Maximum non-repetitive peak forward current	550 A	550 A	550 A	550 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	1	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Maximum output current	40 A	40 A	40 A	40 A
Package body material	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	800 V	800 V	1000 V	1000 V
Maximum reverse current	7000 µA	7000 µA	7000 µA	7000 µA
Maximum reverse recovery time	0.45 µs	0.45 µs	0.45 µs	0.45 µs
surface mount	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER
Maker	YAGEO	-	YAGEO	YAGEO
