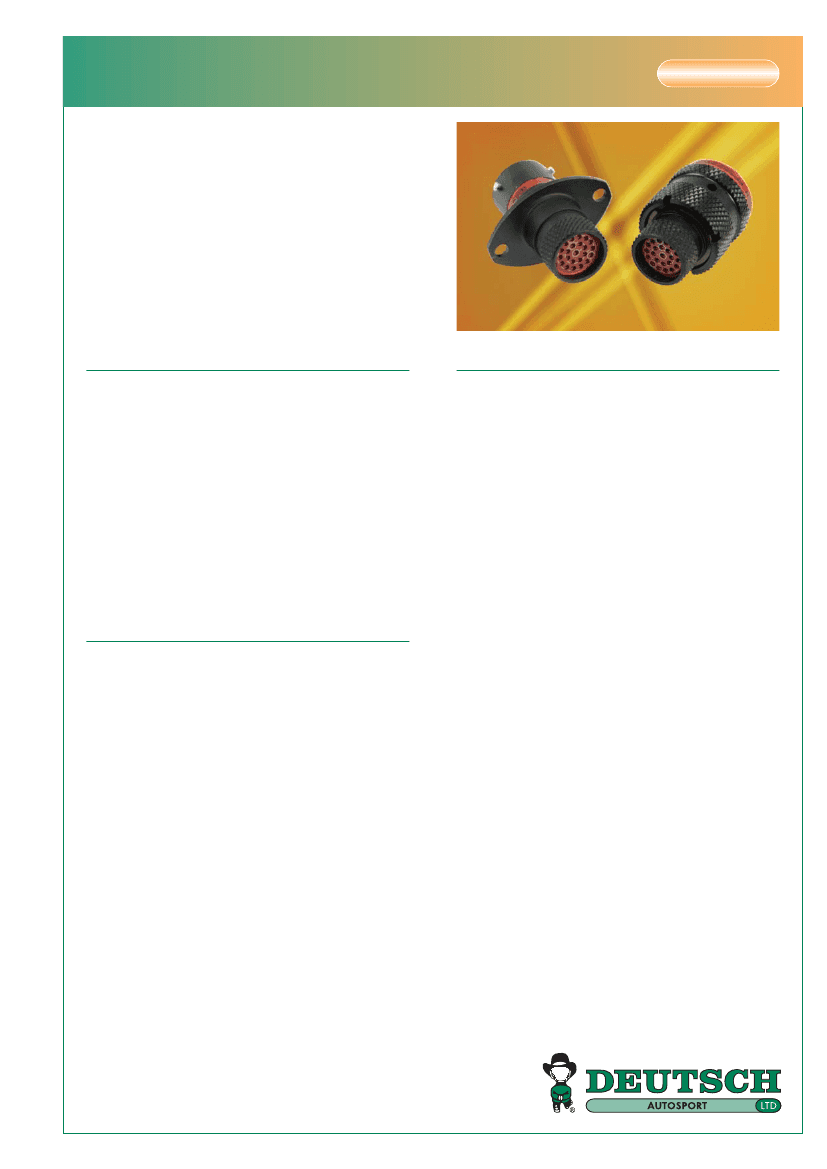

Autosport Double Density
The next Double Density, the new size 10 shell with 23
contacts is now available. These tried and tested size #24
contacts are designed for the latest generation in wire
and are fully re-workable.
Close to double density in contacts per single connector
shell than standard Autosport connectors. This increased
density allows design engineers much more scope in
design flexibility when considering cable infrastructure.
New Technologies
FEATURES
23 Unique Size #24 removable contacts
Standard AS size 10 shell
Positive Locking Coupling Mechanism
Conductive Black Zinc Finish
Interfacial Wire Sealing
New Crimp Type Solid Contacts
Boot Termination Feature
5 Keyway orientations
In-line and 2 hole mounting styles
Scoop proof interface
PCB option
BENEFITS
Minimum Space Envelope
Allows a saving of 2 shell sizes relative to regular
Autosport planforms
Almost doubles number of contacts compared to a regular
Autosport size 10 shell
No need for backshells for Boot Termination
Suitable for Blind Mating
Integral Environmental Wire Seal
Suitable for sensor applications
GENERAL SPECIFICATION
Supplied complete with crimp contacts & insertion/extraction tools
Materials:
Shell/Coupling ring:
High Strength Aluminium Alloy
Black Zinc Finish
Optional Nickel Finish (Rohs compliant)
Contacts:
Copper Alloy, Gold Plated
Insulators:
Thermoplastic
Interface/Wire Seals: Fluorinated Silicone
Dielectric Withstanding Voltage:
Current leakage less than 2 milliamps at 1500 VAC.
Temperature:
Operating at temperatures from -55°C to +175°C.
Durability:
No electrical or mechanical defects after 500 cycles of engagement
or disengagement.
Contact Current Rating:
Contact Size
Max. Current
#24
3 amps
Water Immersion:
IP67 rating - 1 metre for 30 mins minimum
Fluid Resistance:
Connectors show no damage when exposed to most fluids used in most
motorsport applications.
Wire Sealing:
Connector rear sealing grommets are designed to seal on wires having overall
insulation diameters within the following range:
Min. (mm): 0.60 (AWG 30)
Max. (mm): 0.83 (AWG 24)
Castleham Industrial Estate
2 Stanier Road, St Leonards on Sea
East Sussex TN38 9RF England
Telephone +44 (0) 1424 852722
Fax
+44 (0) 1424 855979
Email
industrial@deutsch.co.uk
www.deutschltd.com
Contact Deutsch for more detail of specific products to meet your sealed
electrical connection requirements.

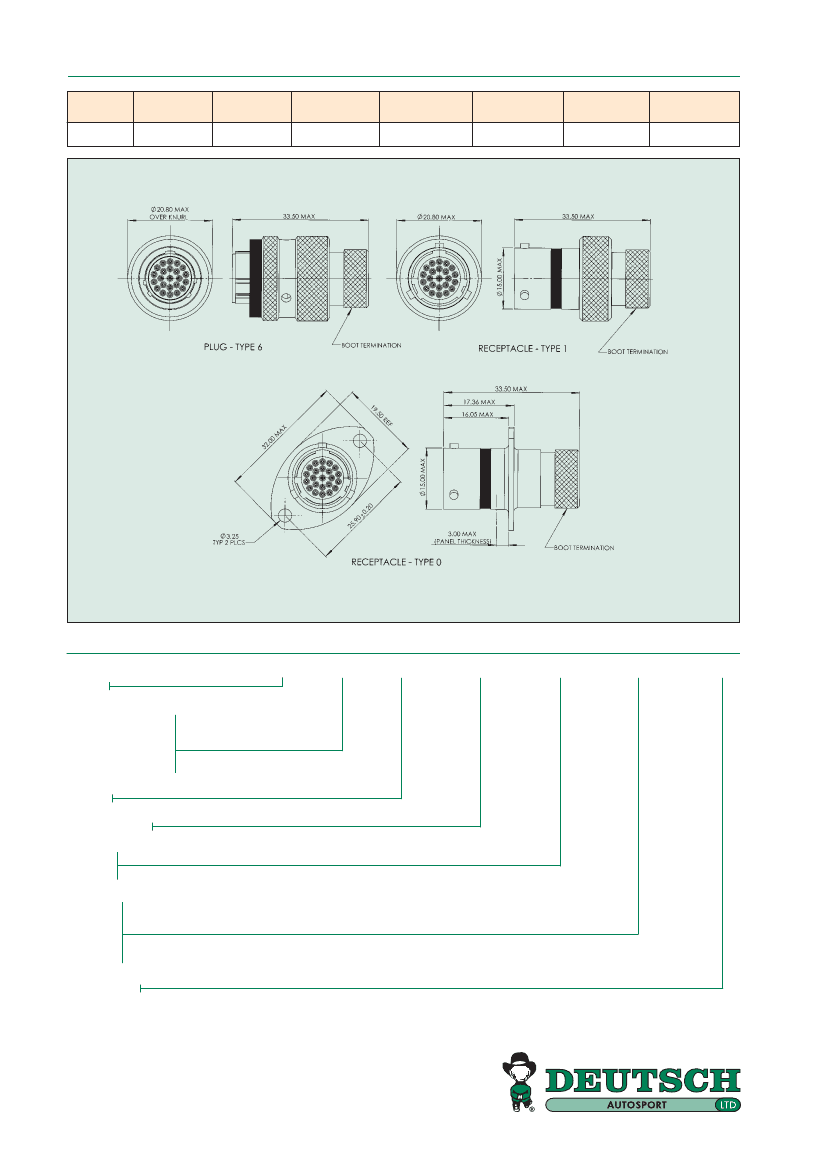

AUTOSPORT DOUBLE DENSITY: TECHNICAL INFORMATION
CONTACT
SIZE
24
SOCKET
605721
PIN
605719-31
FILLER PLUG
600300-24
INS/EXT TOOL
605837
CRIMP TOOL
M22520/2-01
PIN POSITIONER
610286
SOCKET POSITIONER
610287
ORDERING INFORMATION
ASDD
Range Ref:
Style:
0 = 2 hole Flange Receptacle
1 = Inline Receptacle
2 = 2 hole Flange Receptacle
with PCB contacts
6 = Free Plug
Shell Size:
Contact Arrangement:
Insert Type:
P = Pin
S = Socket
Keyway:
N
A
B
C
D
Modification Code:
*
10
-
23
-
*
*
-
***
Information on boots, nut plates and pro-caps can be found in the Autosport Catalogue
Subject to change without prior notification
©2006 Deutsch ASDD1023 06/06
