BU2305F: Description1 Func, 1.17MHz, CMOS, PDSO8, SOP-8; CategoryAnalog mixed-signal IC The signal circuit; File Size297KB，13 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

BU2305F Overview

1 Func, 1.17MHz, CMOS, PDSO8, SOP-8

BU2305F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	LSOP, SOP8,.25
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	Oscillation Frequency can be set freely using external CR
Analog Integrated Circuits - Other Types	PULSE
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	5 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Maximum output frequency	1.17 GHz
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
power supply	3 V
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	1.8 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	4.4 mm

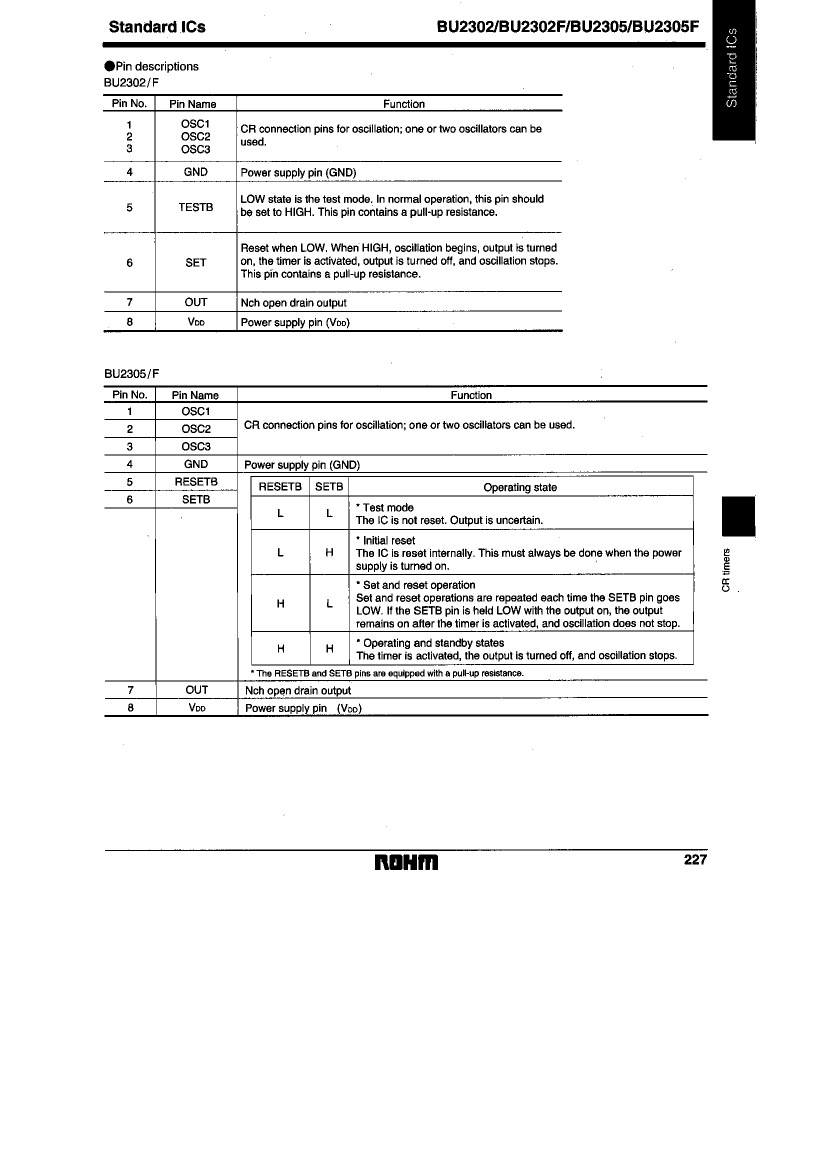

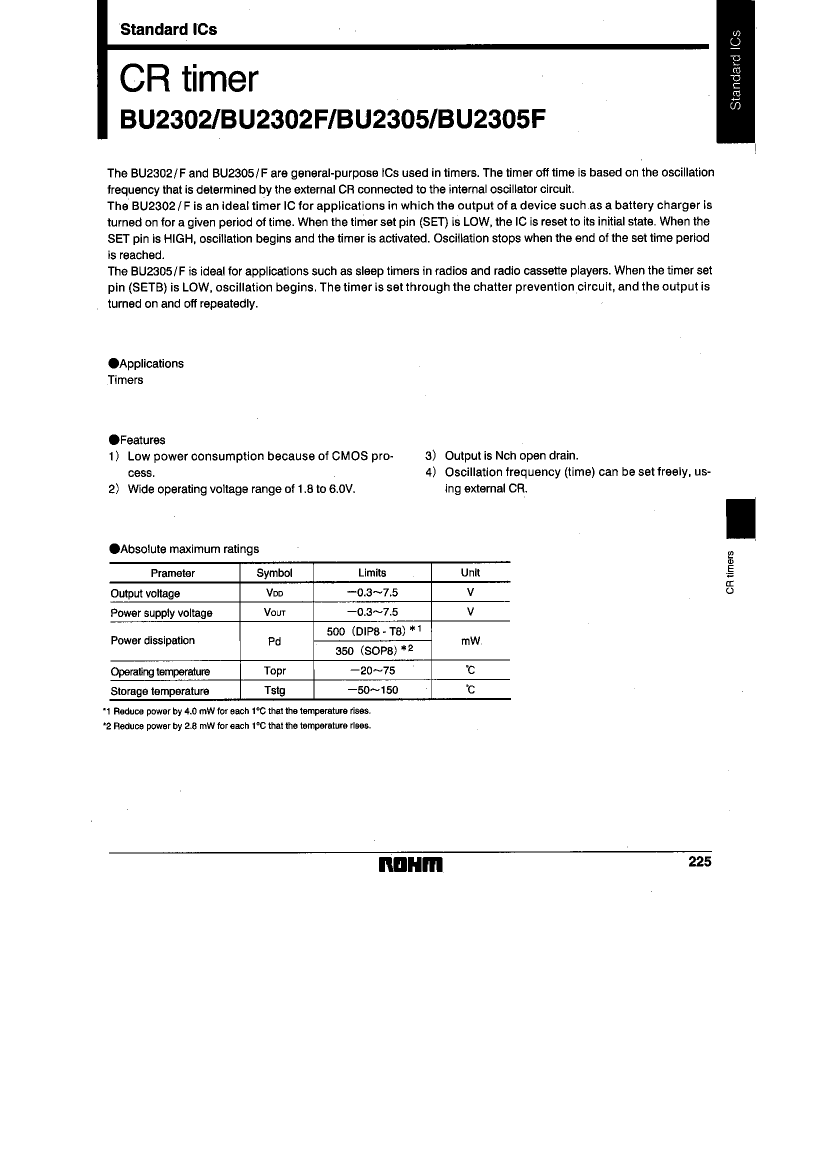

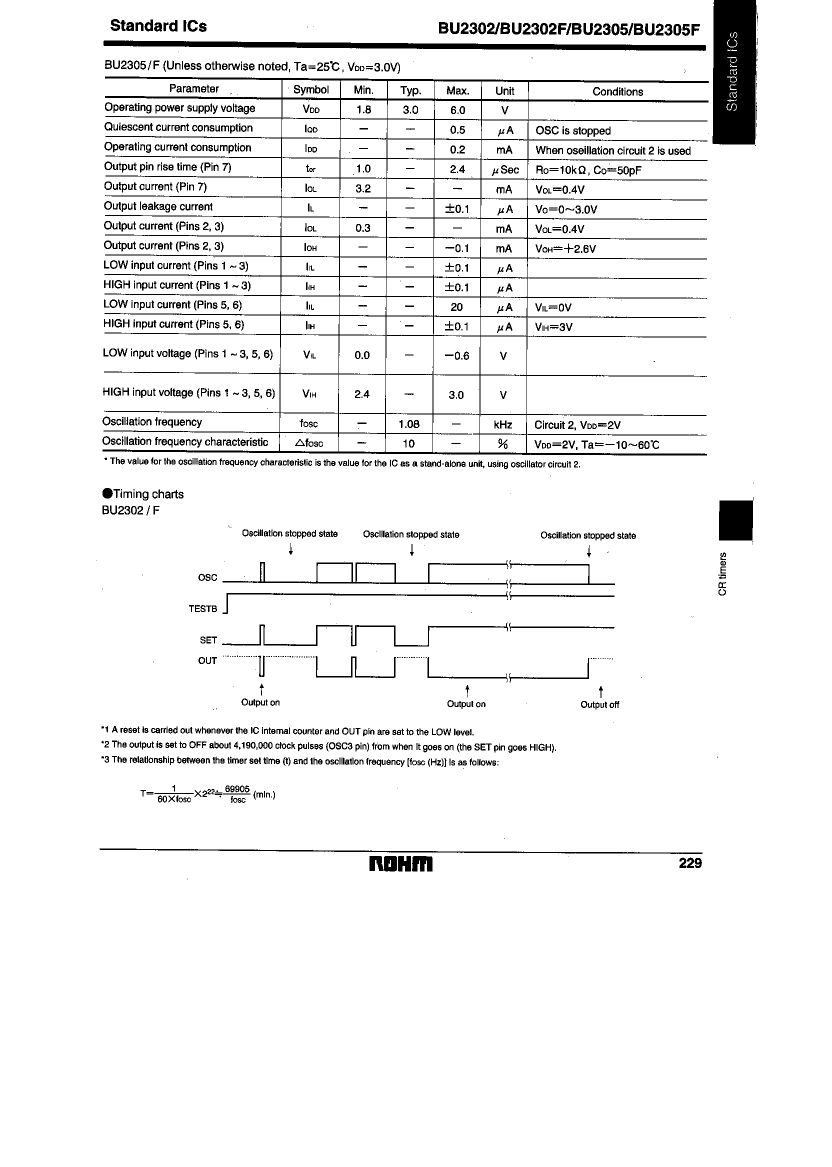

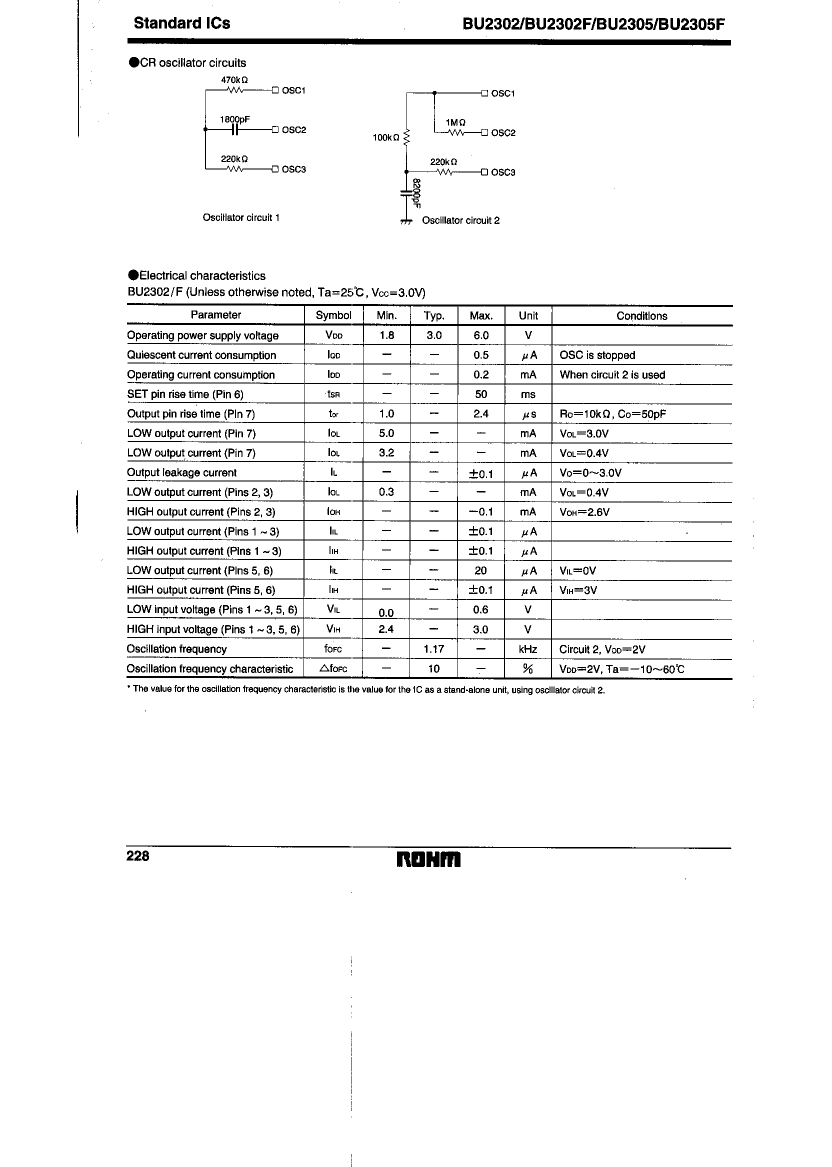

Preview

Download Datasheet

View All

BU2305F Related Products

	BU2305F	BU2302F	BU2305	BU2302
Description	1 Func, 1.17MHz, CMOS, PDSO8, SOP-8	1 Func, 1.17MHz, CMOS, PDSO8, SOP-8	1 Func, 1.17MHz, CMOS, PDIP8, DIP-8	1 Func, 1.17MHz, CMOS, PDIP8, DIP-8
Is it Rohs certified?	incompatible	conform to	conform to	conform to
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
Parts packaging code	SOIC	SOIC	DIP	DIP
package instruction	LSOP, SOP8,.25	LSOP, SOP8,.25	DIP, DIP8,.3	DIP, DIP8,.3
Contacts	8	8	8	8
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	Oscillation Frequency can be set freely using external CR	Oscillation Frequency can be set freely using external CR	Oscillation Frequency can be set freely using external CR	Oscillation Frequency can be set freely using external CR
Analog Integrated Circuits - Other Types	PULSE	PULSE	PULSE	PULSE
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDIP-T8	R-PDIP-T8
length	5 mm	5 mm	9.3 mm	9.3 mm
Number of functions	1	1	1	1
Number of terminals	8	8	8	8
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C
Maximum output frequency	1.17 GHz	1.17 GHz	1.17 GHz	1.17 GHz
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOP	LSOP	DIP	DIP
Encapsulate equivalent code	SOP8,.25	SOP8,.25	DIP8,.3	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	IN-LINE	IN-LINE
power supply	3 V	3 V	3 V	3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	1.6 mm	3.7 mm	3.7 mm
Maximum supply voltage (Vsup)	6 V	6 V	6 V	6 V
Minimum supply voltage (Vsup)	1.8 V	1.8 V	1.8 V	1.8 V
Nominal supply voltage (Vsup)	3 V	3 V	3 V	3 V
surface mount	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	4.4 mm	4.4 mm	7.62 mm	7.62 mm
