BU2459 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> BU2459

BU2459: DescriptionMicrocontroller, 4-Bit, MROM, 1MHz, CMOS, PDIP22, DIP-22; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，45 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

BU2459 Overview

Microcontroller, 4-Bit, MROM, 1MHz, CMOS, PDIP22, DIP-22

BU2459 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ROHM Semiconductor
Parts packaging code	DIP
package instruction	DIP, DIP22,.3
Contacts	22
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	4
maximum clock frequency	1 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T22
JESD-609 code	e0
length	26.3 mm
Number of I/O lines	17
Number of terminals	22
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP22,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	3 V
Certification status	Not Qualified
RAM (bytes)	16
rom(word)	1024
ROM programmability	MROM
Maximum seat height	4.45 mm
speed	1 MHz
Maximum slew rate	1 mA
Maximum supply voltage	4 V
Minimum supply voltage	2 V
Nominal supply voltage	3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

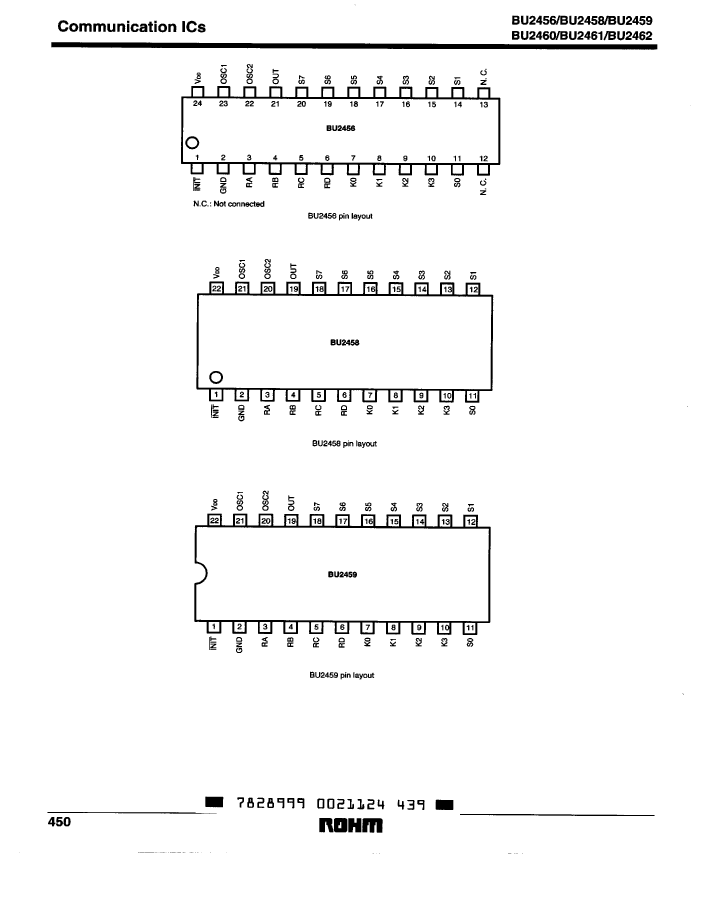

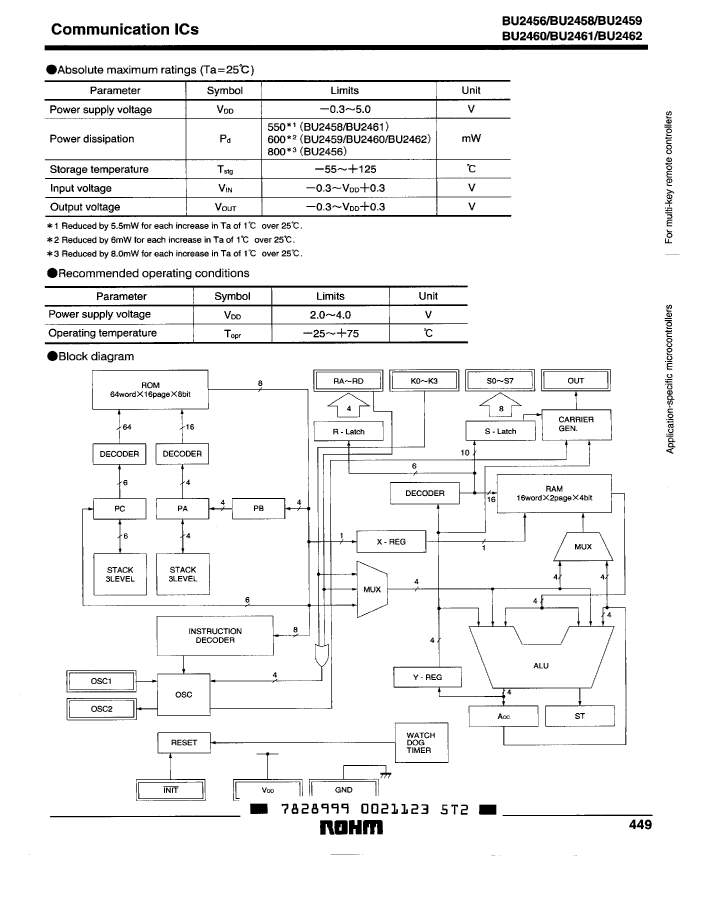

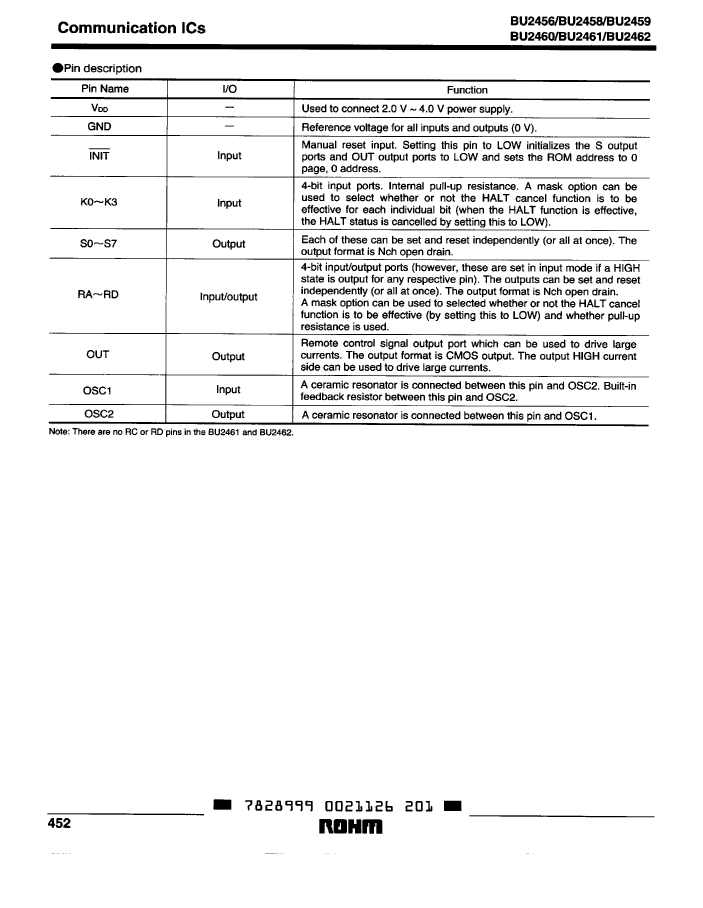

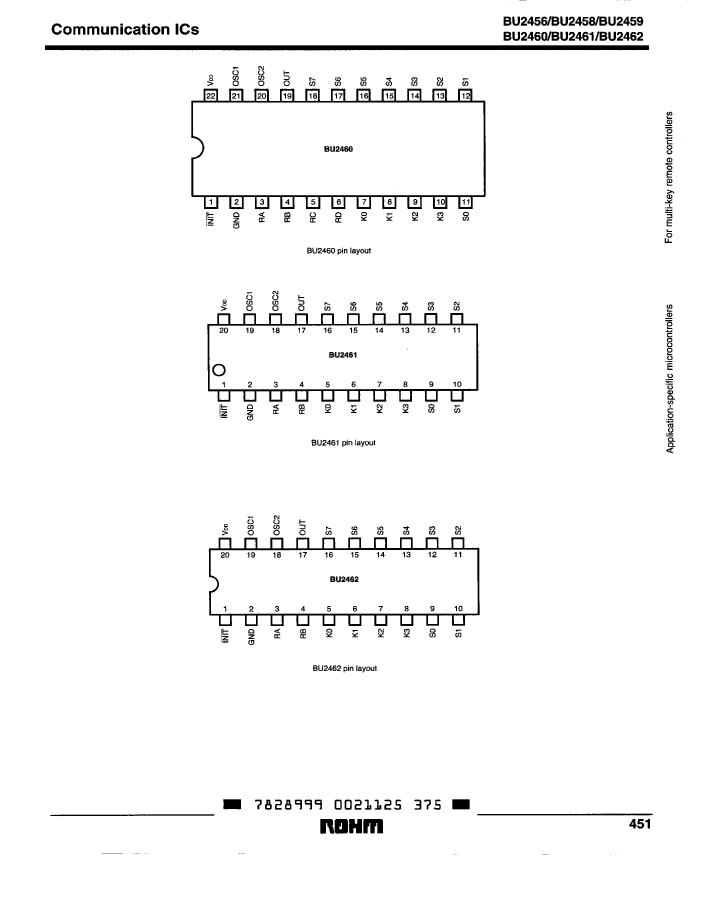

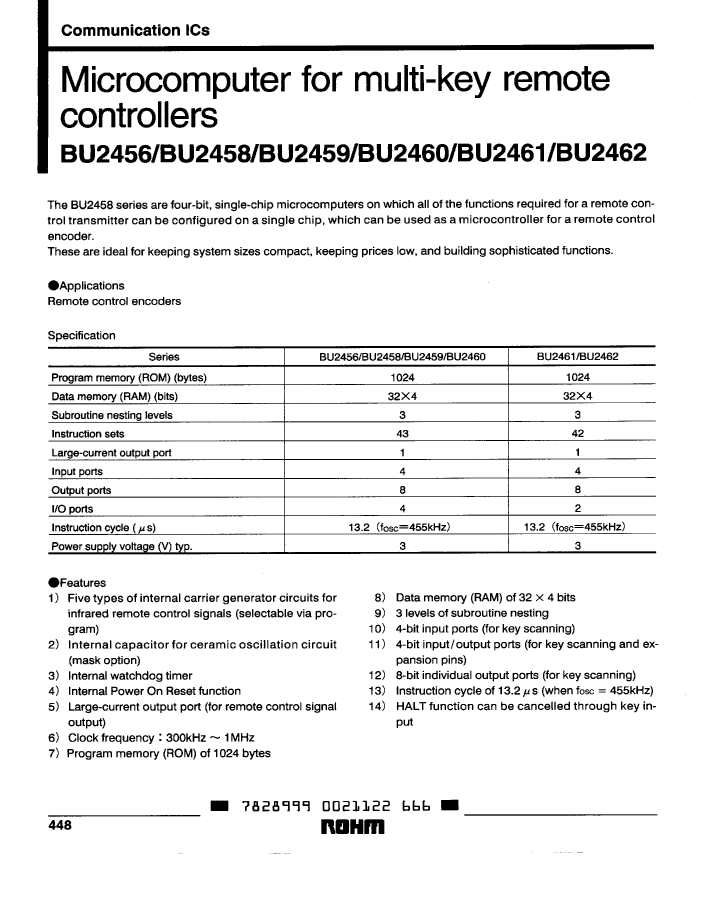

Preview

Download Datasheet

View All

BU2459 Related Products

	BU2459	BU2456	BU2458	BU2460	BU2461	BU2462
Description	Microcontroller, 4-Bit, MROM, 1MHz, CMOS, PDIP22, DIP-22	Microcontroller, 4-Bit, MROM, 1MHz, CMOS, PDSO24, SSOP-24	Microcontroller, 4-Bit, MROM, 1MHz, CMOS, PDSO22, SOP-22	Microcontroller, 4-Bit, MROM, 1MHz, CMOS, PDIP22, SDIP-22	Microcontroller, 4-Bit, MROM, 1MHz, CMOS, PDSO20, SOP-20	Microcontroller, 4-Bit, MROM, 1MHz, CMOS, PDIP20, DIP-20
Is it Rohs certified?	incompatible	incompatible	conform to	incompatible	incompatible	incompatible
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
Parts packaging code	DIP	SSOP	SOIC	DIP	SOIC	DIP
package instruction	DIP, DIP22,.3	SSOP, SOP24,.3,32	SOP, SOP22,.3	SDIP, SDIP22,.3	SOP, SOP20,.3	DIP, DIP20,.3
Contacts	22	24	22	22	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Has ADC	NO	NO	NO	NO	NO	NO
bit size	4	4	4	4	4	4
maximum clock frequency	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz
DAC channel	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO
JESD-30 code	R-PDIP-T22	R-PDSO-G24	R-PDSO-G22	R-PDIP-T22	R-PDSO-G20	R-PDIP-T20
length	26.3 mm	10 mm	13.6 mm	19.4 mm	12.5 mm	26.3 mm
Number of I/O lines	17	17	17	17	15	15
Number of terminals	22	24	22	22	20	20
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PWM channel	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SSOP	SOP	SDIP	SOP	DIP
Encapsulate equivalent code	DIP22,.3	SOP24,.3,32	SOP22,.3	SDIP22,.3	SOP20,.3	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	IN-LINE, SHRINK PITCH	SMALL OUTLINE	IN-LINE
power supply	3 V	3 V	3 V	3 V	3 V	3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	16	16	16	16	16	16
rom(word)	1024	1024	1024	1024	1024	1024
ROM programmability	MROM	MROM	MROM	MROM	MROM	MROM
Maximum seat height	4.45 mm	1.9 mm	1.9 mm	4.25 mm	1.9 mm	4.35 mm
speed	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz
Maximum slew rate	1 mA	1 mA	1 mA	1 mA	1 mA	1 mA
Maximum supply voltage	4 V	4 V	4 V	4 V	4 V	4 V
Minimum supply voltage	2 V	2 V	2 V	2 V	2 V	2 V
Nominal supply voltage	3 V	3 V	3 V	3 V	3 V	3 V
surface mount	NO	YES	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	0.8 mm	1.27 mm	1.778 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	5.4 mm	5.4 mm	7.62 mm	5.4 mm	7.62 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
JESD-609 code	e0	e0	-	e0	e0	e0
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
