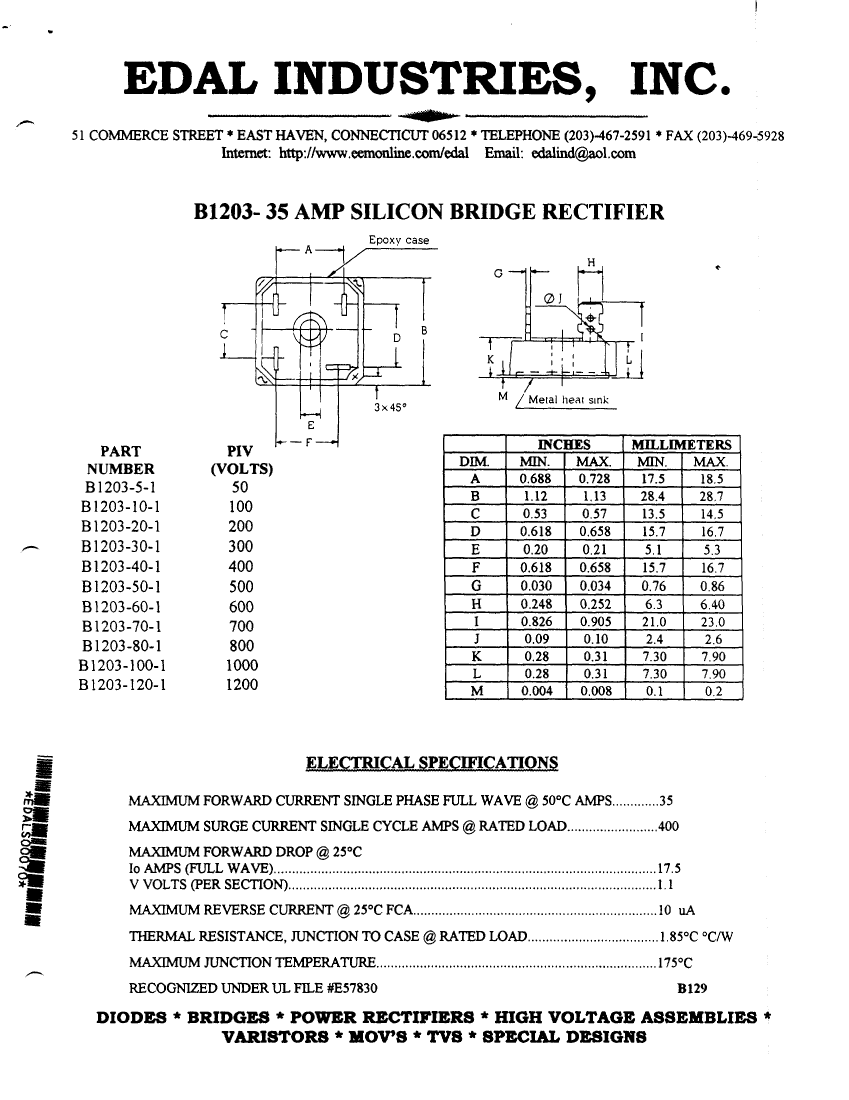

B1203-40-1 Overview

Bridge Rectifier Diode, 1 Phase, 35A, 400V V(RRM), Silicon,

Parameter Name	Attribute value
Maker	EDAL
package instruction	S-PUFM-D4
Reach Compliance Code	unknown
Minimum breakdown voltage	400 V
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE

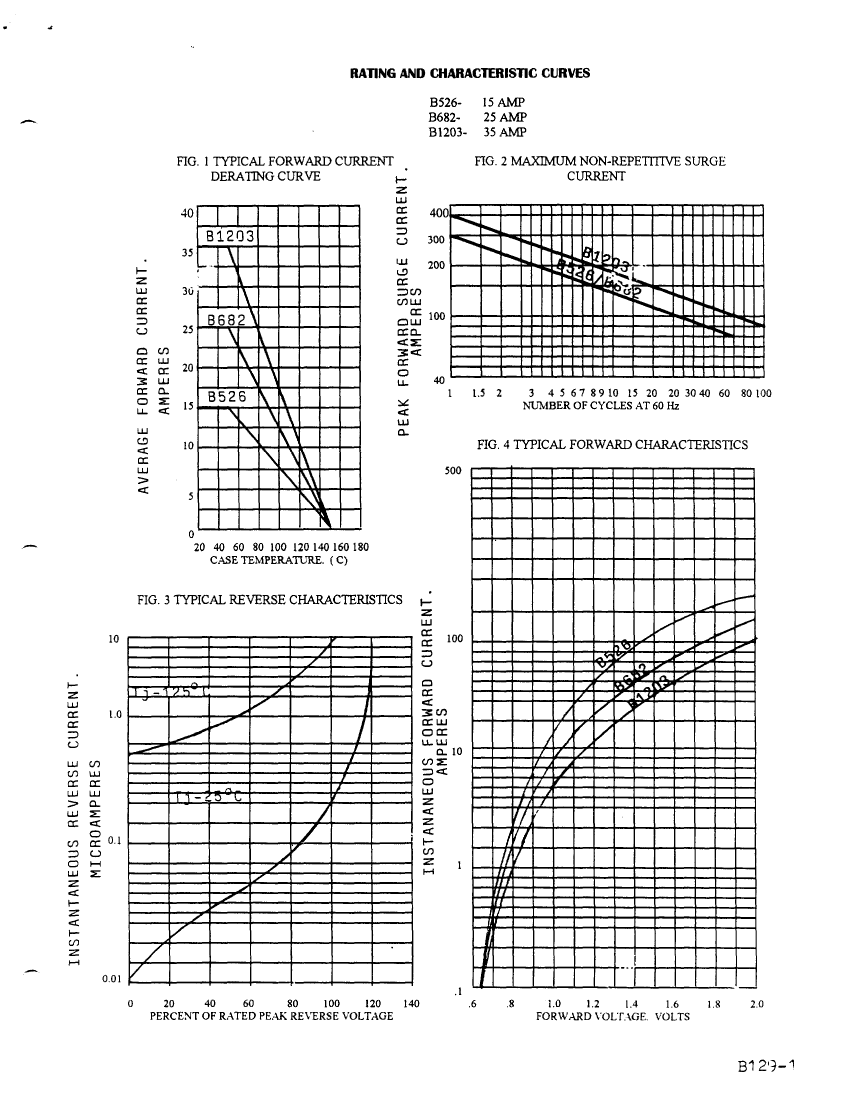

Maximum forward voltage (VF)	1.1 V
JESD-30 code	S-PUFM-D4
Maximum non-repetitive peak forward current	400 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	175 °C
Maximum output current	35 A
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
Maximum reverse current	10 µA
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
