EZ5Z3L-Z3.3TA datasheet, PDF - EEWORLD Datasheet

EZ5Z3L-Z3.3TA: DescriptionAnalog Circuit, 1 Func, BIPolar, PBCY3, TO-92, 3 PIN; CategoryAnalog mixed-signal IC The signal circuit; File Size112KB，4 Pages; ManufacturerSEMTECH; Websitehttp://www.semtech.com

Download Datasheet Parametric Compare View All

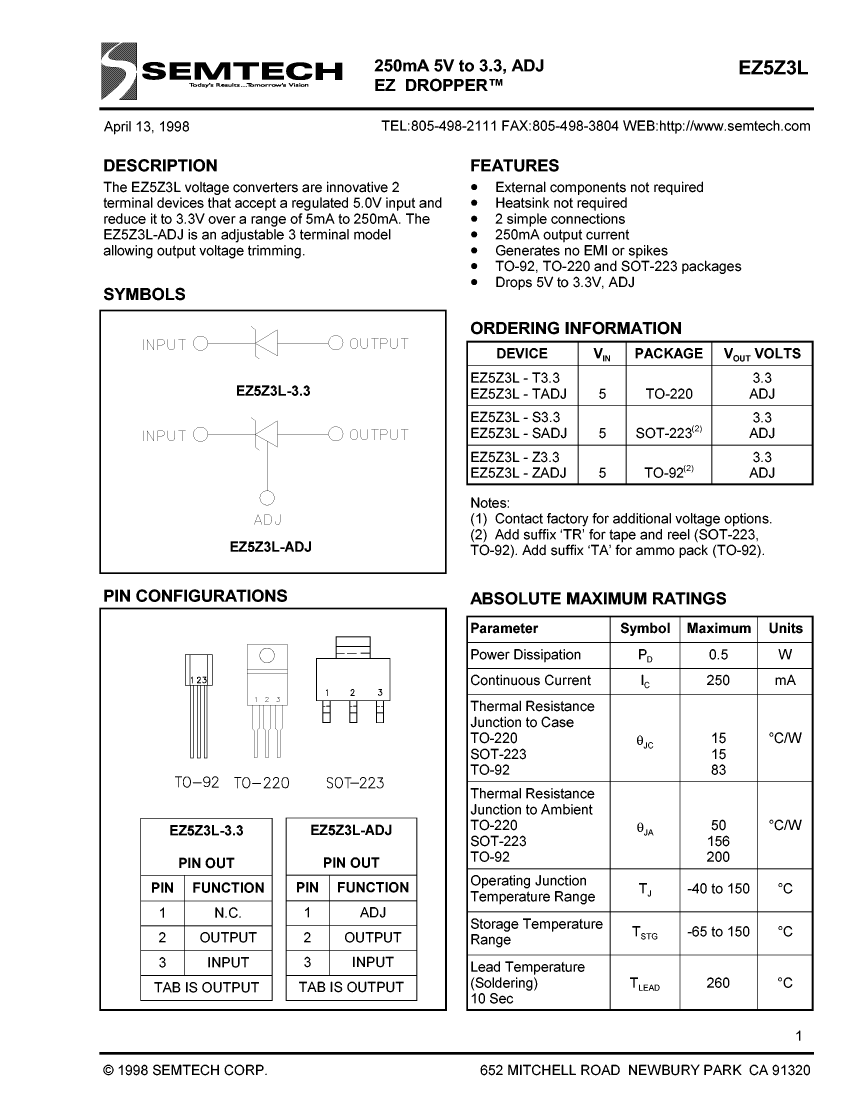

EZ5Z3L-Z3.3TA Overview

Analog Circuit, 1 Func, BIPolar, PBCY3, TO-92, 3 PIN

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SEMTECH

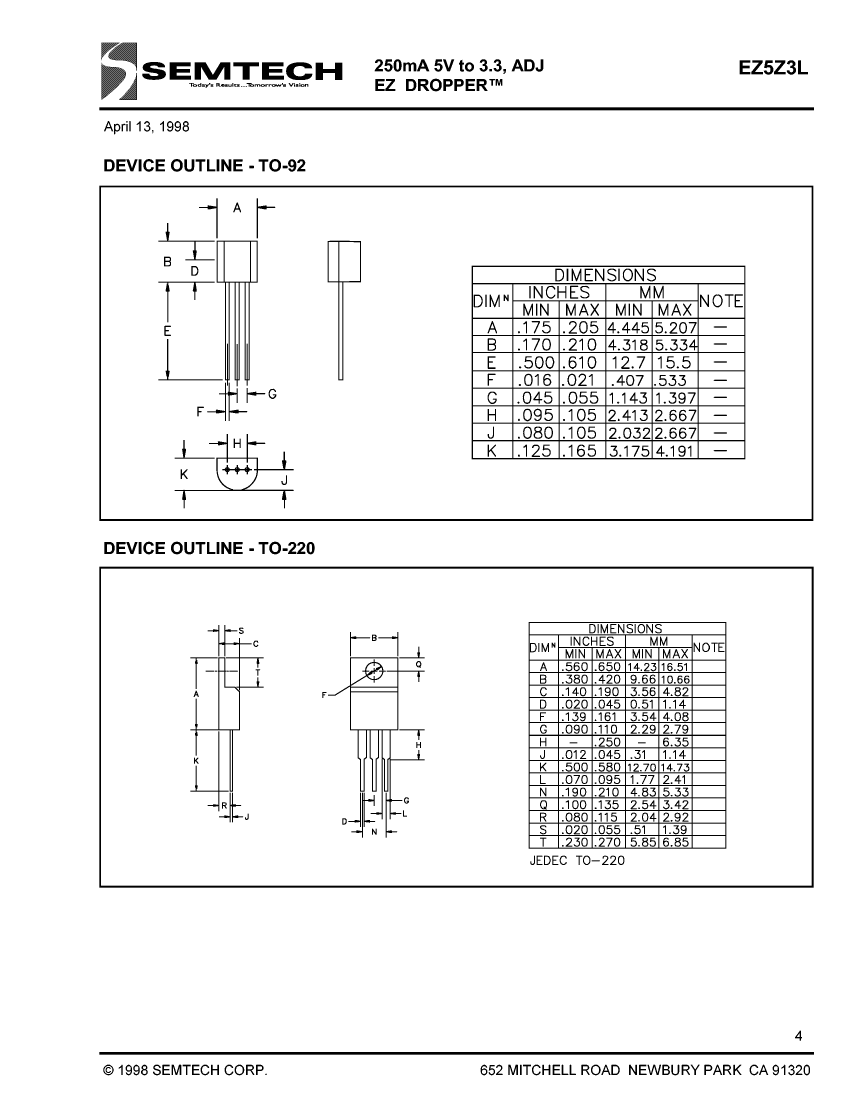

Parts packaging code	TO-92
package instruction	TO-92, SIP3,.1,50
Contacts	3
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT
JESD-30 code	O-PBCY-T3
JESD-609 code	e0
Number of functions	1
Number of terminals	3

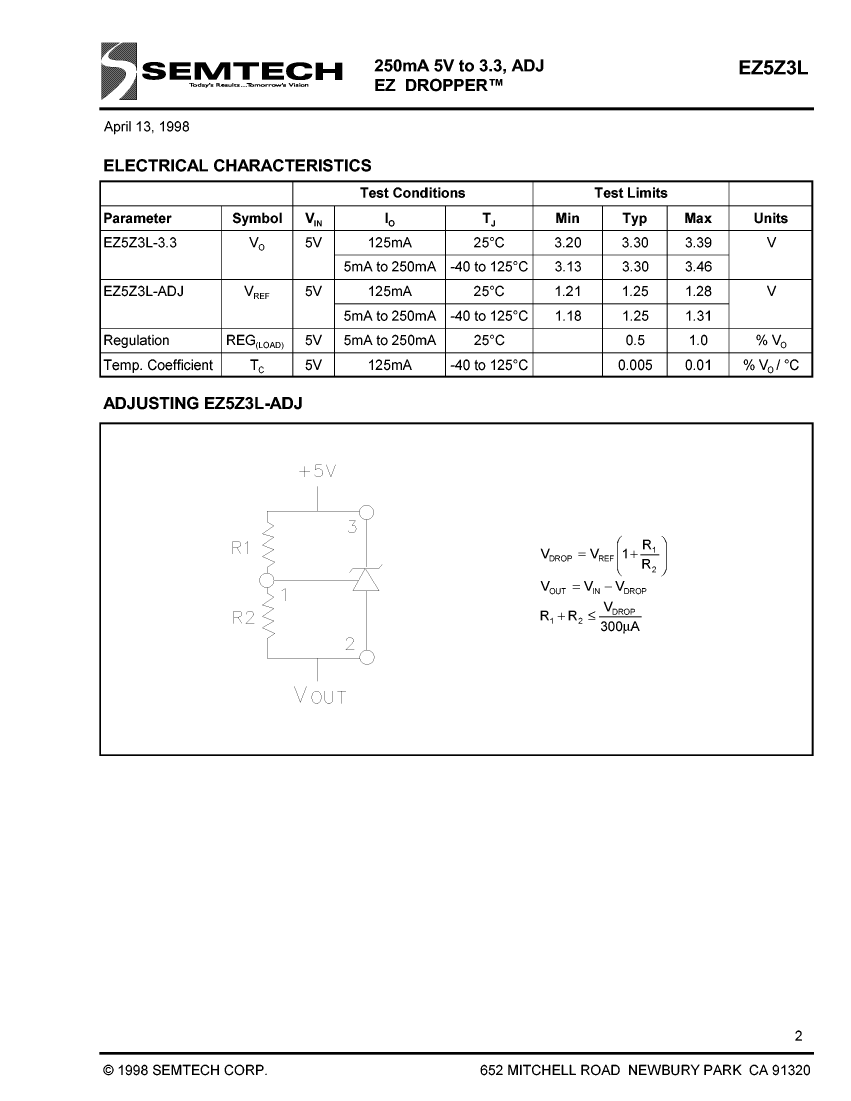

Nominal output voltage	3.3 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-92
Encapsulate equivalent code	SIP3,.1,50
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Maximum voltage temperature coefficient	100 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	NO
Maximum voltage tolerance	4.8%

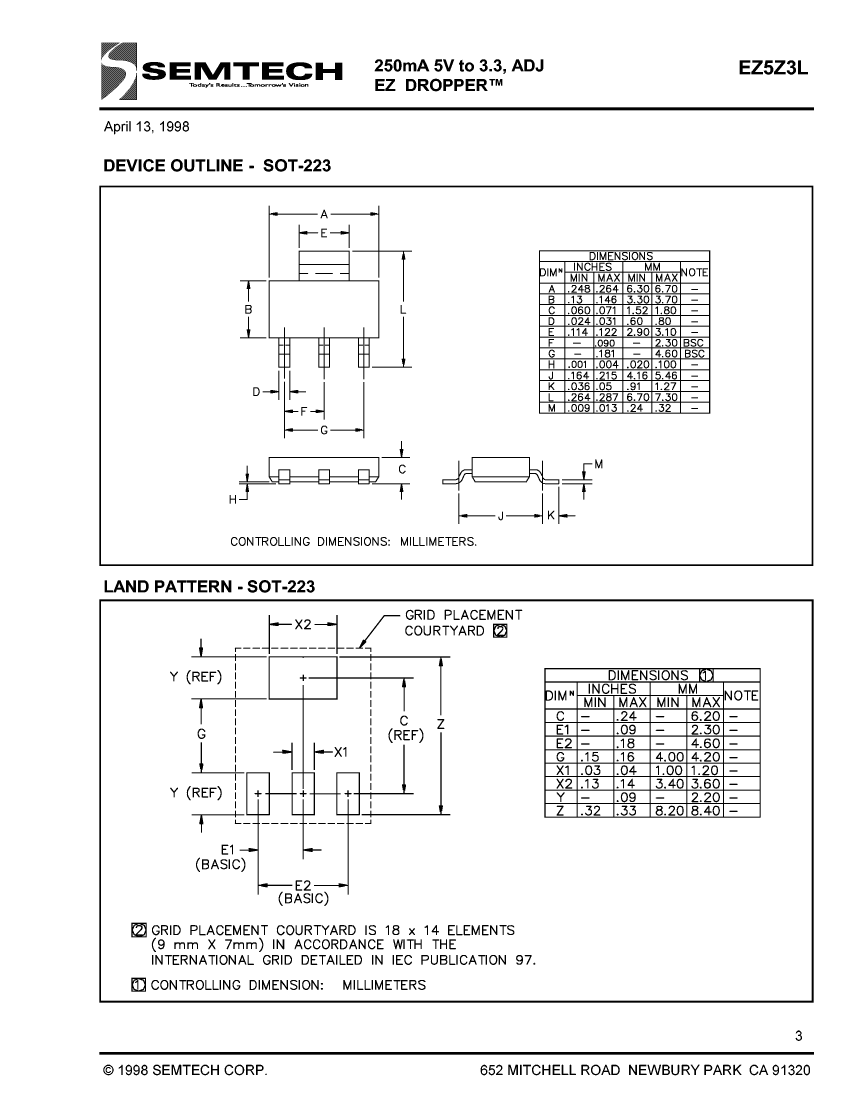

	EZ5Z3L-Z3.3TA	EZ5Z3L-S3.3	EZ5Z3L-SADJ	EZ5Z3L-Z3.3	EZ5Z3L-ZADJTA	EZ5Z3L-ZADJ
Description	Analog Circuit, 1 Func, BIPolar, PBCY3, TO-92, 3 PIN	Analog Circuit, 1 Func, BIPolar, PDSO4, SOT-223, 4 PIN	Analog Circuit, 1 Func, PDSO4, SOT-223, 4 PIN	Analog Circuit, 1 Func, BIPolar, PBCY3, TO-92, 3 PIN	Analog Circuit, 1 Func, PBCY3, TO-92, 3 PIN	Analog Circuit, 1 Func, PBCY3, TO-92, 3 PIN
Maker	SEMTECH	SEMTECH	SEMTECH	SEMTECH	SEMTECH	SEMTECH
Parts packaging code	TO-92	SOT-223	SOT-223	TO-92	TO-92	TO-92
package instruction	TO-92, SIP3,.1,50	SOP, SOT-223	SOP,	TO-92, SIP3,.1,50	TO-92,	TO-92,
Contacts	3	4	4	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT
JESD-30 code	O-PBCY-T3	R-PDSO-G4	R-PDSO-G4	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3
Number of functions	1	1	1	1	1	1
Number of terminals	3	4	4	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TO-92	SOP	SOP	TO-92	TO-92	TO-92
Package shape	ROUND	RECTANGULAR	RECTANGULAR	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	SMALL OUTLINE	SMALL OUTLINE	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	NO	NO
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	DUAL	DUAL	BOTTOM	BOTTOM	BOTTOM
Terminal pitch	1.27 mm	2.3 mm	2.3 mm	1.27 mm	-	-
