P5KE5.0 thru P5KE170CA
500 W TRANSIENT VOLTAGE
SUPPRESSOR
SCOTTSDALE DIVISION
DESCRIPTION
This P5KE series is an economical 500 W Transient Voltage Suppressor
(TVS) for protecting voltage-sensitive components from destruction or
degradation.
It is available in both unidirectional and bi-directional
configurations. The response time of their clamping action is virtually
instantaneous. As a result, they may also be used effectively for protection
from ESD or EFT per IEC61000-4-2 and IEC61000-4-4 or for inductive
switching environments and induced RF. They can also be used for
protecting other sensitive components from secondary lightning effects per
IEC61000-4-5 and class levels defined herein. Microsemi also offers
numerous other TVS products to meet higher and lower power demands
and special applications.
IMPORTANT:
For the most current data, consult
MICROSEMI’s
website:
http://www.microsemi.com
APPEARANCE
DO-41
(DO-204AL)
WWW .
Microsemi
.C
OM
FEATURES
•
•
•
•
•
•
Economical series for thru-hole mounting
Available in both unidirectional and bidirectional
(add C or CA suffix to part number for bidirectional)
Selections for 5.0 to 170 volts standoff voltage (V
WM
)
Suppresses transients up to 500 watts @ 10/1000 µs
(see Figure 1)
Fast response
Options for screening in accordance with MIL-PRF-
19500 for JAN, JANTX, JANTXV, and JANS are
available by adding MQ, MX, MV, or MSP prefixes
respectively to part numbers.
Surface mount equivalents available as SMAJ5.0 to
SMAJ170CA (consult factory for other surface mount
options)
Moisture classification is Level 1 with no dry pack
required per IPC/JEDEC J-STD-020B
•
•
•
•
APPLICATIONS / BENEFITS
Protects sensitive components such as IC’s,
2
CMOS, Bipolar, BiCMOS, ECL, DTL, T L, etc.
Protection from switching transients & induced RF
Compliant to IEC61000-4-2 and IEC61000-4-4 for
ESD and EFT protection respectively
Secondary lightning protection per IEC61000-4-5
with 42 Ohms source impedance:
Class 1: P5KE5.0 to P5KE120A or CA
Class 2: P5KE5.0 to P5KE60A or CA
Class 3: P5KE5.0 to P5KE30A or CA
Class 4: P5KE5.0 to P5KE15A or CA
Secondary lightning protection per IEC61000-4-5
with 12 Ohms source impedance:
Class 1: P5KE5.0 to P5KE36A or CA
Class 2: P5KE5.0 to P5KE18A or CA
•
•
•
MAXIMUM RATINGS
•
Operating and Storage Temperature: -65°C to +150°C
•
Peak Pulse Power: 500 Watts at 10/1000
µs
(see Figure
1, 2 and 3 for t
W
, waveform and derating effects)
•
Impulse repetition rate (duty factor): 0.01%
•
Thermal Resistance: 45°C/W junction to leads @ 3/8
inch (10 mm) from body, or 105°C/W junction to ambient
when mounted on FR4 PC board with 4 mm
2
copper
pads (1 oz) and track width 1 mm, length 25 mm
•
Steady-State Power: 2.77 Watts @ T
L
=25°C at 3/8 inch
º
(10 mm) from body, or 1.19 W at T
A
= 25 C on FR4 PC
board described for thermal resistance
•
Forward Voltage at 25°C: 3.5 V @ 30 A with 8.3 ms
half-sine wave (unidirectional only)
•
Solder temperatures: 260
°C
for 10 s (maximum)
Copyright
2003
10-14-2003 REV B
MECHANICAL AND PACKAGING
•
•
•
•
•
•
•
Void-free transfer molded thermosetting epoxy
body meeting UL94V-0
FINISH: Tin-Lead plated over copper and readily
solderable per MIL-STD-750, method 2026
MARKING: Body marked with part number
POLARITY: Band denotes cathode. Bidirectional
not marked
WEIGHT: 0.3 grams (approximate)
TAPE & REEL option: Standard per EIA-296 (add
“TR” suffix to part number)

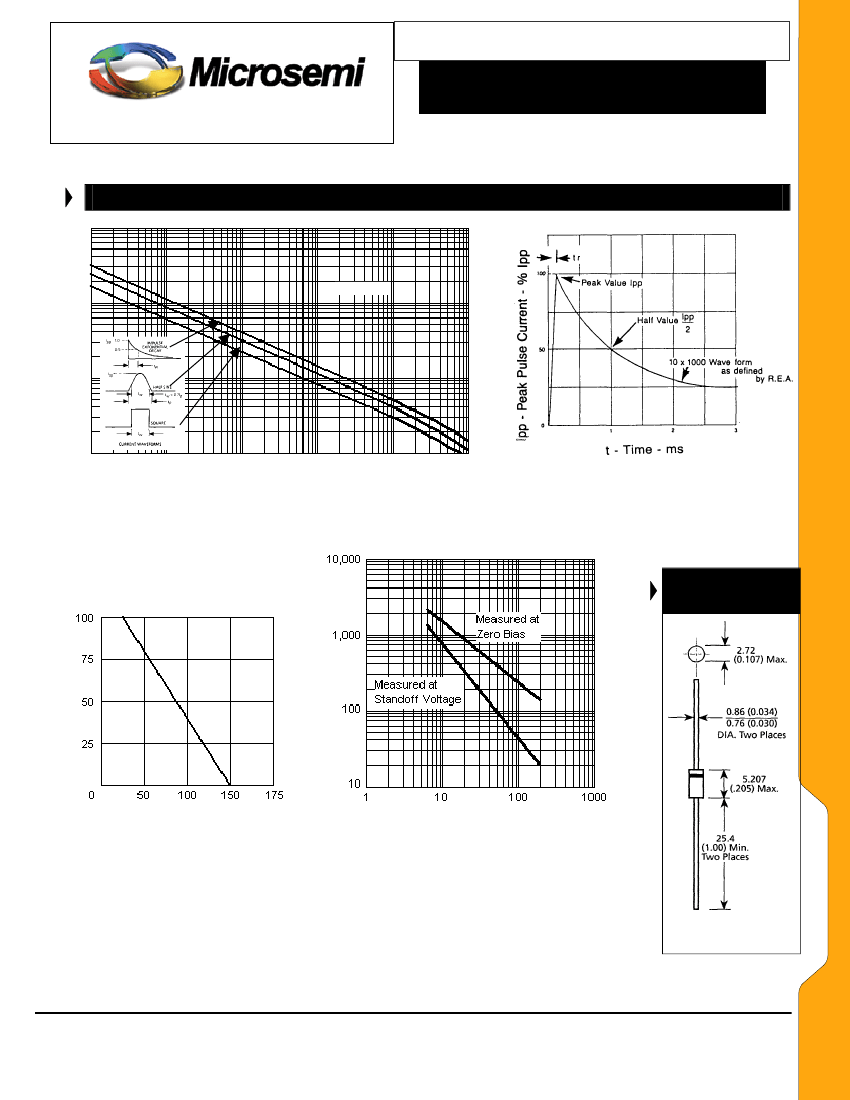

See package dimensions on last page
P5KE5.0 thru 170CA
Microsemi
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
Page 1
