PS2602L-K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> PS2602L-K

PS2602L-K: DescriptionTransistor Output Optocoupler, 1-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-6; CategoryLED optoelectronic/LED photoelectric; File Size220KB，4 Pages; ManufacturerCalifornia Eastern Labs; Websitehttp://www.cel.com/

Download Datasheet Parametric Compare View All

PS2602L-K Overview

Transistor Output Optocoupler, 1-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-6

PS2602L-K Parametric

Parameter Name	Attribute value
Maker	California Eastern Labs
package instruction	GULL-WING, PLASTIC, DIP-6
Reach Compliance Code	compliant
Coll-Emtr Bkdn Voltage-Min	80 V
Configuration	SINGLE
Nominal current transfer ratio	300%
Maximum dark power	100 nA
Maximum forward current	0.08 A
Maximum insulation voltage	5000 V
Number of components	1
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER

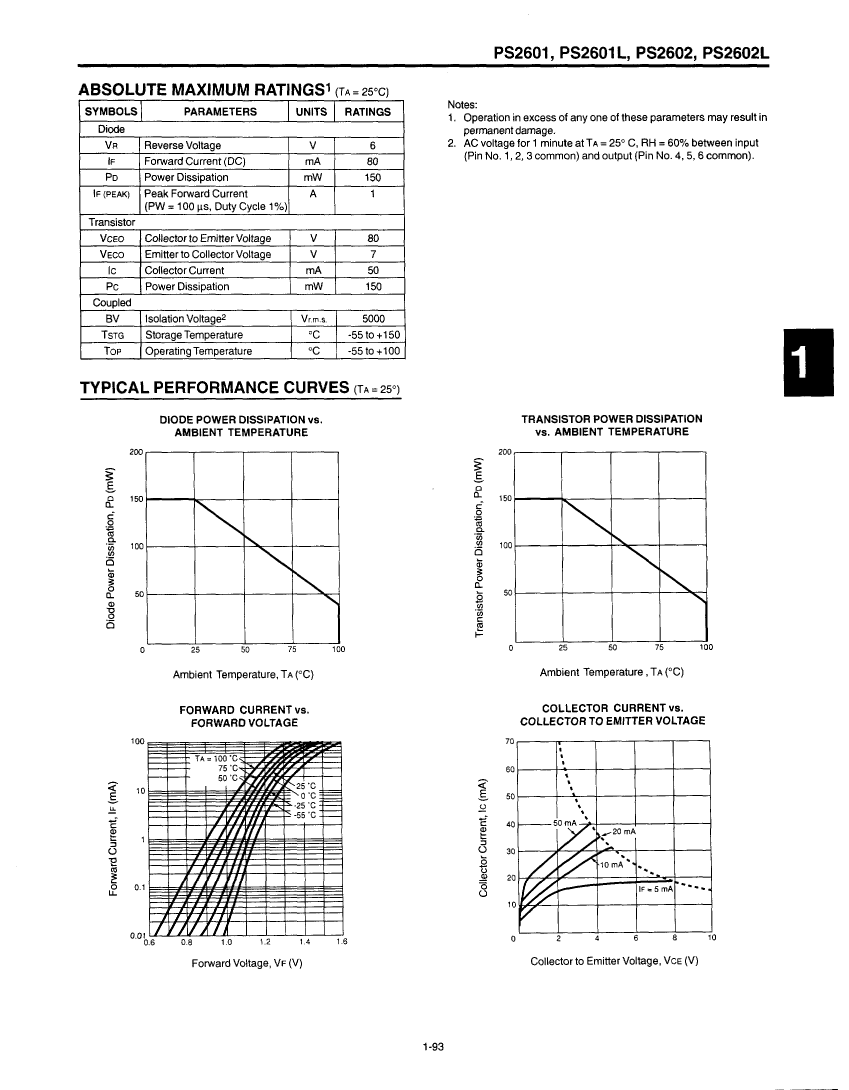

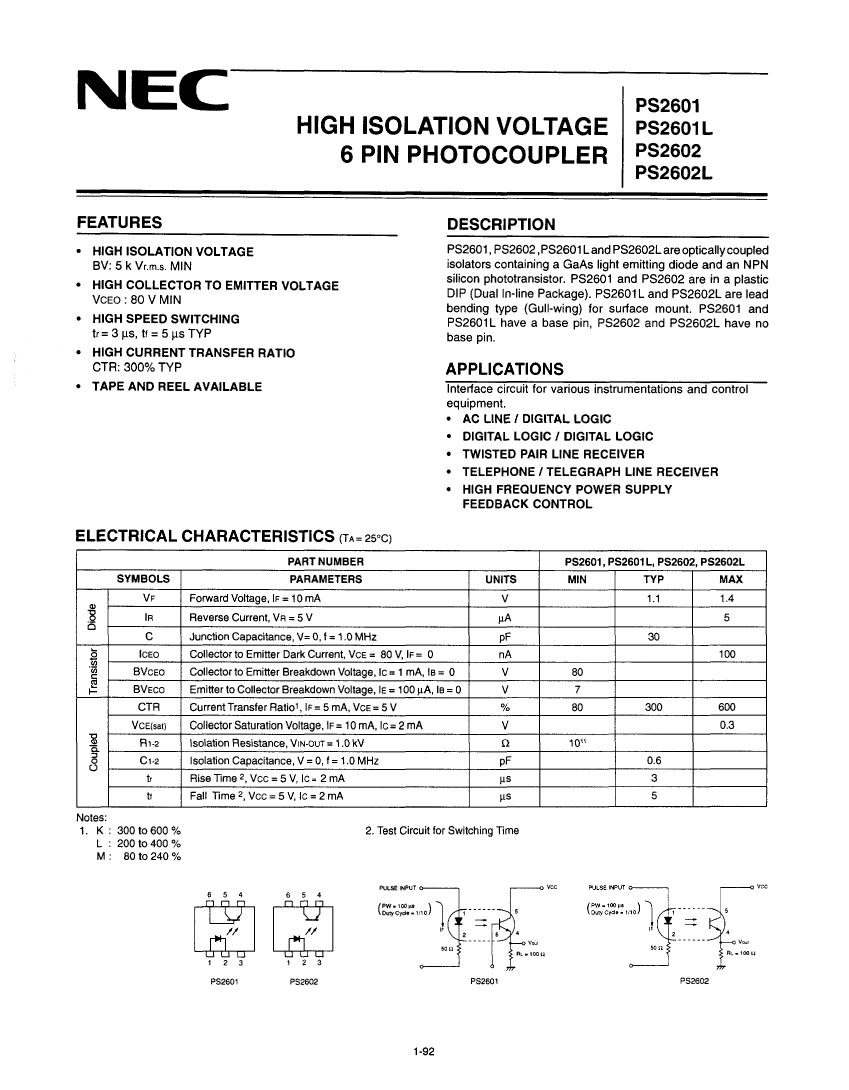

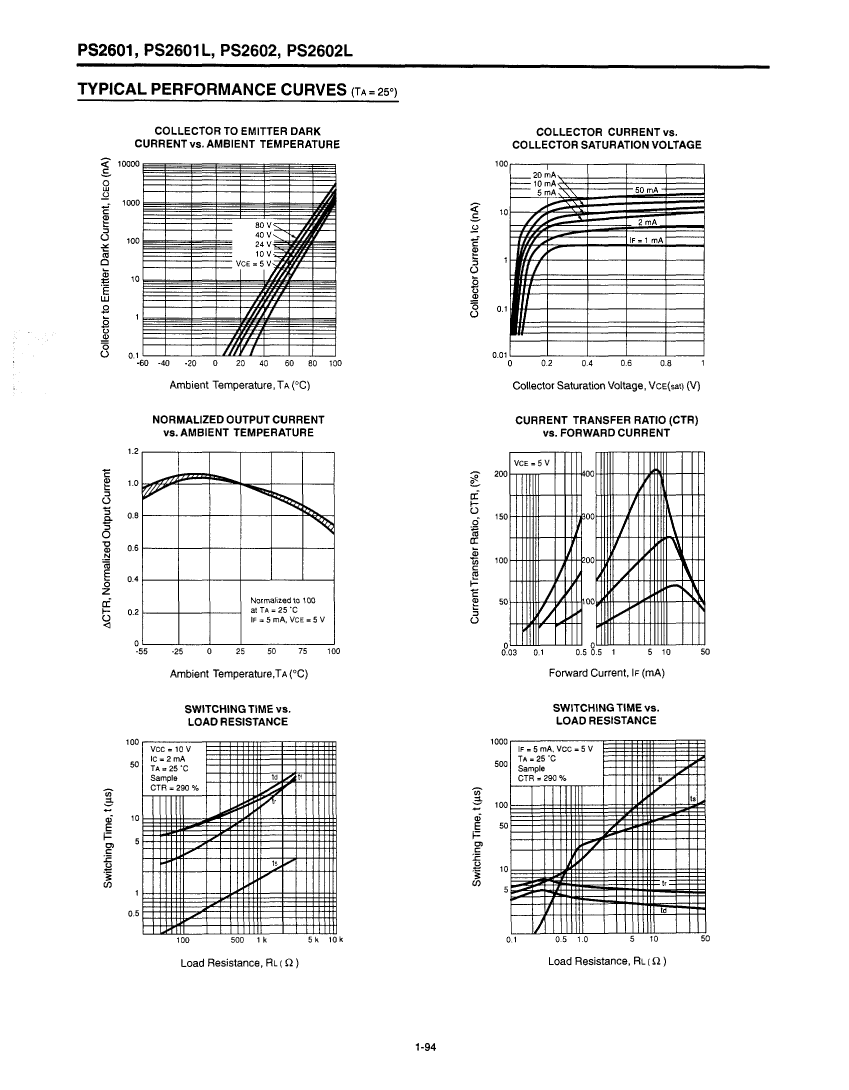

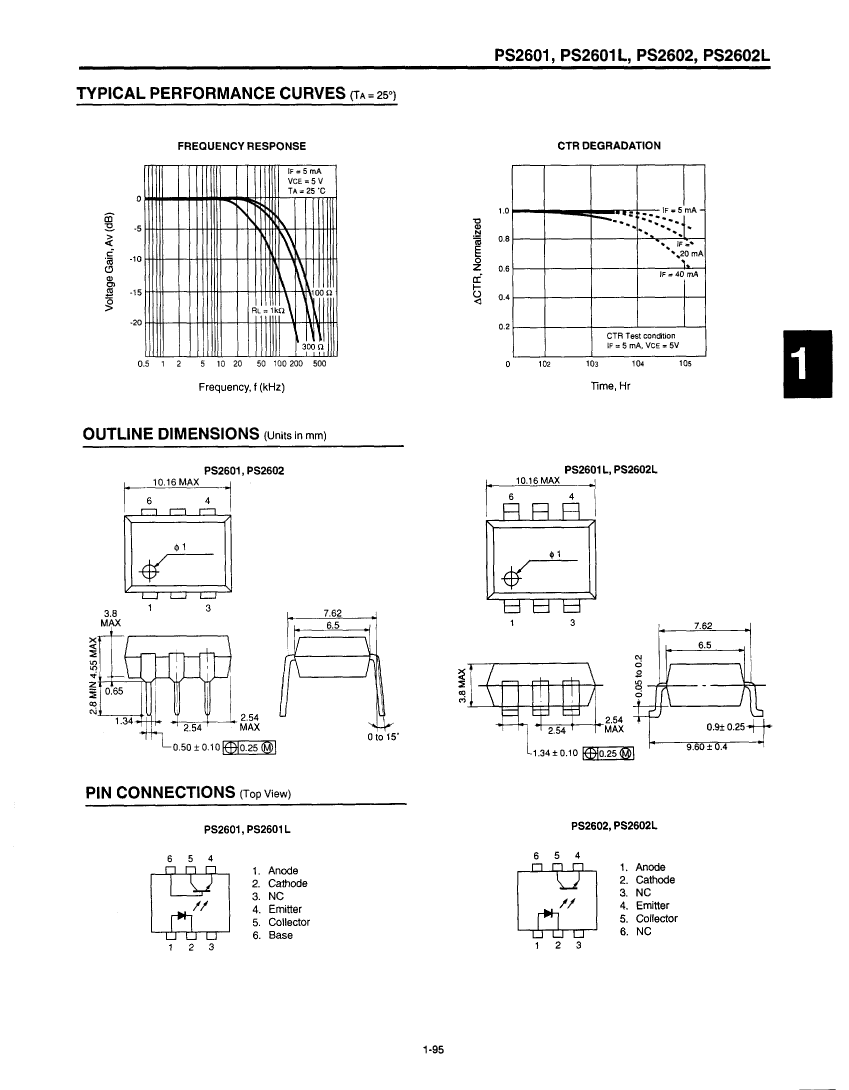

Preview

Download Datasheet

View All

PS2602L-K Related Products

	PS2602L-K	PS2601L-L	PS2602-K	PS2602L-M	PS2602-M	PS2602L-L	PS2601-K	PS2601L-K	PS2601L-M	PS2601-M
Description	Transistor Output Optocoupler, 1-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-6	Transistor Output Optocoupler, 1-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-6	Transistor Output Optocoupler, 1-Element, 5000V Isolation, PLASTIC, DIP-6	Transistor Output Optocoupler, 1-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-6	Transistor Output Optocoupler, 1-Element, 5000V Isolation, PLASTIC, DIP-6	Transistor Output Optocoupler, 1-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-6	Transistor Output Optocoupler, 1-Element, 5000V Isolation, PLASTIC, DIP-6	Transistor Output Optocoupler, 1-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-6	Transistor Output Optocoupler, 1-Element, 5000V Isolation, GULL-WING, PLASTIC, DIP-6	Transistor Output Optocoupler, 1-Element, 5000V Isolation, PLASTIC, DIP-6
package instruction	GULL-WING, PLASTIC, DIP-6	GULL-WING, PLASTIC, DIP-6	PLASTIC, DIP-6	GULL-WING, PLASTIC, DIP-6	PLASTIC, DIP-6	GULL-WING, PLASTIC, DIP-6	PLASTIC, DIP-6	GULL-WING, PLASTIC, DIP-6	GULL-WING, PLASTIC, DIP-6	PLASTIC, DIP-6
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Coll-Emtr Bkdn Voltage-Min	80 V	80 V	80 V	80 V	80 V	80 V	80 V	80 V	80 V	80 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Nominal current transfer ratio	300%	200%	300%	80%	80%	200%	300%	300%	80%	80%
Maximum dark power	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA
Maximum forward current	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A
Maximum insulation voltage	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V
Number of components	1	1	1	1	1	1	1	1	1	1
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER
Base Number Matches	-	1	1	1	1	1	1	-	-	-
