PC120-0UY

Description
Single Color LED, Yellow, Water Clear, T-1, 3mm,
CategoryLED optoelectronic/LED    photoelectric
File Size663KB，1 Pages
ManufacturerLEDtronics
Websitehttp://ledtronics.com.my
Download Datasheet Parametric View All

PC120-0UY Overview

Single Color LED, Yellow, Water Clear, T-1, 3mm,

PC120-0UY Parametric

Parameter NameAttribute value
MakerLEDtronics
Reach Compliance Codeunknown
colorYELLOW
color@wavelengthAmber
ConfigurationSINGLE
Maximum forward current0.02 A
Maximum forward voltage2.6 V
Lens typeWATER CLEAR
Nominal luminous intensity700.0 mcd
Installation featuresRADIAL MOUNT
Number of functions1
Number of terminals2
Optoelectronic device typesSINGLE COLOR LED
total height7.37 mm
method of packingBULK
peak wavelength595 nm
shapeROUND
size3 mm
surface mountNO
T codeT-1
Terminal pitch2.54 mm
perspective30 deg

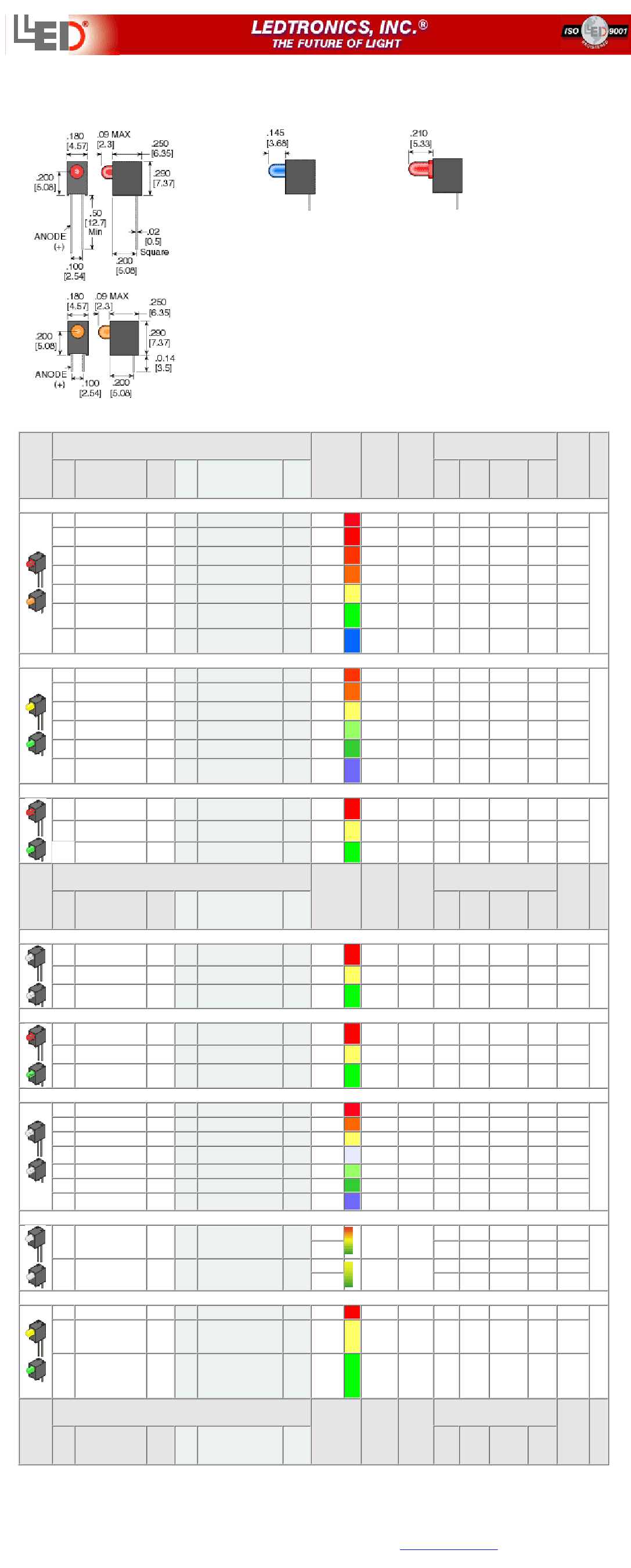

Preview

Download Datasheet
3mm Right-Angle PCBoard LEDs; Series PC120
3mm Right-Angle PCB LEDs
Series PC120
Figure 1. Standard Projection
Custom Options
Medium Projection
PCM120 Series
Long Projection
PCL120 Series
Custom Options:
Contact factory for all custom inquiries.
Retail Price;
*Volume
Discount Available
Part Number
Iso-
metric
Retail
Price
(*)
Lens Color/Type:
Dif. =
Diffused,
Wtr-Clr
= Water Clear
Electrical-Optical Characteristics
(Ta = 25ºC)
Ι
f
(mA)
Ι
v
(mcd)
typ
Vf (V)
typ/max
λ
p
(nm)
Ord.
Mk.
Long Lead
(0.5" Min.)
Ord.
Mk.
Short Lead
(0.14")
Retail
Price
(*)
Emitted
Color
Lens
Color/
Type
Projec-
tion
Type
View
Angle
(2θ½)
Fig.
T1 (3mm) High-Efficiency (Diffused) LEDs
PC120TR6
PC120TR4 (5)
PC120TR1
PC120TO4 (5)
PC120TY4 (5)
PC120TG4 (5)
PC120TUB5
PC120TR6-140
PC120TR4-140
PC120TR1-140
PC120TO4-140
PC120TY4-140
PC120TG4-140
PC120TUB5-140
Ultra Red
HE Red
Std Red
Orange
Yellow
HE
Green
Ultra
Blue
Red Dif.
Red Dif.
Red Dif.
Orn Dif.
Yel Dif.
Grn Dif.
Blu Dif.
Std.
Std
Std
Std
Std
Std
Std
20
20
20
20
20
20
20
100
24
3
30
22
18
2.4
1.7/2.6
2.0/2.8
1.7/2.0
2.1/2.8
2.1/2.8
2.1/2.8
3.8/5.0
660
635
665
610
585
565
430
45º
45º
45º
45º
45º
45º
45º
1
T1 (3mm) Sunlight-Visible (Diffused) LEDs
PC120T-0UR
PC120T-0UO
PC120T-0UY
PC120T-0UG
PC120T-1AG
PC120T-1PB
PC120T-0UR-140
PC120T-0UO-140
PC120T-0UY-140
PC120T-0UG-140
PC120T-1AG-140
PC120T-1PB-140
Ultra Red
Orange
Yellow
Lime Grn
Aqua Grn
Pure
Blue
Red Dif.
Orn Dif.
Yel Dif.
Grn Dif.
Grn Dif.
Blu Dif.
Std.
Std
Std
Std
Std
Std
20
20
20
20
20
20
700
1000
480
300
300
120
2.0/2.6
2.0/2.6
2.0/2.6
2.0/2.6
3.5/4.0
3.6/4.0
660
610
592
570
523
470
45º
45º
45º
45º
45º
45º
1
T1 (3mm) 2mA Low-Current (Diffused) LEDs
PC120TR5N-LC
PC120TY5N-LC
PC120TG5N-LC
PC120TR5N-140/LC
PC120TY5N-140/LC
PC120TG5N-140/LC
Part Number
Iso-
metric
Retail
Price
(*)
Retail
Price
(*)
Emitted
Color
Lens
Color/
Type
Projec-
tion
Type
HE Red
Yellow
HE Grn
Red Dif.
Yel Dif.
Grn Dif.
Std
Std
Std
20
20
20
2.2
2.3
2.2
1.8/2.2
1.9/2.7
1.8/2.2
635
585
568
45º
45º
45º
1
Electrical-Optical Characteristics
(Ta = 25ºC)
Ι
f
(mA)
Ι
v
(mcd)
typ
Vf (V)
typ/max
λ
p
(nm)
Ord.
Mk.
Long Lead
(0.5" Min.)
Ord.
Mk.
Short Lead
(0.14")
View
Angle
(2θ½)
Fig.
T1 (3mm) 2mA High-Efficiency (Water-Clear) LEDs
PC120CWR5N
PC120CWY5N
PC120CWG5N
PC120CWR5N-140
PC120CWY5N-140
PC120CWG5N-140
HE Red
Yellow
HE
Green
Wtr-Clr
Wtr-Clr
Wtr-Clr
Std
Std
Std
20
20
20
100
90
110
2.0/2.6
2.1/2.6
2.1/2.6
635
585
568
30º
30º
30º
1
T1 (3mm) High-Efficiency (Tinted) LEDs
PC120CR4 (5)
PC120CY4 (5)
PC120CG4 (5)
PC120CR4-140
PC120CY4-140
PC120CG4-140
HE Red
Yellow
HE
Green
Red Clr
Yel Clr
Grn Clr
Std
Std
Std
20
20
20
100
90
110
2.0/2.6
2.1/2.6
2.1/2.6
635
585
568
30º
30º
30º
1
T1 (3mm) Sunlight-Visible (Water-Clear) LEDs
PC120-0UR
PC120-0UO
PC120-0UY
PC120-1CW
PC120-0UG
PC120-1AG
PC120-1PB
PC120-0UR-140
PC120-0UO-140
PC120-0UY-140
PC120-1CW-140
PC120-0UG-140
PC120-1AG-140
PC120-1PB-140
Ultra Red
Orange
Yellow
Cool
White
Lime Grn
Aqua Grn
Pure
Blue
HE Red
HE
Green
Yellow
HE
Green
HE Red
Yellow
Wtr-Clr
Wtr-Clr
Wtr-Clr
Wtr-Clr
Wtr-Clr
Wtr-Clr
Wtr-Clr
Std
Std
Std
Std
Std
Std
Std
20
20
20
20
20
20
20
800
600
700
250
600
600
400
2.0/2.6
2.0/2.6
2.0/2.6
3.6/4.0
2.0/2.6
3.5/4.0
3.6/4.0
660
620
595
8000K
570
525
470
30º
30º
30º
30º
30º
30º
30º
1
T1 (3mm) Bi-Color (Diffused) LEDs, 2-Leaded
PC120TWRG4B
PC120TWRG4B-140
White
Diffused
White
Diffused
Std
20
20
20
20
30
30
15
30
2.0/2.6
2.2/2.6
2.1/2.6
2.2/2.8
630
568
585
568
50º
50º
50º
50º
1
PC120TWYG4B
PC120TWYG4B-140
Std
T1 (3mm) 5V Integrated Resistor (Diffused) LEDs
PC120TR3-5V
PC120TY3-5V
PC120TR3-5V-140
PC120TY3-5V-140
Red Dif.
Yel Dif.
Std
Std
20
20
4
4
5V
5V
635
585
30º
30º
1
PC120TG3-5V
PC120TG3-5V-140
HE
Green
Grn Dif.
Std
20
3.5
5V
565
30º
Part Number
Iso-
metric
Retail
Price
(*)
Retail
Price
(*)
Emitted
Color
Lens
Color/
Type
Projec-
tion
Type
Electrical-Optical Characteristics
(Ta = 25ºC)
Ι
f
(mA)
Ι
v
(mcd)
typ
Vf (V)
typ/max
λ
p
(nm)
Ord.
Mk.
Long Lead
(0.5" Min.)
Ord.
Mk.
Short Lead
(0.14")
View
Angle
(2θ½)
Fig.
Custom Options:
Contact factory for all custom inquiries.
23105 Kashiwa Ct, Torrance, CA 90505 - PH: (800) 579-4875/(310) 534-1505 - FAX: (310) 534-1424
© Copyright 1997-2001 LEDtronics, Inc. All Rights Reserved - Contact
Webmaster@ledtronics.com
http://datasheets.led.net/Pages/3mm_pcb/125k-3.htm [10/1/2001 3:06:41 PM]
