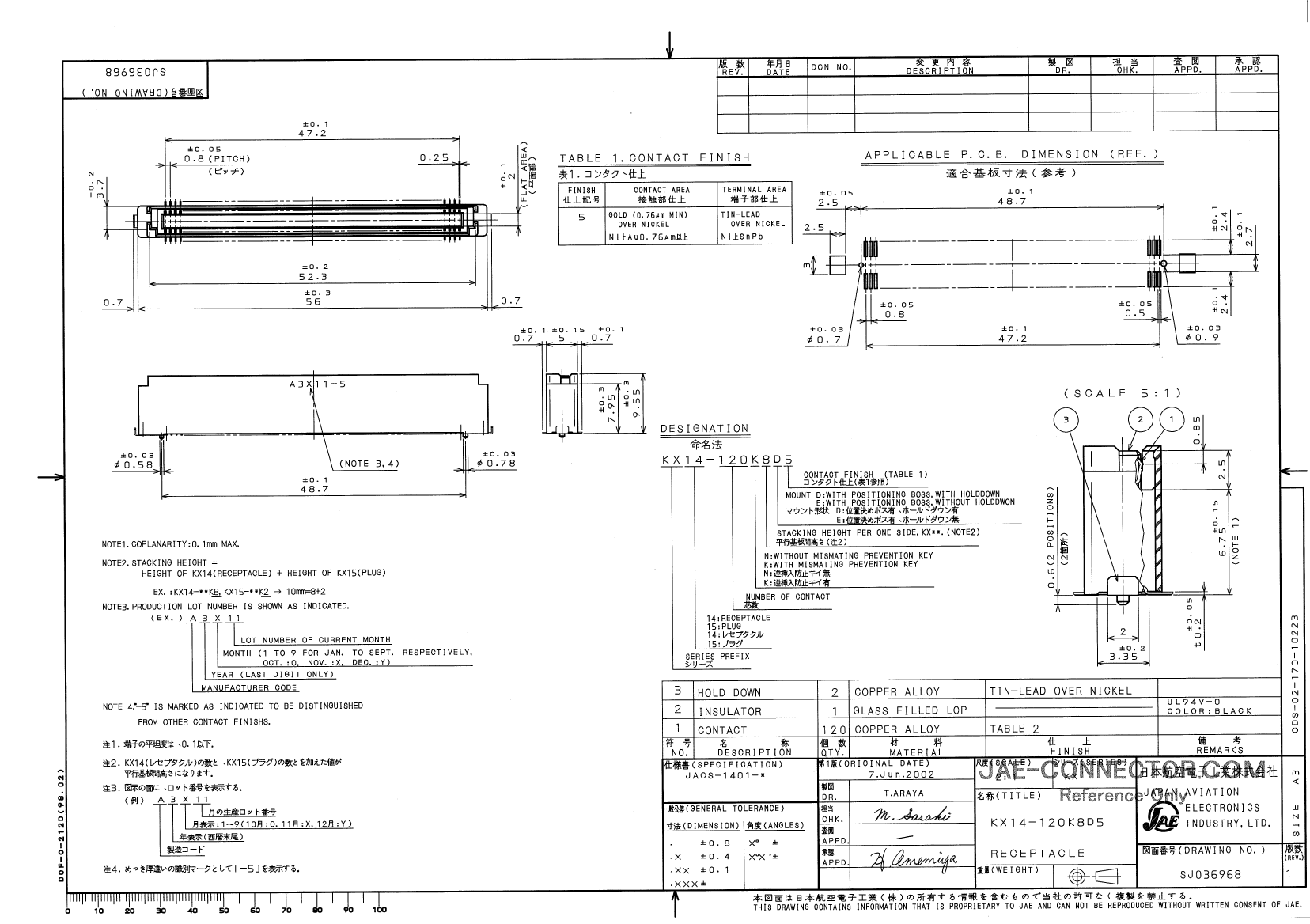

Board Stacking Connector, 120 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug,
| Parameter Name | Attribute value |
| Maker | Japan Aviation Electronics Industry Limited |
| Reach Compliance Code | unknown |
| Body/casing type | PLUG |
| Connector type | BOARD STACKING CONNECTOR |
| Contact to complete cooperation | GOLD (30) OVER NICKEL |
| Contact completed and terminated | TIN LEAD OVER NICKEL |
| Contact point gender | MALE |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Manufacturer's serial number | KX15 |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of rows loaded | 2 |
| Options | GENERAL PURPOSE |
| Terminal pitch | 0.8 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 120 |
| UL Flammability Code | 94V-0 |
| KX15-120K8D5 | KX15-120K8E5 | KX15-120N8E5 | KX15-120N8D5 | KX14-120K8E5 | KX14-120N8D5 | KX14-120N8E5 | |
|---|---|---|---|---|---|---|---|
| Description | Board Stacking Connector, 120 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug, | Board Stacking Connector, 120 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug, | Board Stacking Connector, 120 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug, | Board Stacking Connector, 120 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug, | Board Stacking Connector, 120 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle, | Board Stacking Connector, 120 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle, | Board Stacking Connector, 120 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle, |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Body/casing type | PLUG | PLUG | PLUG | PLUG | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD STACKING CONNECTOR | BOARD STACKING CONNECTOR | BOARD STACKING CONNECTOR | BOARD STACKING CONNECTOR | BOARD STACKING CONNECTOR | BOARD STACKING CONNECTOR | BOARD STACKING CONNECTOR |
| Contact to complete cooperation | GOLD (30) OVER NICKEL | GOLD (30) OVER NICKEL | GOLD (30) OVER NICKEL | GOLD (30) OVER NICKEL | GOLD (30) OVER NICKEL | GOLD (30) OVER NICKEL | GOLD (30) OVER NICKEL |
| Contact completed and terminated | TIN LEAD OVER NICKEL | TIN LEAD OVER NICKEL | TIN LEAD OVER NICKEL | TIN LEAD OVER NICKEL | TIN LEAD OVER NICKEL | TIN LEAD OVER NICKEL | TIN LEAD OVER NICKEL |
| Contact point gender | MALE | MALE | MALE | MALE | FEMALE | FEMALE | FEMALE |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO |
| Manufacturer's serial number | KX15 | KX15 | KX15 | KX15 | KX14 | KX14 | KX14 |
| Mixed contacts | NO | NO | NO | NO | NO | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 0.8 mm | 0.8 mm | 0.8 mm | 0.8 mm | 0.8 mm | 0.8 mm | 0.8 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Maker | Japan Aviation Electronics Industry Limited | - | - | Japan Aviation Electronics Industry Limited | Japan Aviation Electronics Industry Limited | Japan Aviation Electronics Industry Limited | Japan Aviation Electronics Industry Limited |
