KX15-20N8D1

Description
Board Stacking Connector, 20 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug,
CategoryThe connector    The connector

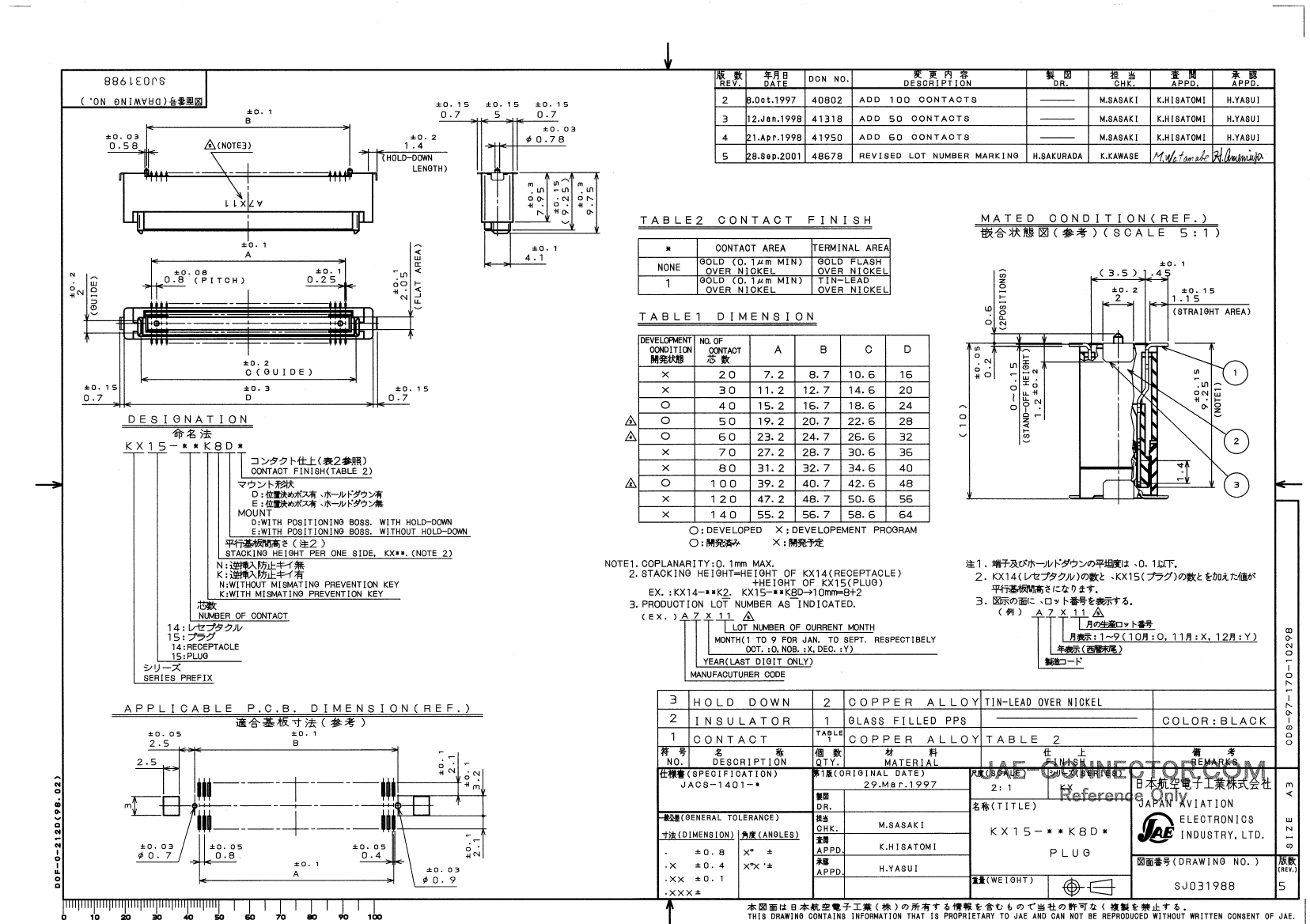

File Size170KB,1 Pages
ManufacturerJapan Aviation Electronics Industry Limited
Download Datasheet Parametric View All

KX15-20N8D1 Overview

Board Stacking Connector, 20 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug,

KX15-20N8D1 Parametric

Parameter NameAttribute value
MakerJapan Aviation Electronics Industry Limited
Reach Compliance Codeunknown
Body/casing typePLUG
Connector typeBOARD STACKING CONNECTOR
Contact to complete cooperationGOLD (4) OVER NICKEL
Contact completed and terminatedTIN LEAD OVER NICKEL
Contact point genderMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee0
MIL complianceNO
Manufacturer's serial numberKX
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch0.8 mm
Termination typeSURFACE MOUNT
Total number of contacts20
