MXO615LV-3C-FREQ-OUT21 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> MXO615LV-3C-FREQ-OUT21

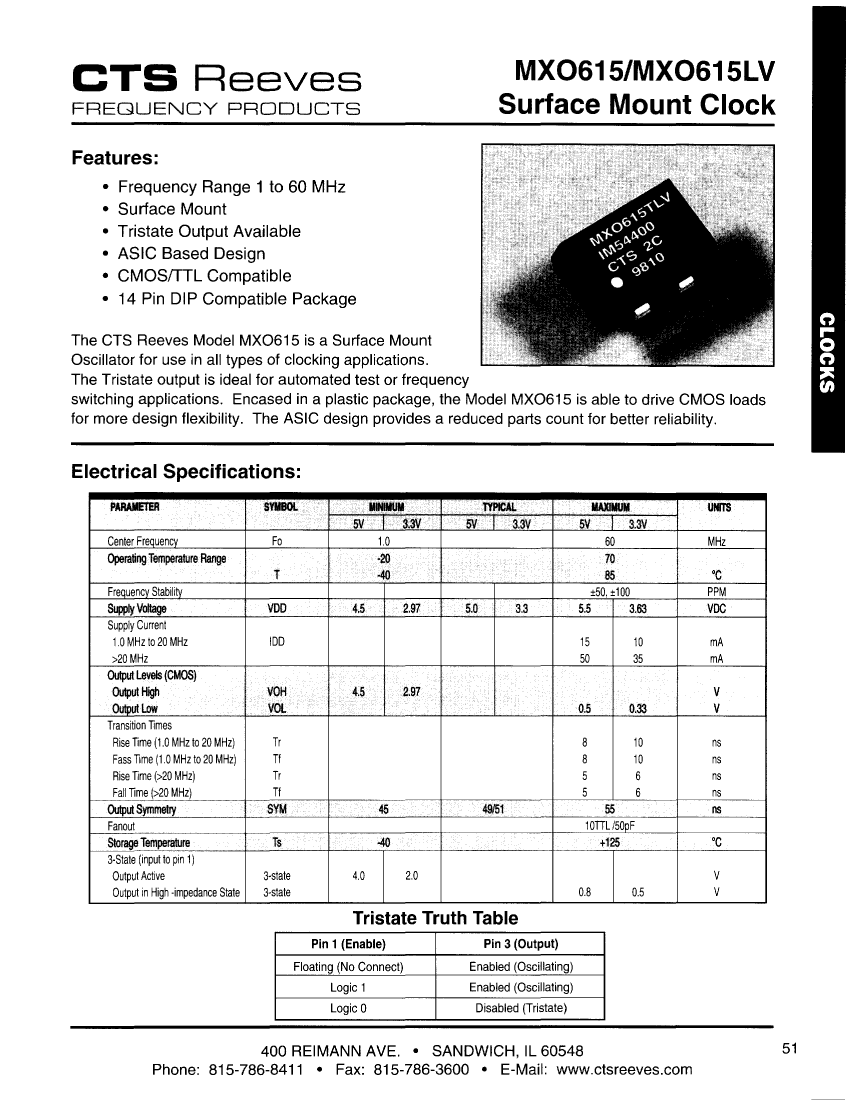

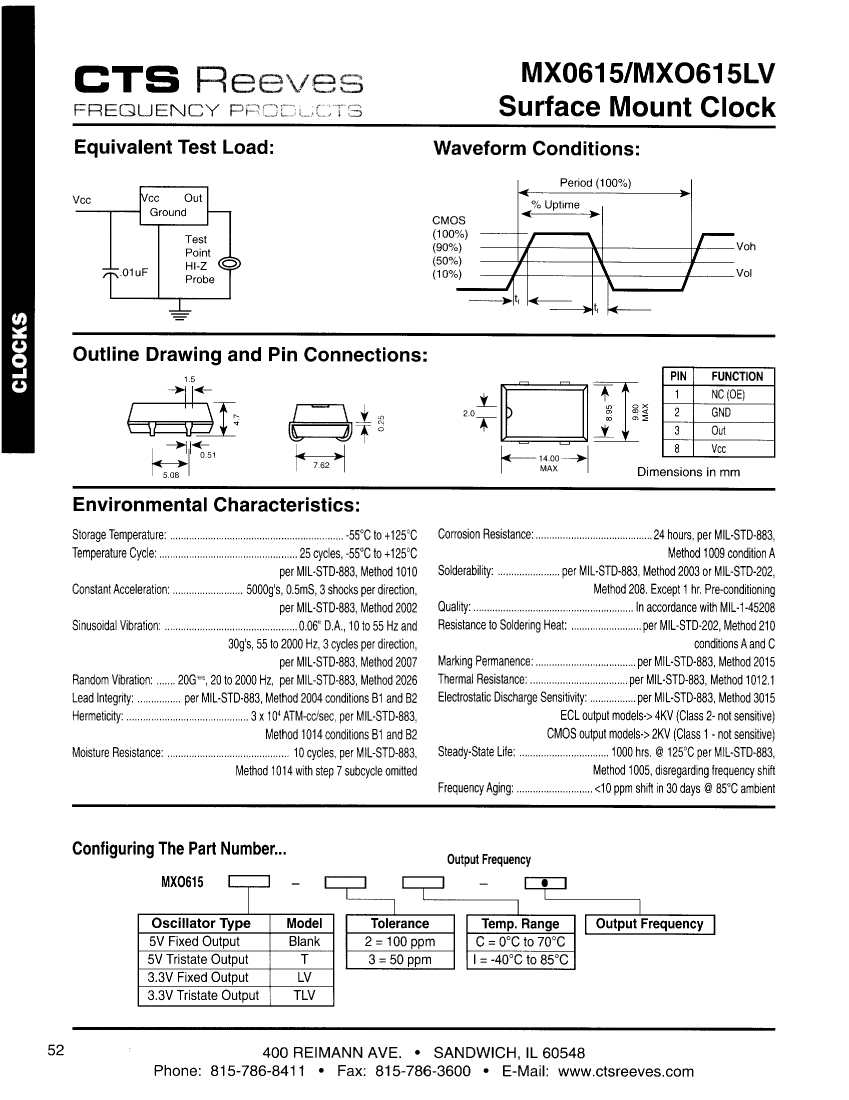

MXO615LV-3C-FREQ-OUT21: DescriptionCMOS Output Clock Oscillator, 1MHz Min, 60MHz Max; CategoryPassive components oscillator; File Size245KB，2 Pages; ManufacturerCTS

Download Datasheet Parametric Compare View All

MXO615LV-3C-FREQ-OUT21 Overview

CMOS Output Clock Oscillator, 1MHz Min, 60MHz Max

MXO615LV-3C-FREQ-OUT21 Parametric

Parameter Name	Attribute value
Maker	CTS
Reach Compliance Code	unknown
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	MXO615LV
Installation features	SURFACE MOUNT
Maximum operating frequency	60 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CMOS
Output load	10 TTL, 50 pF
physical size	14mm x 8.95mm x 4.7mm
longest rise time	10 ns
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

MXO615LV-3C-FREQ-OUT21 Related Products

	MXO615LV-3C-FREQ-OUT21	MXO615TLV-3C-FREQ-OUT21	MXO615T-3I-FREQ-OUT21	MXO615-2C-FREQ-OUT21	MXO615-3C-FREQ-OUT21	MXO615T-2C-FREQ-OUT21	MXO615TLV-3I-FREQ-OUT21	MXO615-2I-FREQ-OUT21	MXO615LV-2C-FREQ-OUT21	MXO615T-3C-FREQ-OUT21
Description	CMOS Output Clock Oscillator, 1MHz Min, 60MHz Max	CMOS Output Clock Oscillator, 1MHz Min, 60MHz Max	CMOS Output Clock Oscillator, 1MHz Min, 60MHz Max	CMOS Output Clock Oscillator, 1MHz Min, 60MHz Max	CMOS Output Clock Oscillator, 1MHz Min, 60MHz Max	CMOS Output Clock Oscillator, 1MHz Min, 60MHz Max	CMOS Output Clock Oscillator, 1MHz Min, 60MHz Max	CMOS Output Clock Oscillator, 1MHz Min, 60MHz Max	CMOS Output Clock Oscillator, 1MHz Min, 60MHz Max	CMOS Output Clock Oscillator, 1MHz Min, 60MHz Max
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
maximum descent time	10 ns	10 ns	8 ns	8 ns	8 ns	8 ns	10 ns	8 ns	10 ns	8 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
frequency stability	50%	50%	50%	100%	50%	100%	50%	100%	100%	50%
Manufacturer's serial number	MXO615LV	MXO615LV	MXO615	MXO615	MXO615	MXO615	MXO615LV	MXO615	MXO615LV	MXO615
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	60 MHz	60 MHz	60 MHz	60 MHz	60 MHz	60 MHz	60 MHz	60 MHz	60 MHz	60 MHz
Minimum operating frequency	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz
Maximum operating temperature	70 °C	70 °C	85 °C	70 °C	70 °C	70 °C	85 °C	85 °C	70 °C	70 °C
Oscillator type	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Output load	10 TTL, 50 pF	10 TTL, 50 pF	10 TTL, 50 pF	10 TTL, 50 pF	10 TTL, 50 pF	10 TTL, 50 pF	10 TTL, 50 pF	10 TTL, 50 pF	10 TTL, 50 pF	10 TTL, 50 pF
physical size	14mm x 8.95mm x 4.7mm	14mm x 8.95mm x 4.7mm	14mm x 8.95mm x 4.7mm	14mm x 8.95mm x 4.7mm	14mm x 8.95mm x 4.7mm	14mm x 8.95mm x 4.7mm	14mm x 8.95mm x 4.7mm	14mm x 8.95mm x 4.7mm	14mm x 8.95mm x 4.7mm	14mm x 8.95mm x 4.7mm
longest rise time	10 ns	10 ns	8 ns	8 ns	8 ns	8 ns	10 ns	8 ns	10 ns	8 ns
Nominal supply voltage	3.3 V	3.3 V	5 V	5 V	5 V	5 V	3.3 V	5 V	3.3 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
maximum symmetry	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %
Maker	CTS	CTS	-	-	-	-	CTS	CTS	CTS	CTS
